Description

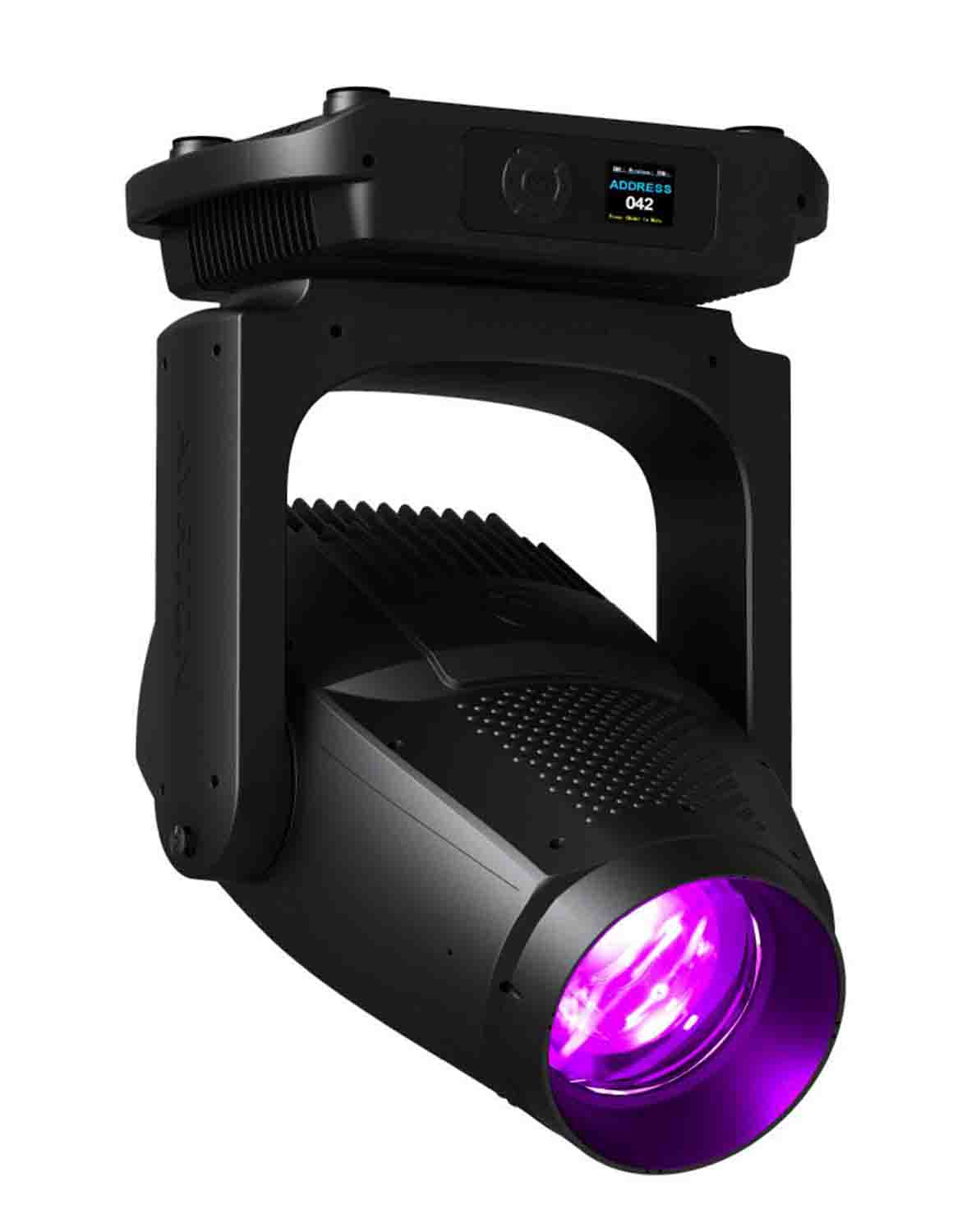

The AYRTON AY012640 Domino-S - 500W LED IP65 Moving Head Profile with 6 to 60 Degree Zoom is equipped with an entirely new 1000 W monochromatic high-efficiency LED emitter calibrated at 8000 K, DOMINO-S can deliver powerful metallic white light with record output of 51,000 lumens at a color temperature of 7000 K, when operating at a steady state. DOMINO-TC is specially designed for situations that require perfect color rendition, it will amaze color aficionados with its C.R.I. greater than 90 and extremely high TM30 readings, at a color temperature of 6000 Kelvin. Designed around the exceptional optics of HURACÁN-X, this luminaire was specifically developed to achieve an optimal resolution-to-performance-to-efficiency ratio. These optics deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images impeccably. Fitted with a 178 mm frontal lens, the proprietary optical system uses 13 lenses, producing a 10:1 zoom ratio and a zoom range of 6° to 60°. Designed to operate in the most extreme situations, DOMINO can resist hot or cold temperatures, wind, rain, hail, salt fog, sand and dust. It can withstand arid environments, heavy rainfall, and sudden climatic variations.

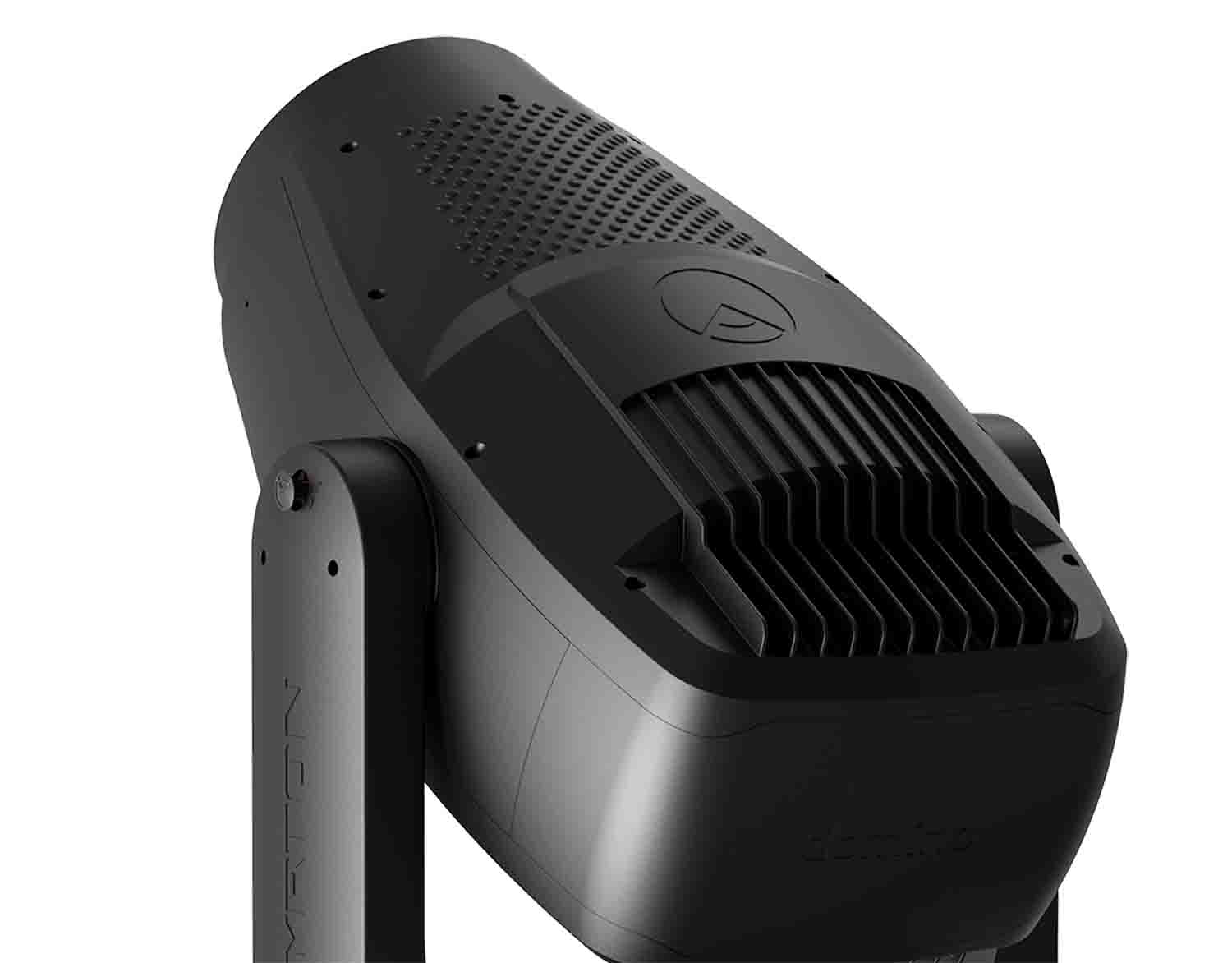

With its new high-efficiency power supply and die-cast aluminum frame, the luminaire uses the same base design in a reduced visual footprint. For maximum effectiveness, DOMINO has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. Feature-rich from the factory, DOMINO includes a subtractive CMY color mixing system combined with a variable CTO and a wheel with six complementary colors. The framing section allows accurate positioning of each shutter blade on a 100% surface area. The image section includes 14 interchangeable HD glass gobos on two wheels. The effects section contains two continuous dynamic effect-wheels, a CMY multi-layered wheel for creating multi-colored effects, a standard monochromatic effect-wheel, a 15-blade iris diaphragm, two frost filters (one for light and one for heavy diffusion), two rotating prisms (one circular with 5 facets and one linear with 4 facets). DOMINO is The Master of the Elements, ready for the most extreme conditions.

Product Specification:

Fixture Class (LED / Arc): 1000 W / 1700 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 178mm

Optic Efficiency: 0.68

Beam Aperture: 6° to 60°

Zoom Elements / Range: 13 Elements / 10:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 1000 Watt / 1

Colour Rendering Index: >70 (>90)

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 280°

Colours:

Colour Mixing: CMY

Colour Depth: 16.7 million

Gobos/Effects:

Fixed Gobos (number/wheel): No

Rotating Gobos (number/wheel): 14 Gobos / 2 Wheel

Iris Diaphragm: Yes- 15% to 100%

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic (1-25 fps)

Software Features:

Information Menu: Yes

Back-lit LCD Display Functions: Yes

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 44 to 66

Electronic Power Supply:

Range: 100 to 240 Volts

Frequency Range: 50-60Hz

Power Consumption Maximum: 1700 W

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: Die-Cast Aluminum

Front Window: No

Protection Rating: IP65

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Permitted Ambient Temperature: -20 to 45°C

Maximum Ambient Humidity: 1

Dimensions & Weight:

Dimensions (mm): 490 x 841 x 330

Flight-case Foam Dimensions (mm): 715 x 665 x 555

Weight (Kg): 52

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

Variable PWM Control: Yes
