Description

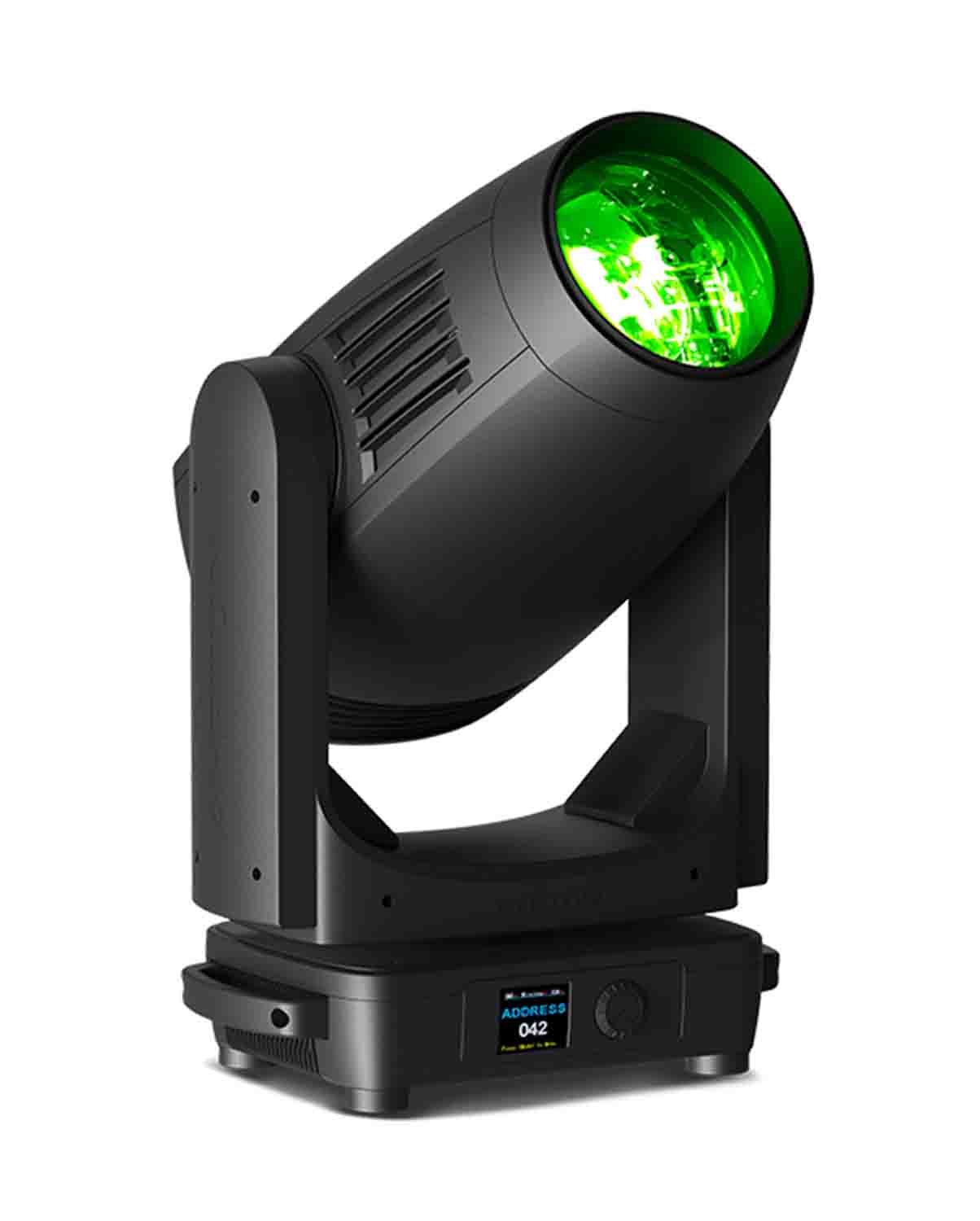

The AYRTON AY011545 Eurus-TC 650W LED Profile - 4.5 to 50 degree has developed a new high efficiency power supply in a completely new die-cast aluminum base that occupies 33% less volume than other appliances in the same category. A lighter internal structure and brand-new miniature stepper motors add to the final result. This new luminaire boasts optics specially developed for applications that require perfect image reproduction and greatly reduced distortion thanks to the wide zoom shutter blades. Equipped with a 170mm front lens, the optical assembly / system uses 13 lenses, offering a 4.5 ° to 50 ° zoom with an 11: 1 ratio.
EURUS-S, is the ideal product for live shows, stage applications. EURUS-S is equipped with a new monochromatic, ultra-compact 650 W LED emitter calibrated at 8000 ° K, which allows to deliver ultra-daylight white light with a power of 32,000 Lumens at a color temperature of 6700 ° K.
EURUS-TC is designed for applications that require perfect color rendering, using a monochromatic light source with a native color rendering index greater than 90, at a color temperature of 6000 ° K.
EURUS includes a subtractive CMY color mixing system combined with a variable CTO and a complementary seven-position color wheel capable of managing an infinite color palette with a color shift capable of achieving pastel colors, vivid colors and saturated colors. In addition to that, the color section contains two additional filters to optimize the color rendering index and the TM30. The framing section allows for accurate positioning of each shutter blade over an area of 100% with respect to all positions, so that the operator can frame any object regardless of the position angle of the luminaire. The image section includes 18 gobos in HD glass interchangeable on two wheels: a rotating wheel with seven positions and a fixed wheel with eleven positions. The effects section includes a continuous dynamic effects wheel, 15-blade iris diaphragm, two frost filters (one for light and one for accentuated diffusion), two combinable rotating prisms (one circular with 5 facets and one linear with 4 facets). EURUS has a highly efficient, phase change liquid cooling system, which uses a heat pipe that integrates a very effective ultra-quiet ventilation mode, designed for both studio and stage applications.
Product Specifications:
Fixture Class (LED / Arc): 650 W / 1200 W
Source: LED
Optics:
Optic Type: Motorized zoom system
Optic Size / Diameter: 170 mm front lens
Optic Efficiency: 0.69
Beam Aperture: 4.5° to 50°
Zoom Elements / Range: 13 Elements / 11:1
Light Source:
Architecture: White Light Engine
Power Source / Number: 650 Watt / 1
Light Engine Output (lm): 45,500 lm (32,000 lm)
Rated Life (hours): L70 40,000 h
Movement:
Rotation Type / Range: Pan 540° - Tilt 280°
Colours:
Colour Mixing: CMY
Colour Depth: 16.7 million
Colour Temperature Correction: Yes / Variable
Fixed Colours (number/wheel): 7 colours / 1 Wheel
Gobos/Effects:
Frost filter: 2 Frost / Soft & Hard Edge
Iris Diaphragm: Yes
Dimmer: Electronic
Dynamic LED FX: No
Strobe: Electronic
Software Features:
Information Menu: Yes
Back-lit LCD Display Functions: Yes
Control:
Data Protocol: DMX 512 - RDM
Ethernet Protocol: ArtNet - sACN
Channel Control: 39 to 62
Electronic Power Supply:
Range: 100 to 240 Volts
Frequency Range: 50-60Hz
Power Consumption Maximum: 1000 W
Cooling System:
Type: Forced ventilation
System: Heatpipe technology
Temperature Protection: Yes
Housing:
Body Material: Aluminium and Steel metal plates
Cover Material: ABS PC (V0 class)
Front Window: No
Protection Rating: IP20
Exterior Finish: Black
Installation:
Operating Positions: Any
Suspension System: 2 Omega brackets
Safety Cable Attachment Point: Yes
Operating Parameters:
Permitted Ambient Temperature: -10 to 45°C
Maximum Ambient Humidity: 75% at 25°C
Dimensions & Weight:
Dimensions (mm): 445 x 743 x 273
Flight-case Foam Dimensions (mm): 655 x 590 x 555
Weight (Kg): 32.9
Others:
dBA Rating (1m): 0
Warranty in years (Fixture / Source): 44594
Variable PWM Control: Yes
SIP included: Yes
Product Specification:
Dimensions: 25.78 x 23.22 x 21.85
Weight: 72.53
