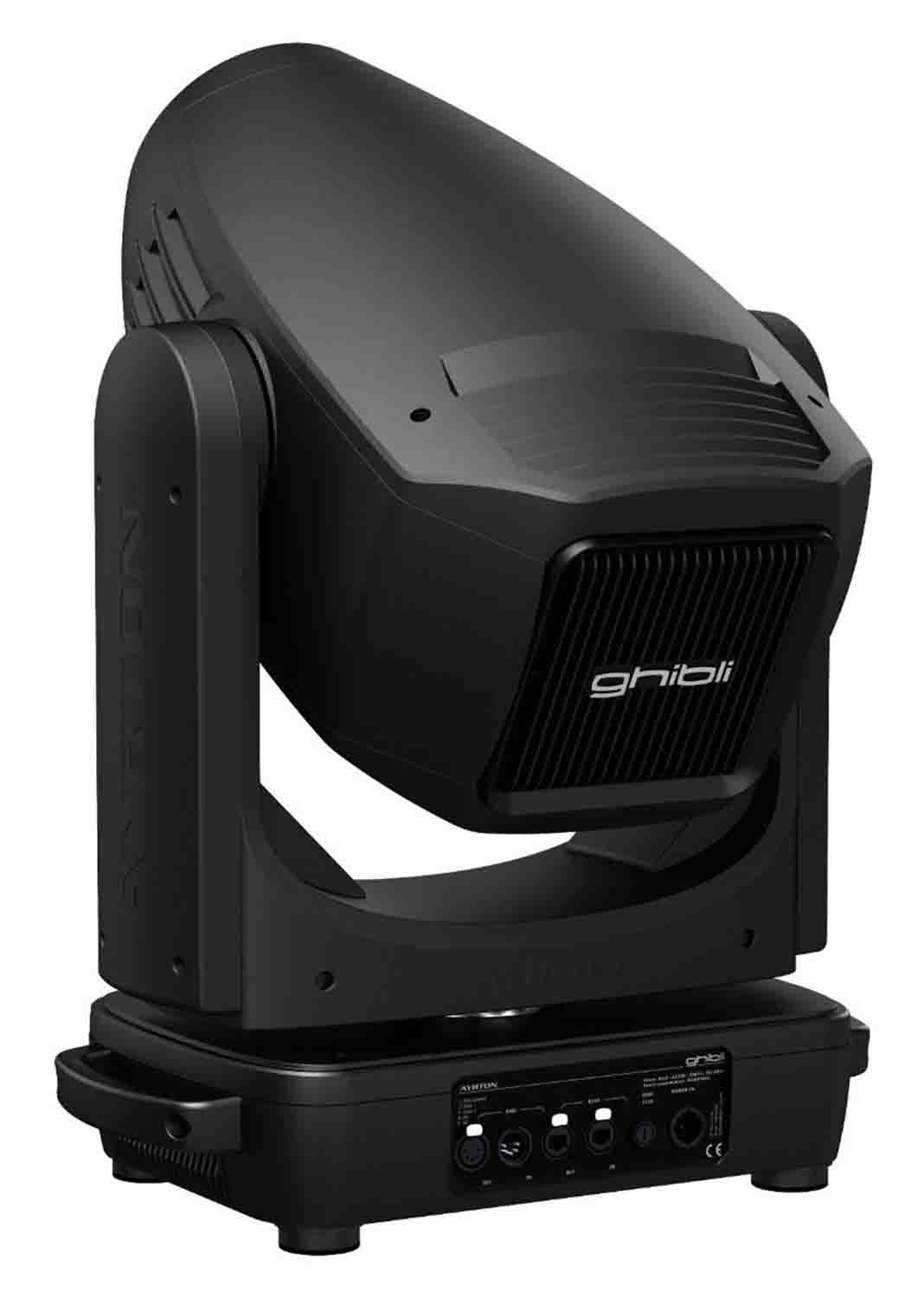

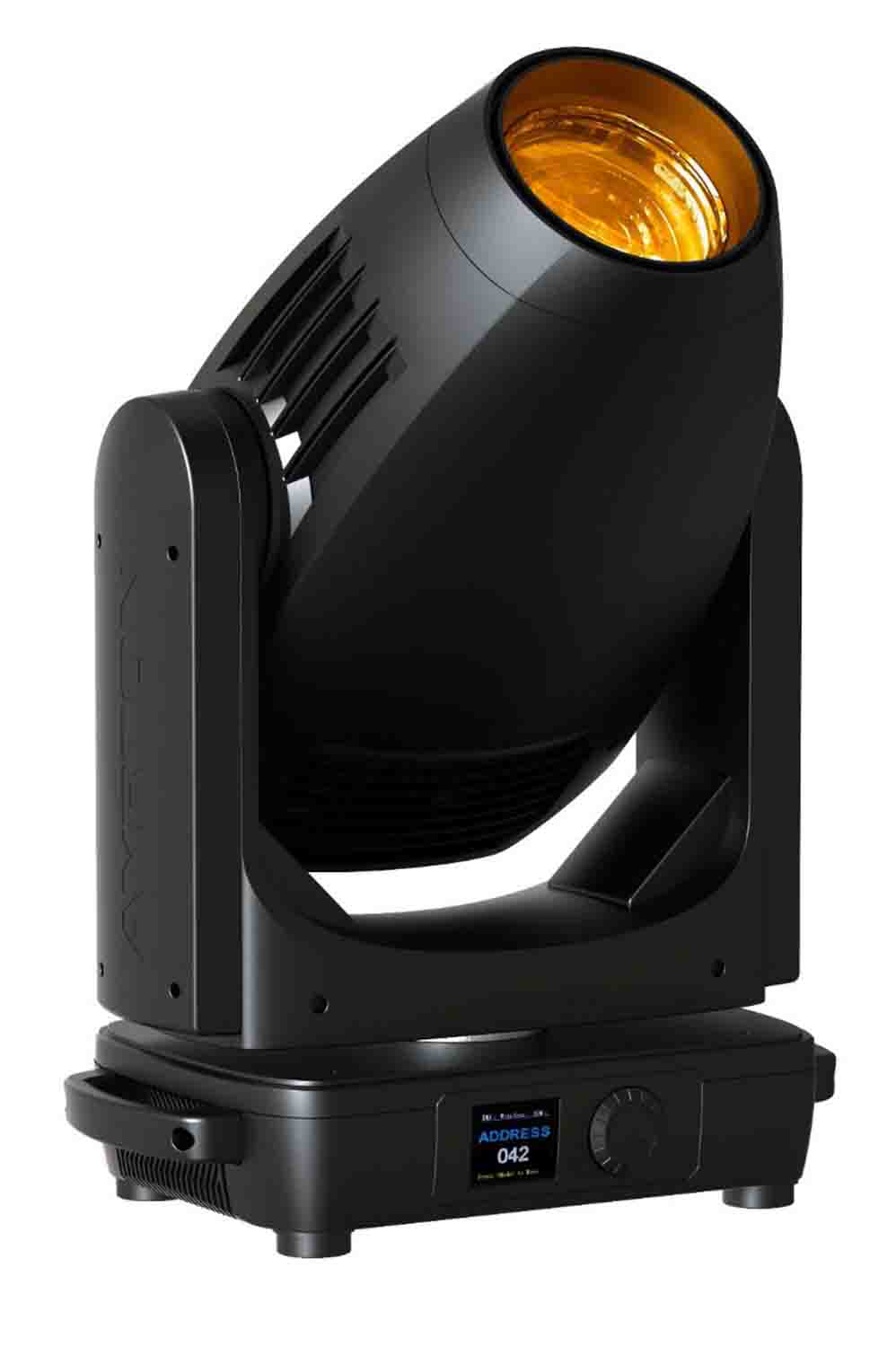

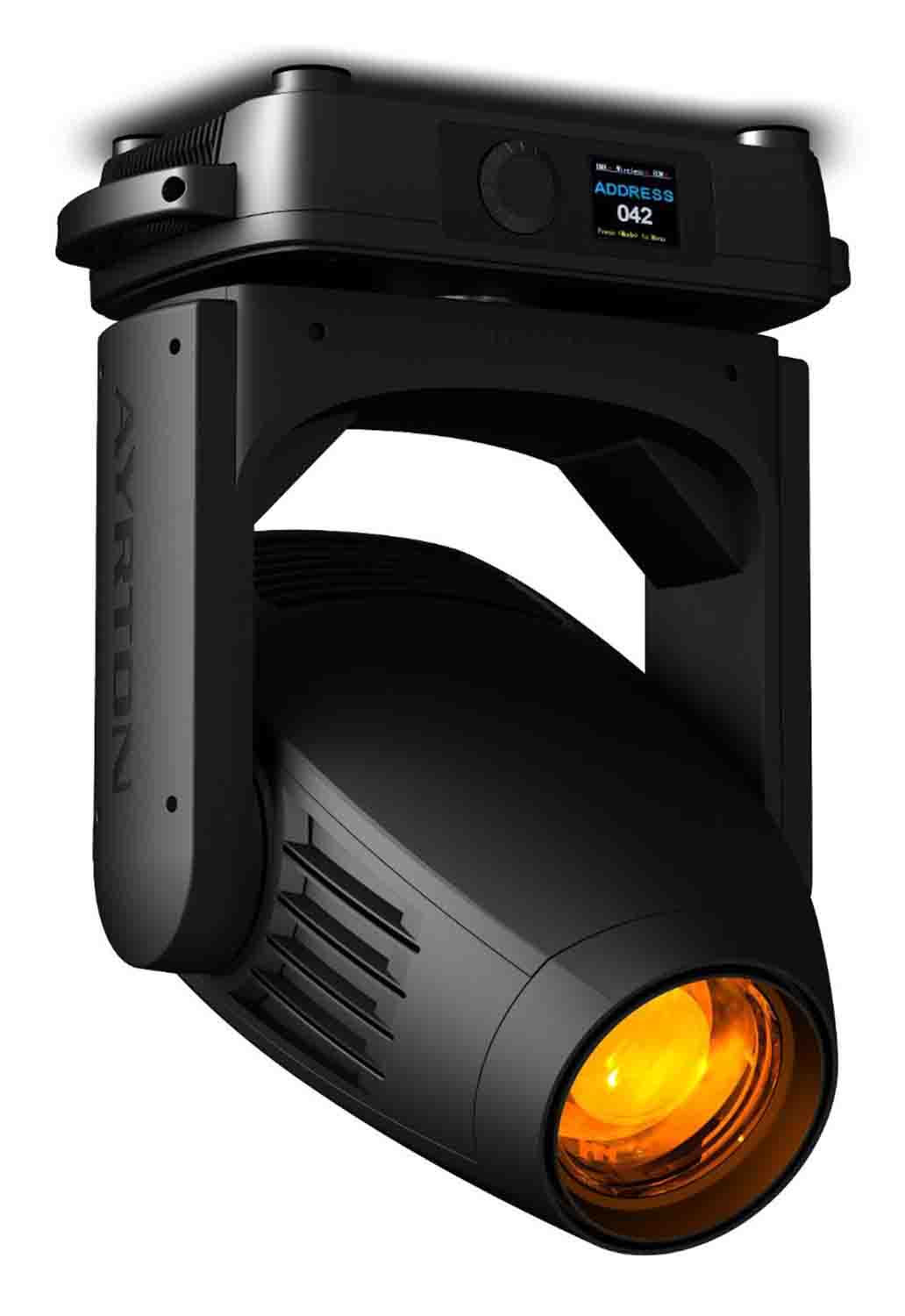

Ayrton Ghibli 600-Watt LED Moving Head Spot

The Ayrton AY011450, Ghibli 600-Watt LED Moving Head Spot is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise. Fitted with a LED module using a high-output, low-etendue monochromatic light source calibrated at 6500 K, GHIBLI delivers light output of 23,000 lumens in a highly compact format. The selection of gobos and colors was made in collaboration with lighting designers to meet the needs of the entertainment industry. Ayrton has concentrated its expertise into one, single fixture Ghibli to offer you a maximum of possibilities.

Standard features on GHIBLI include a CMY colour mixing system combined with a variable CTO and a six-position complementary colour wheel to produce in an infinite palette of pastels and saturated colours. The luminaire is fitted with an entirely new filter for optimising the colour rendering index. The framing system allows each frame to be positioned with precision on a 100% surface area in all positions. The effects section includes two wheels with interchangeable HD glass gobos: one with seven rotating and the other with eight fixed gobos; a continuous dynamic effects wheel; an iris diaphragm; two frost filters and a five-facet rotating prism. GHIBLI is equipped with a new, highly effective phase-change liquid cooling system using a heat pipe.

Product Specification:

Fixture Class (LED / Arc): 600 W / 1200 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 137 mm front lens

Optic Efficiency: 0.64

Beam Aperture: 7° to 56°

Zoom Elements / Range: 13 Elements / 8:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 600 Watt / 1

Light Engine Output (lm): 36,000 lm (26,000 lm)

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 280°

Colours:

Colour Mixing: CMY

Colour Depth: 16.7 million

Colour Temperature Correction: Yes / Variable

Fixed Colours (number/wheel): 6 colours / 1 Wheel

Rotating Effect: 5-facet Prism

Frost filter: 2 Frost / Soft & Hard Edge

Iris Diaphragm: Yes

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic

Software Features:

Information Menu: Yes

Back-lit LCD Display Functions: Yes

Menu Buttons for Setting Functions: Clicking Jog Wheel

Input/Output Power Connector: PowerCON TRUE1 In

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 36 to 58

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: ABS PC (V0 class)

Front Window: No

Protection Rating: IP20

Exterior Finish: Black

Installation:

Dimensions & Weight:

Dimensions (mm): 468 X 734 X 280

Flight-case Foam Dimensions (mm): 655 x 590 x 555

Weight (Kg): 35.6

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

Variable PWM Control: Yes
