Description

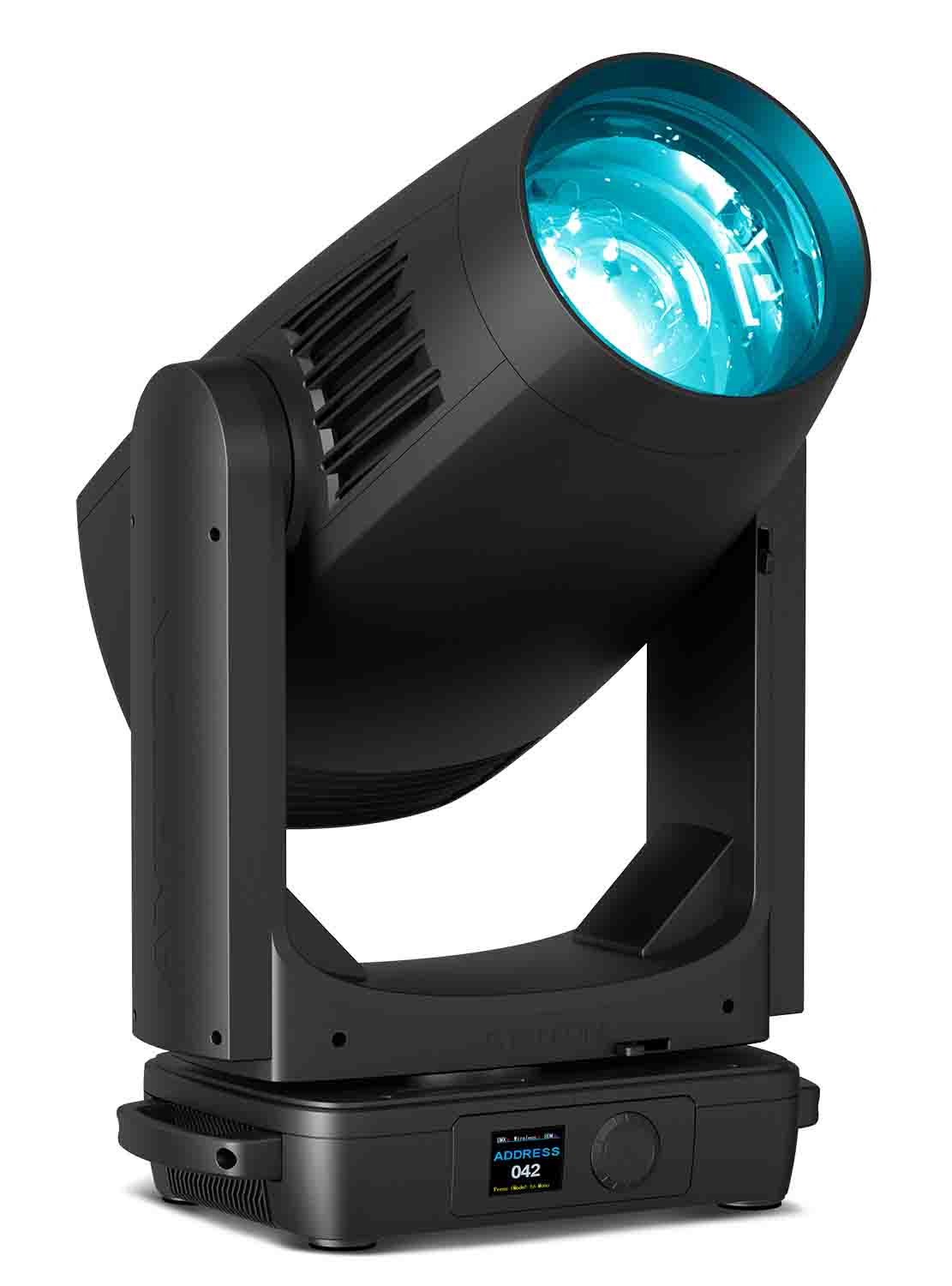

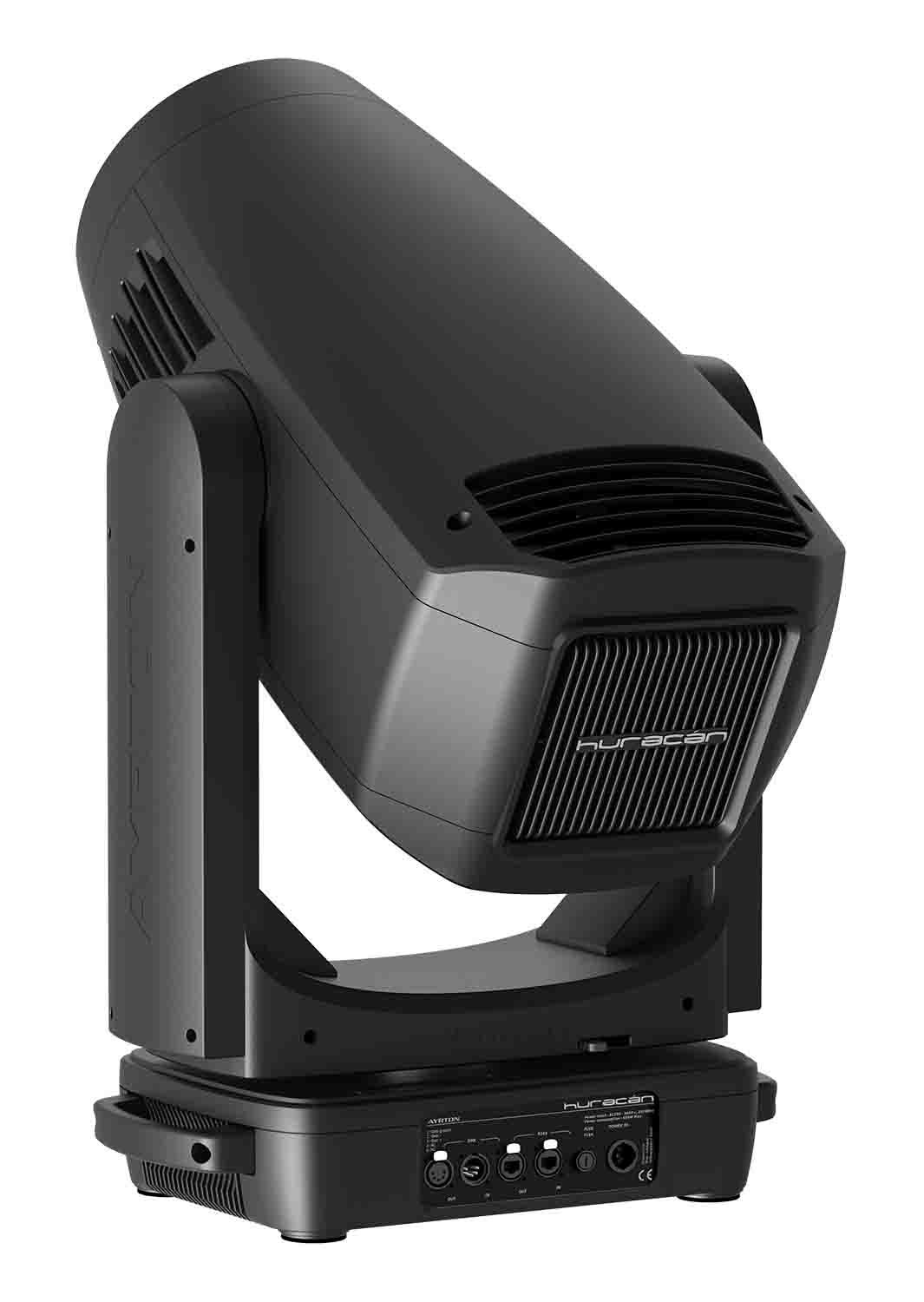

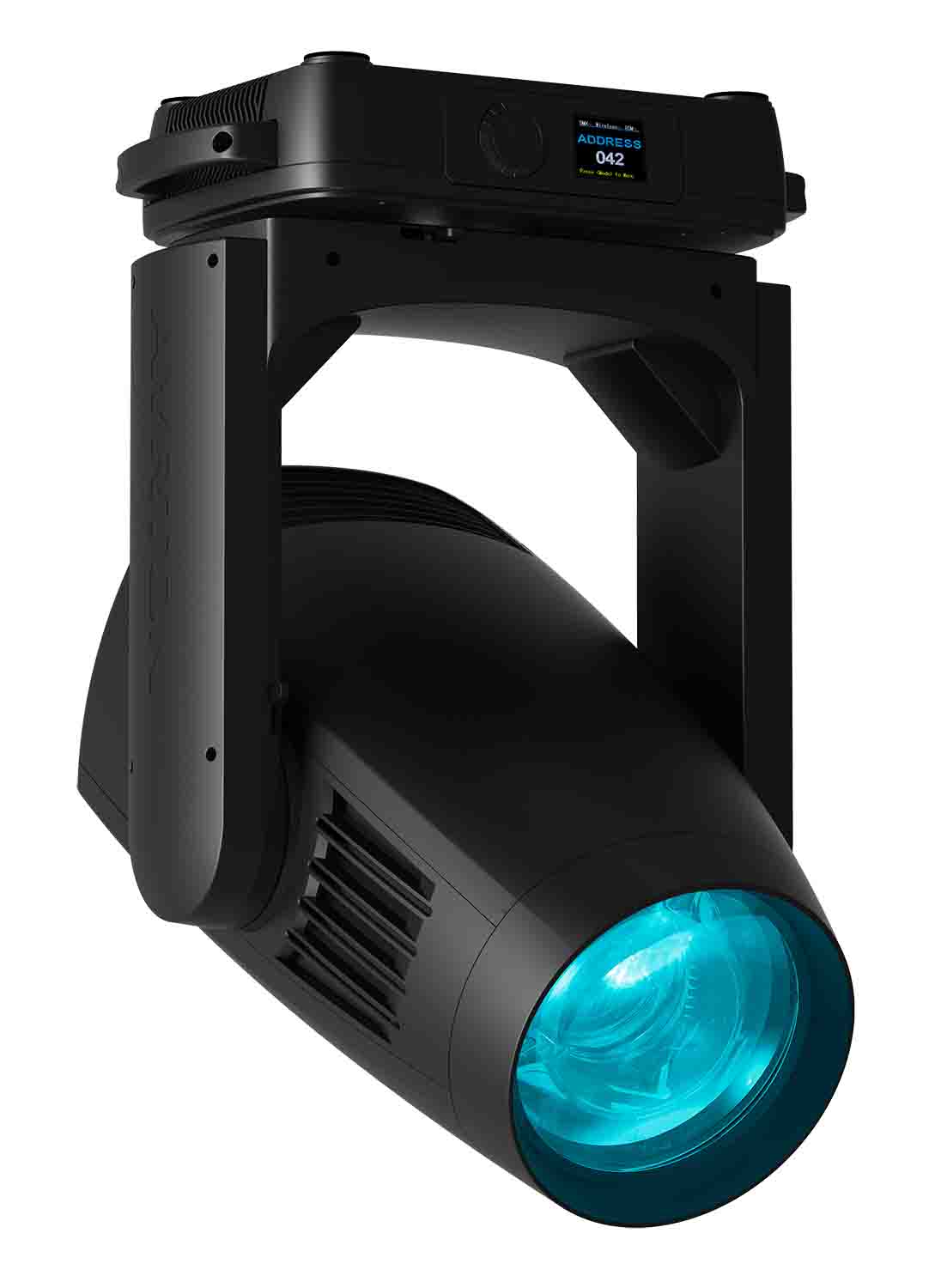

The Ayrton AY010860 Huracán-LT 1,000W LED Profile, 3 to 42 degree is the first LED luminaire in the brand-new line of “LT” (Long Throw) products dedicated to long-range applications. To achieve an ultra-intense beam from a LED source, AYRTON has added 225 mm-diameter, extra-large frontal optics weighing 7 kg. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53. Fitted with a next-generation, oversized liquid phase-change cooling system and a new high-efficiency 1000 W LED module, HURACÁN LT delivers record light output of 51,000 lumens at a color temperature of 6700 Kelvin when operating at a steady state. Provided with multiple optical tools designed for shaping light, HURACN LT is factory-equipped with a removable high-transmission diffusion filter to erase the edge of the beam without changing its angle; a progressive linear frost system for precision adjustment of the desired diffusion level for creating artificial wash effects; and two combinable image-multiplying rotating prisms - one linear with four facets, and the other circular with five facets.
HURACN LT has adopted the same revolutionary complex color mixing system as HURACN PROFILE offering a double saturation level that can obtain over a billion colors (patent pending) and a triple variable color temperature corrector that allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. HURACN LT features an advanced framing section, which enables accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire & position. The effects section includes two superimposed rotating gobo wheels each with seven HD glass gobos; a 15-blade iris diaphragm; a monochromatic multi-position effects wheel for horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending) and a CMY and RGB effects wheel for unique multicolor effects. HURACN LT, which combines exceptional light power and an ultra-intense beam with standard equipment in a class by itself, is a formidable tool for large venues, such as arenas and stadiums dedicated to major events.
Product Specifications:
Fixture Class (LED / Arc): 1000 W / 1700 W
Source: LED
Optics:
Optic Type: Motorized zoom system
Optic Size / Diameter: 225mm
Optic Efficiency: 0
Beam Aperture: 3.5° to 53°
Zoom Elements / Range: 13 Elements / 15:1
Light Source:
Architecture: White Light Engine
Power Source / Number: 1000 Watt / 1
Light Engine Output (lm): 75,000 lm
Colour Temperature (LED / Fixture): 8,200 K / 6,700 K
Colour Rendering Index: >70
Luminaire Light Output (lm), (Sphere): 51,000 lm
Rated Life (hours): L70 40,000 h
Movement:
Rotation Type / Range: Pan 540° - Tilt 270°
Colours:
Colour Mixing: CMY + CTO,CTB,CTP
Colour Depth: 16.7 million
Colour Temperature Correction: Yes / CTO / CTB / CTP Variable
Fixed Colours (number/wheel): 6 colours / 1 Wheel
Gobos/Effects:
Fixed Gobos (number/wheel): No
Rotating Gobos (number/wheel): 14 Gobos in 2 Wheels
Gobo type / Size (mm) / Image (mm): HD Glass / 30 / 25
4 blades Framing System: 4 focal planes / Integral (+/- 60˚)
Graphic Animation Wheel (type): 1 multi-position & 1 color graphic
Rotating Effect: 5-facet circular, 4-facet linear Prisms
Frost filter: 2 Frost / Soft & Hard Edge
Iris Diaphragm: Yes- 15% to 100%
Dimmer: Electronic
Dynamic LED FX: No
Strobe: Electronic (1-25 fps)
Software Features:
Information Menu: Yes
Back-lit LCD Display Functions: Yes
Input/Output Ethernet Connector: etherCON CAT5
Input/Output Power Connector: PowerCON TRUE1 In
Control:
Data Protocol: DMX 512 - RDM
Ethernet Protocol: ArtNet - sACN
Channel Control: 44 to 70
Electronic Power Supply:
Range: 100 to 240 Volts
Frequency Range: 50-60Hz
Power Consumption Maximum: 1,600 W
Cooling System:
Type: Forced ventilation
System: Heatpipe technology
Temperature Protection: Yes
Housing:
Body Material: Aluminium and Steel metal plates
Cover Material: ABS PC (V0 class)
Front Window: No
Protection Rating: IP20
Exterior Finish: Black
Installation:
Operating Positions: Any
Suspension System: 2 Omega brackets
Safety Cable Attachement Point: Yes
Operating Parameters:
Permitted Ambient Temperature: -10 to 45°C
Maximum Ambient Humidity: 75% at 25°C
Dimensions & Weight:
Dimensions (mm): 494 x 867 x 280
Flight-case Foam Dimensions (mm): 745 x 550 x 660
Weight (Kg): 48
Others:
dBA Rating (1m): 0
Warranty in years (Fixture / Source): 44594
Variable PWM Control: Yes
SIP included: Yes
