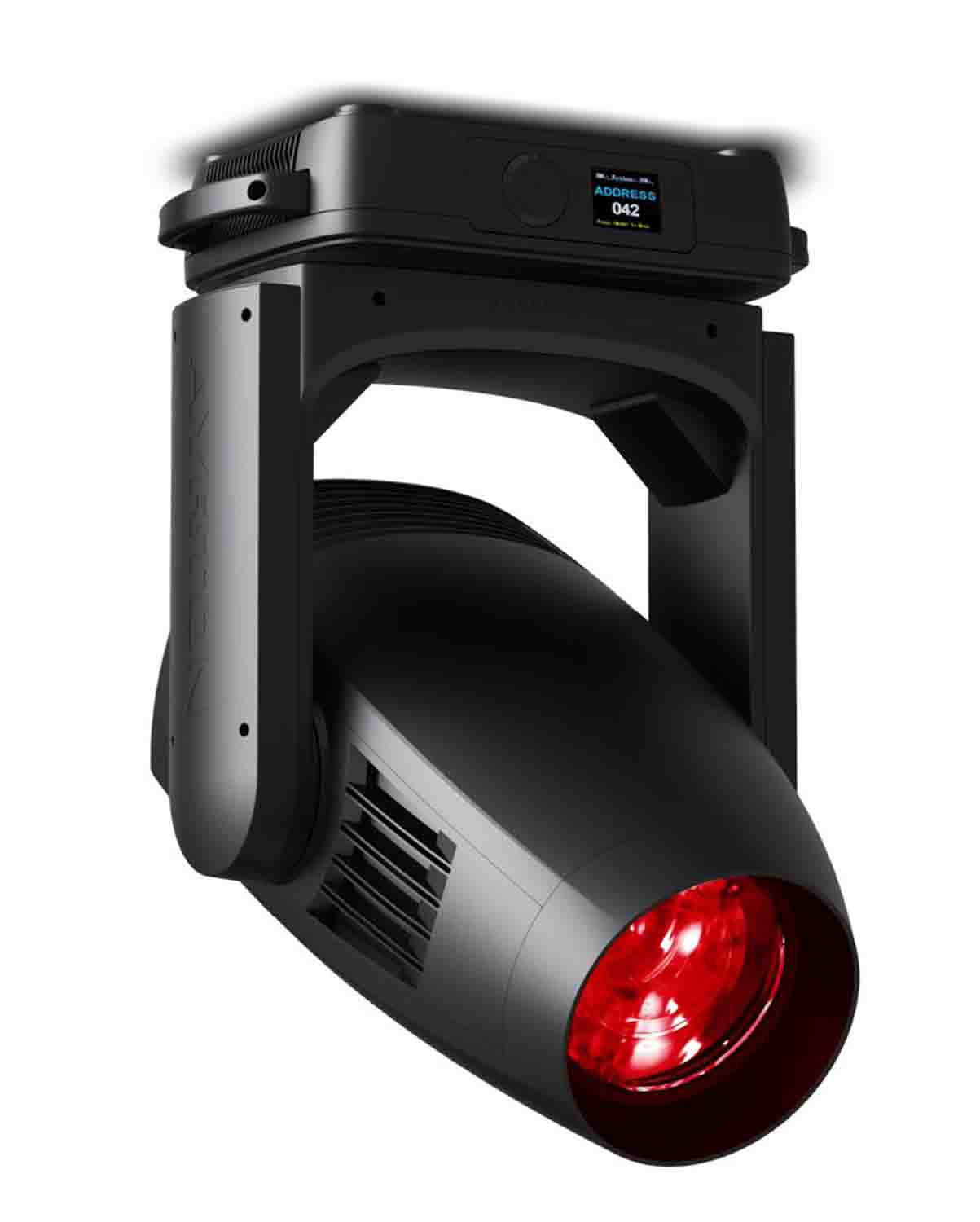

Ayrton Huracán Profile 1000W LED Moving Head Profile with 6 to 60 Degree Zoom

The AYRTON Huracán Profile 1000-Watt Led Moving Head Profile with 6 to 60 Degree Zoom is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself - a formidable graphical tool for enhancing creativity. Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a color temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY color mixing system that can generate billions of colors (patent pending) with a triple variable color temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing a 10:1 zoom ratio and a zoom range of 6° to 60°.

Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolor effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.

Product Specifications:

Fixture Class (LED / Arc): 1000 W / 1500 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 178mm

Optic Efficiency: 0.667

Beam Aperture: 6° to 60°

Zoom Elements / Range: 13 Elements / 10:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 1000 Watt / 1

Light Engine Output (lm): 75,000 lm

Colour Temperature (LED / Fixture): 8,000 K / 7,000 K

Colour Rendering Index: >70

Luminaire Light Output (lm), (Sphere): 53,000 lm

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 270°

Colours:

Colour Mixing: CMY + CTO,CTB,CTP

Colour Depth: 16.7 million

Colour Temperature Correction: Yes / Variable

Fixed Colours (number/wheel): 6 colours / 1 Wheel

Gobos/Effects:

Fixed Gobos (number/wheel): No

Graphic Animation Wheel (type): Yes, 2/ 1 multi-position, 1 color graphic

Iris Diaphragm: Yes

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic

Software Features:

Information Menu: Yes

Software Upgrading Via DMX Signal: Yes

Back-lit LCD Display Functions: Yes

Menu Buttons For Setting Functions: Clicking Jog Wheel

Integrated Wireless Receiver: LumenRadio CRMX TiMo

Input/Output Data Connector: XLR-5

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 44 to 70

Electronic Power Supply:

Range: 100 to 240 Volts

Frequency Range: 50-60Hz

Power Consumption Maximum: 1,400 W

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: ABS PC (V0 class)

Front Window: No

Protection Rating: IP20

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Permitted Ambient Temperature: -10 to 45°C

Maximum Ambient Humidity: 75% at 25°C

Dimensions & Weight:

Dimensions (mm): 486 x 811 x 294

Flight-case Foam Dimensions (mm): 710 x 575 x 650

Weight (Kg): 44

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

Variable PWM Control: Yes

SIP included: Yes
