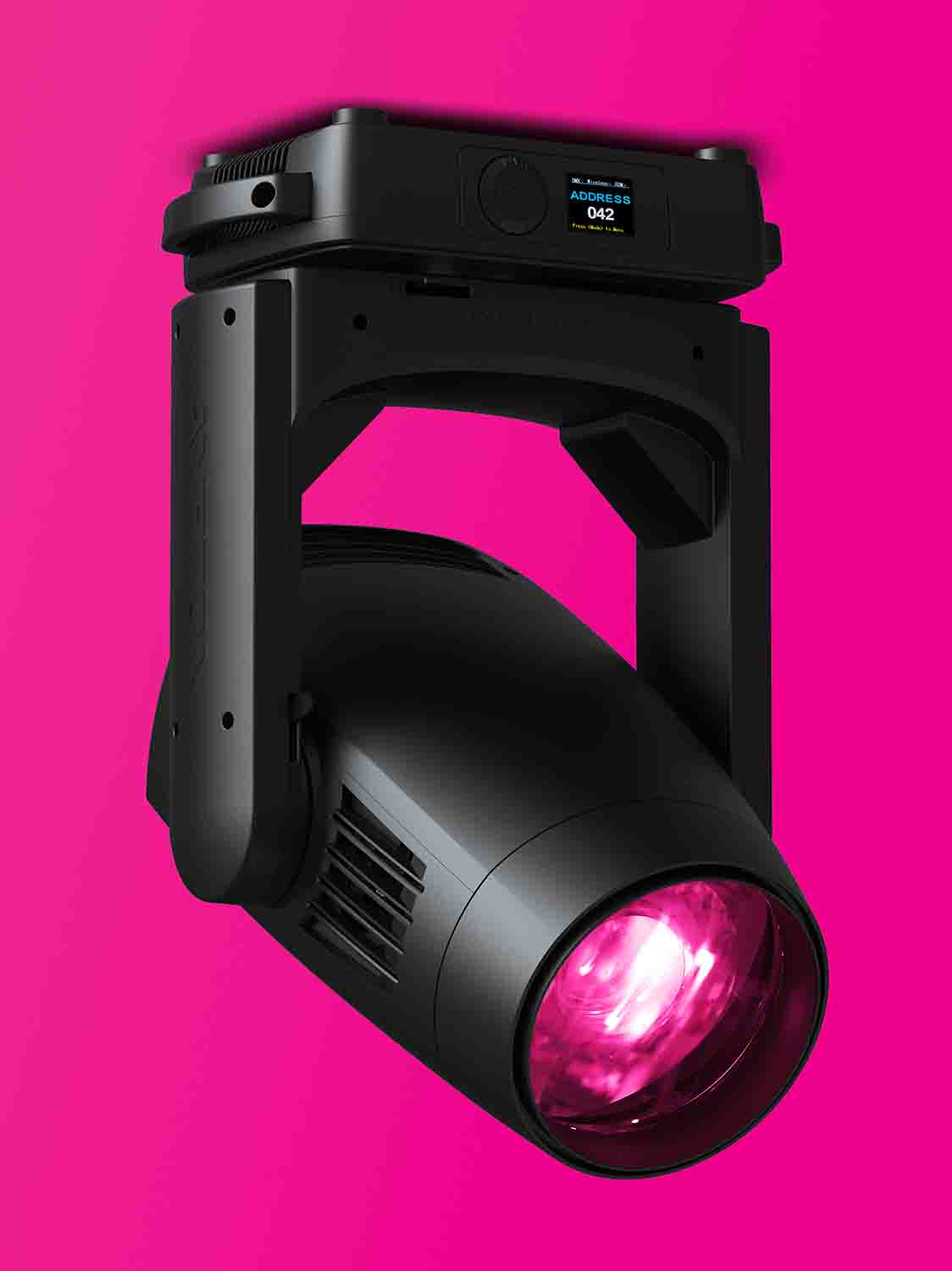

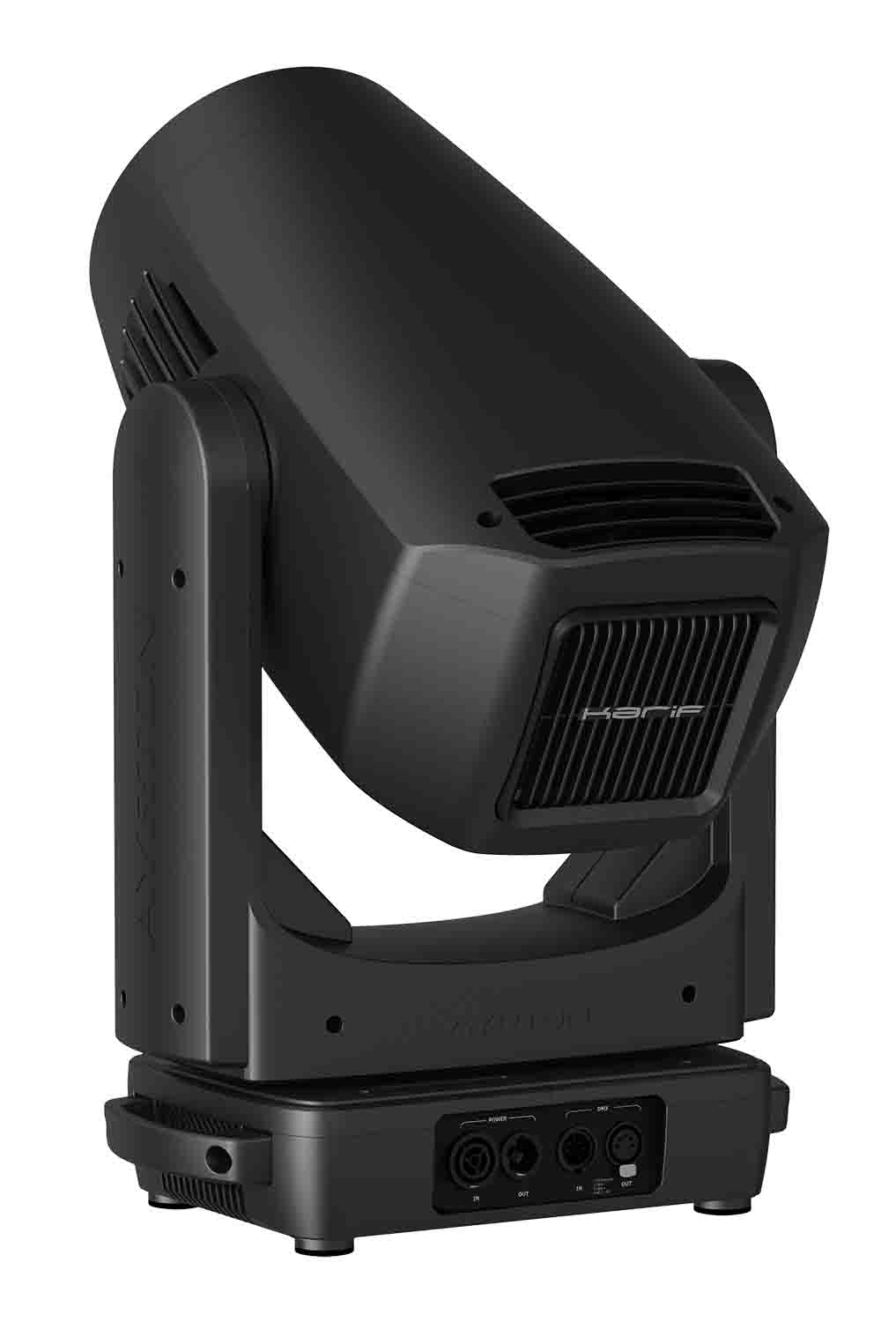

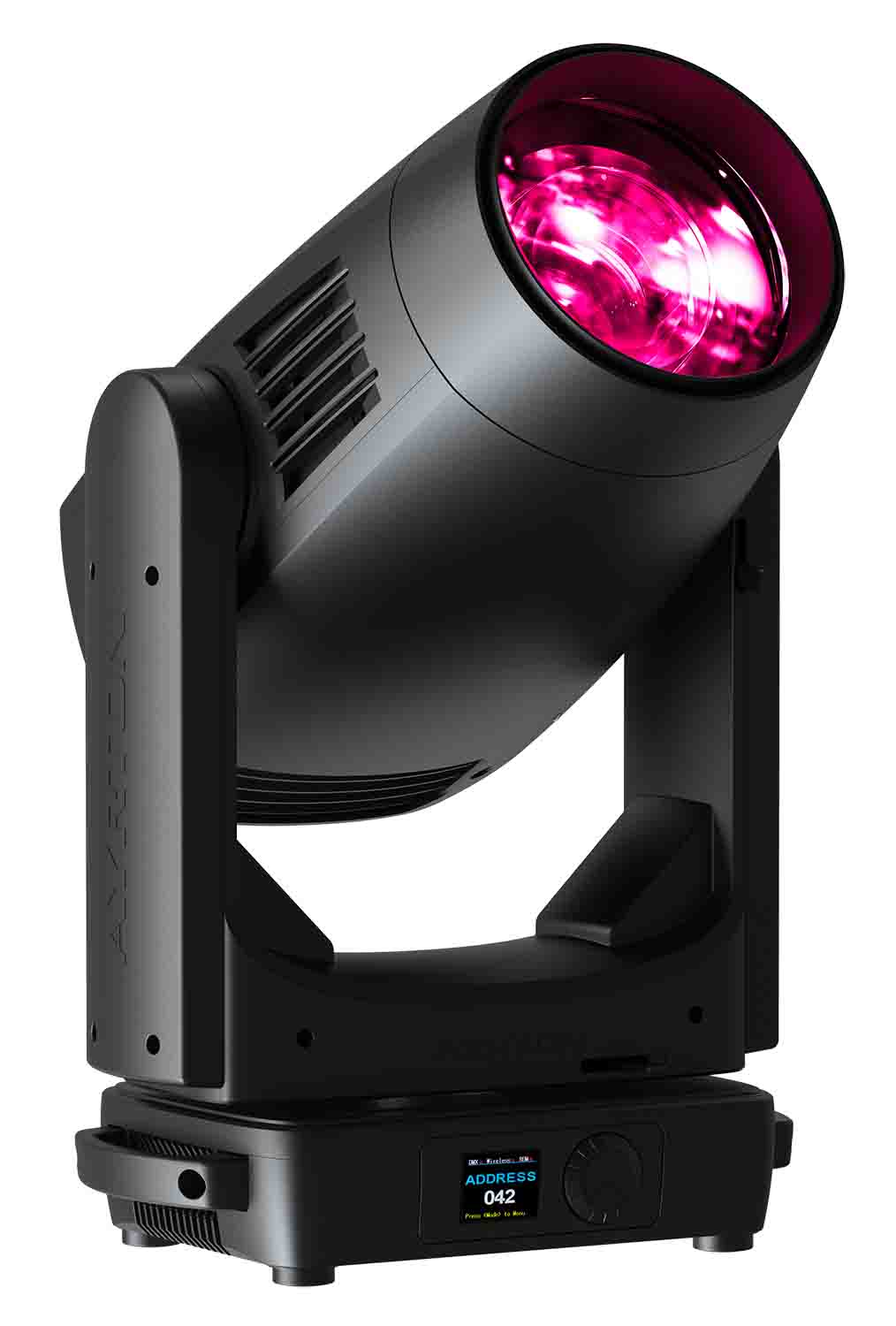

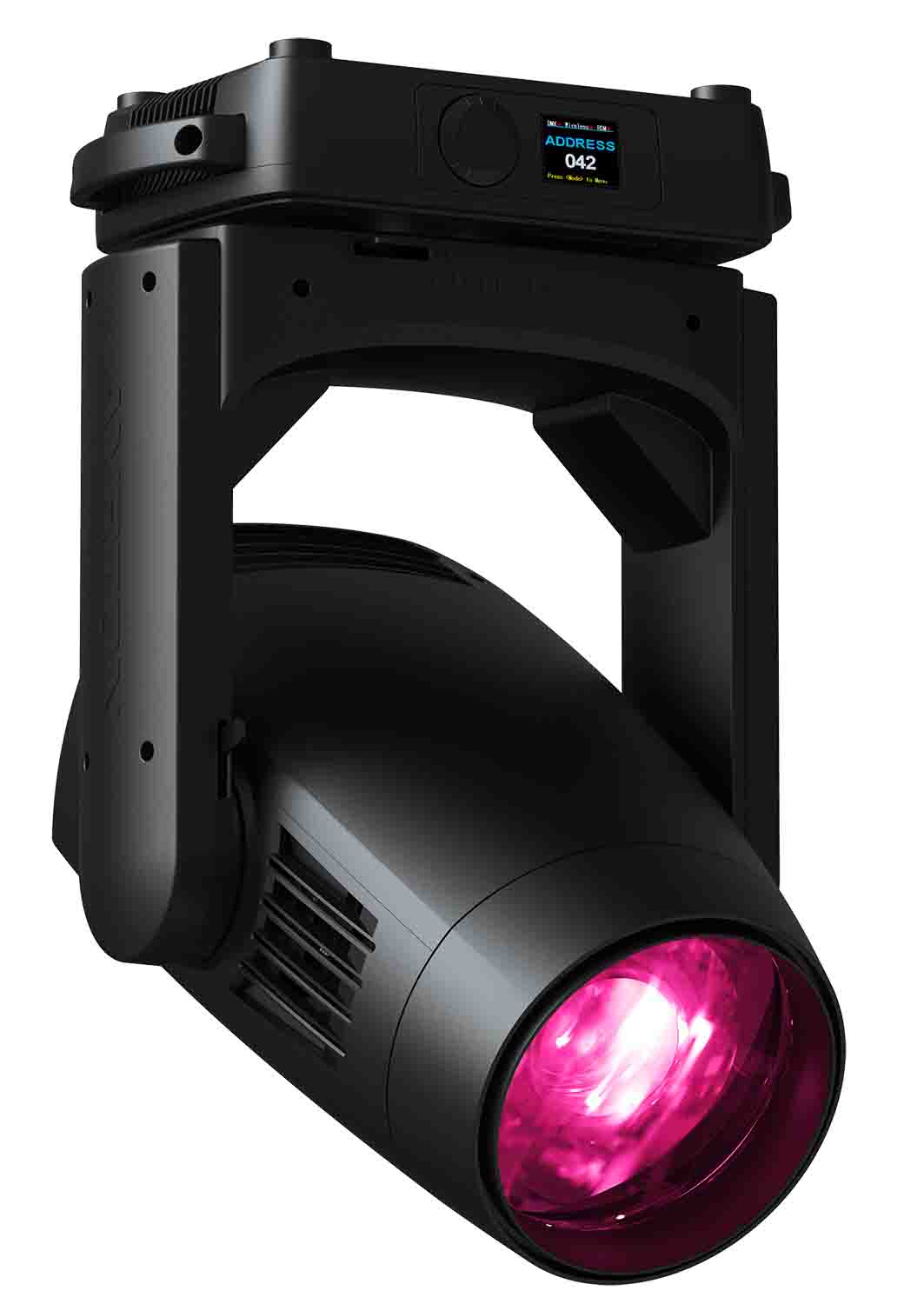

Ayrton Karif-LT 300W LED Moving Head Spot with 3 to 45 Degree Zoom

The Ayrton AY011170 Karif-LT 300W LED Moving Head Spot with 3 to 45 Degree Zoom equipped with a 168 mm frontal lens, KARIF offers an astronomical zoom ratio of 17:1 and a zoom range of 2.8° to 47°. To achieve an ultra-intense beam with an LED source, AYRTON uses an entirely new miniaturized high-efficiency low-etendue compact LED module. Calibrated at 8000 K, it can generate powerful metallic white light and deep, vivid colors suitable for this type of application. KARIF provides overall output of 14,000 lumens at a color temperature of 6500 K. In this first hybrid LED luminaire, AYRTON has added continuous rotation to its panoramic movement to expand the possibilities for creating complex special effects.

four color-temperature correction filters, and nine complementary color filters on two concentric circles (patent pending). The effect section includes one wheel with nine interchangeable rotating HD glass gobos. For KARIF-LT to reproduce multiple images, AYRTON has developed a totally new wheel of fixed multi-position gobos with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending). KARIF is also equipped with a bi-directional continuous dynamic effects wheel. The prism effect system comprising four individually combinable prisms, coupled with 48 fixed and rotating gobos and an ultra-intense beam, can create unusual and spectacular kaleidoscopic effects.

Product Specification:

Fixture Class (LED / Arc): 300W / 700 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 168 mm front lens

Optic Efficiency: 0.7

Beam Aperture: 2.8° to 47°

Zoom Elements / Range: 13 Elements / 14:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 300 Watt / 1

Light Engine Output (lm): 20,000 lm

Rated Life (hours): L70 40,000 h

Colours:

Colour Mixing: CMY

Colour Depth: 16.7 million

Colour Temperature Correction: Yes

Gobos/Effects:

Fixed Gobos (number/wheel): 39 Gobos / 1 Wheel - (19x Glass)

Frost filter: 2 Frost / Soft & Hard Edge

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic

Software Features:

Information Menu: Yes

Back-lit LCD Display Functions: Yes

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: No

Channel Control: 32 to 46

Electronic Power Supply:

Frequency Range: 50-60Hz

Power Consumption Maximum: 550 W

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: ABS PC (V0 class)

Front Window: No

Protection Rating: IP20

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Permitted Ambient Temperature: -10 to 45°C

Dimensions & Weight:

Dimensions (mm): 365 x 622 x 212

Flight-case Foam Dimensions (mm): 430 x 660 x 280

Weight (Kg): 27

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

Variable PWM Control: Yes

SIP included: Yes
