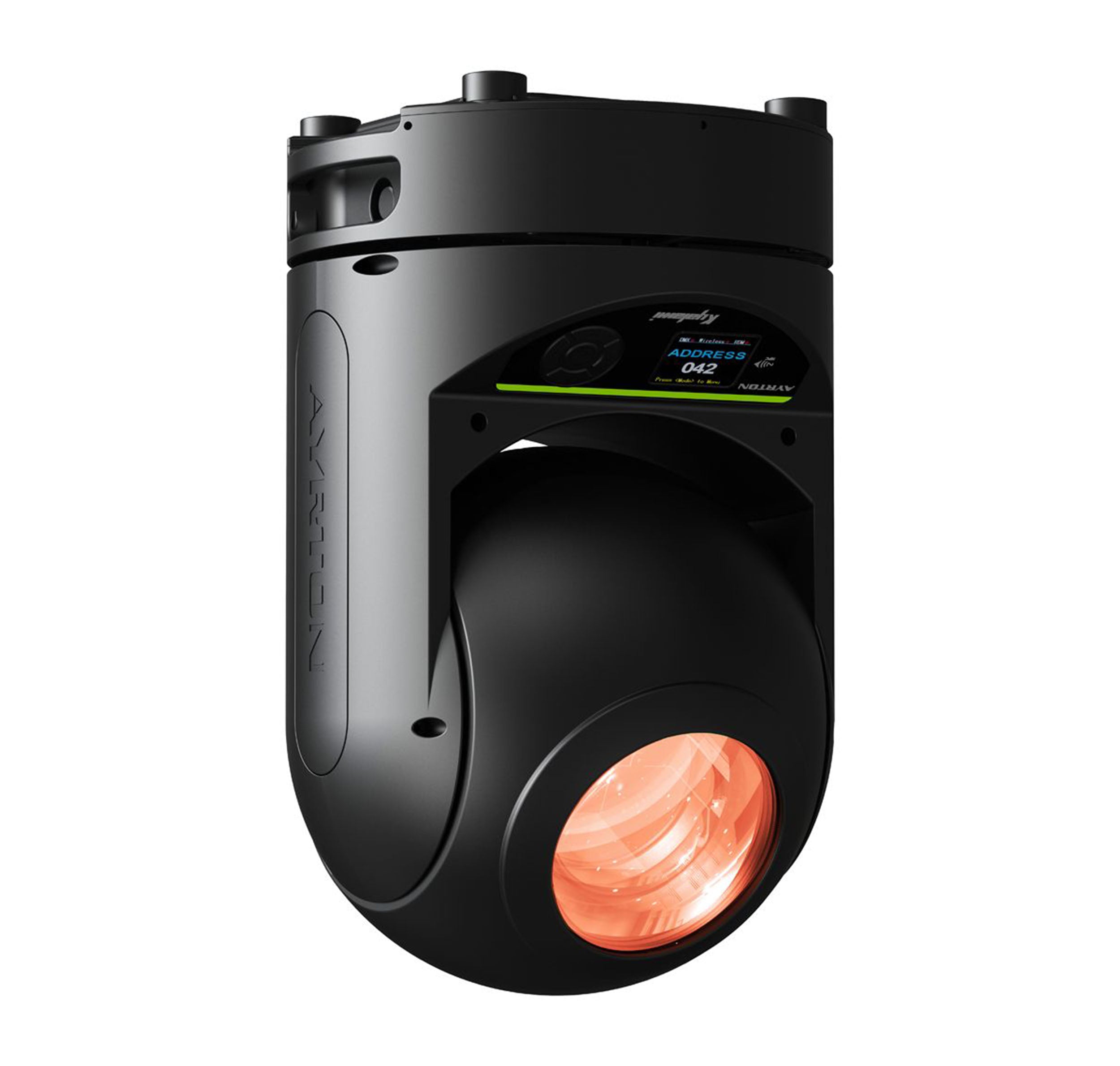

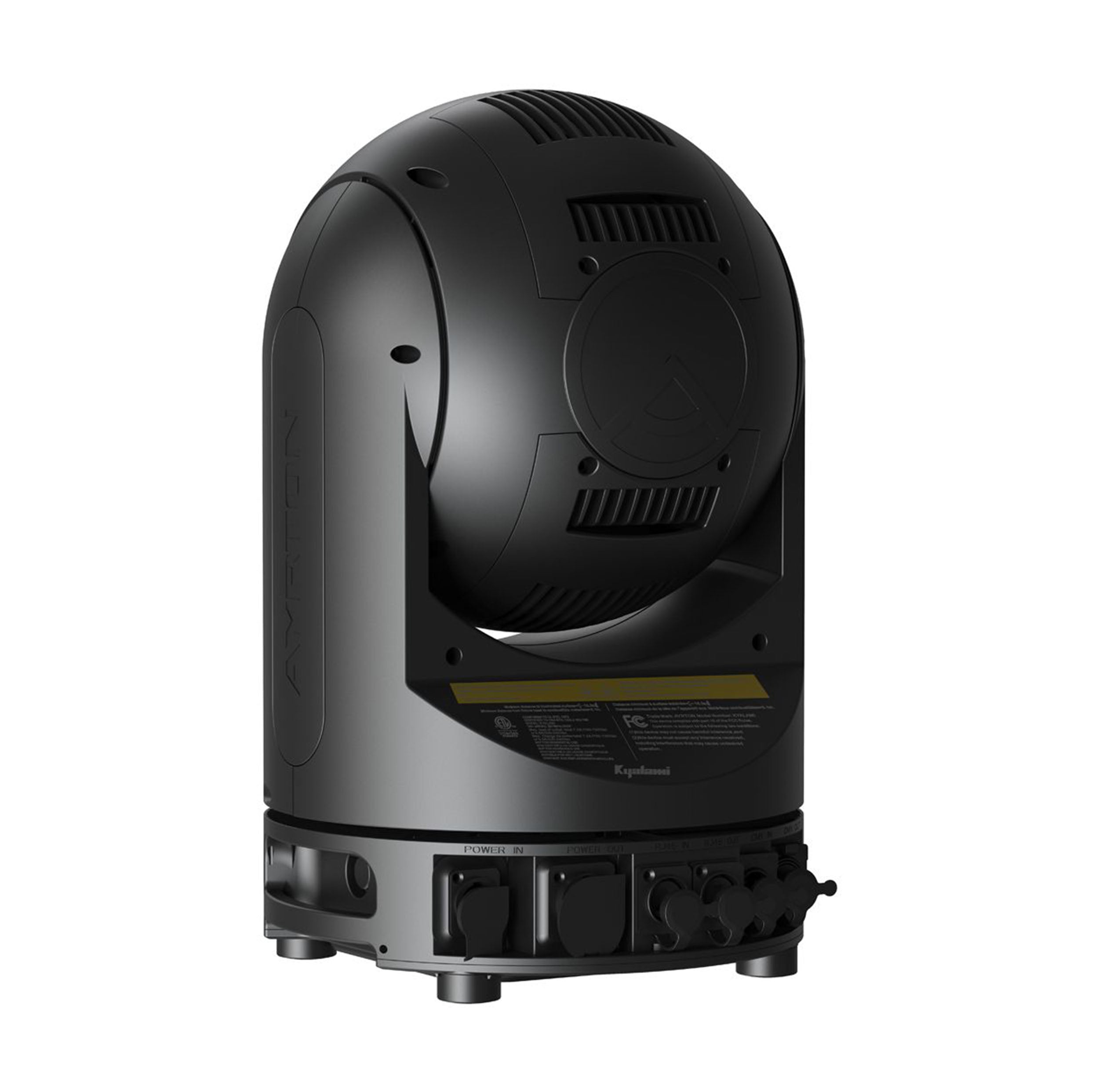

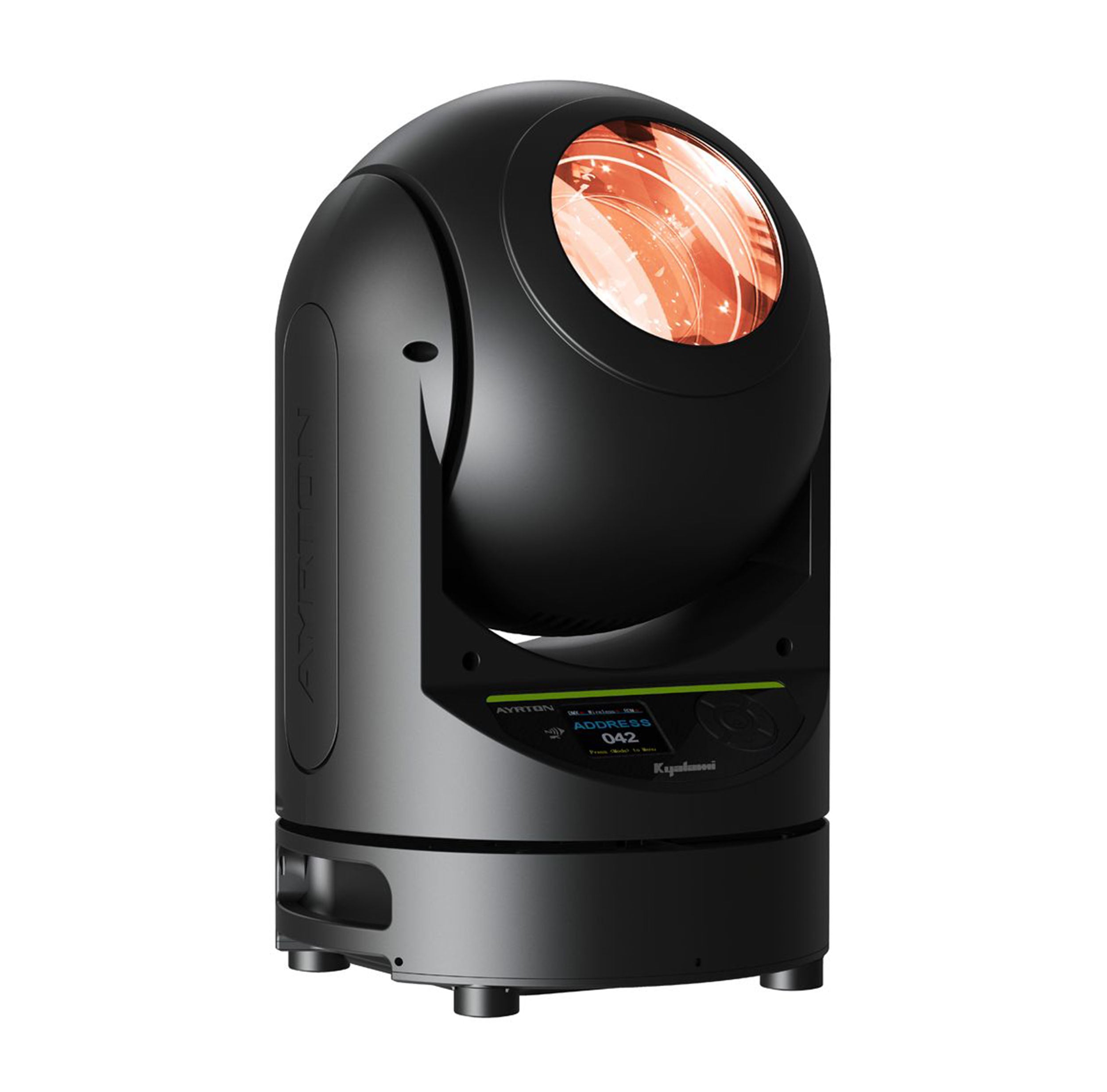

Ayrton Kyalami 100-Watt IP65-Rated Moving Head Beam with 1-Degree Beam - Black

The Ayrton Kyalami 100-Watt IP65-Rated Moving Head Beam with 1-Degree Beam - Black is an innovative and ultra-compact laser source moving head beam, designed to push the boundaries of performance and creativity. Based on the success of the MAGICDOT, the Kyalami brings the latest advancements in lighting technology, offering unrivaled precision, high-definition optics, and exceptional color rendering. Its unique minimalist cylindrical design, measuring just 265 mm, houses a powerful 100 W laser module that combines cutting-edge features with an extremely small footprint, making it ideal for tight installations or highly dynamic lighting setups. The Kyalami is an ideal tool for high-end architectural lighting, TV production, and live events requiring sharp beam effects with vibrant, full-spectrum color output.

At the core of the Kyalami is its next-generation speckle-free laser source, delivering an exceptional 400,000 lux at 10 meters, ensuring extreme brightness and clarity with a narrow 1° beam. The combination of its 126 mm frontal lens and a proprietary 3-lens optical system results in a crisp and well-defined beam with native contrast that has never been achieved by digital light sources. The Kyalami's beam definition can be further optimized with its high-speed motorized linear focus, allowing for a sharp beam that maintains consistency over long distances. With the ability to adjust the beam shape based on operating distance, the Kyalami offers remarkable versatility in both beam and wash modes.

With its high-performance optics and 100 W laser light source, the Kyalami ensures perfect color reproduction with a color temperature output of 9000 K. The fixture features a high CRI (greater than 70) for vivid and natural colors, and it is ideal for applications where accurate color rendering is crucial. The Kyalami is equipped with a full CMY color mixing system and a multi-position color wheel that provides access to five color temperature corrections, 17 complementary color filters, and an extended palette of color combinations. This allows lighting designers to create a virtually endless array of colors, from soft pastels to bold saturated hues.

The Kyalami excels in graphical effects as well, with an impressive 29 fixed metal gobos designed to create striking and intricate light patterns. These gobos can be combined with two rotating, indexable prisms - one circular and one linear - for additional volumetric effects. The fixture also comes with two frost filters, one light and one heavy, for diffusing the beam and softening the effect when needed. This makes the Kyalami a versatile choice for a wide range of applications, from sharp beam projections to atmospheric washes.

In terms of movement, the Kyalami offers continuous rotation in both pan and tilt, allowing for fluid and dynamic movement across the stage or installation area. The high-resolution stepper motors provide exceptional positioning accuracy with both 8- and 16-bit resolution options, making it suitable for both fast-moving effects and precise adjustments. The Kyalami's pan range is infinite, while its tilt range extends to 270°, offering unparalleled freedom for creative lighting designs.

The Kyalami is equipped with an advanced liquid cooling system, ensuring optimal performance even in challenging environments. The fixture features self-adjusting, variable-speed fans and can operate in various ventilation modes, including a Super Silent mode for quieter operation in noise-sensitive environments. With its IP65 protection rating, the Kyalami is designed to withstand harsh weather conditions, making it perfect for outdoor installations, touring productions, and any scenario that demands a durable, reliable lighting solution.

Overall, the Ayrton Kyalami offers exceptional performance, compact design, and versatile creative features, making it a standout choice for lighting professionals. Its superior beam quality, advanced color mixing, and powerful effects capabilities make it an indispensable tool for creating stunning visual experiences in any environment.

Product Specifications:

Optics

3-Element Optic System

Beam Aperture: 1°

Fast Motorized Linear Focus

Anti-Reflective Coated Lenses

126 Mm Frontal Lens

Light Source

Luminous Flux: 400,000 Lux At 10 M

Color Temperature Output: 9000 K

CRI: Greater Than 70

Rated Life (L70): Up To 12,000 Hours

Speckle-Free Source

Movement

Extremely Accurate Positioning

Operated Via 8- Or 16-Bit Resolution

High-Resolution Stepper Motors Controlled Via Microprocessors

Pan and Tilt Automatic Repositioning

Range: Infinite Pan and Tilt Rotation

Colors

CMY Color Mixing

Fixed Color Wheel With 5 Color Temperature Corrections

17 Complementary Color Filters

Gobos

Fixed Gobo Wheel With 29 Metal Gobos

Image Diameter: 3 Mm

Frost

Two Frost Filters: One Light, One Heavy

Effects

Two Combinable Rotating and Indexable Prisms: One Circular, One Linear

Dimmer / Strobe

Electronic Dimmer With 0-100% Adjustment

Strobe Effect Adjustable From 1 To 25 Flashes Per Second

Control

DMX 512 Protocol Via DMX Cable or Wireless System

DMX-RDM Compatible

Stand-Alone Mode and Master/Slave Modes

Artnet & Sacn Protocol Through Ethernet Cable

33 DMX Channel Footprint

Power Supply

Electronic Supply with Active PFC

Input Voltage: 100-240 V, 50/60 Hz

Maximum Power Consumption: 200 W

Cooling System

Advanced Liquid Cooling System

IP68 Self-Adjusting Variable Speed Fans

Selectable Ventilation Modes Including Super Silent Mode

Safety Protection Against Excess Temperature

Housing

Skeleton Made of Aluminium And Steel Plates

Base in Die-Cast Aluminium

Fire-Retardant ABS PC Molded Covers

Two Side Handles for Transportation

IP65 Protection Rating

Exterior Finish: Black (Carbon)

Installation

Two Omega ¼ Turn Brackets for Standard Clamps

Four ¼ Turn Locking Fittings for Secure Mounting

Safety Cable Attachment Point

Operating Parameters

Operates in All Positions (Floor Or Mounted)

Maximum Ambient Temperature: 113°F

Minimum Ambient Temperature: -4°F

Minimum Usage Distance: 49.21 Ft

Compliance

EMC Directive 2014/30/EU

LVD Directive 2014/35/EU

UL 1573

FCC Part 15: 2020-F

Physical

Product Dimensions: 10.43 X 16.93 X 10.43 Inches

Flight-Case Foam Dimensions: 12.6 X 18.11 X 12.6 Inches

Product Weight: 31.97 Lbs
