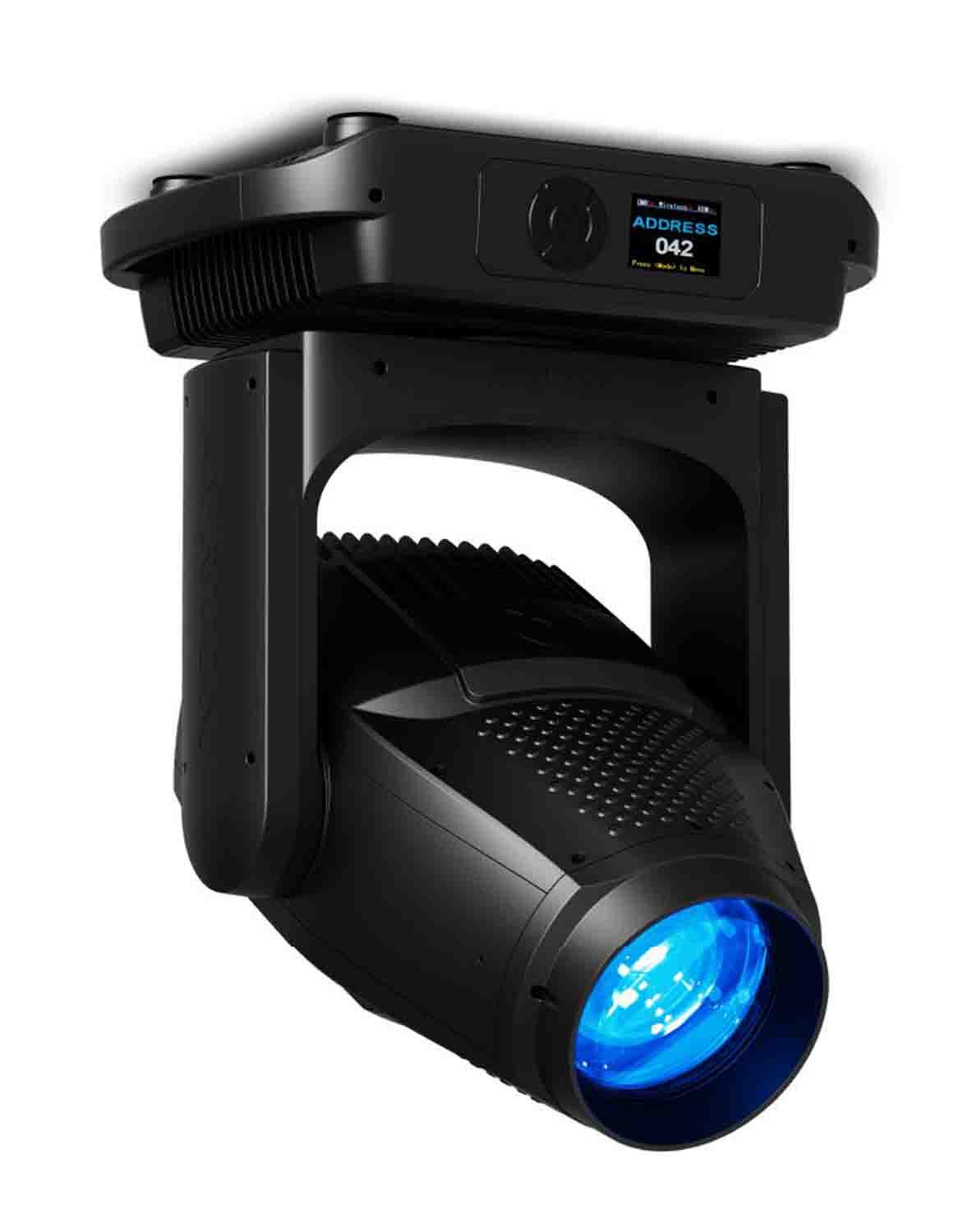

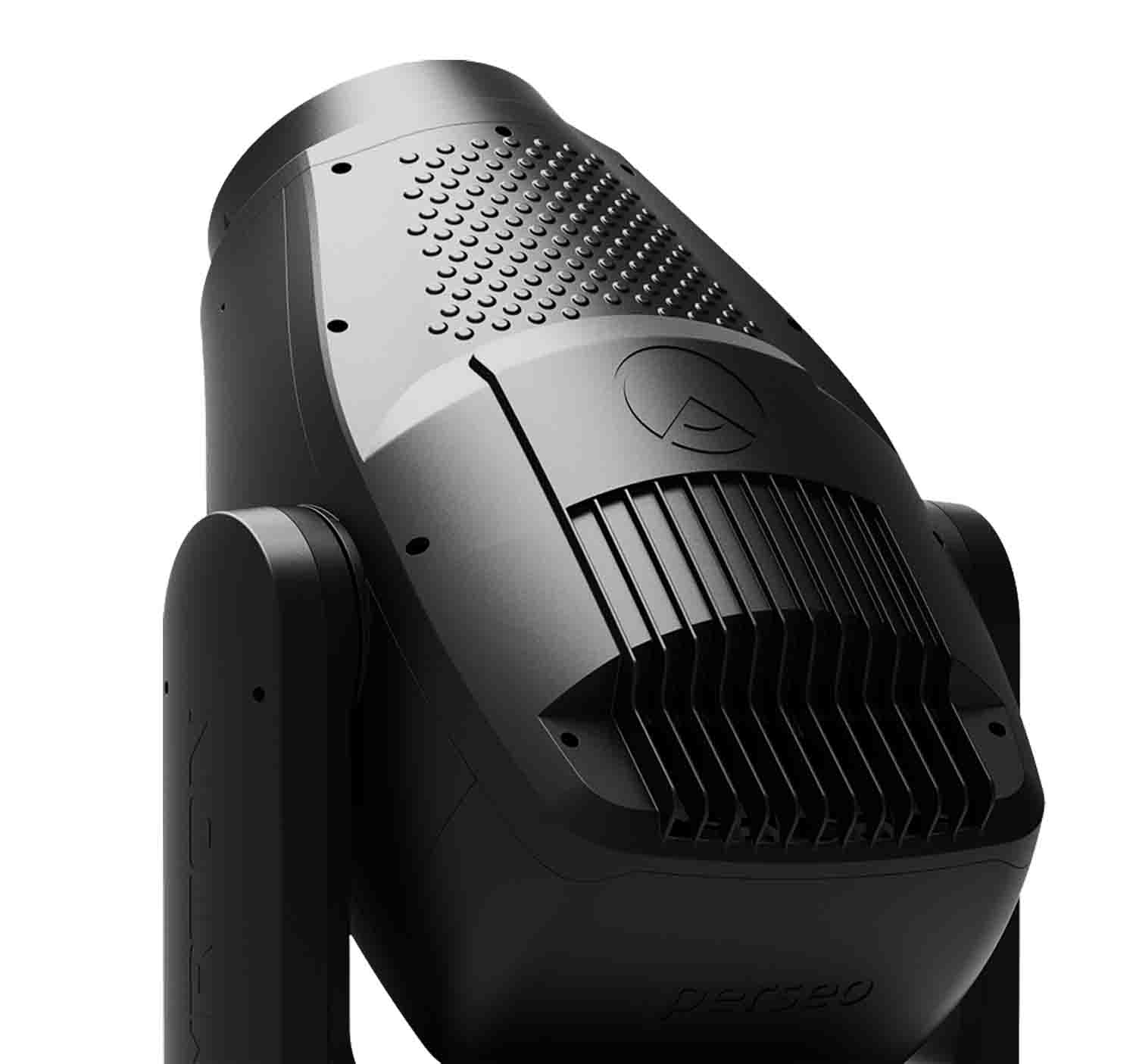

Ayrton Perseo-S- 500W LED IP65 Moving Head Profile with 7 to 56 Degree Zoom

The Ayrton AY012440 Perseo-S - 500W LED IP65 Moving Head Profile with 7 to 56 Degree Zoom is equipped with a new 500 W ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic white light with an output of 27,400 lumens. Ayrton has specifically developed the optics in Perseo-S to achieve an optimal resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction and significant improvement from distortion caused by the shutter blades with wide zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a perfect color mix regardless of the color combination selected. Fitted with a 148 mm frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 58°. Ayrton has endowed this next generation luminaire with a new minimalist design in lighter weight die-cast aluminum, incorporating full weather-proofing features that ensure easy accessibility. For greater efficiency, Perseo-S is provided with a highly effective phase-change liquid cooling system fitted with six submersible fans located outside the watertight enclosure.

Perseo-S boasts feature-rich standard equipment including a subtractive CMY color mixing system combined with a variable CTO and a wheel with six complementary colors that produces an infinite palette of vivid pastels and saturated colors. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire's position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters, one light, one heavy; and two rotating prisms, one circular with 5 facets and one linear with 4 facets. Perseo-S presents a sleeker, updated, industrial design, with perfectly straightened yoke arms, a minimalist base and a new water-resistant menu navigation system. Perseo-S can be controlled by DMX-RDM, Art Net or a wireless link using CRMX Timo RDM from Lumen Radio.

Product Specification:

Fixture Class (LED / Arc): 500 W / 1200 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 148 mm front lens

Optic Efficiency: 0.69

Beam Aperture: 7° to 58°

Zoom Elements / Range: 13 Elements / 8:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 500 Watt / 1

Light Engine Output (lm): 40,000 lm (34,000 lm)

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 280°

Colours:

Colour Mixing: CMY

Colour Depth: 16.7 million

Fixed Gobos (number/wheel): 11 Gobos / 1 Wheel

Frost filter: 2 Frost / Soft & Hard Edge

Iris Diaphragm: Yes- 15% to 100%

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic (1-25 fps)

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 38 to 61

Electronic Power Supply:

Frequency Range: 50-60Hz

Power Consumption Maximum: 800 W

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: Die-Cast Aluminum

Front Window: No

Protection Rating: IP65

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Operating Parameters:

Permitted Ambient Temperature: -20 to 45°C

Dimensions & Weight:

Dimensions (mm): 490 x 710 x 330 mm

Flight-case Foam Dimensions (mm): 655 x 590 x 555

Weight (Kg): 38.8

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

SIP included: Yes
