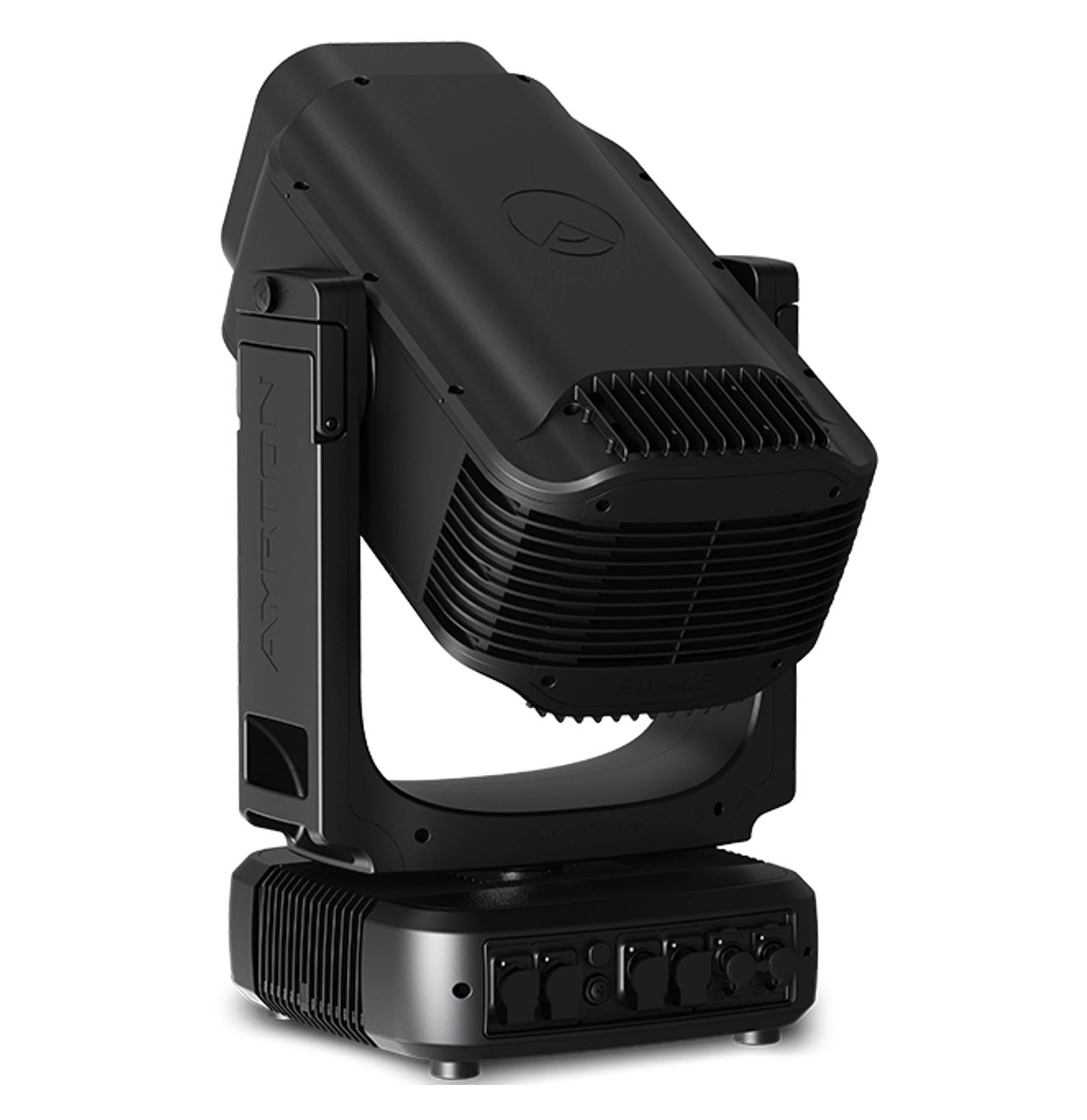

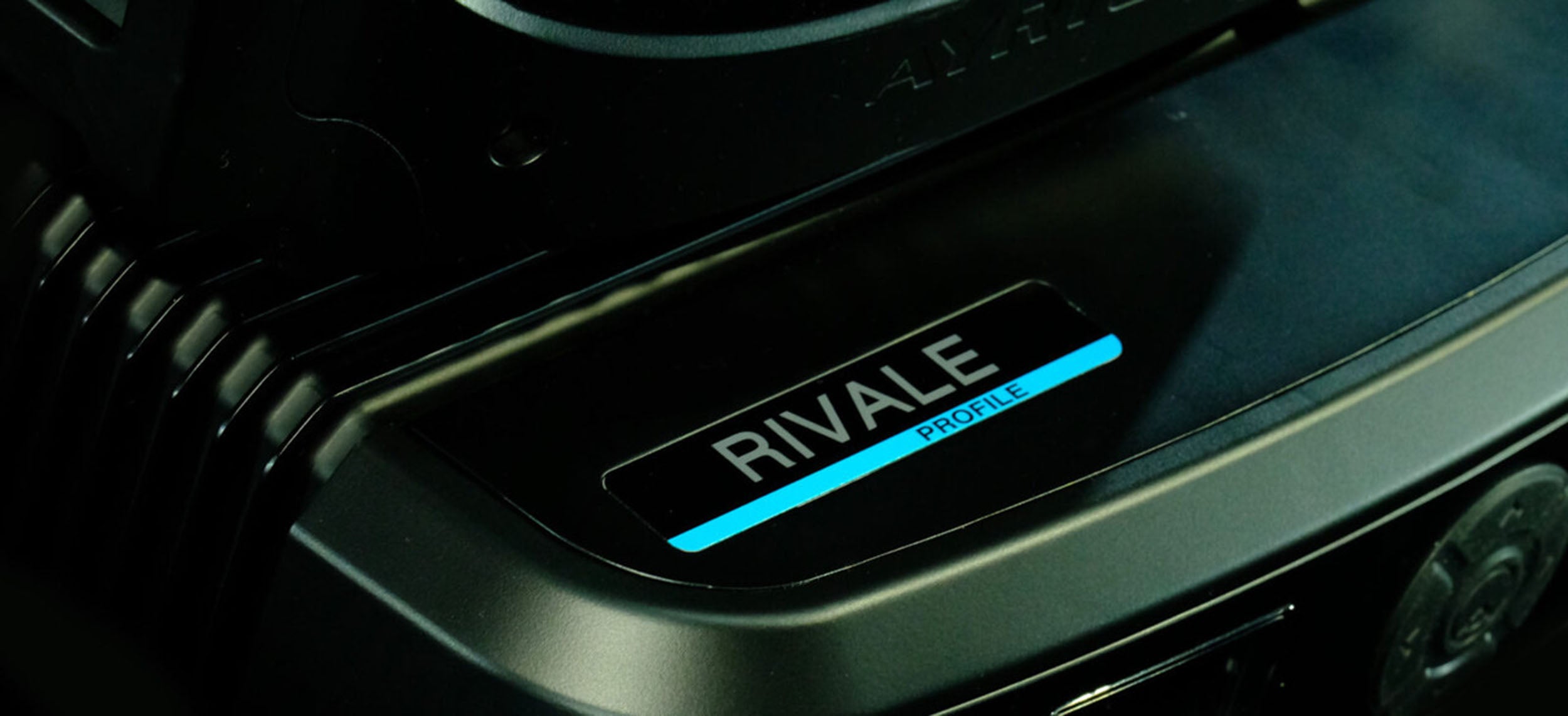

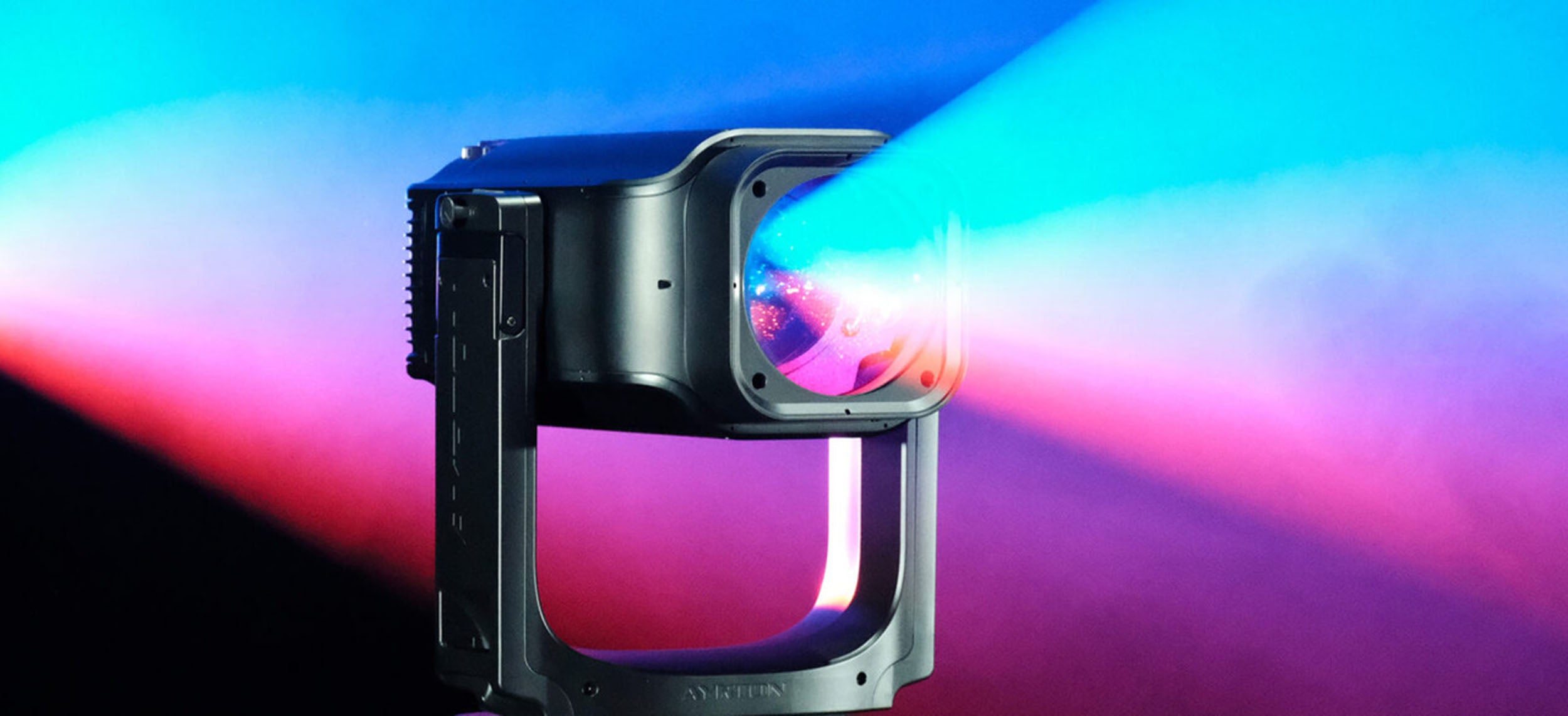

Ayrton Rivale,4 to 52 Degree IP65 LED Light

The Ayrton Rivale,4 to 52 Degree IP65 LED Light is the first ultra-equipped luminaire in AYRTON’s brand new “ULTIMATE “series, all models being perfectly homothetic and sharing common features, delivering previously unimaginable weight to output ratios.

Developed for mixed use indoors and outdoors, and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. Weight determines performance, and RIVALE PROFILE weighs only 30.8 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, RIVALE PROFILE has been provided with continuous rotation of the pan and tilt movement. RIVALE PROFILE is fitted with a brand new high-efficiency 450-watt sealed mono-block LED module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 to 52°.  Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4°, close to that of AYRTON’S famous “LT “versions.

RIVALE PROFILE has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.

An extended progressive CTO lets you fine tune the color temperature from 2700 to 6500 K, and a seven-position color wheel completes the palette of tools dedicated to creating color. For greater flexibility of use, RIVALE PROFILE allows subtle adjustment of the color rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90°. A fast 15-blade iris diaphragm enables beam optimization in Beam mode. The image section of RIVALE PROFILE includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by AYRTON to date. A truly innovative luminaire with no equivalent on the market.

Product Specifications:

Optics

13-element 13:1 zoom high-resolution optic system

Beam aperture: 4° to 52°

Fast motorized linear zoom

Tempered anti-reflective coated lenses

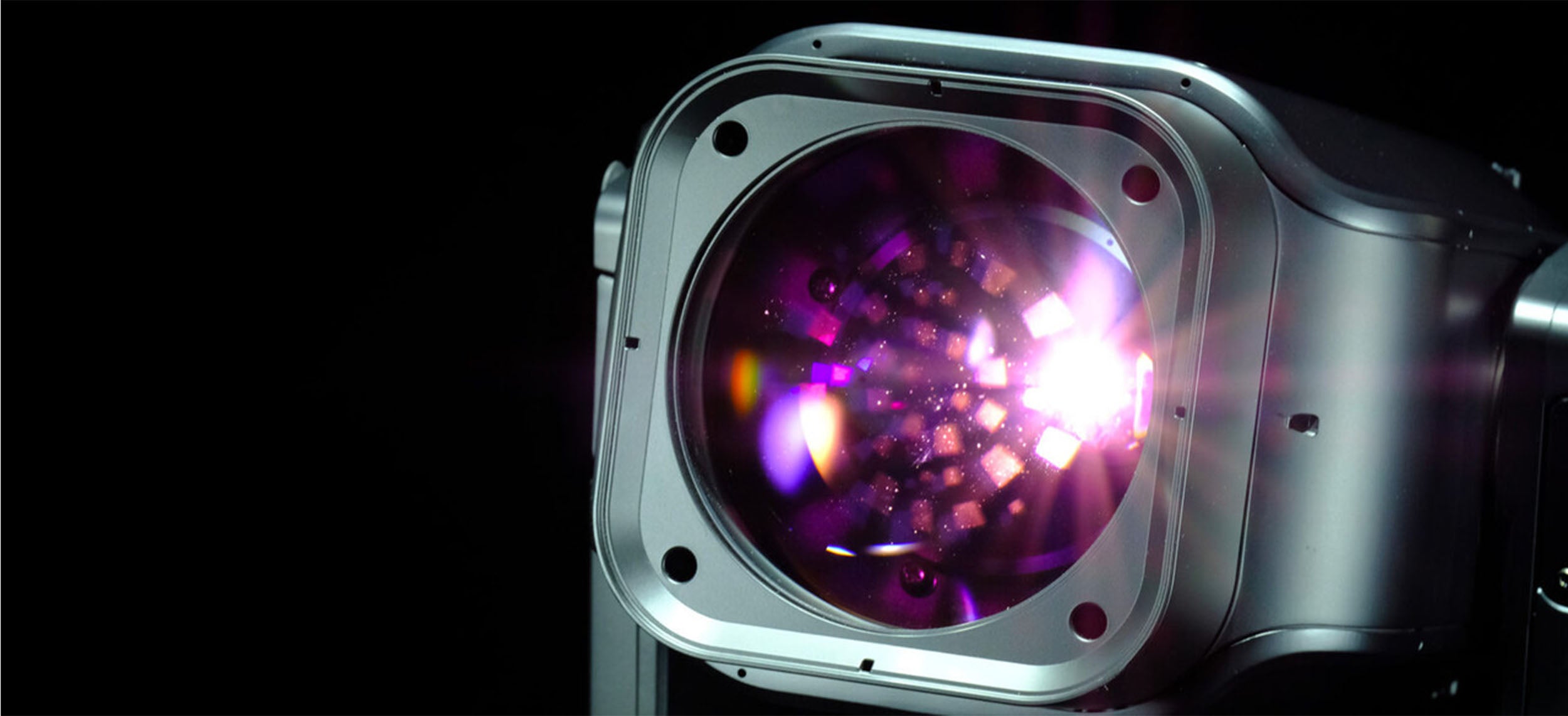

160 mm frontal lens

Light Source

35,000 lumens white light engine

Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode)

Color temperature output: 6500 K

CRI: greater than 70

Rated life (L70): up to 40,000 hours

Flicker-free source management suitable for TV applications and all video-recorded events

Movement

Extremely accurate positioning

Moving-head operated via either 8- or 16-bit resolution

High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement

Pan and tilt automatic repositioning

Moving-head range: infinite pan and tilt rotation

Colors

Sophisticated color mixing system providing CMY color mixing

Variable CTO color temperature correction

Variable CRI improvement filter

Fixed color wheel with seven complimentary Colors

Gobos

Indexable rotating gobo wheel with seven high precision glass gobos, plus open position

Adjustable-speed rotating gobo in both directions

Fixed gobo wheel with 9 high-precision glass gobos, plus open position

Gobo diameter: 25.5 mm

Image diameter: 18 mm

Gobo thickness: 1.1 mm

Framing System

4 individually position able shutter blades on a 100% surface area in all positions

Rotation of the shutter blades module: +/- 90°

IRIS DIAPHRAGM

Fast iris diaphragm with adjustable dynamic effects

Iris range: 15% to 100% open

Frost

2 frost filters one light, one heavy

Effects

Focusable graphic animation effect-wheel with continuous rotation in both directions

2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation

Strobe effect, with speed adjustment from 1 to 25 flashes per second

Control

DMX 512 protocol, through IP65 DMX cable or a wireless system

DMX-RDM compatible

Stand-alone mode and Master/Slave modes

ArtNet™ & sACN protocol through Ethernet cable

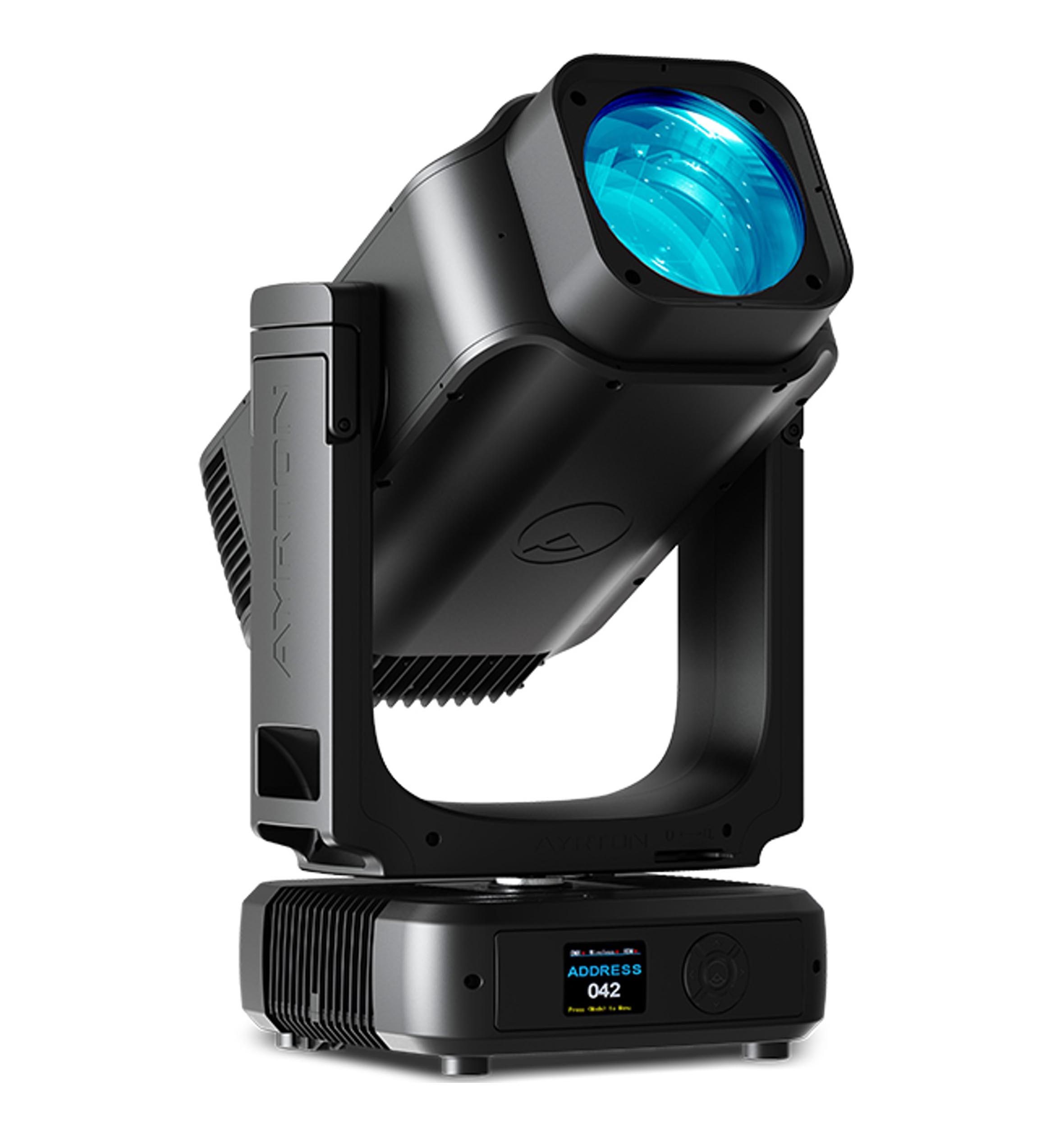

Local control panel, with IP65 LCD display

65 DMX channels footprint

Power Supply

Electronic supply with active PFC

100 to 240 Volts – 50/60Hz

Power: 700 W maximum

Cooling System

Advanced liquid cooling system

IP68 self-adjusting variable speed fans for quiet operation (Auto mode)

Selectable ventilation user modes with a new Super Silent Mode

Safety protection against temperatures excesses

Housing

Moving-head skeleton made of aluminium and steel metal plates

Heatsinks in aluminium and copper

Molded covers in self-extinguishing fire-retardant ABS PC (V0 class)

Four-side handles for transportation

Four heavy-duty feet for better stability

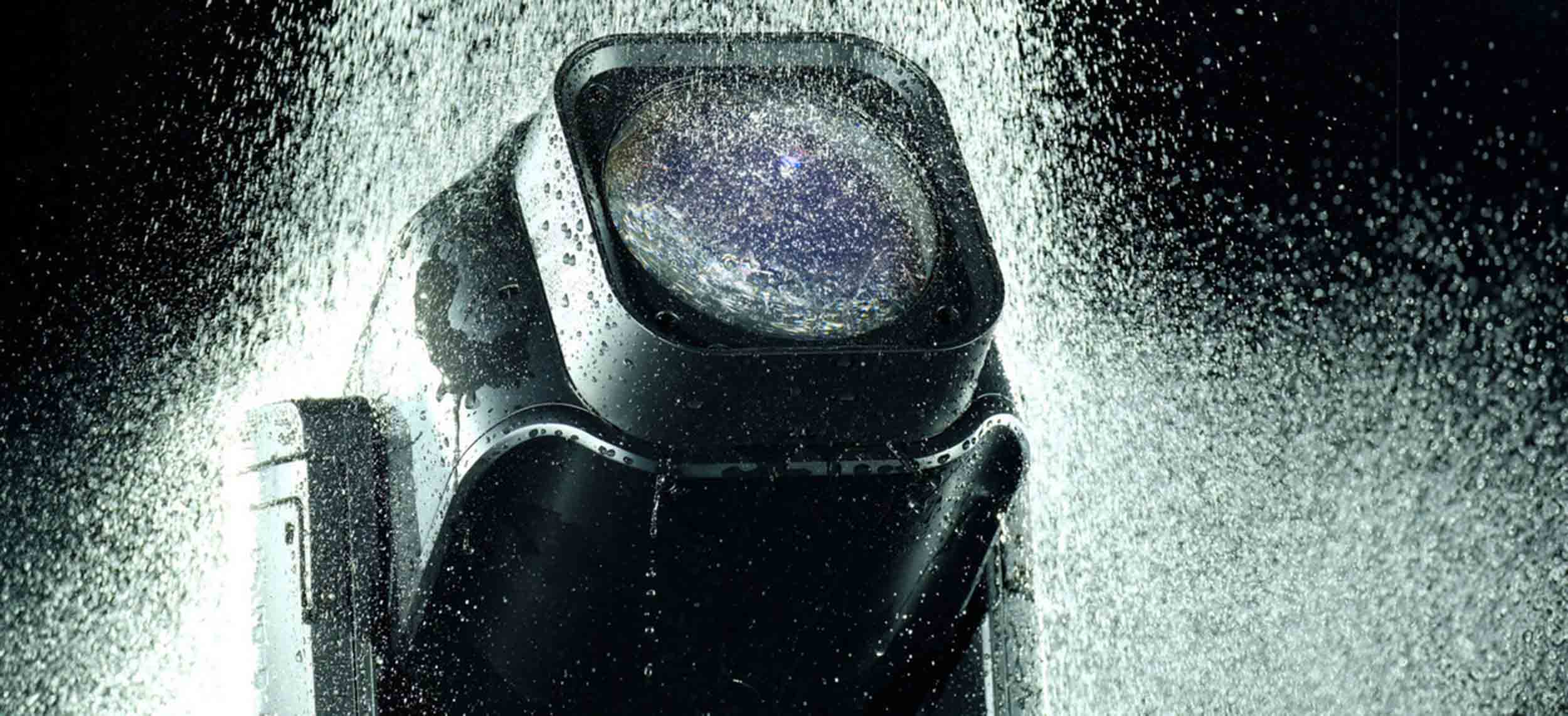

IP65 protection rating

Exterior finish: black (Carbon)

Installation

Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps

Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire

Safety cable attachment point

Operating Parameters

Operating positions: all (device on floor or fixed to a support)

Maximum permitted ambient temperature (Ta max): 45 ° C (113° F)

Minimum permitted ambient temperature (Ta min): -20 ° C (-4° F)

Minimum usage distance: 2 m (6.56 ft)

Compliance

EU (EMC & LVD):

EMC Directive 2014/30/EU

LVD Directive 2014/35/EU

Us (Safety & Emc)

UL 1573

FCC Part 15, Subpart B:2018

Dimension

Product: 360 x 675.5 x 315 mm

Flight-case foam: 485 x 560 x 565 mm

Weight

Product: 30.8 kg
