Description

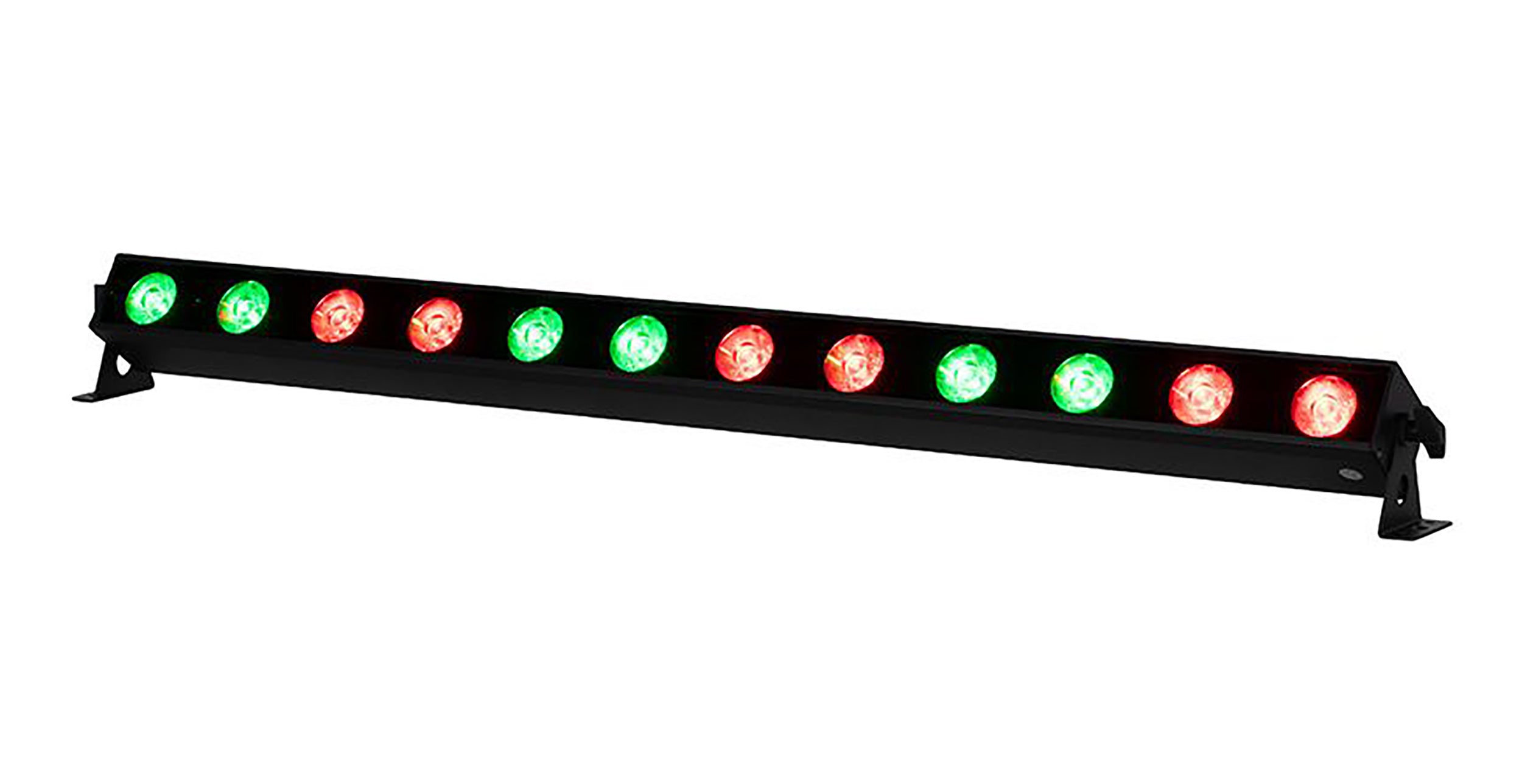

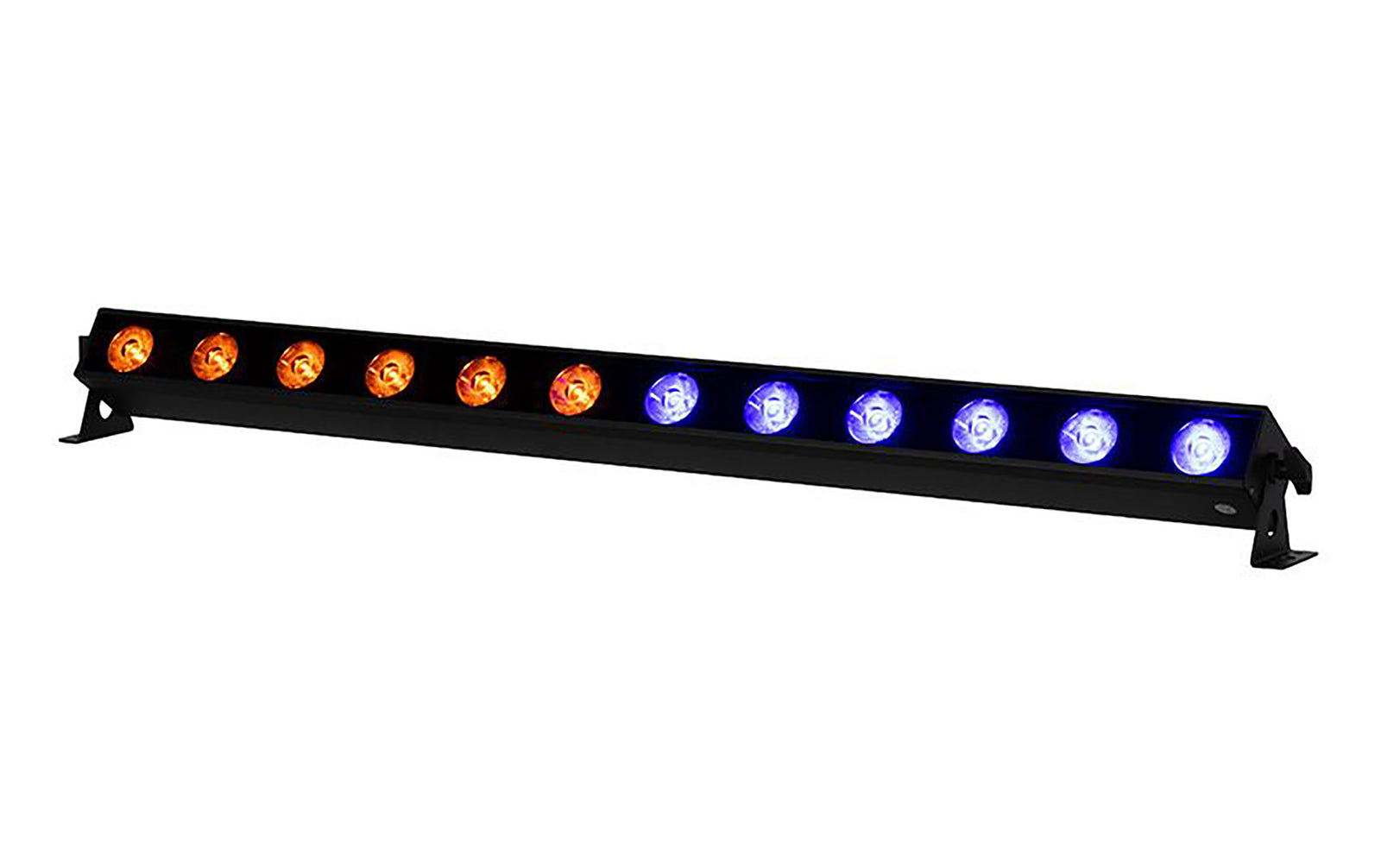

The ADJ UBL12H, 12 x 20-watt RGBAL+UV HEX LED Light Bar Wash - 240W is from the unrivaled Ultra Series, is a professional-grade lime-infused 1-meter HEX LED linear fixture that sets a new standard in event lighting. Powered by twelve ultra-bright 20-Watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), this fixture is a versatile powerhouse that seamlessly blends color with precision.

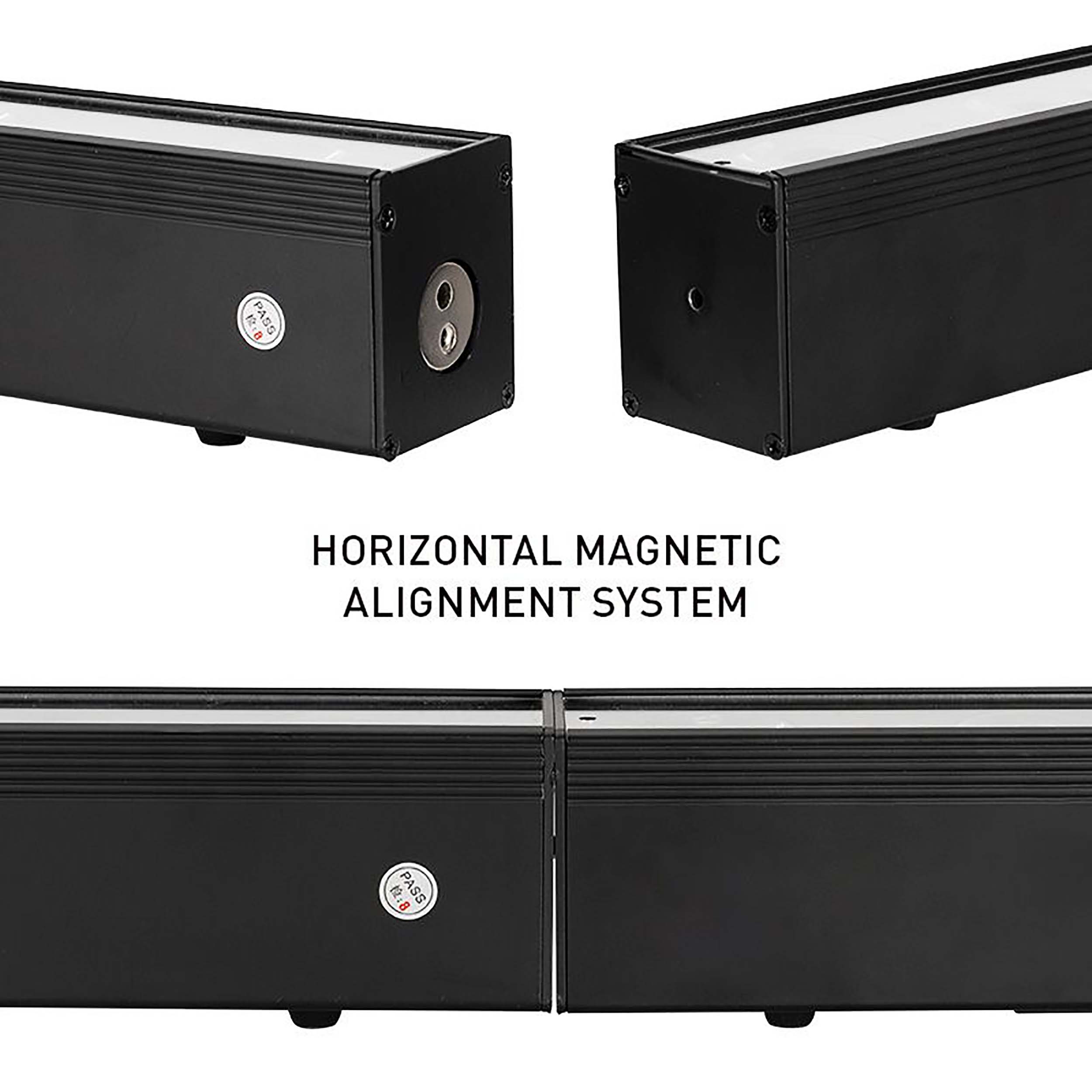

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL12H offers smooth RGBAL+UV color mixing and a unique Horizontal Magnetic Alignment feature allows for seamless color output across multiple fixtures. Control is at your fingertips with the OLED display and 4-buttons, offering linear color temperature control and compatibility with the ADJ UC-IR24 remote. The UBL12H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixture is RDM compatible.
Items are sold as is. Absolutely no returns are accepted for B-Stock Scratch & Dent Items.
Product Specifications:
Light Source:
12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
Long Life LEDs (Rated at approximately 50,000 hrs.)
17° beam angle
CRI >90
Pixel Pitch: 85.5mm
Control:

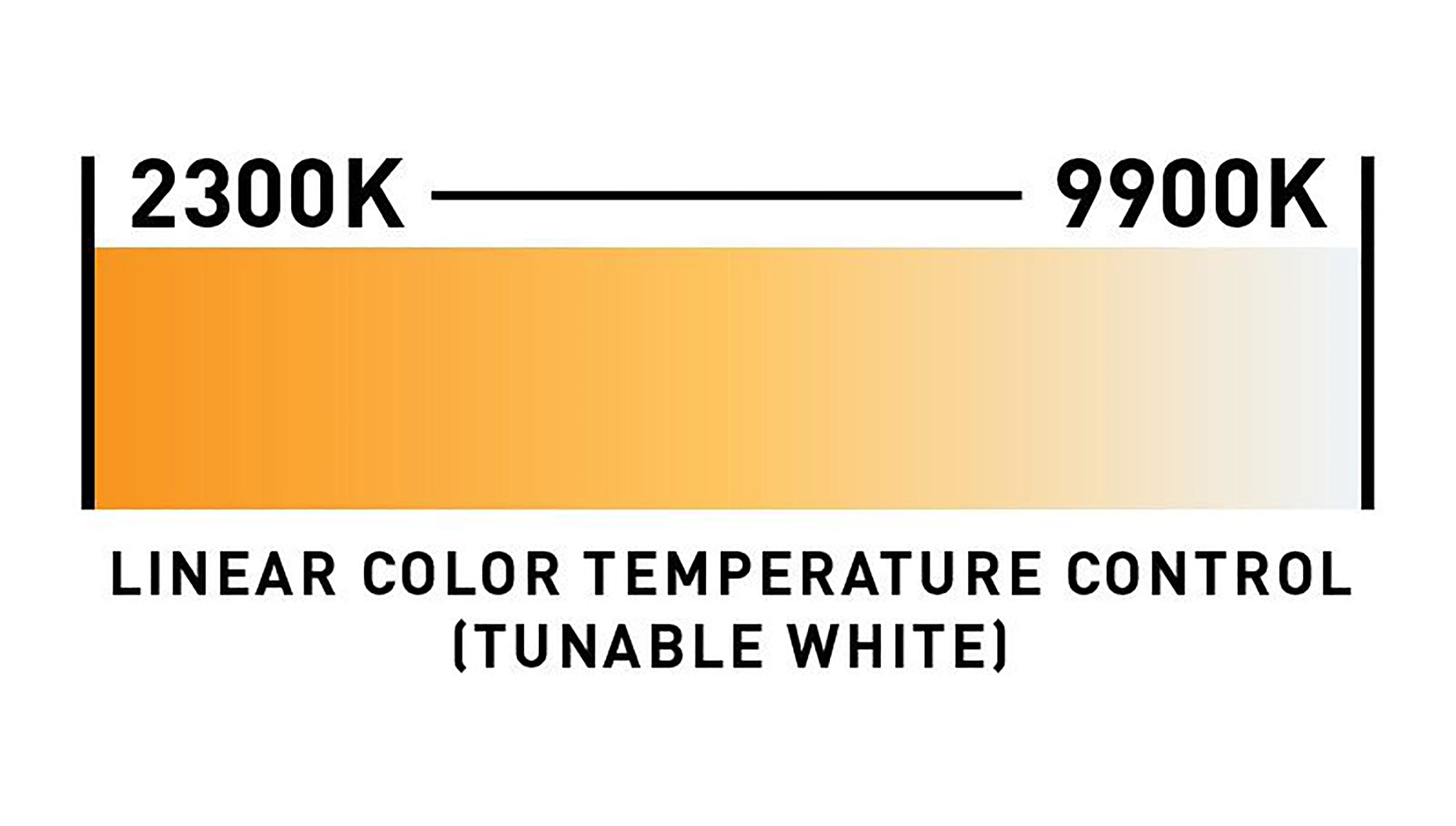

Linear Color Temperature Control (2,300K to 9,900K)

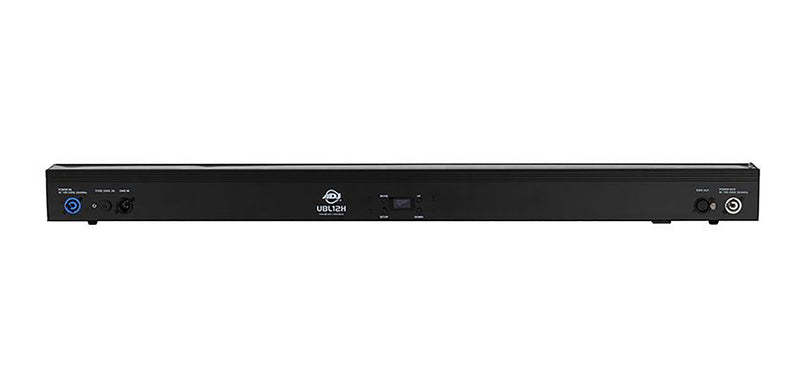

OLED Display with 4-buttons
7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels
6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes
5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
LED Refresh Rate: 1.9KHz
64 built-in Color Macros
6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
Built-In Microphone for sound trigger
LED pulse and strobe effect
Electronic Dimming: 0-100

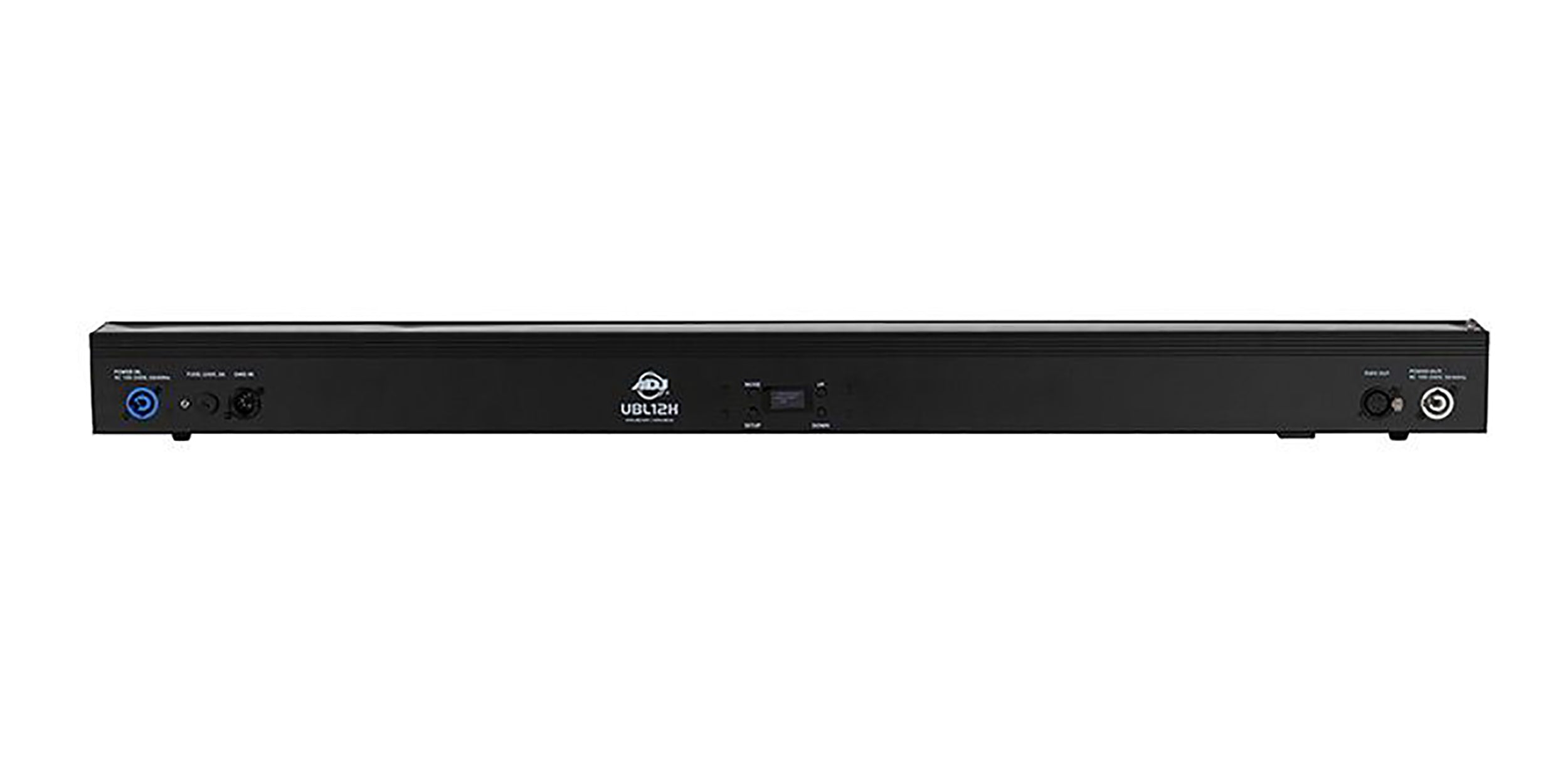

Connections:
Linkable: DMX via 5-pin XLR cable
Indoor Locking power in/Out to daisy chain power
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz
Power Draw: 61W
Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)
Certifications / IP Rating:
cETLus (Control # 4002034)
CE
FCC
IP20
Environment:
Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

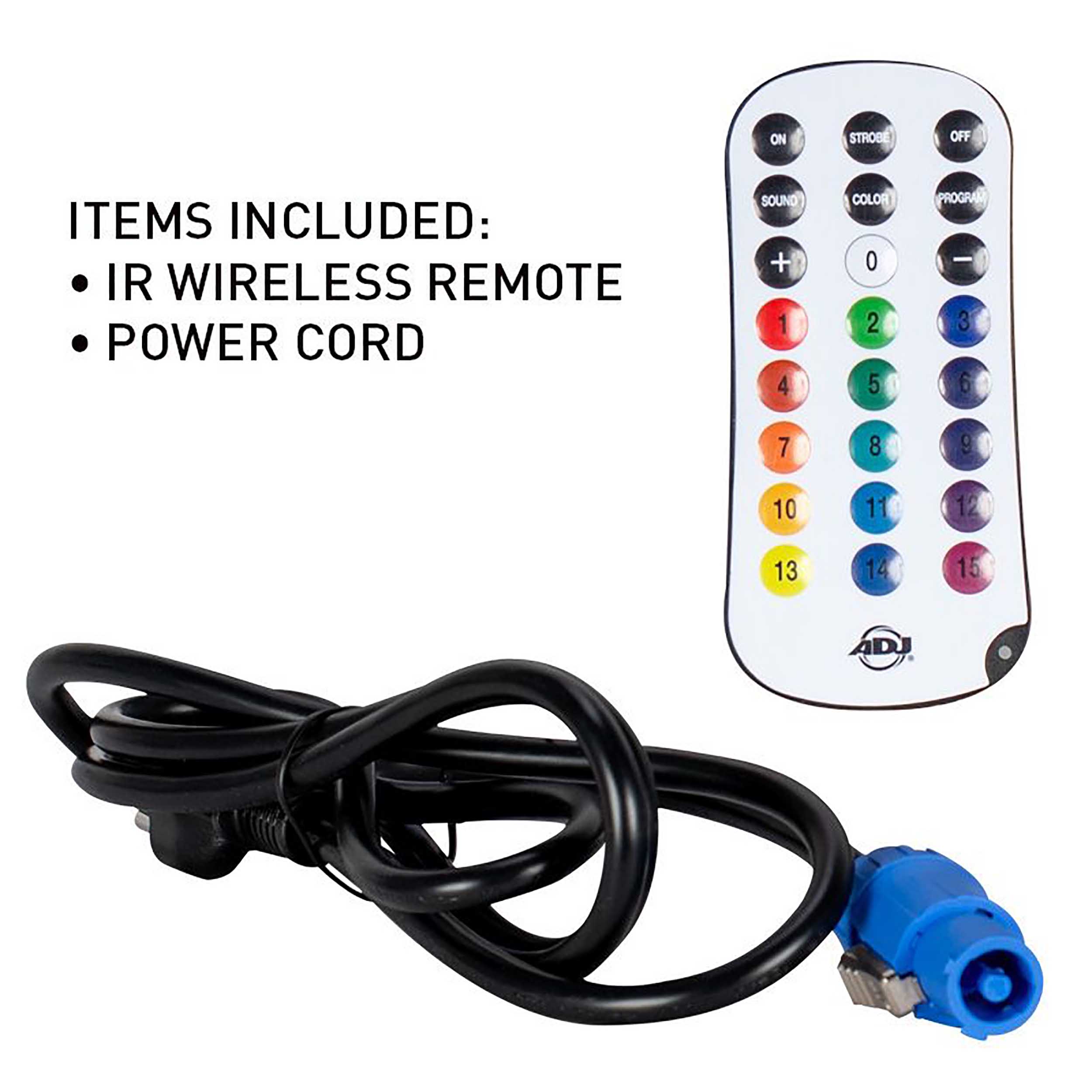

What's Included:
(1) Indoor Locking Power Cord
(1) UC-IR24

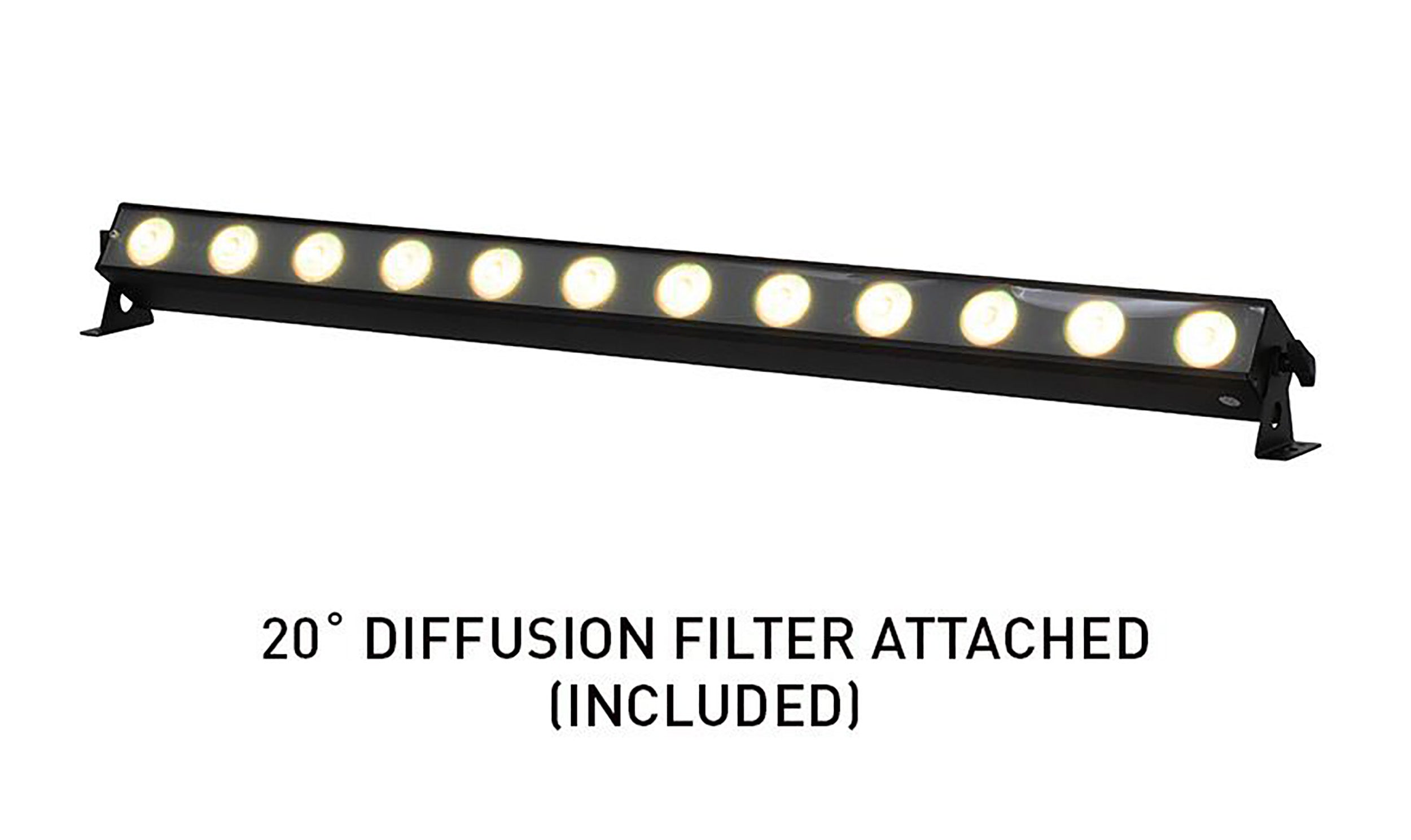

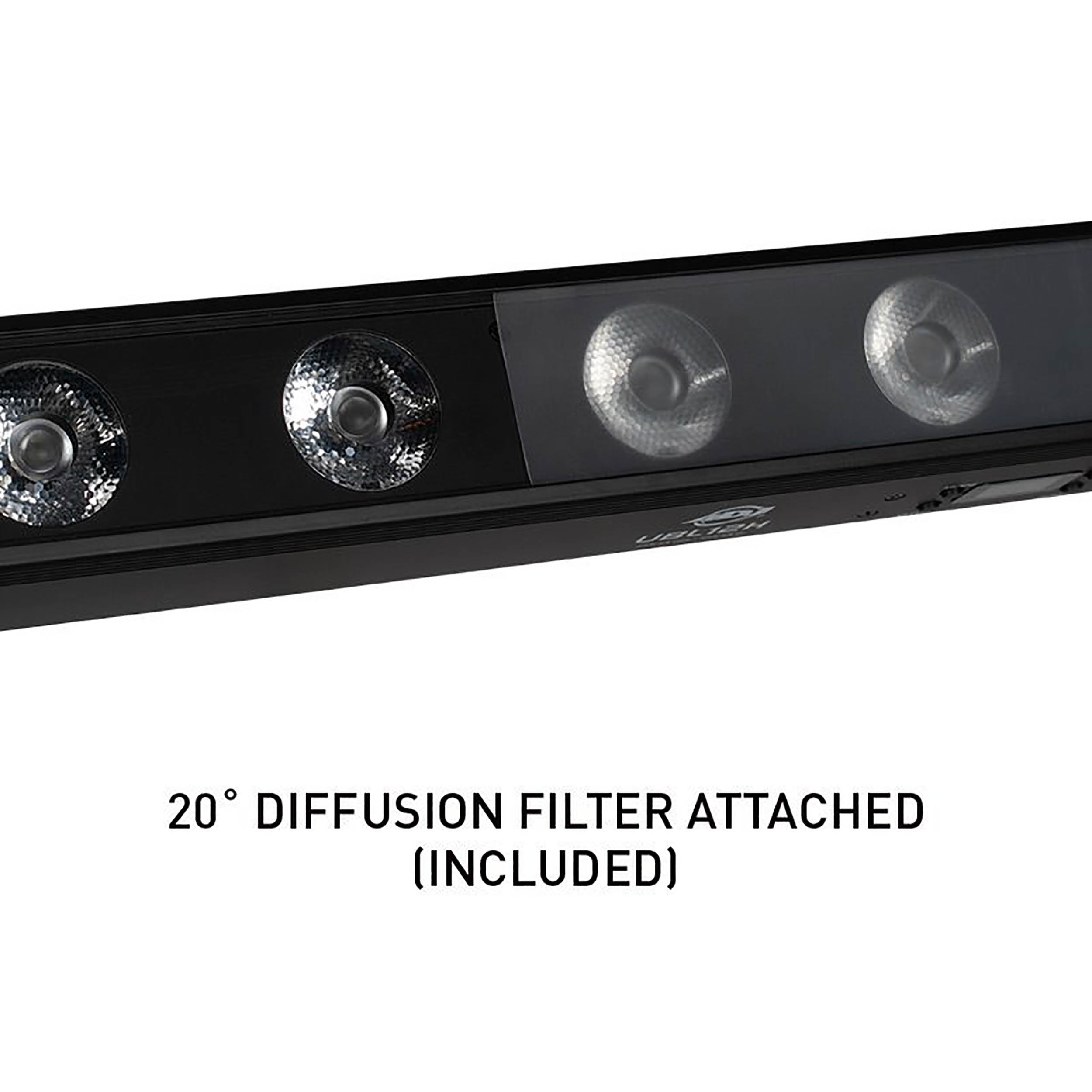

(1) 20° Diffusion Filter
Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
Optional Accessories: (1) 1x40° Linear Diffusion Lens (SKU: UBL912)
Weight: 7.50 lbs./ 3.4kg.
Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
