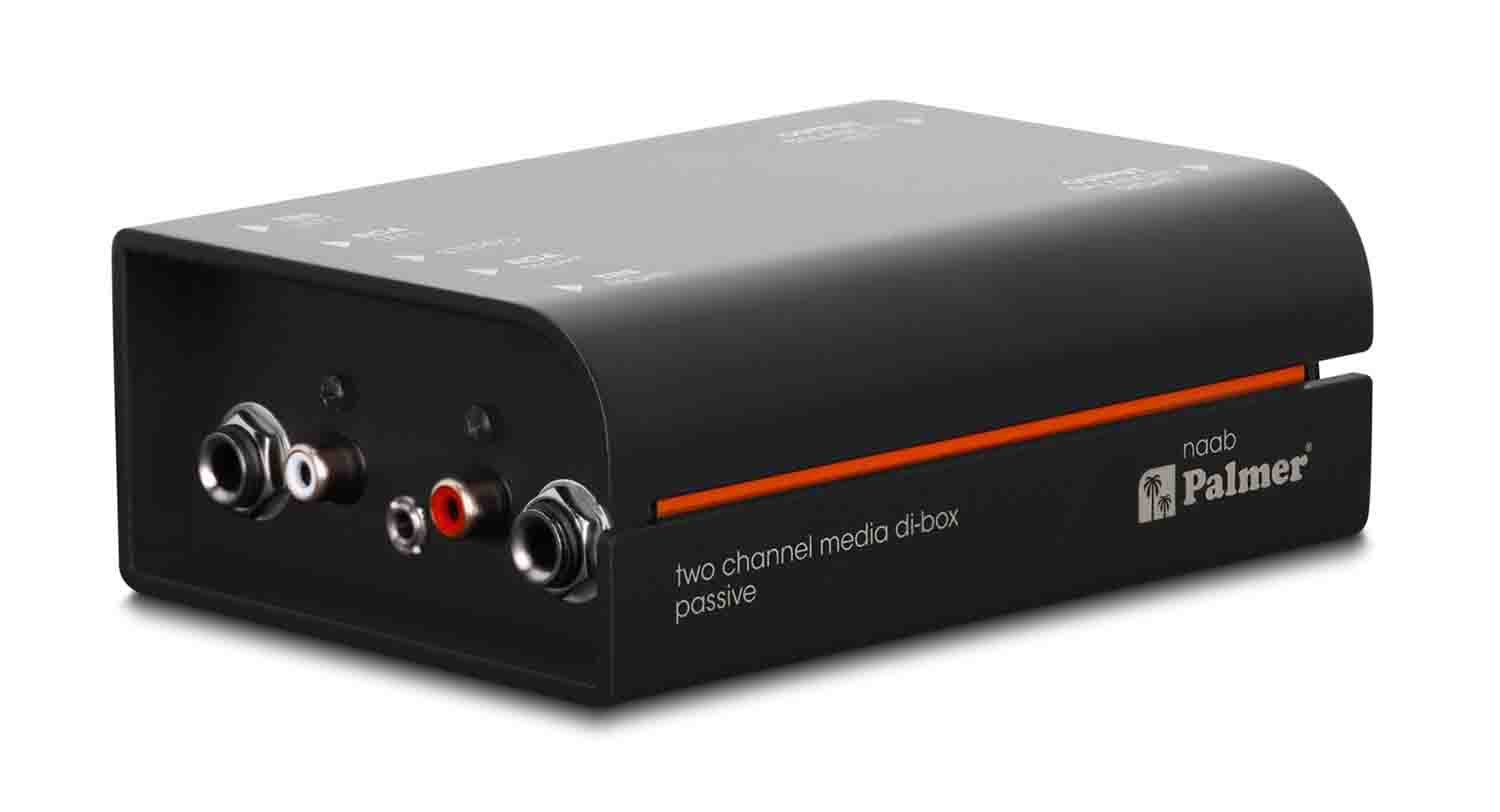

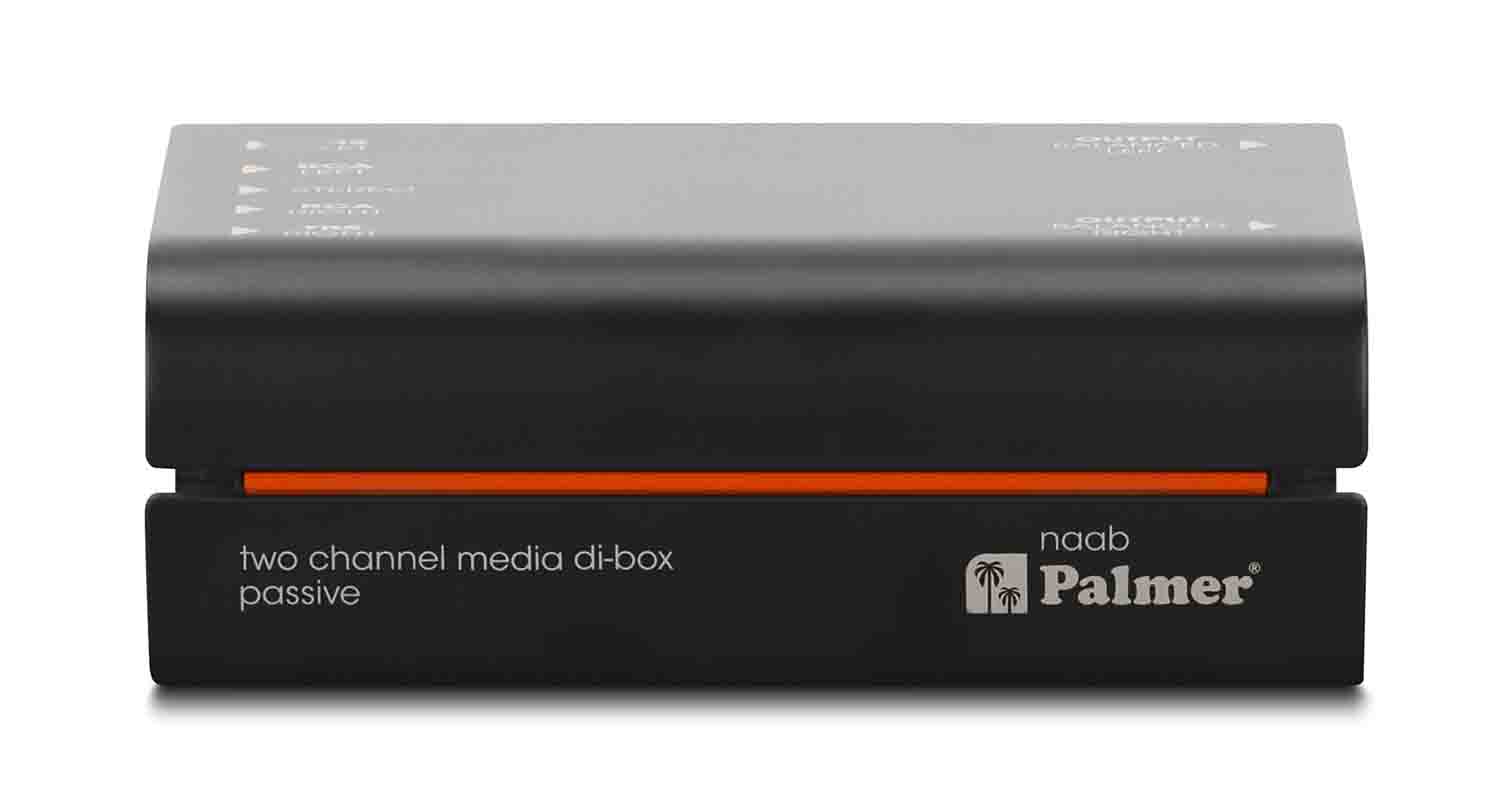

B-Stock: Palmer Naab Passive 2-Channel Media DI-Box

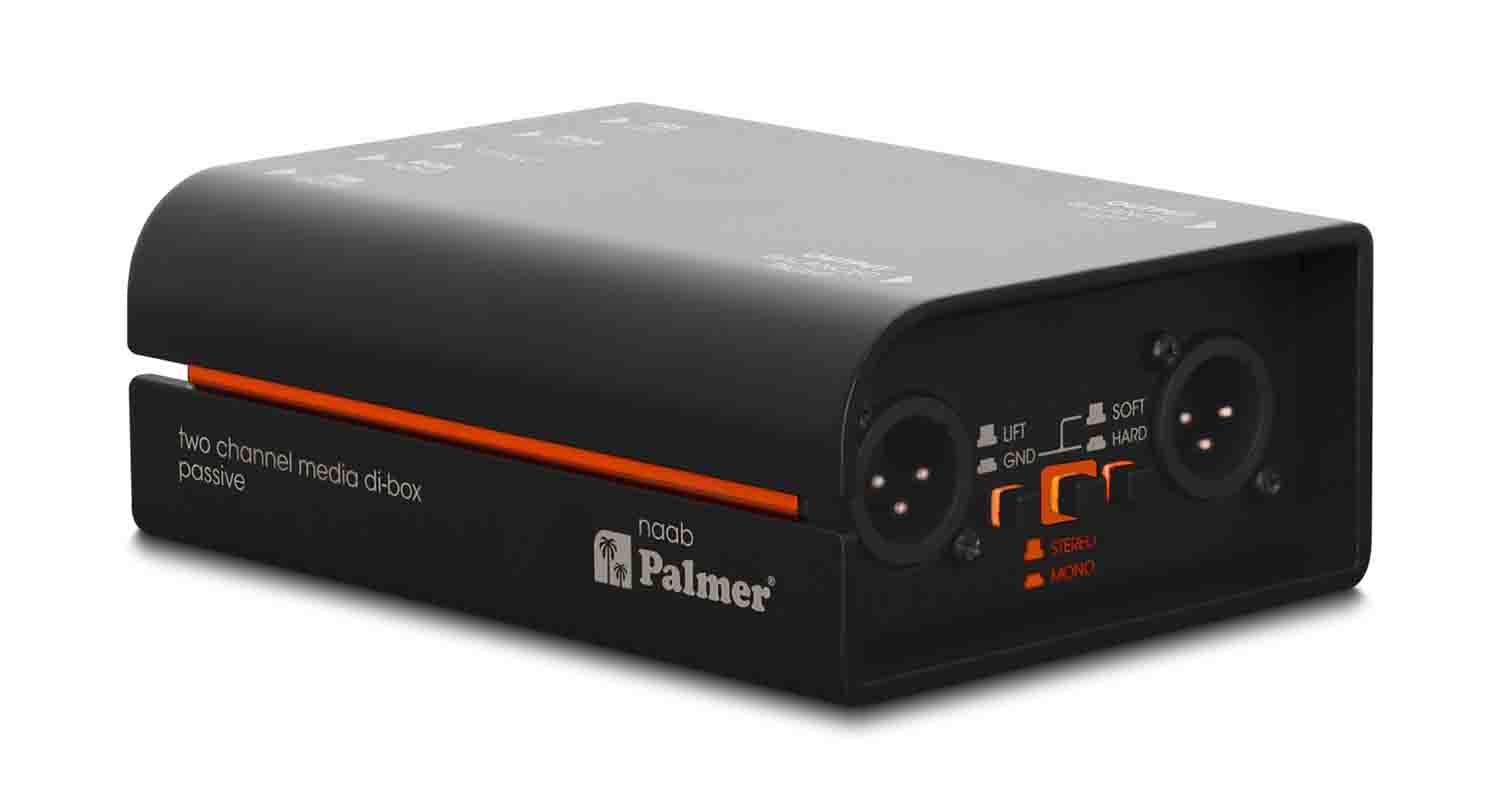

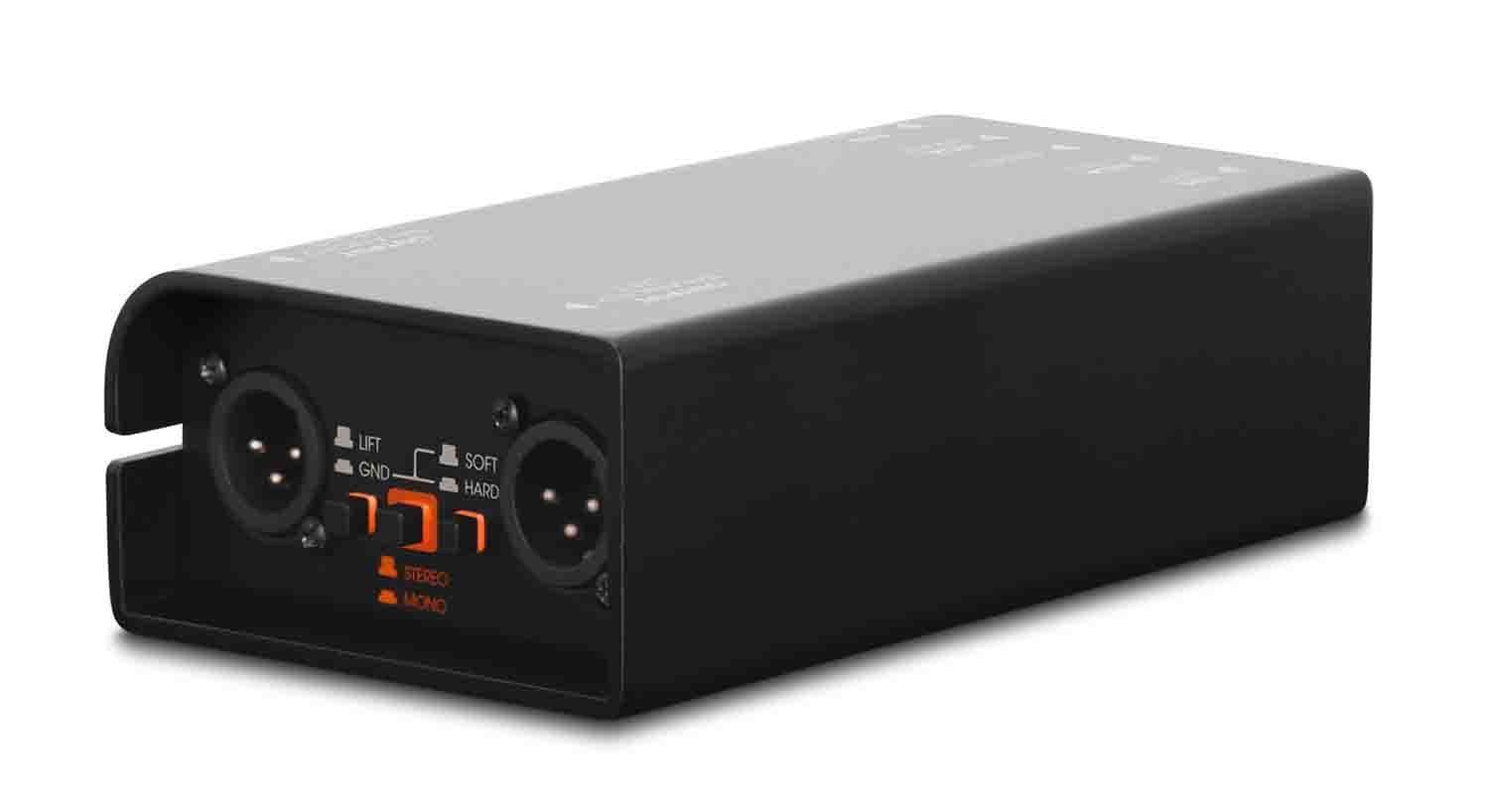

The Palmer naab Passive 2-Channel Media DI-Box can be switched from stereo to mono, which is often very useful in practice. The mono sum signal is then available at both XLR outputs at the same time; this way, the naab can also be used as a split box.

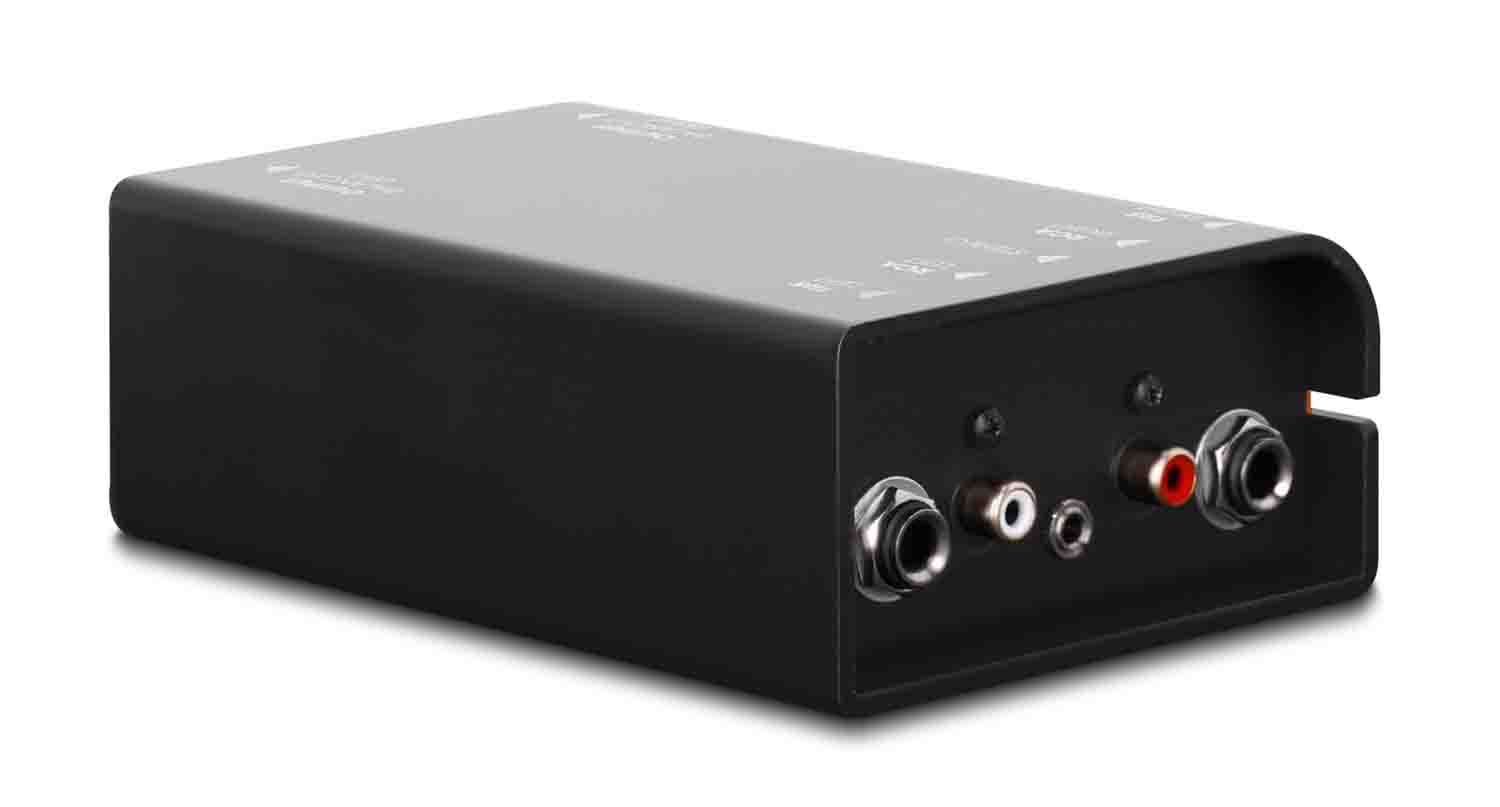

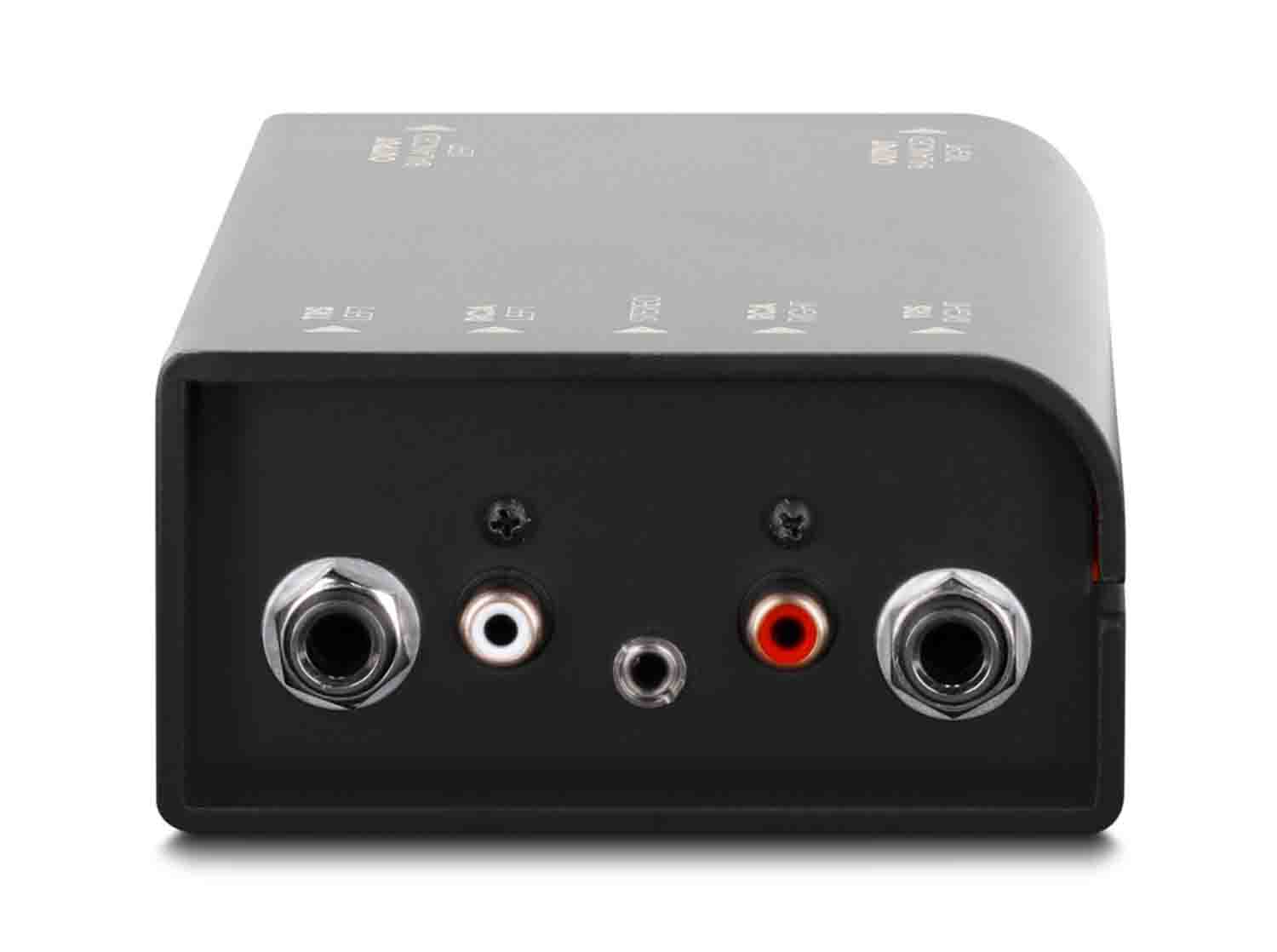

On the input side, there is a wide range of connections: 2 x 6.3 mm jack sockets, which can be balanced or unbalanced, as well as 2x RCA and 1x 3.5mm mini jack (stereo). This eliminates the need for adapter cables - which you always forget to take with you anyway! The outputs are professional XLR sockets; their balanced wiring allows even longer cable runs without any noise.

Due to its passive mode of operation, the Palmer naab does not need a power supply; this makes it extremely failure-proof, especially as the robust metal housing can withstand a lot. The Palmer naab is the ace up the sleeve for every lecture traveler, DJ and sound engineer.

B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty.  Please call for details.

Product Specifications:

Product type: line isolator

Channels: 2

Type: passive

Transformer isolated: Yes

Inputs: 2

input type: unbalanced

Input connectors: 3.5 mm TRS, 6.3 mm jack, RCA

Outputs: 2

Output type: balanced

Output connectors: XLR

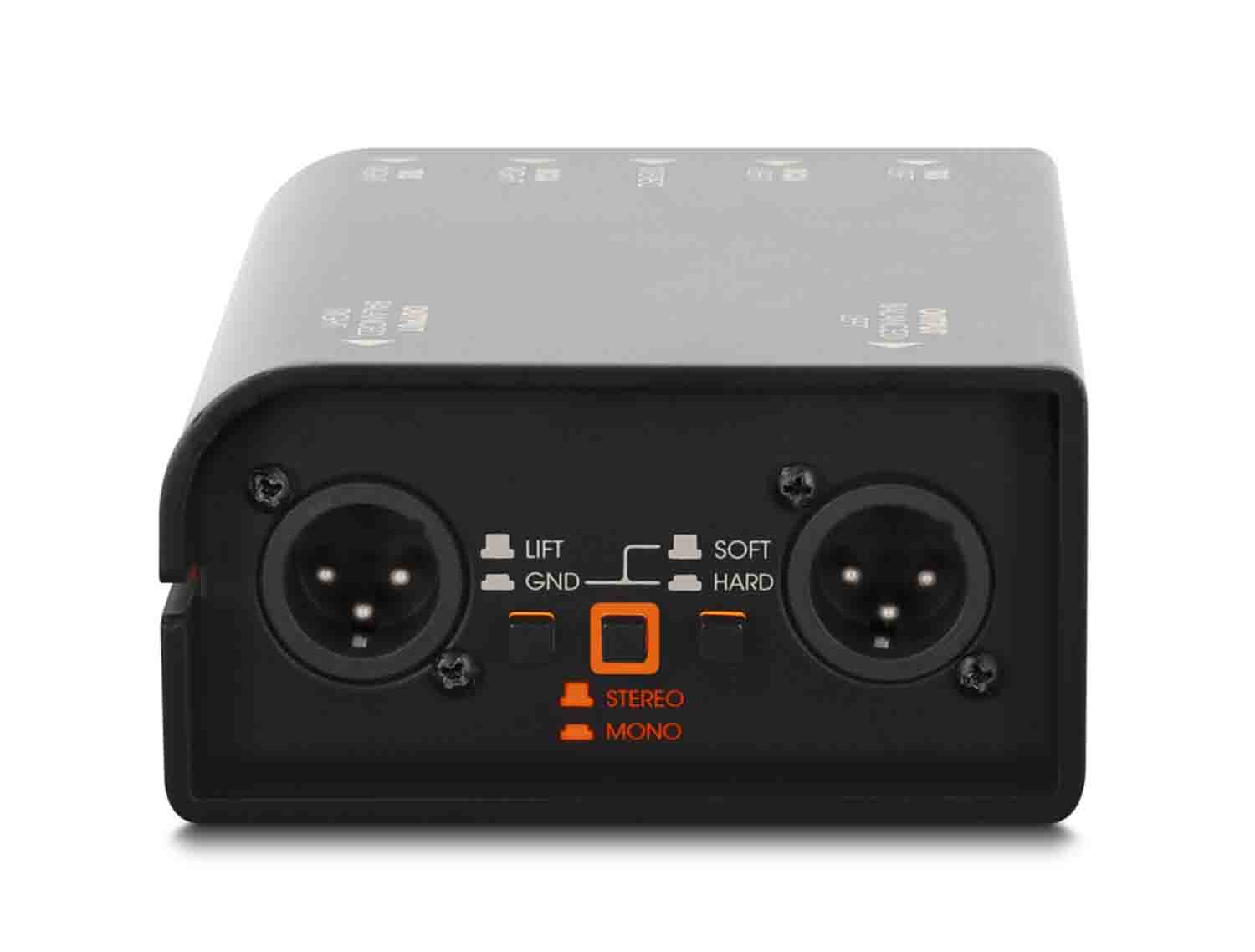

Ground lift switch: Yes

Additional Features: Mono summing switch

Housing: Aluminum continuous casting

Dimension (H/W/D): 140 x 50 x 58 mm

Weight: 0,555 kg

Ambient temperature during operation: -20 - 70 °C

Relative Humidity: < 80 %, not condensing

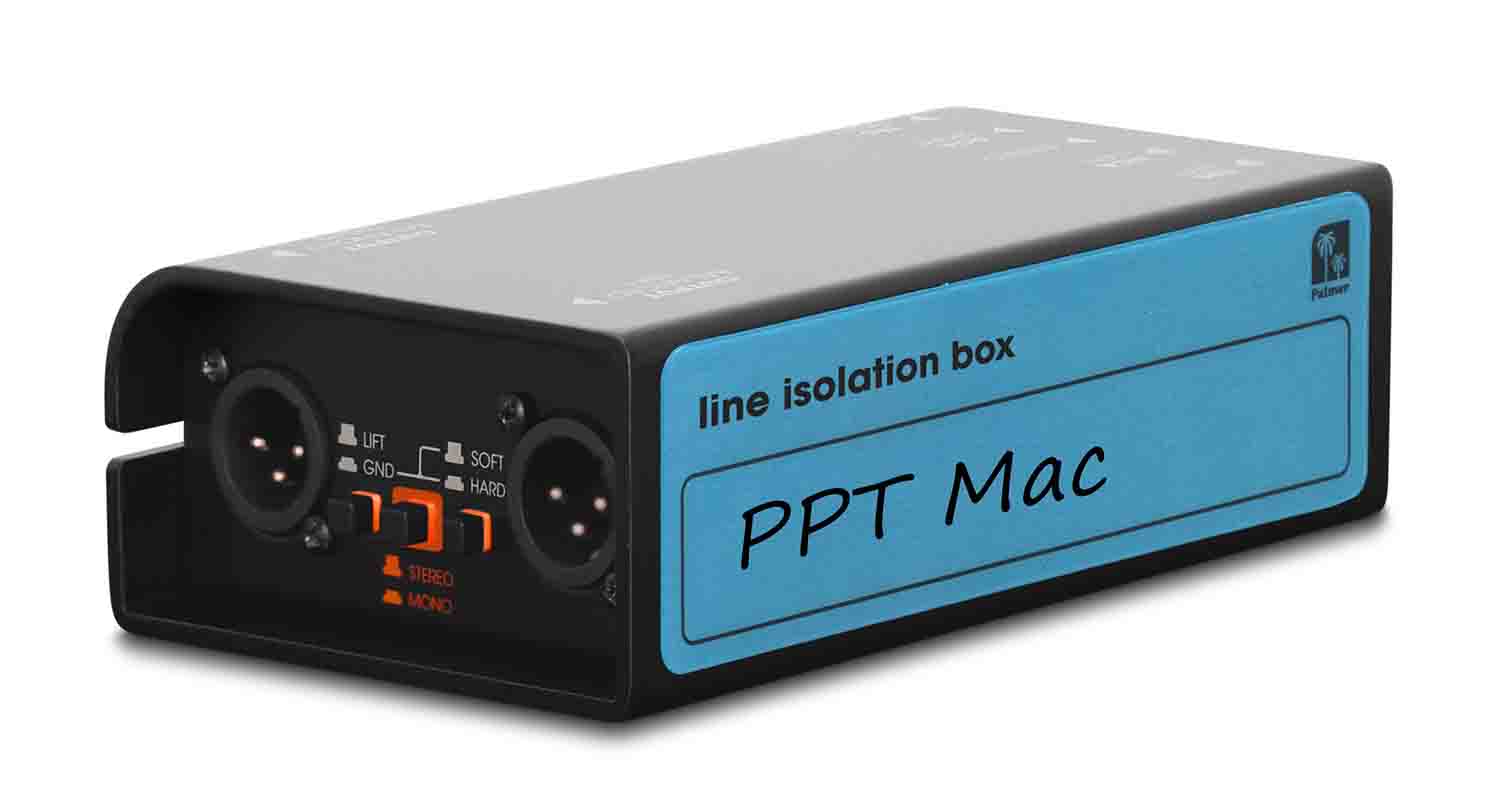

Accessories (included): Inscription label (tour label), rubber feet
