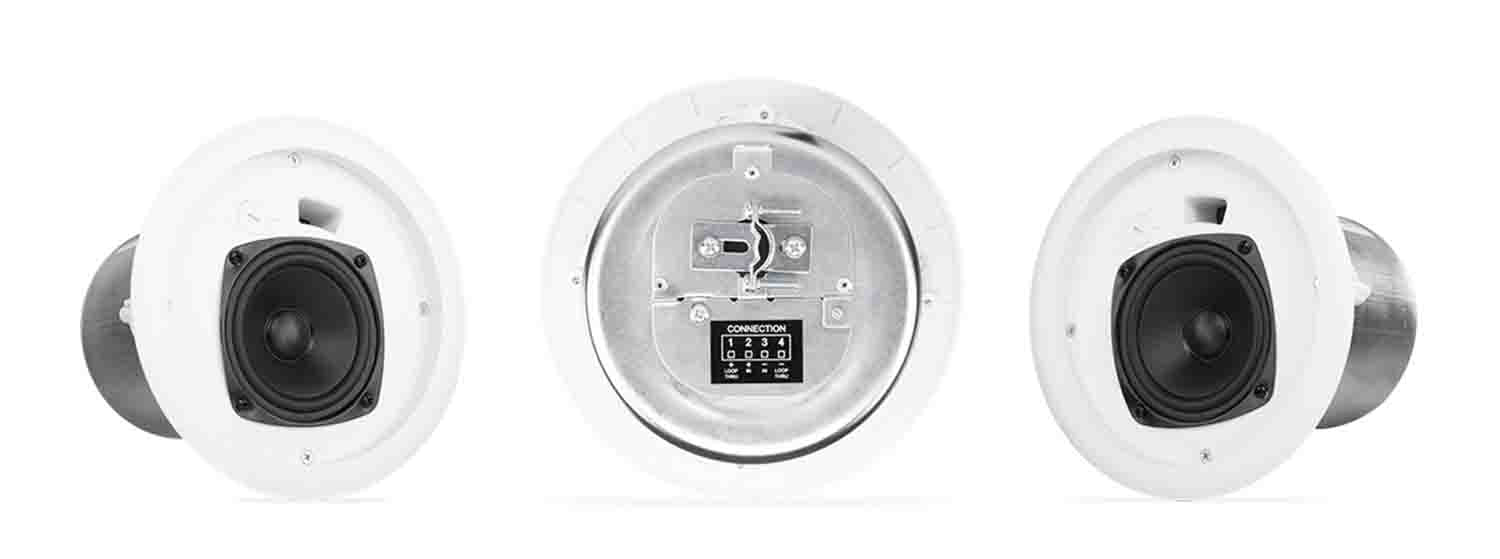

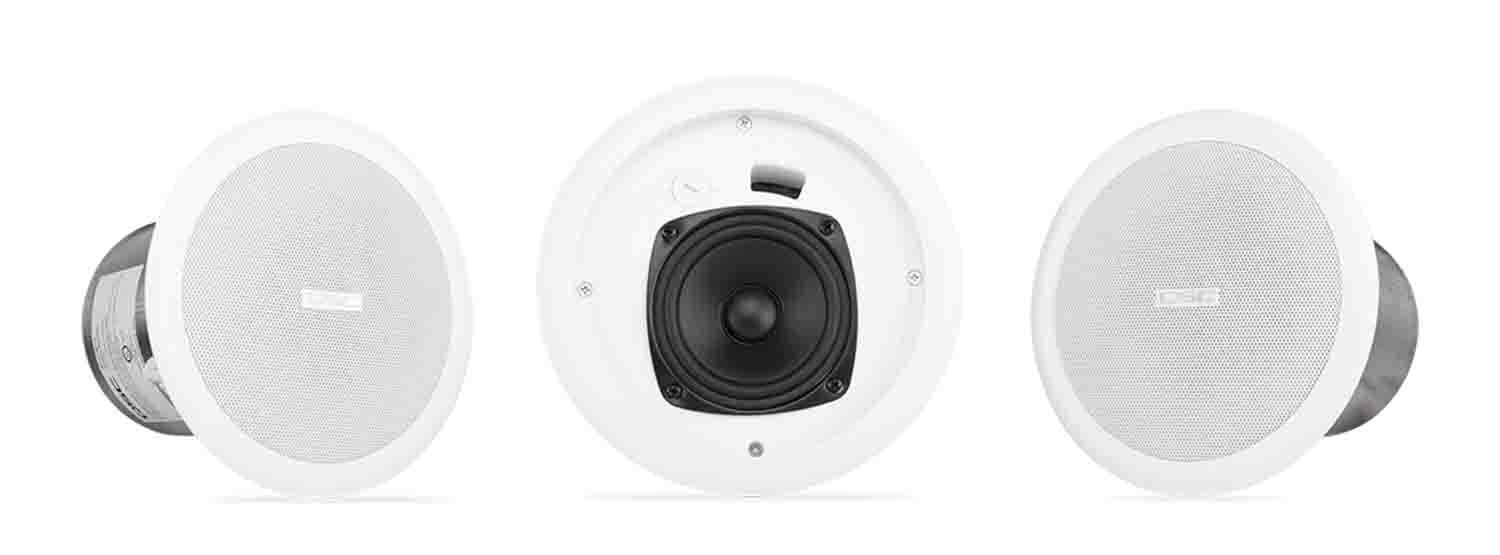

USED: QSC AC-C4T Acoustic Coverage Series AC-C4T 4" Ceiling-Mount Loudspeakers

The QSC AC-C4T Acoustic Coverage Series AC-C4T 4" Ceiling-Mount Loudspeakers features a polypropylene cone transducer with butyl rubber surround that offers clear sound with a frequency response range of 70 Hz to 16 kHz. It offers 140° of conical coverage. This loudspeaker utilizes a 16W low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8Ω bypass. The rotary tap selector switch is accessible under the powder-coated steel grille.

The easy-to-install blind mount assembly features a ported baffle and galvanized steel back can. The 4-pole Euro block connector is located under a quick access swivel plate and accepts four 18AWG pairs for loop-thru wiring.  A safety tether tab is affixed to the adjustable conduit clasp plate for seismic-sensitive installations. C-ring and tile rails are included with each pair packed assembly, complete with joining screws and a cut-out template. The baffle and grille are QSC standard white (RAL 9010) to match complimenting QSC product families and includes UV inhibitors to prevent discoloration over time. They may also be painted to match any decor.

B-stock may have minor cosmetic scratches or dents and furthermore B-Stock is not covered by full manufacturer warranty.  Please call for details.

Product Specifications:

Powered: No

Power Configuration: Full-range

LF Driver Size: 4" " Polypropylene cone

Power Rating: 70V/100V: 16W, 8W, 4W, 2W, 1W

Total Power: 16W

Impedance: 8 ohms

Inputs: 4 pole Euro block connectors

Frequency Range: 70Hz-16kHz

Maximum Peak SPL: 107dB

Horizontal Coverage Angle: 140 Degrees

Vertical Coverage Angle: 140 Degrees

Enclosure Material: Galvanized steel back can with steel grille

Mounting Options: Ceiling instal

Package Weight: 14.3 lb

Box Dimensions (LxWxH): 24.8 x 11 x 11"
