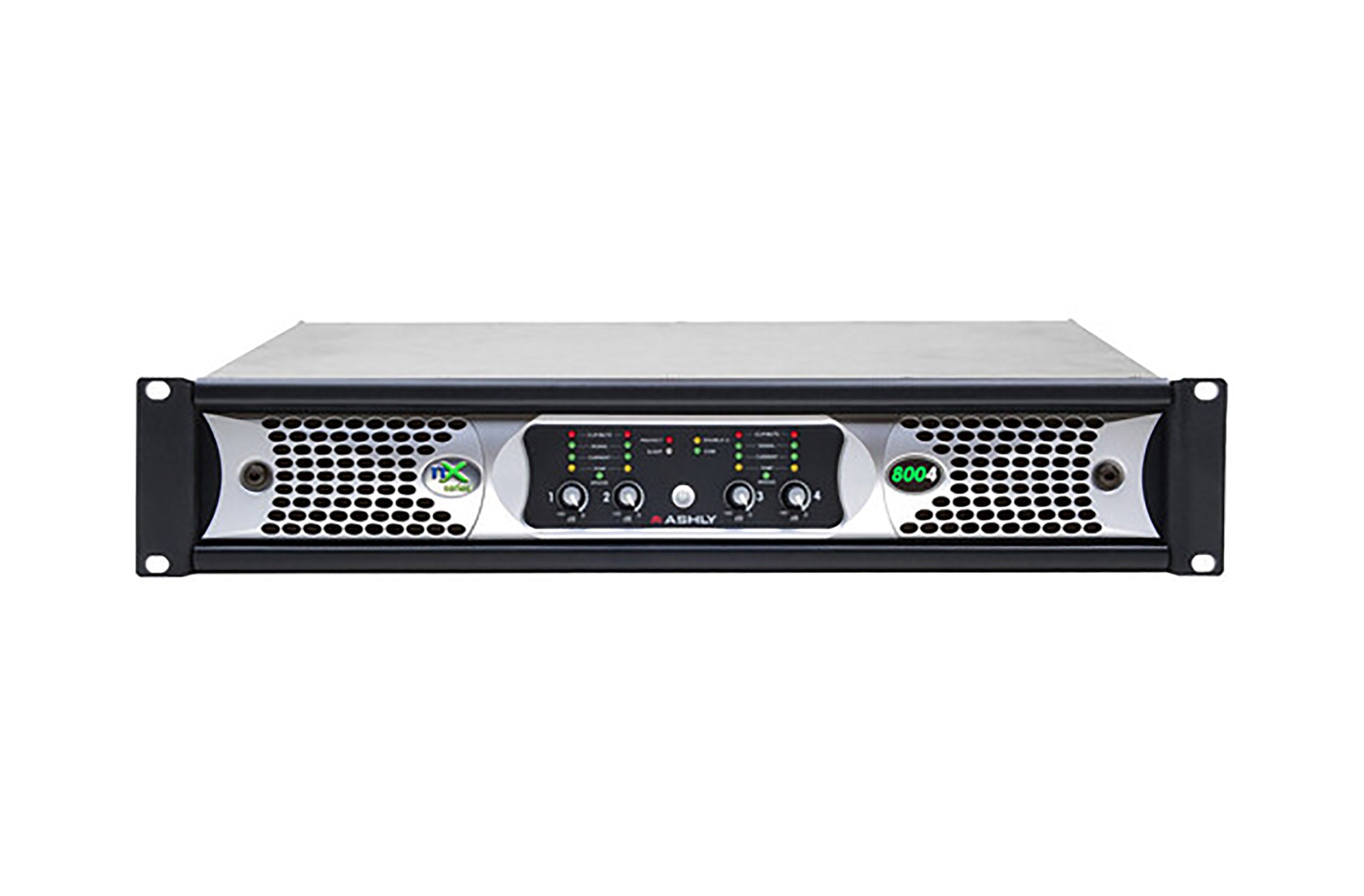

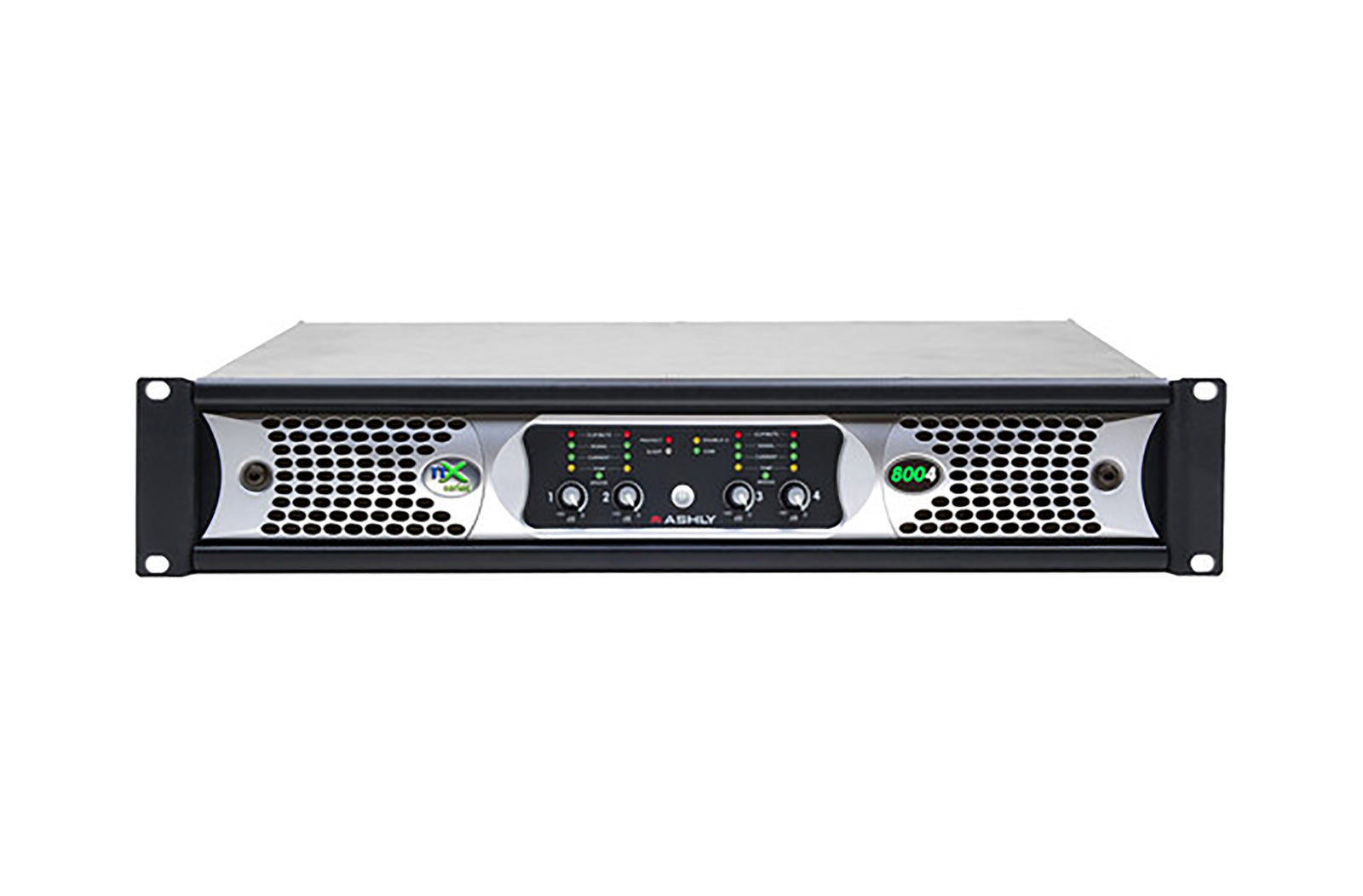

BASSBOSS NXP8004DL Multi-Mode Power Amplifiers

Meet the BASSBOSS Ashly NXP8004DL, the ultimate multi-mode amplifier designed for professionals who demand precision, performance, and power in the most intense live sound and fixed installation environments. Whether you're rocking an arena, shaping sound in a performance hall, or managing audio in a high-end worship space, this amp is your silent force — compact, intelligent, and brutally powerful.

With 4×800W of raw power and Ashly’s legendary Protea DSP, the NXP8004DL turns your passive loudspeakers into a finely-tuned, intelligent system. Its cutting-edge 32-bit SHARC DSP gives you full control: EQ, matrix mixing, FIR filtering, real-time scheduling, auto-mixing, and feedback suppression - all remotely accessible via iPad or PC.

The amp’s Class-D topology + switch-mode power supply makes it ultra-lightweight, while supporting global voltage detection (110–240V). Built-in Ethernet and RS-232 keep you connected, with total control from front-panel lockouts to tamper-proof installations.

This isn't just an amp - it's your command center.

Product Specifications:

Power Output: 4 × 800W (2Ω, 4Ω, 8Ω, 70V, 100V selectable per channel)

DSP Engine: 32-bit SHARC; 48/96kHz sample rate

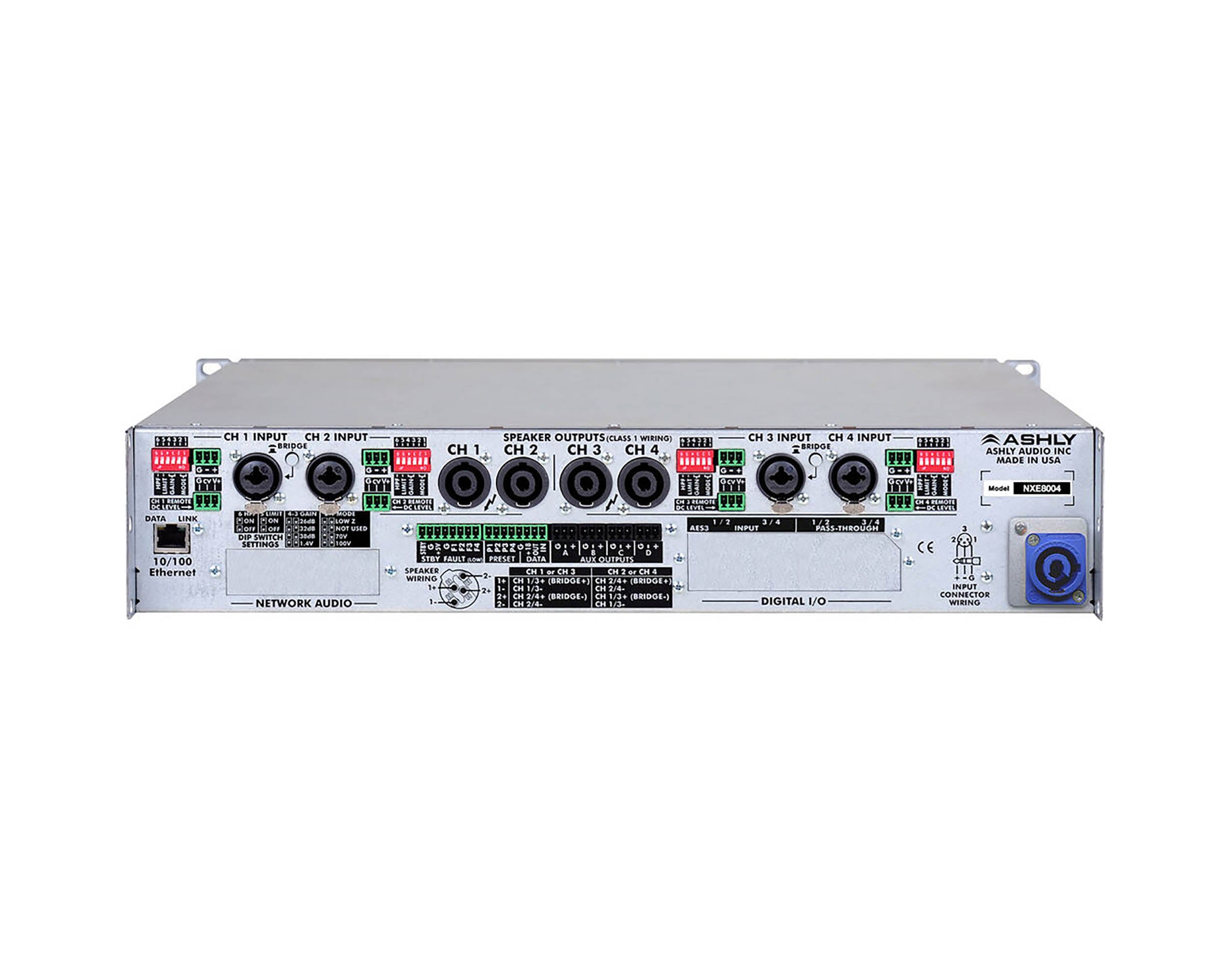

Inputs/Outputs: Balanced analog; Aux preamp outs; Logic fault outputs

Control Options: Ethernet, RS-232, Ashly Remote app (iOS), Protea SW

Filters & Processing: PEQ, FIR, HPF, LPF, crossover, dynamics, delay

Protection: Clip, thermal, overload, short, input limiting

Voltage Compatibility: Auto-switching 120/240VAC

Energy Saving: Instant Standby, <1W sleep mode

Rack Size: 2U (3.5” height)

Dimensions: 19" W × 3.5" H × 16.84" D (approx. 483 × 89 × 428 mm)

Weight: ~25.9 lb / 11.7 kg

Compliance: cTUVus, CE, FCC, RoHS
