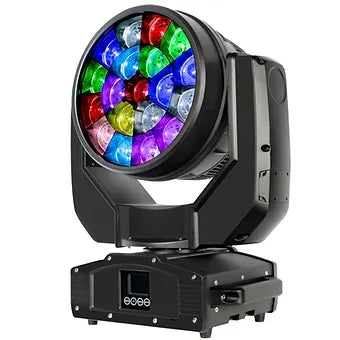

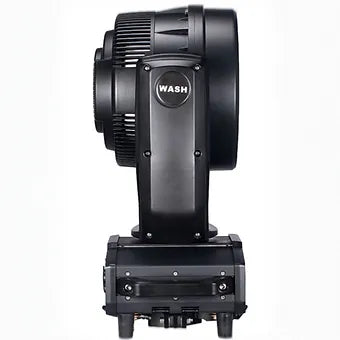

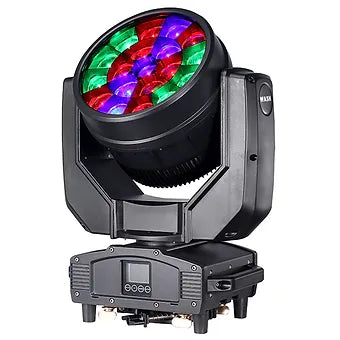

Bauer Lighting Bright Sky 1940F IP 19x40W RGBW LED Wash Moving Head

PRODUCT DESCRIPTION

IP65-rated 19x40W RGBW LED wash moving head with pixel mapping, 360-degree rotating lens, 3.5-to-50-degree zoom, and sealed Tru1 and XLR connectors for nightclubs, houses of worship, and rental fleets.

The Bauer Bright Sky 1940F IP is an IP65-rated 19x40W RGBW LED wash moving head delivering pixel mapping, a 360-degree rotating lens, and up to 99 DMX channels for nightclubs, bars, houses of worship, and rental production companies. Nineteen 40W RGBW LEDs provide 760 watts of combined source power with per-pixel control for dynamic chases, gradients, and zone-based wash programming across outdoor and indoor stages. A 360-degree rotating lens generates mid-air kinetic effects that static wash fixtures cannot replicate, adding movement to pixel-mapped scenes in any weather condition. Seven selectable DMX modes from 21 to 99 channels over IP65-rated XLR connections scale from standalone operation to full per-pixel addressing with sound activation and master-slave modes. With a 3.5-to-50-degree motorized zoom, IP65 weatherproofing throughout, Tru1 pass-through power, and temperature-controlled cooling, the system handles exposed festival stages and permanent outdoor installations with the Bauer Bright Sky 1940F IP.

19x40W RGBW LED Array and Color Output

The Bauer Bright Sky 1940F IP drives nineteen 40W RGBW LEDs delivering 760 watts of combined source power. Full RGBW mixing covers saturated primaries, deep ambers, soft pastels, and clean whites without color wheels or CMY flags, with linear dimming and a 1-to-25 Hz strobe for intensity control. For nightclubs and bars where high-output wash coverage is essential, this array delivers the brightness the environment demands indoors or on exposed outdoor stages.

IP65 Weatherproofing and Sealed Connectors

Rated IP65 for protection against dust and water jets, the Bauer Bright Sky 1940F IP operates reliably in outdoor festivals and dusty conditions that would compromise IP20 fixtures. Both 3-pin XLR DMX and Tru1 power connectors carry IP65 seals, maintaining weatherproof integrity across the signal and power chain without external covers. For rental companies running fixtures indoors and outdoors, the IP65 rating throughout eliminates separate inventory lines.

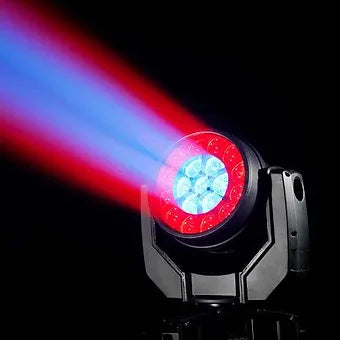

360-Degree Rotating Lens and Pixel Mapping

The fixture features a 360-degree rotating lens that spins the projected wash, generating kinetic mid-air effects and swirling color patterns. Pixel mapping with nineteen individually addressable LEDs provides control over chases, gradients, and radial effects, amplified by the rotating lens. Built-in macro effects offer ready-made transitions deployable without programming individual channels. For houses of worship seeking immersive visuals without advanced DMX expertise, the rotating lens and macro presets deliver professional results.

3.5-to-50-Degree Motorized Zoom

The Bauer Bright Sky 1940F IP provides motorized zoom across a 3.5-to-50-degree beam angle, shifting between tight long-throw beams and wide wash coverage from a single fixture. The narrow 3.5-degree minimum suits aerial beam effects on outdoor stages where throw distances exceed typical indoor venues. For rental houses stocking IP65 wash fixtures for diverse formats, this zoom covers outdoor concerts, architectural washes, and indoor environments from one inventory line.

Multi-Mode DMX Control with Up to 99 Channels

The fixture offers seven DMX modes — 21, 23, 35, 78, 92, 97, and 99 channels — over IP65-rated 3-pin XLR connections, scaling from basic control to full per-pixel RGBW addressing with master-slave, auto-run, and sound activation modes. Pan covers 540 degrees and tilt covers 270 degrees with 8-bit or 16-bit resolution, and a 180-degree reversible 1.8-inch TFT color display provides on-fixture access regardless of mounting orientation. For nightclub installations and rental companies programming pixel scenes across outdoor arrays, the seven-mode structure scales to the application.

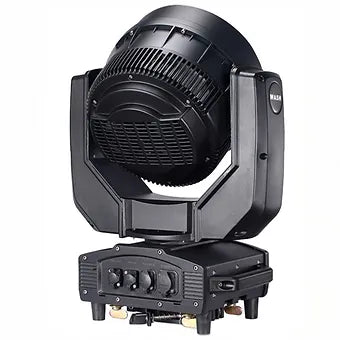

Build Quality, Cooling, and Tru1 Power

At 22 kg (48.5 lb) and 434 by 532 by 298 mm, the Bauer Bright Sky 1940F IP is built for demanding outdoor production. Temperature-controlled fan cooling adjusts to ambient conditions, maintaining LED performance while managing noise. IP65-rated Tru1 connectors provide secure locking power with daisy-chain capability at 640W consumption. For rental companies deploying wash arrays on festival stages and houses of worship maintaining outdoor installations, the sealed construction and Tru1 pass-through simplify deployment.

Talk to a Hollywood DJ Expert

Not sure whether the Bauer Bright Sky 1940F IP or a different IP65 wash moving head is the right match — Hollywood DJ specializes in stage lighting for nightclubs, bars, houses of worship, and rental production companies. Whether outfitting a festival with weatherproof wash rigs, adding pixel-mapped fixtures to a worship venue, or expanding a rental fleet with IP65 moving heads, the team can help. Contact our experts for personalized recommendations and pricing.

TECHNICAL SPECIFICATIONS

ELECTRICAL

Input Power: AC 100-240V

Power Frequency: 50/60 Hz

Power Consumption: 640W

Power Connector: IP65-rated Tru1 input and output

LIGHT SOURCE

Source: 19 x 40W RGBW LED

Average Lifespan: 50,000 hours

COLOR SYSTEM

Color Mixing: RGBW

OPTICS

Beam Angle: 3.5 to 50 degrees (motorized zoom)

Rotating Lens: 360-degree continuous rotation

Linear Dimming: 0-100%

Strobe: 1-25 Hz

DYNAMIC EFFECTS

Pixel Mapping: Individually addressable LEDs

Zoom and Rotation: Motorized zoom with 360-degree rotating lens

Macro Effects: Built-in color transitions, strobe patterns, and dynamic presets

CONTROL

DMX Channels: 21 / 23 / 35 / 78 / 92 / 97 / 99

DMX Connector: IP65-rated 3-pin XLR input and output

Control Modes: DMX / Master-Slave / Auto / Sound

Pan: 540 degrees, 8/16-bit scanning

Tilt: 270 degrees, 8/16-bit scanning

Display: 180-degree reversible 1.8-inch TFT color display

PHYSICAL

IP Rating: IP65

Housing Color: Black

Cooling: Fan cooled with temperature control

Working Ambient Temperature: -10 degrees C to 40 degrees C (-14 degrees F to 104 degrees F)

Dimensions: 434 x 532 x 298 mm (17.1 x 21 x 11.7 in)

Weight: 22 kg (48.5 lb)
