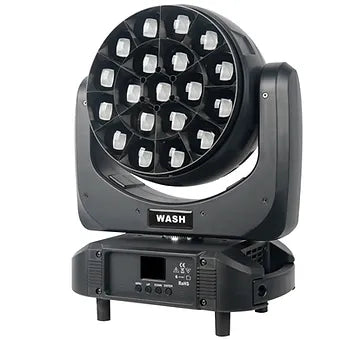

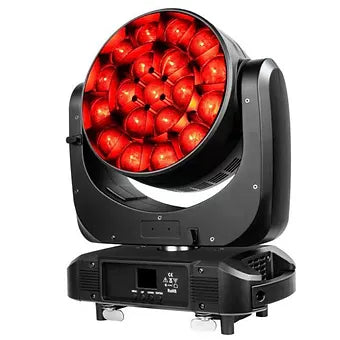

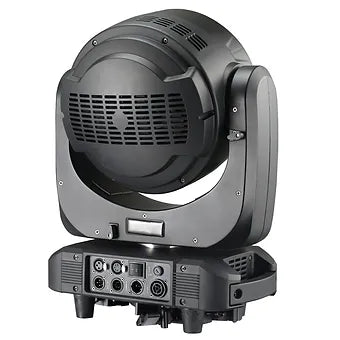

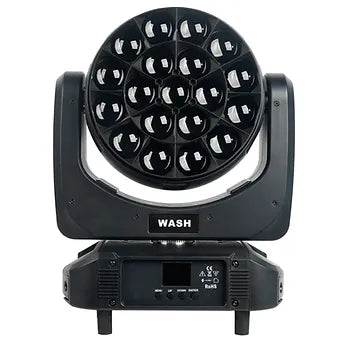

Bauer Lighting Bright Sky 1920F RGBW LED Wash Moving Head

19x20W RGBW LED wash moving head with pixel mapping, 5.8-to-55-degree zoom, up to 99 DMX channels, and temperature-controlled cooling at 8.5 kg for nightclubs, houses of worship, and rental fleets.

The Bauer Bright Sky 1920F is a 19x20W RGBW LED wash moving head delivering pixel mapping, motorized zoom, and up to 99 DMX channels for nightclubs, bars, houses of worship, and rental production companies. Nineteen individually addressable 20W RGBW LEDs provide 380 watts of combined output with full-spectrum color mixing and per-pixel control for dynamic chases, gradients, and zone-based wash programming. A motorized zoom range of 5.8 to 55 degrees covers tight spot-style beams and wide stage washes from a single 8.5 kg fixture with built-in macro effects. Seven selectable DMX modes from 21 to 99 channels accommodate basic standalone operation through full per-pixel addressing across complex networked show systems. With a 50,000-hour LED source, temperature-controlled fan cooling, and PowerCon pass-through for daisy-chained power, the system scales across multi-fixture arrays with the Bauer Bright Sky 1920F.

19x20W RGBW LED Array and Color Output

The Bauer Bright Sky 1920F drives nineteen 20W RGBW LEDs delivering 380 watts of combined output across red, green, blue, and white channels. Full RGBW mixing covers the complete color spectrum — saturated primaries, deep ambers, soft pastels, and clean whites — without separate color wheels or CMY flags. Linear dimming from 0 to 100 percent and a 1-to-25 Hz variable strobe add intensity control for dynamic cue sequences. For nightclubs and bars where high-output wash coverage and vivid saturation drive the atmosphere, this 19-LED array delivers the brightness the environment demands.

Pixel Mapping and Built-In Macro Effects

The fixture supports pixel mapping with nineteen individually addressable LEDs, giving designers granular control over color chases, gradient wipes, radial effects, and zone-based programming. Built-in macro effects provide ready-made transitions and strobe patterns deployable without programming individual channels, and zoom rotation adds kinetic movement to pixel-mapped looks. For houses of worship running volunteer-operated lighting, the macro presets deliver professional-grade visuals without advanced DMX expertise.

5.8-to-55-Degree Motorized Zoom

The Bauer Bright Sky 1920F provides motorized zoom across a 5.8-to-55-degree beam angle, shifting between focused spot-style beams and wide wash coverage from a single fixture. This range makes the 1920F effective as both a tight key light and a full-stage color wash in the same show, reducing fixture types on a plot. For rental houses stocking versatile wash fixtures for multiple event formats, this zoom covers intimate corporate stages and large nightclub environments from one inventory line.

Multi-Mode DMX Control with Up to 99 Channels

The fixture offers seven selectable DMX modes — 21, 23, 35, 78, 92, 97, and 99 channels — over both 3-pin and 5-pin XLR connections, scaling from basic control to full per-pixel RGBW addressing. Additional modes include master-slave synchronization, auto-run programs, and sound activation for music-reactive operation. Pan operates in 540-degree or 360-degree continuous rotation modes with tilt at 270 degrees, all supporting 8-bit or 16-bit resolution, and a 180-degree reversible 1.8-inch TFT color display provides on-fixture access regardless of mounting orientation. For nightclub installations running sound-reactive wash effects and houses of worship programming pixel scenes, the seven-mode DMX structure scales to the application.

Compact Build, Temperature-Controlled Cooling, and PowerCon Pass-Through

At 8.5 kg (18.74 lb) and 338 by 254 by 402 mm, the Bauer Bright Sky 1920F maintains a compact footprint for a 19-LED wash fixture, fitting truss, pipe grids, and floor-mounted applications. Temperature-controlled fan cooling adjusts speed to ambient conditions, maintaining LED performance while minimizing noise during quieter segments. PowerCon input and output enable daisy-chained power at 350W total consumption with a 4A fuse. For rental companies deploying large wash arrays and houses of worship mounting on lightweight truss, the compact weight and pass-through power simplify installation.

Talk to a Hollywood DJ Expert

Not sure whether the Bauer Bright Sky 1920F or a different RGBW wash moving head is the right match — Hollywood DJ specializes in stage and event lighting for nightclubs, bars, houses of worship, and rental production companies. Whether outfitting a nightclub with a high-output wash rig, adding pixel-mapped fixtures to a worship venue, or expanding a rental fleet with versatile wash moving heads, the team can help match the right fixture to the requirement. Contact our experts for personalized recommendations and pricing.

TECHNICAL SPECIFICATIONS

ELECTRICAL

Input Power: AC 100-240V

Power Frequency: 50/60 Hz

Power Consumption: 350W

Fuse: 4A

Power Connector: PowerCon input and output

LIGHT SOURCE

Source: 19 x 20W RGBW LED

Average Lifespan: 50,000 hours

COLOR SYSTEM

Color Mixing: RGBW

OPTICS

Beam Angle: 5.8 to 55 degrees (motorized zoom)

Linear Dimming: 0-100%

Strobe: 1-25 Hz

DYNAMIC EFFECTS

Pixel Mapping: Individually addressable LEDs

Zoom and Rotation: Motorized

Macro Effects: Built-in color transitions, strobe patterns, and dynamic presets

CONTROL

DMX Channels: 21 / 23 / 35 / 78 / 92 / 97 / 99

DMX Connector: 3-pin and 5-pin XLR input and output

Control Modes: DMX / Master-Slave / Auto / Sound

Pan: 540 degrees or 360 degrees continuous, 8/16-bit scanning

Tilt: 270 degrees, 8/16-bit scanning

Display: 180-degree reversible 1.8-inch TFT color display

PHYSICAL

IP Rating: IP20

Housing Color: Black

Cooling: Fan cooled with temperature control

Working Ambient Temperature: -10 degrees C to 40 degrees C (-14 degrees F to 104 degrees F)

Dimensions: 338 x 254 x 402 mm (13.3 x 10 x 15.8 in)

Weight: 8.5 kg (18.74 lb)
