Bauer Lighting Bright Sky 740F 250W RGBW LED Moving Head

Compact 7x40W RGBW LED moving head with pixel mapping, 3.5-to-45-degree zoom, and built-in macro effects at 5.6 kg for nightclubs, houses of worship, and rental fleets.

The Bauer Bright Sky 740F is a compact 7x40W RGBW LED moving head delivering pixel mapping, motorized zoom, and built-in macro effects for nightclubs, bars, houses of worship, and rental production companies. Seven individually addressable 40W RGBW LEDs provide full-spectrum color mixing with independent pixel control, enabling dynamic chases and zone-based programming across the fixture face. A motorized zoom range of 3.5 to 45 degrees covers tight beam looks and wide wash coverage from a single 5.6 kg fixture that mounts where larger moving heads cannot. Multi-mode DMX operation with 21, 24, 32, and 60-channel modes alongside sound activation and master-slave control gives operators flexibility from standalone setups to complex rigs. With a 50,000-hour LED source, fan cooling, and PowerCon pass-through for daisy-chained power, the system simplifies multi-fixture deployment with the Bauer Bright Sky 740F.

7x40W RGBW LED Array and Color Output

The Bauer Bright Sky 740F drives seven 40W RGBW LEDs delivering a combined 280 watts of LED output across red, green, blue, and white channels. Full RGBW mixing provides access to the complete color spectrum — saturated primaries, deep ambers, soft pastels, and clean whites — without separate color wheels or CMY flags. Linear dimming from 0 to 100 percent and a 1-to-25 Hz variable strobe add intensity control for dynamic cue programming. For nightclubs and bars where vivid color saturation and fast color changes drive the room energy, this RGBW array delivers the output the environment demands.

Pixel Mapping and Built-In Macro Effects

The fixture supports pixel mapping with individually addressable LEDs, allowing designers to create color chases, gradient wipes, and zone-based effects across the seven-LED face. Built-in macro effects provide ready-made transitions, color shifts, and strobe patterns deployable without programming individual channels. For houses of worship running volunteer-operated lighting systems, the macro effects and pixel presets deliver professional-grade visuals without requiring advanced DMX programming expertise.

3.5-to-45-Degree Motorized Zoom

The Bauer Bright Sky 740F provides motorized zoom across a 3.5-to-45-degree beam angle, shifting between tight aerial beams and broad wash coverage from a fixture weighing just 5.6 kg. This zoom range rivals fixtures two to three times the weight, making the 740F effective as both a beam effect light and a stage wash in the same show. For rental houses stocking compact fixtures that cover multiple roles, this versatility reduces the fixture types required in inventory.

DMX Control, Sound Activation, and Multi-Mode Operation

The fixture offers selectable 21, 24, 32, and 60-channel DMX modes over a 3-pin XLR connection, scaling from basic color-and-movement control to full per-pixel addressing. Additional modes include master-slave synchronization, auto-run programs, and sound activation for music-reactive operation. Pan covers 540 degrees and tilt covers 270 degrees with selectable 8-bit or 16-bit resolution, and an LCD display provides on-fixture access to addressing and configuration. For nightclub installations where fixtures run sound-reactive during DJ sets and switch to programmed cues for live performances, the multi-mode control covers both workflows.

Compact Build, Fan Cooling, and PowerCon Pass-Through

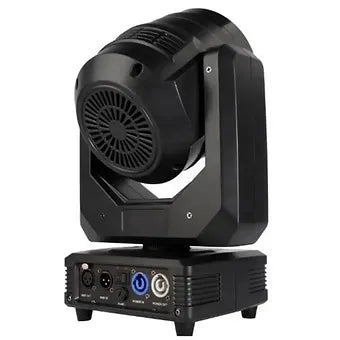

At 5.6 kg (12.35 lb) and 195 by 166 by 343 mm, the Bauer Bright Sky 740F fits truss positions, pipe grids, and floor-mounted applications where space and weight are constrained. Fan cooling maintains consistent LED performance across extended runs, and total power consumption is 250W with a 3A fuse. PowerCon input and output connectors enable daisy-chained power distribution, reducing cable runs in multi-fixture arrays. For rental companies deploying large wash fixture counts and houses of worship mounting on lightweight truss, the compact footprint and pass-through power simplify installation and logistics.

Talk to a Hollywood DJ Expert

Not sure whether the Bauer Bright Sky 740F or a different compact moving head is the right match for the application — Hollywood DJ specializes in stage and event lighting for nightclubs, bars, houses of worship, and rental production companies. Whether outfitting a club with a compact wash rig, adding pixel-mapped fixtures to a worship venue, or expanding a rental fleet with lightweight moving heads that cover beam and wash duties, the team can help match the right fixture to the requirement. Contact our experts for personalized recommendations and pricing.

TECHNICAL SPECIFICATIONS

ELECTRICAL

Input Power: AC 100-240V

Power Frequency: 50/60 Hz

Power Consumption: 250W

Fuse: 3A

Power Connector: PowerCon input and output

LIGHT SOURCE

Source: 7 x 40W RGBW LED

Average Lifespan: 50,000 hours

COLOR SYSTEM

Color Mixing: RGBW

OPTICS

Beam Angle: 3.5 to 45 degrees (motorized zoom)

Linear Dimming: 0-100%

Strobe: 1-25 Hz

DYNAMIC EFFECTS

Pixel Mapping: Individually addressable LEDs

Zoom and Rotation: Motorized

Macro Effects: Built-in color transitions, strobe patterns, and dynamic presets

CONTROL

DMX Channels: 21 / 24 / 32 / 60

DMX Connector: 3-pin XLR input and output

Control Modes: DMX / Master-Slave / Auto / Sound

Pan: 540 degrees, 8/16-bit scanning

Tilt: 270 degrees, 8/16-bit scanning

Display: LCD display

PHYSICAL

IP Rating: IP20

Housing Color: Black

Cooling: Fan cooled

Working Ambient Temperature: -10 degrees C to 40 degrees C (-14 degrees F to 104 degrees F)

Dimensions: 195 x 166 x 343 mm (7.7 x 6.55 x 13.5 in)

Weight: 5.6 kg (12.35 lb)
