Bauer Lighting Bright Sky 1940F RGBW LED Wash Moving Head

19x40W RGBW LED wash moving head with pixel mapping, 360-degree rotating lens, 5.8-to-55-degree zoom, and up to 99 DMX channels for nightclubs, houses of worship, and rental production fleets.

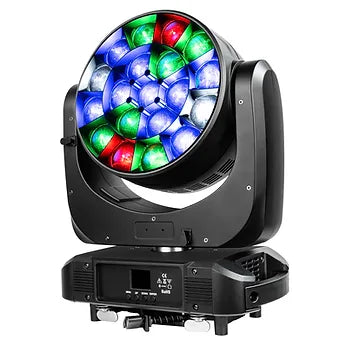

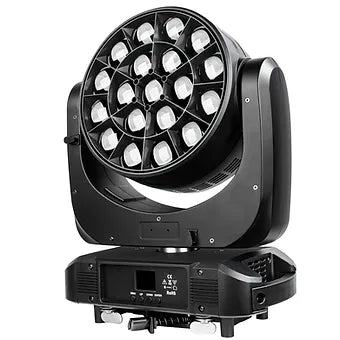

The Bauer Bright Sky 1940F is a 19x40W RGBW LED wash moving head delivering pixel mapping, a 360-degree rotating lens, and up to 99 DMX channels for nightclubs, bars, houses of worship, and rental production companies. Nineteen 40W RGBW LEDs provide 760 watts of combined LED source power with full-spectrum color mixing and per-pixel control for dynamic chases, gradients, and zone-based wash programming. A 360-degree continuously rotating lens generates mid-air kinetic effects that static wash fixtures cannot replicate, adding depth and movement to pixel-mapped color scenes. Seven selectable DMX modes from 21 to 99 channels accommodate standalone operation through full per-pixel addressing, with sound activation and master-slave modes for flexible deployment. With a 5.8-to-55-degree motorized zoom, temperature-controlled cooling, Tru1 pass-through power, and an integrated rigging clamp, the system is built for demanding production environments with the Bauer Bright Sky 1940F.

19x40W RGBW LED Array and Color Output

The Bauer Bright Sky 1940F drives nineteen 40W RGBW LEDs delivering 760 watts of combined source power across red, green, blue, and white channels. Full RGBW mixing covers saturated primaries, deep ambers, soft pastels, and clean whites without separate color wheels or CMY flags. Linear dimming and a 1-to-25 Hz variable strobe add intensity control for dynamic cue sequences. For nightclubs and bars where high-output wash coverage across large rooms is essential, this 19x40W array delivers the brightness the environment demands.

360-Degree Rotating Lens and Pixel Mapping

The fixture features a 360-degree continuously rotating lens that spins the projected wash output, generating kinetic mid-air effects and swirling color patterns. Pixel mapping with nineteen individually addressable LEDs gives designers control over chases, gradients, and radial effects, and the rotating lens amplifies these patterns with physical movement. Built-in macro effects provide ready-made transitions deployable without programming individual channels. For houses of worship seeking immersive visuals without advanced DMX expertise, the rotating lens and macro presets deliver professional results from straightforward control.

5.8-to-55-Degree Motorized Zoom

The Bauer Bright Sky 1940F provides motorized zoom across a 5.8-to-55-degree beam angle, shifting between focused spot-style output and wide wash coverage from a single fixture. This range makes the 1940F effective as both a key light and a full-stage color wash in the same show, reducing fixture types on a plot. For rental houses stocking high-output wash fixtures for multiple event formats, this zoom covers corporate stages and large festival environments from one inventory line.

Multi-Mode DMX Control with Up to 99 Channels

The fixture offers seven selectable DMX modes — 21, 23, 35, 78, 92, 97, and 99 channels — over both 3-pin and 5-pin XLR connections, scaling from basic control to full per-pixel RGBW addressing. Additional modes include master-slave synchronization, auto-run programs, and sound activation for music-reactive operation. Pan covers 540 degrees and tilt covers 270 degrees with 8-bit or 16-bit resolution, and an LED display with four buttons provides on-fixture access to configuration. For nightclub installations running sound-reactive wash effects and rental companies programming pixel scenes across large arrays, the seven-mode DMX structure scales to the application.

Build Quality, Integrated Clamp, and Tru1 Power

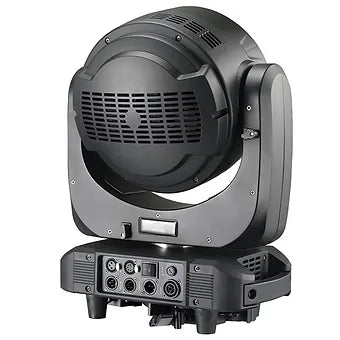

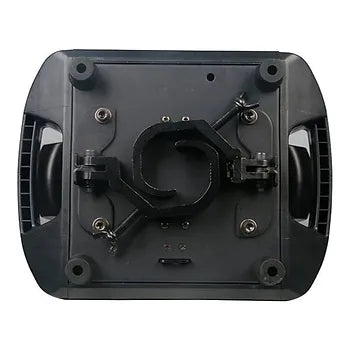

At 16.5 kg (36.4 lb) and 376 by 280 by 420 mm, the Bauer Bright Sky 1940F includes an integrated rigging clamp for quick, secure truss mounting without separate hardware. Temperature-controlled fan cooling adjusts speed to ambient conditions, maintaining LED performance while managing noise. Tru1 input and output connectors provide secure locking power with daisy-chain capability at 640W consumption and a T10AL fuse. For rental companies cycling fixtures between events and houses of worship maintaining permanent rigs, the integrated clamp and Tru1 pass-through reduce setup time and simplify power infrastructure.

Talk to a Hollywood DJ Expert

Not sure whether the Bauer Bright Sky 1940F or a different RGBW wash moving head is the right match — Hollywood DJ specializes in stage lighting for nightclubs, bars, houses of worship, and rental production companies. Whether outfitting a nightclub with a high-output wash rig, adding pixel-mapped rotating-lens fixtures to a worship venue, or expanding a rental fleet, the team can help match the right fixture to the requirement. Contact our experts for personalized recommendations and pricing.

TECHNICAL SPECIFICATIONS

ELECTRICAL

Input Power: AC 100-240V

Power Frequency: 50/60 Hz

Power Consumption: 640W

Fuse: T10AL/250V

Power Connector: Tru1 input and output

LIGHT SOURCE

Source: 19 x 40W RGBW LED

Average Lifespan: 50,000 hours

COLOR SYSTEM

Color Mixing: RGBW

OPTICS

Beam Angle: 5.8 to 55 degrees (motorized zoom)

Rotating Lens: 360-degree continuous rotation

Linear Dimming: 0-100%

Strobe: 1-25 Hz

DYNAMIC EFFECTS

Pixel Mapping: Individually addressable LEDs

Zoom and Rotation: Motorized zoom with 360-degree rotating lens

Macro Effects: Built-in color transitions, strobe patterns, and dynamic presets

CONTROL

DMX Channels: 21 / 23 / 35 / 78 / 92 / 97 / 99

DMX Connector: 3-pin and 5-pin XLR input and output

Control Modes: DMX / Master-Slave / Auto / Sound

Pan: 540 degrees, 8/16-bit scanning

Tilt: 270 degrees, 8/16-bit scanning

Display: LED display with 4 buttons

PHYSICAL

IP Rating: IP20

Housing Color: Black

Cooling: Fan cooled with temperature control

Working Ambient Temperature: -10 degrees C to 40 degrees C (-14 degrees F to 104 degrees F)

Dimensions: 376 x 280 x 420 mm (14.8 x 11 x 16.5 in)

Weight: 16.5 kg (36.4 lb)

Rigging: Integrated clamp
