Description
Razor-Sharp 1.5-Degree Beam, Dual Rotating Prism System, and 54-Piece RGB Halo for Stage Lighting Rental, Live Event Production, and Corporate Events

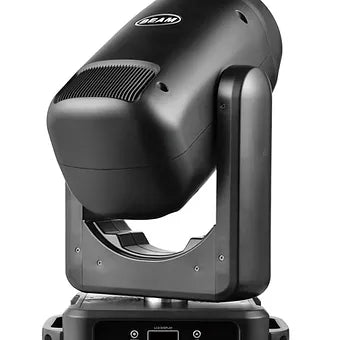

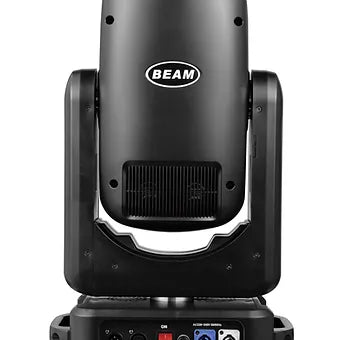

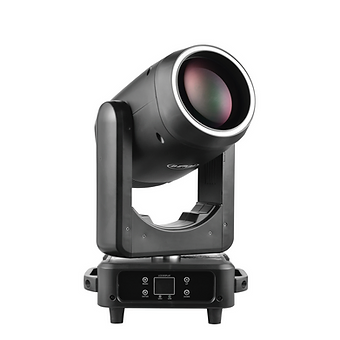

The Bauer Radiant Beam 200W LED Moving Head Beam is a professional-grade beam fixture delivering a 1.5-degree beam angle, 14-color wheel, and dual rotating prism system for stage lighting rental companies, live event production, and corporate events. The dual-layer prism system pairs an 8-facet Prism 1 with a multi-stage Prism 2 offering 8, 16, and 24-facet rotating configurations, generating overlapping beam effects with depth and visual complexity that static optics cannot achieve. The 200W LED light source operates at 7500K, producing intense, penetrating output that cuts through atmospheric haze on concert stages and live event rigs where throw and punch are non-negotiable. A 19-channel DMX footprint with 3-pin XLR input and output, Master-Slave, Auto, and Sound-Active control modes, and an LCD touch display deliver flexible, venue-to-venue control without additional hardware. With 540-degree pan and 270-degree tilt on 16-bit resolution, a 50,000-hour LED lifespan, and a working temperature range from -10 to 40 degrees Celsius, the Bauer Radiant Beam 200W LED Moving Head Beam is built to perform across demanding rental schedules and touring environments.
200W LED Light Engine and Beam Performance
The Bauer Radiant Beam 200W LED Moving Head Beam is powered by a 200W LED engine producing a tightly focused 1.5-degree beam angle at a color temperature of 7500K. This narrow output delivers the intensity and throw distance required to cut through fog and haze with definition on large stages. The LED source carries a rated lifespan of 50,000 hours and is cooled by an internal fan system, maintaining stable operating temperatures across long sessions. For stage lighting rental companies managing high-rotation inventory, the long LED lifespan and wide ambient temperature tolerance — from -10 to 40 degrees Celsius — reduce maintenance cycles and total cost of ownership.
Dual Rotating Prism System
The dual rotating prism system is the defining optical feature of this 200W LED moving head beam. Prism 1 is an 8-facet rotating prism, while Prism 2 operates across three selectable modes: 8-facet, 16-facet, and 24-facet rotating prism configurations. Both prisms spin independently or in combination, producing layered beam-multiplication effects with variable density that scale from intimate club installations to arena-scale productions. Live event production designers working on concerts and festival stages rely on this kind of selectable prism flexibility to create dynamic aerial effects that evolve across the full duration of a show.
Static Gobo Wheel with 15 Metal and 2 Glass Gobos
The static gobo wheel carries 15 metal gobos and 2 glass gobos, plus an open position for unobstructed beam output. The glass gobos deliver sharper, higher-contrast projections suited to logo work and fine pattern detail, while the 15 metal gobos cover a broad range of geometric and textural shapes for general stage use. The open position allows instant transition from gobo projection to a clean raw beam, giving operators precise per-cue control over the fixture's optical character. Corporate event lighting designers use this gobo range to project custom textures and branded imagery onto stages, draping, and architectural surfaces.
14-Color Wheel with Split Color, Rainbow, and Frost
The 14-position color wheel includes an open position and supports split-color mixing, rainbow effect cycling, and a frost diffusion mode. Split color allows simultaneous projection of two adjacent wheel positions for blended output, while rainbow mode produces smooth, programmed spectrum transitions across the full color range. Linear dimming from 0 to 100 percent and strobe rates from 1 to 25Hz operate across all color positions, giving lighting designers complete intensity and timing control. For corporate events where color accuracy and smooth transitions are priorities, the frost mode softens the beam into a diffuse wash, extending the fixture's range beyond standard beam applications.
54-Piece RGB LED Halo Ring
A 54-piece RGB LED halo ring surrounds the main optical assembly, providing an independent layer of color and visual effect output. The halo ring includes built-in macro effects that run concurrently with the main beam, creating a combined aerial and silhouette effect that adds dimension to any production. The halo can complement wash light rigs or serve as a standalone audience-facing element in close-proximity stage designs. For live event production companies building multi-fixture rigs, the halo ring elevates each unit's visual contribution beyond the beam itself, increasing production value without additional fixtures.
Motion, DMX Control, and Connectivity
The Bauer Radiant Beam 200W LED Moving Head Beam delivers 540-degree pan and 270-degree tilt, both running on 16-bit resolution for smooth, step-free movement across the full range of motion. The 19-channel DMX configuration is supported by 3-pin XLR input and output connectors and PowerCon input and output for clean, chained power distribution in touring rigs. Four control modes — DMX, Master-Slave, Auto, and Sound-Active — support both fully programmed shows and unmanned installations. An LCD touch display with four navigation buttons provides on-board menu access for address configuration, mode selection, and diagnostics, reducing time on stage for stage lighting rental technicians during load-in.
Talk to a Hollywood DJ Expert
Not sure whether the Bauer Radiant Beam 200W LED Moving Head Beam fits your production requirements or how it integrates with your existing beam and wash rig? Hollywood DJ specializes in professional stage lighting solutions for live event production companies, corporate event designers, and stage lighting rental operations. Our team can advise on DMX system integration, multi-fixture configurations, and package pricing tailored to the scale of your project. Contact our experts for personalized recommendations, rental availability, and package pricing.
TECHNICAL SPECIFICATIONS
LIGHT SOURCE
Main Source: 200W LED
Color Temperature: 7500K
Halo Ring: 54 pcs RGB LED
Average Lifespan: 50000 hours
COLOR SYSTEM
Color Wheel: 14 colors plus open
Special Effects: Frost, rainbow effect, split color
OPTICS
Beam Angle: 1.5 degrees
Prism 1: 8-facet rotating
Prism 2: 8, 16, and 24-facet rotating prism
Gobo Wheel: 15 metal gobos plus 2 glass gobos plus open
Cooling Method: Fan cool
ELECTRONICS
Dimming: 0-100 percent linear
Strobe Rate: 1-25Hz
CONTROL
DMX Channels: 19CH
DMX Connector: 3-Pin XLR input and output
Power Connector: PowerCon input and output
Control Modes: DMX, Master-Slave, Auto, Sound-Active
Pan: 540 degrees, 16-bit scanning
Tilt: 270 degrees, 16-bit scanning
Display: LCD touch display with 4 buttons
ELECTRICAL
Input Voltage: AC100-240V
Power Frequency: 50/60Hz
Power Consumption: 350W
Fuse: 5A
PHYSICAL
IP Rating: IP20
Housing Color: Black
Working Temperature: -10 degrees C to 40 degrees C (-14 degrees F to 104 degrees F)
Dimensions: 293 x 240 x 572mm (11.5 x 9.5 x 22.5 inches)
Weight: 13.5kg (29.8 lb)
