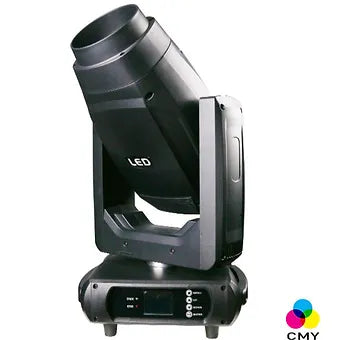

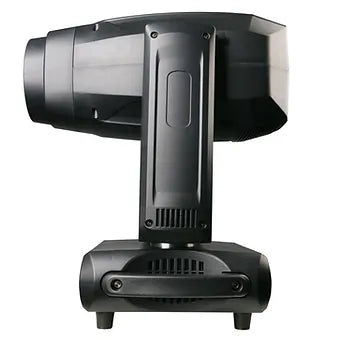

Bauer Lighting Venue 400W LED Hybrid CMY Moving Head

Three-in-one beam, spot, and wash hybrid moving head with full CMY color mixing, dual rotating prisms, and motorized zoom for nightclubs, bars, and houses of worship.

The Bauer Venue 400W LED Hybrid CMY Moving Head is a three-in-one beam, spot, and wash fixture delivering full CMY color mixing, dual rotating prisms, and motorized zoom for nightclubs, bars, and houses of worship. Its CMY color mixing system produces seamless transitions from soft pastels to deep saturated hues, with CTO and CTB correction filters for precise white-balance control. Dual 8-facet and 3-facet rotating prisms combine with two gobo wheels, including eight replaceable rotating gobos, to generate layered mid-air effects and sharp pattern projections. A 24-channel DMX interface with RDM support and an LCD touch display streamlines programming, while 16-bit pan and tilt resolution ensures smooth, repeatable movements. With a 3.5-to-23.8-degree motorized zoom range, a 50,000-hour LED source, and integrated rigging clamps, this fixture scales from intimate bar stages to full worship venue productions with the Bauer Venue 400W LED Hybrid CMY Moving Head.

Hybrid CMY Color Mixing with CTO and CTB Correction

The Bauer Venue 400W LED Hybrid CMY Moving Head features a full CMY color mixing system supplemented by a nine-color wheel with CTO and CTB correction filters. This enables seamless fades from delicate pastels to fully saturated primaries, while CTO and CTB filters shift color temperature to match warm or cool white points on demand. For houses of worship that require subtle ambient washes during services and vivid palettes during worship sets, this system handles both without a fixture change.

Dual Rotating Prisms and Gobo Wheels

This fixture pairs an 8-facet rotating prism with a 3-facet rotating prism, enabling layered beam-splitting effects that add depth and movement to any light show. The gobo system includes a static wheel with 11 fixed gobos and a rotating wheel carrying eight replaceable gobos, and operators can combine prism and gobo effects simultaneously for complex mid-air projections and volumetric beam looks. For nightclub and bar environments where high visual energy drives the atmosphere, these dual prism and gobo capabilities produce the dynamic effects audiences expect.

Motorized Zoom and Focus Optics

The Bauer Venue 400W LED Hybrid CMY Moving Head provides motorized zoom across a 3.5-to-23.8-degree beam angle, shifting between tight aerial beams and wide wash coverage from a single fixture. Motorized focus ensures sharp gobo projections at any throw distance, and a linear dimmer paired with a 1-to-25 Hz variable strobe adds further intensity layering. This versatility makes the fixture effective in compact bar venues requiring tight beams and in larger houses of worship where broad stage washes are essential.

DMX Control, RDM, and 16-Bit Movement

The fixture operates on a 24-channel DMX protocol with RDM support for remote configuration and diagnostics, reducing the need for physical access to fixtures installed at height. Pan covers 540 degrees and tilt covers 270 degrees, both at 16-bit resolution for smooth positioning, and an LCD touch display with four buttons provides on-fixture access to addressing and mode selection. Nightclub installers and house of worship technical teams benefit from RDM remote management paired with high-resolution movement, simplifying both initial setup and ongoing maintenance.

Build Quality and Rigging

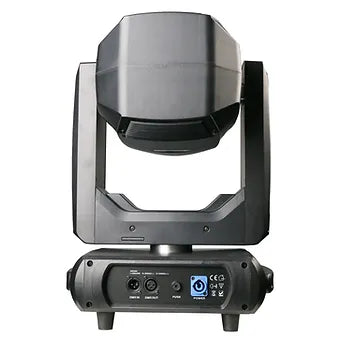

Housed in a durable IP20-rated black enclosure, the Bauer Venue 400W LED Hybrid CMY Moving Head weighs 21.8 kg (48.1 lb) and measures 365 by 290 by 682 mm. Two integrated clamps provide quick, secure mounting for permanent installations and touring rigs, and the fixture accepts AC 100-240V power through a PowerCon connector. For nightclub operators managing multiple fixture installations and houses of worship outfitting permanent lighting rigs, the integrated clamps and PowerCon connectivity streamline setup and teardown.

Talk to a Hollywood DJ Expert

Not sure whether the Bauer Venue 400W LED Hybrid CMY Moving Head or a different hybrid fixture is the right match for the venue -- Hollywood DJ specializes in stage lighting for nightclubs, bars, and houses of worship. Whether outfitting a permanent club install, upgrading a worship venue's lighting rig, or adding versatile fixtures to a mobile production inventory, the team can help match the right moving head to the application. Contact our experts for personalized recommendations and pricing.

TECHNICAL SPECIFICATIONS

ELECTRICAL

Input Power: AC 100-240V

Power Frequency: 50/60 Hz

Power Consumption: 500W

Fuse: 8A

Power Connector: PowerCon (or Tru1) input

LIGHT SOURCE

Source: 400W LED

Average Lifespan: 50,000 hours

COLOR SYSTEM

Color Wheel: 9 colors plus open + CTO + CTB

CMY Color Mixing: Full CMY subtractive mixing

OPTICS

Beam Angle: 3.5 to 23.8 degrees (motorized zoom)

Focus: Motorized

Linear Dimming: 0-100%

Strobe: 1-25 Hz

DYNAMIC EFFECTS

Rotatable Gobo Wheel: 8 replaceable gobos + open

Static Gobo Wheel: 11 gobos + open

Prism 1: 8-facet rotatable

Prism 2: 3-facet rotatable

CONTROL

DMX Channels: 24

DMX Connector: 3-pin (or 5-pin XLR) input and output

RDM: Supported, with software upload via DMX cable

Control Modes: DMX / Master-Slave / Auto / RDM

Pan: 540 degrees, 16-bit scanning

Tilt: 270 degrees, 16-bit scanning

Display: LCD touch display with 4 buttons

PHYSICAL

IP Rating: IP20

Housing Color: Black

Working Ambient Temperature: -10 degrees C to 40 degrees C (14 degrees F to 104 degrees F)

Dimensions: 365 x 290 x 682 mm (14.4 x 11.4 x 26.9 in)

Weight: 21.8 kg (48.1 lb)
