Behringer CP1A High-Performance Power Supply Module For Eurorack

The first synth modules to come out in the 60s tended to be unreliable; going from slightly to totally out of tune at various temperatures and being expensive since transistors at the time was a new invention and were only being used in a few electronics. But this didn’t stop artists like the Rolling Stones, Brian Eno, Depeche Mode and so many more from creating some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

CP1A

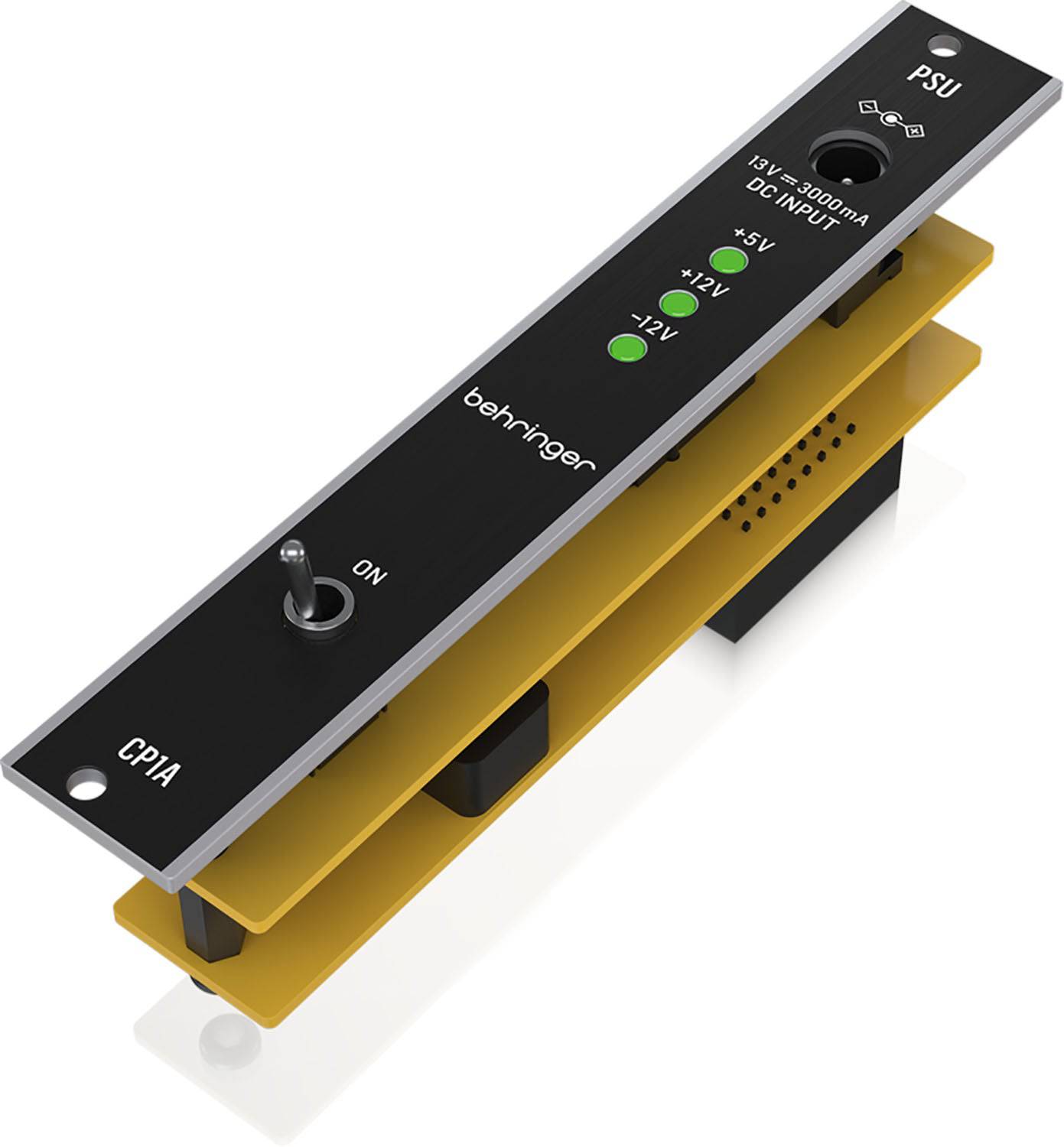

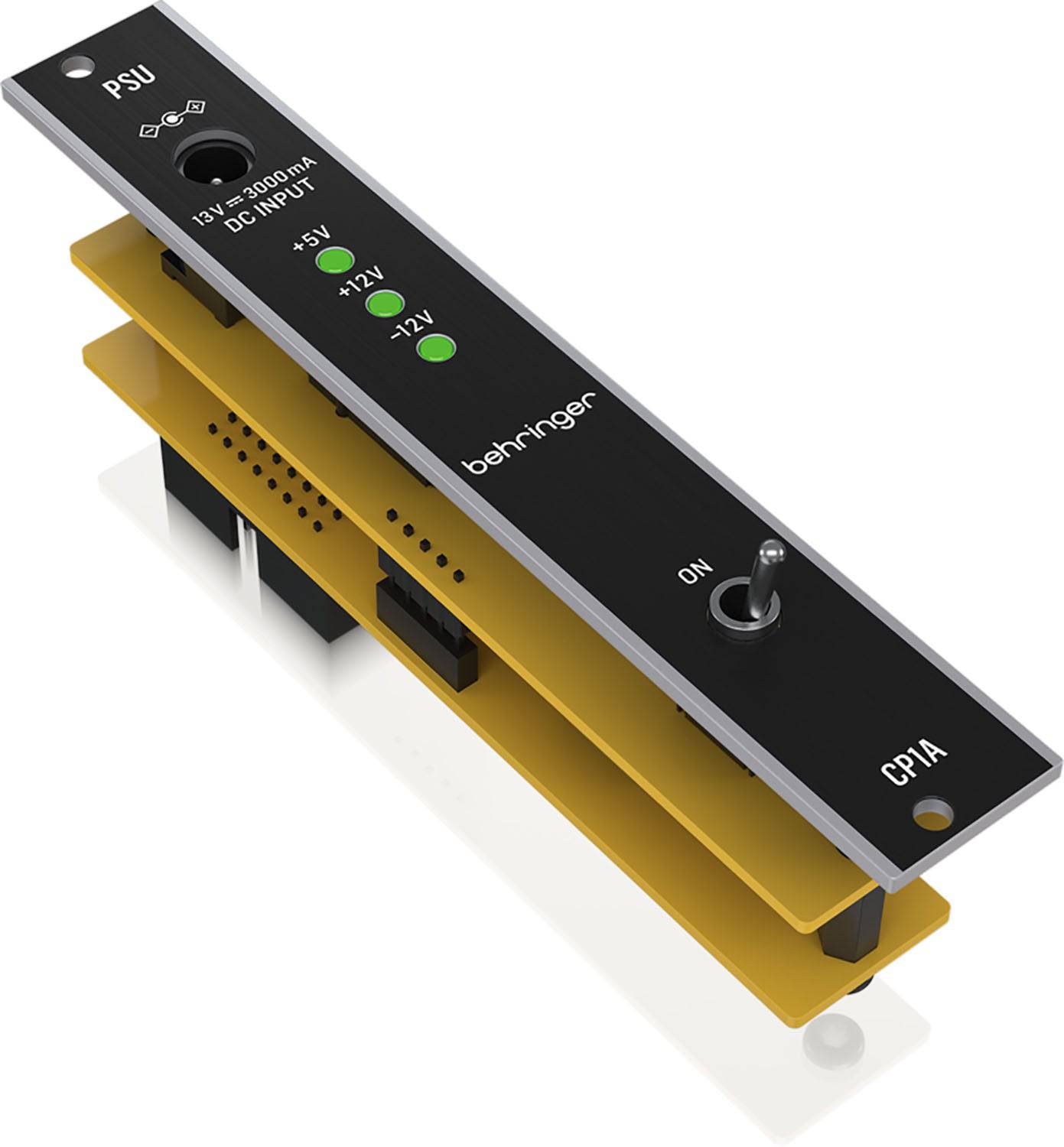

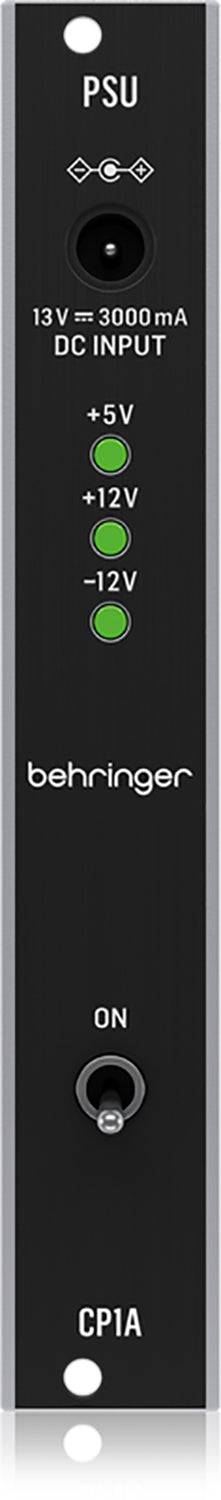

Enter the Behringer CP1A Module. A high-performance, ultra-low noise power supply. Easy activation of this module is facilitated by a toggle switch. There are 3 LED Indicators available for each power rail as well as a DC Input. Its narrow design helps it seamlessly fit in your modular synth.

Eurorack Ready

Installing the CP1A is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and screw in the module using the included screws. This allows for the CP1A to be mixed with other synth modules for a truly unique set up.

Complete Your Collection

Whether you’re just getting into modular synths or looking to complete your collection, the CP1A module from Behringer is a great tool to have when creating amazing music.

Product Specifications:

Connectivity of Power Supply Module Front Panel: DC Power input Power switch (toggle)

Power Requirements External power adaptor (use only the supplied adapter): 13 VDC, 3 A

Power consumption: 35 W maximum

Dimensions (H x W x D): 482.6 x 132.5 x 89.5 mm (19.0 x 5.2 x 3.5")

Module width: 1 bay of 84 HP (fully useable width), rack-mountable

Maximum depth of module that can be inserted: 39 mm (1.54")

Dimensions of power supply module only: 129 x 20 x 52 mm (5.08 x 0.79 x 2.05") (4HP)

Weight including power supply module: 0.55 kg (1.21 lbs)

Weight of power supply module only: 0.056 kg (0.124 lbs)

Accessories Included: Power adapter
