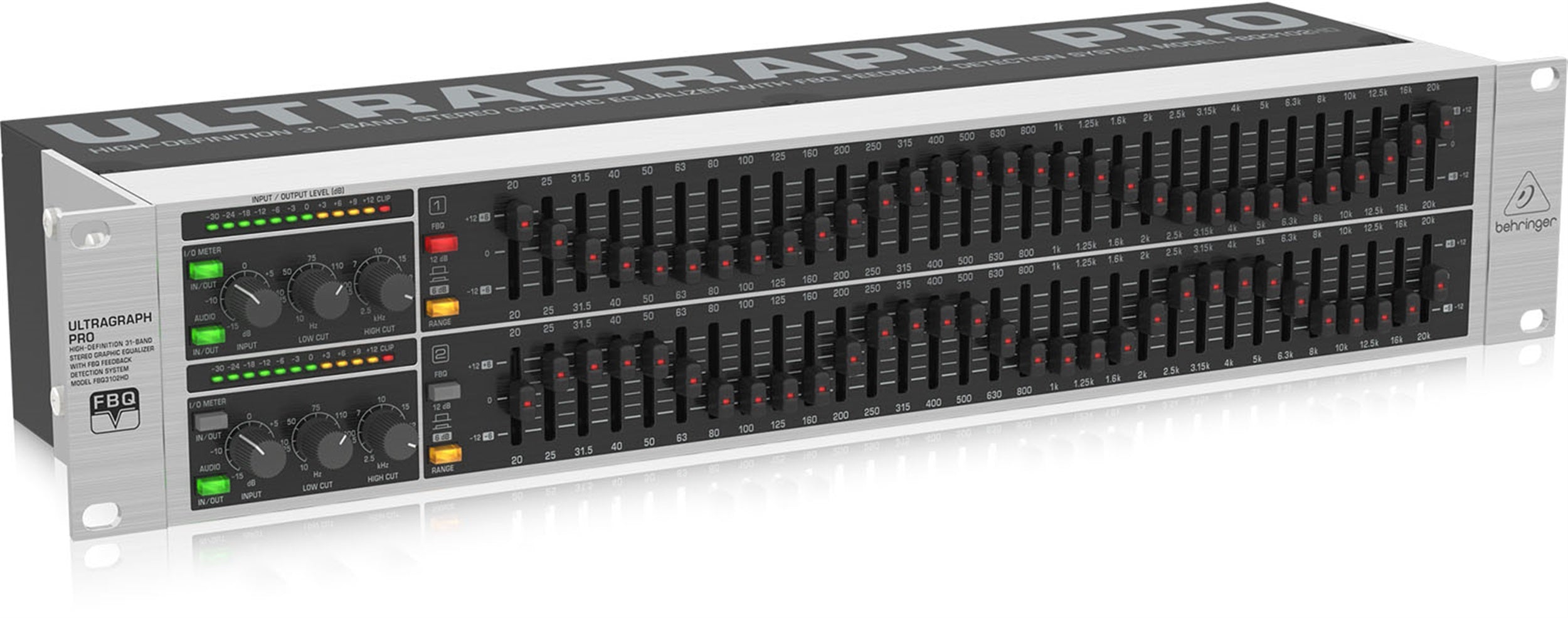

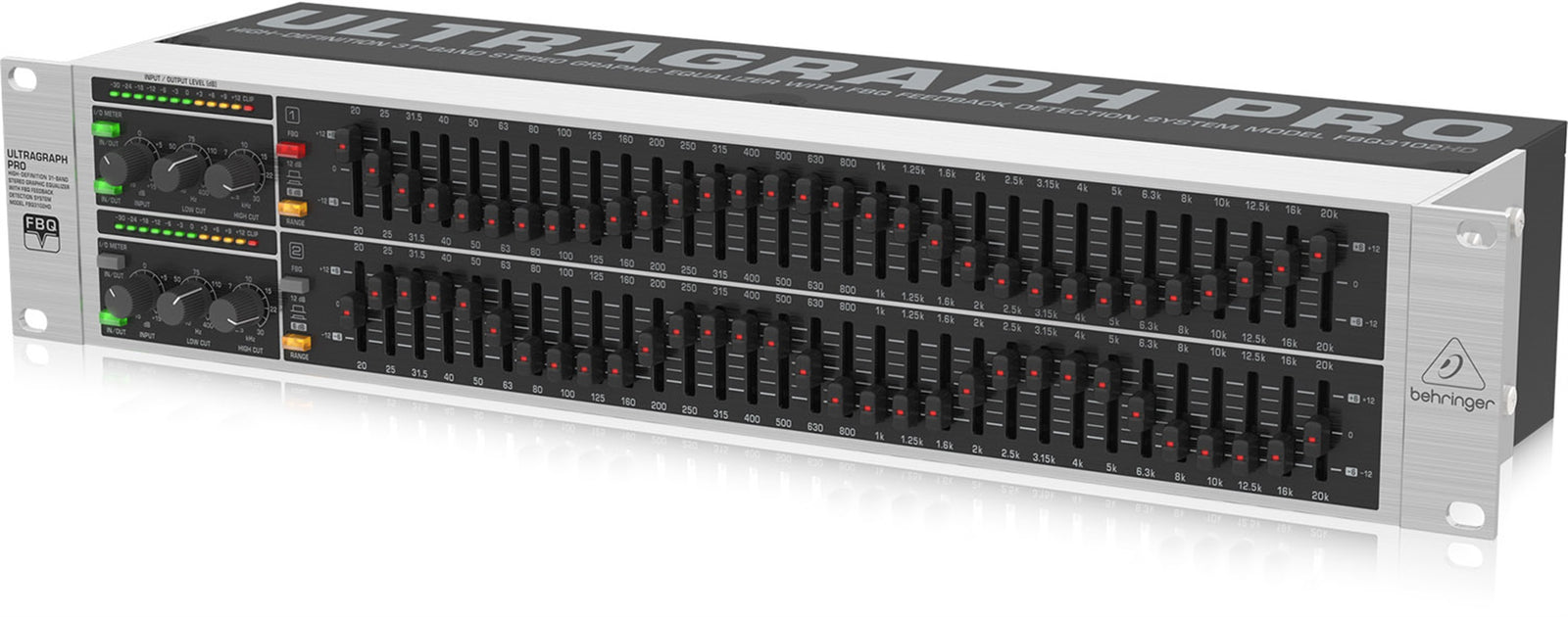

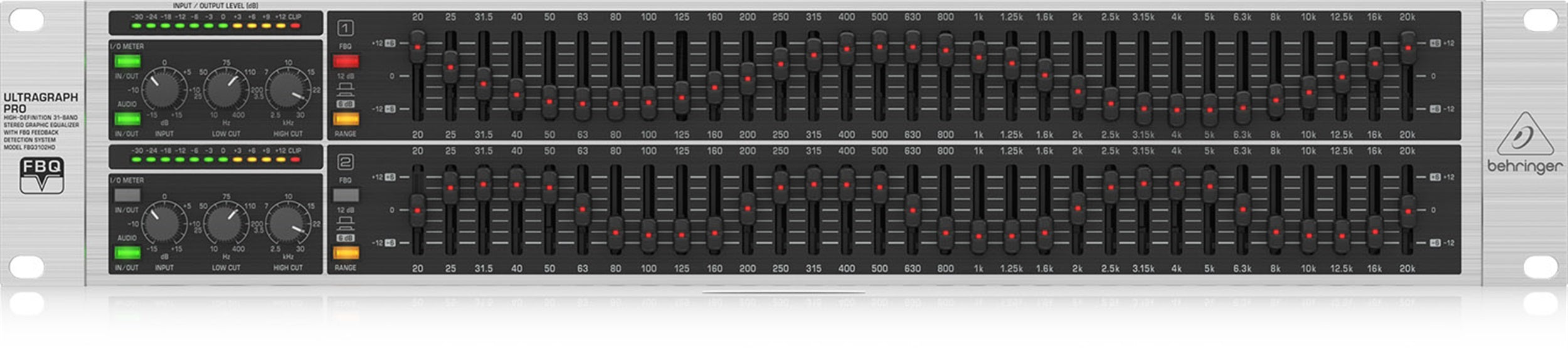

Behringer FBQ3102HD High Deffinition 31-Band Stereo Graphic Equalizer with FBQ Feedback Detection System

Professional audio engineers have known for decades that a good EQ makes all the difference in how a performance is perceived. Although multi-band graphic equalizers have been around for a long time, they have changed very little… until now! The ULTRAGRAPH PRO FBQ3102HD takes the graphic equalizer into the realm of high-definition audio, providing robust features and our proprietary FBQ Feedback Detection System – at a price that makes them a must-have for anyone who records or operates a live sound system.

Ultra-Low Noise Operation

The high-definition FBQ3102HD provides superb, ultra-low noise performance thanks to top-notch German engineering, and the use of highest-quality components. Industry-leading 4580 dual operational amplifiers are employed throughout for the utmost signal integrity across the entire audio spectrum. With 15-bands of smooth and precise equalization per channel, the stereo FBQ3102HD adds the finishing professional touch to your recordings and live shows.

Special Tools for Low and High Frequencies

The low-frequency sound range requires special attention. That’s why the FBQ3102HD features an ultra-effective Low-Cut filter on each channel, to help remove non-essential bass content, such as floor rumble, room resonance and electrical hum, etc., which really uses up your power amp’s headroom. This added high-precision control gives the FBQ3102HD the power to accurately fine-tune your system’s overall sound, creating crystal clear and dynamic output – with incredibly tight and punchy bottom-end!

Built in Crossover

Speaking of special low-frequency tools, the FBQ3102HD also has a dedicated subwoofer output with an adjustable (30 - 200 Hz) cut-off frequency. Balanced XLR Outs are provided so you can connect to power amps or directly to your active subwoofers, without any additional hardware. Just another example of how Behringer saves you money.

Stereo or Double-Duty?

The FBQ3102HD is designed to improve your sound from every angle: it’s a great stereo Front Of House (FOH) equalizer; or, you could use one side for mono FOH, while the other side EQs your monitors – which is where you need the maximum feedback control.

Superb Audio, Sound Value

When you want to bring out the very best from your sound system or your performance, in the studio or at your next live gig – put your trust in the ULTRAGRAPH PRO FBQ3102HD. We dare you to compare it to the competition. Once you do, you’ll choose Behringer again and again for both audio quality and value. Test drive the high-definition FBQ3102HD today at your authorized Behringer dealer.

Product Specifications:

Number of Bands: 2 x 31-band

Boost/Cut Range: ±12 dB, ±6 dB

Feedback Detection: Yes

Low Cut Filter: Variable 10Hz-400Hz

High Cut Filter: Variable 2.5kHz-30kHz

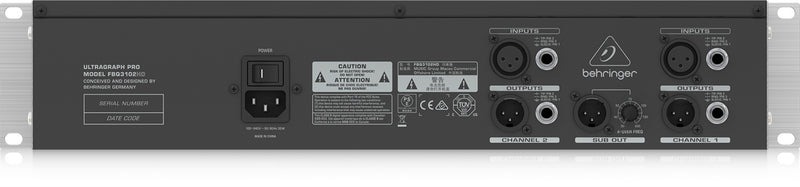

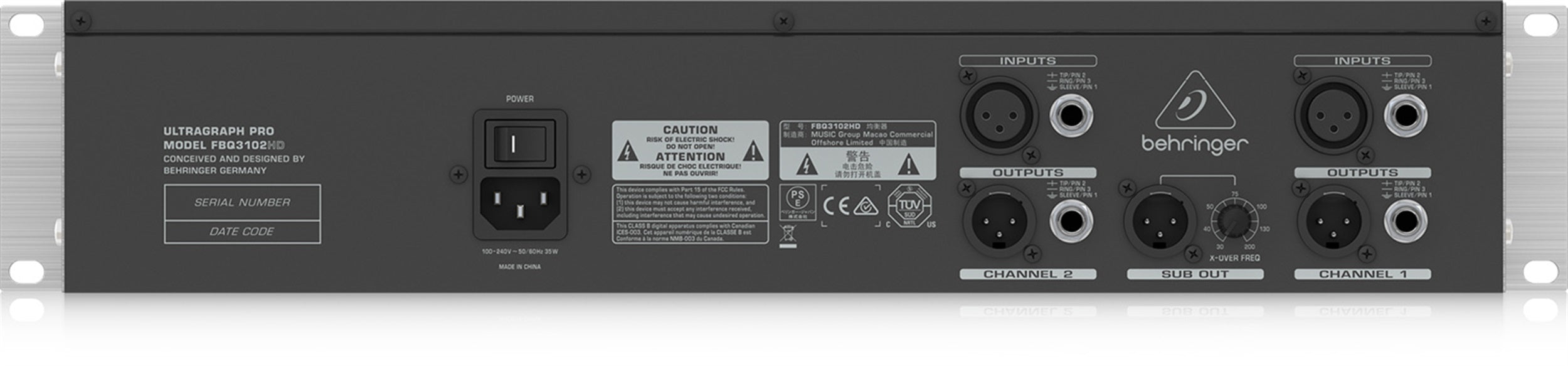

Analog Inputs: 2 x XLR, 2 x 1/4" TRS

Analog Outputs: 2 x XLR, 2 x 1/4" TRS, 1 x XLR (sub out)

Rack Spaces: 2U

Power Source: Standard IEC AC cable

Depth: 5.9"
