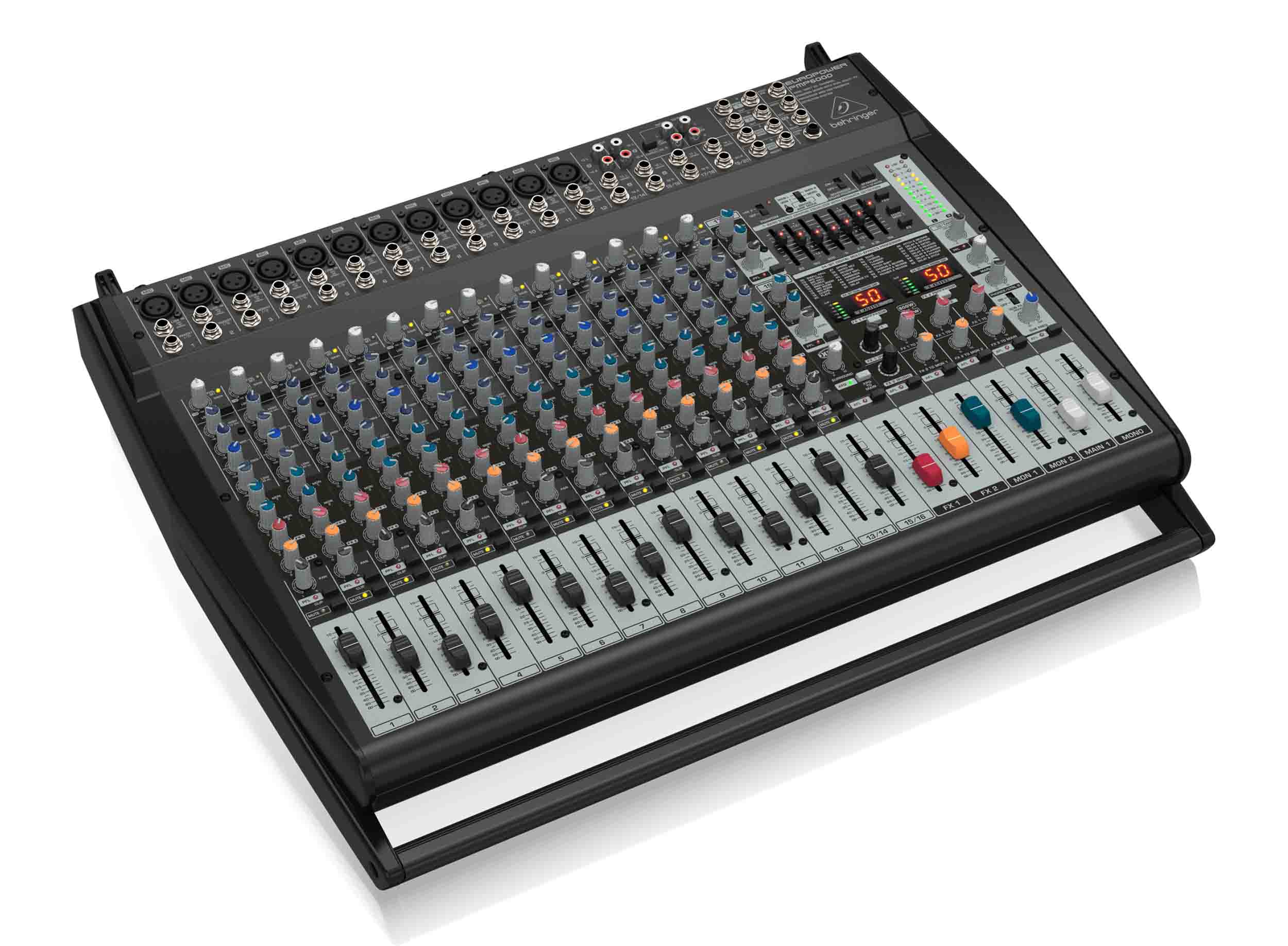

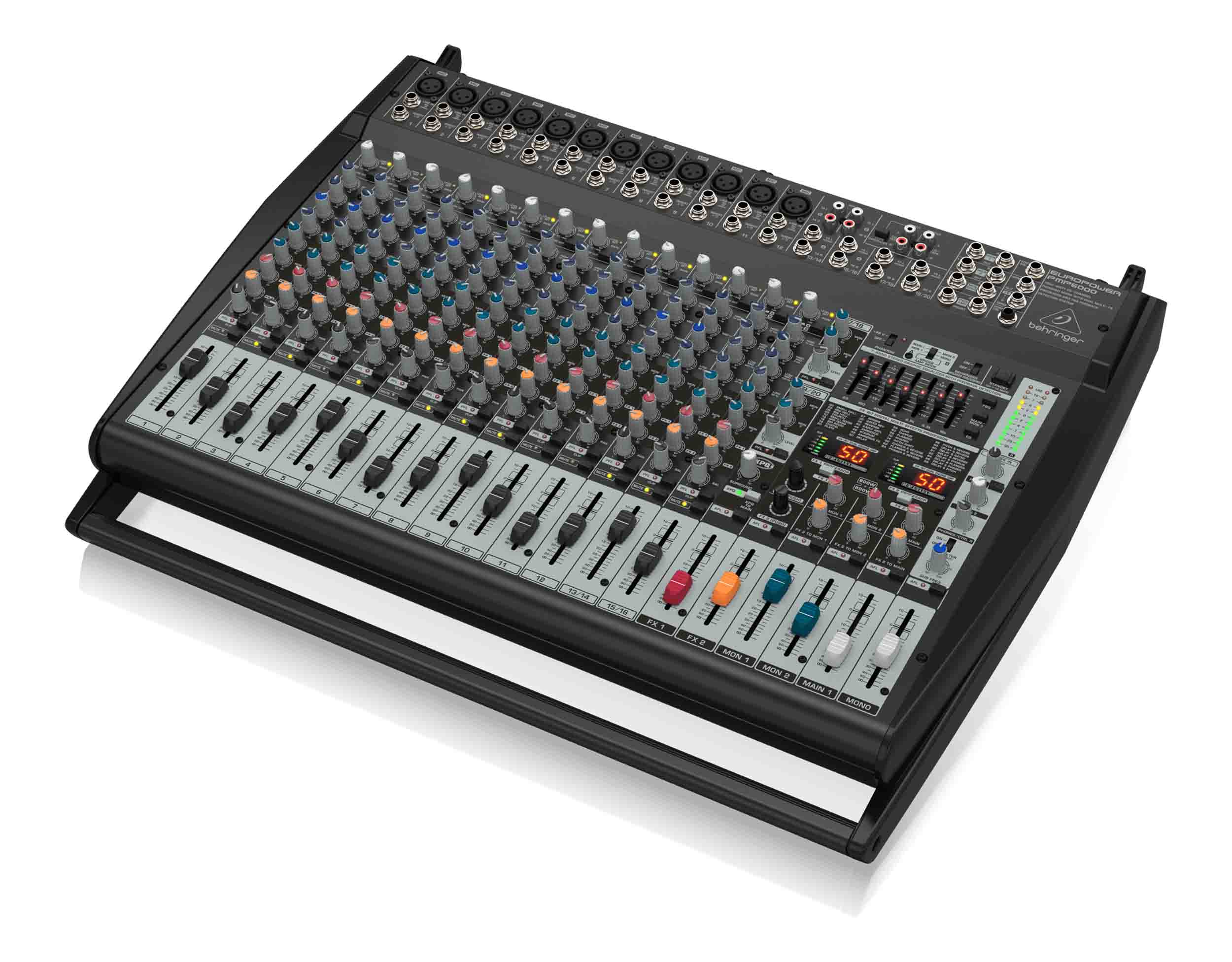

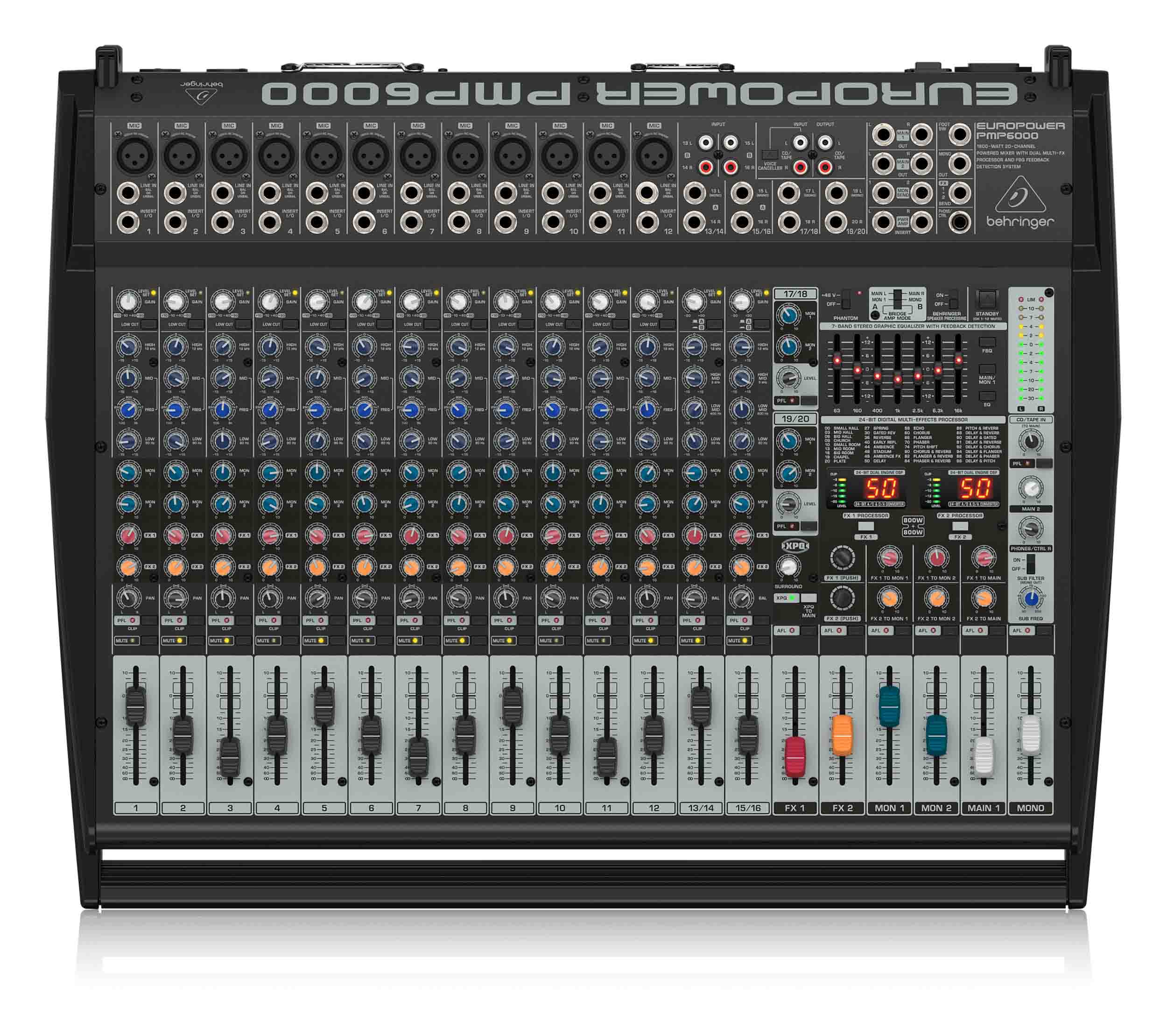

Behringer PMP6000, 1600W 20-Channel Powered Mixer

The Behringer PMP6000 Powered Mixer packs tremendous power (2 x 800 Watts stereo or 1,600 Watts in Bridged mode), while maintaining an incredible power-to-weight ratio. These mixers employ high-efficiency Class-D technology and a state-of-the-art switch-mode power supply, which significantly reduces weight and heat. The 20-channel PMP6000 features 12 built-in, studio-grade XENYX mic preamps, 4 stereo channels, dual 24-bit Multi-FX processors with 100 awesome presets including studio-class reverbs, delays, pitch shifter and various multi-effects, plus a 7-band stereo graphic EQ with our proprietary FBQ Feedback Detection System – for the ultimate in feedback free performance.

Class-D - Massive Power, Perfect Sound

Thanks to our revolutionary Class-D amplifier technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency – and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.

All-In-One Solution

The powerful PMP6000 gives you the choice of 2 x 800-Watt stereo or 2 x 800-Watt dual mono mode (Mains powered output, 1 Monitor send signals through the second powered input) or 1,600-Watt bridged mono sound. Whether the center of attention happens to be a folk trio, a speech, or a synth-rock band with mind boggling stereo patches, the PMP6000 can accommodate with ease. This sonic versatility also makes it an excellent choice for churches where vocals and stereo recordings often share face time.

Sonically Superior Mic Preamps

The PMP6000 features our legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the PMP6000 provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.

Built-in Digital Multi-FX Processor

Equipped with not one, but two of our studio-grade 24-bit Multi-FX processors, the PMP6000 mixer gives you 100 mind-blowing digital effect presets such as delay, chorus, reverb and much more. Apply them to any channel, as well as to the monitors and main output. Of course, if you have treasured outboard gear you’ve grown attached to, these mixers can integrate them into the mix while bypassing the built-in FX processor.

FBQ - Totally Feedback-Free

For more than 20 years, BEHRINGER has designed and manufactured some of the most successful FBQ Feedback Elimination processors. Now you can own and enjoy the benefits of this technology, as we have integrated the revolutionary FBQ Feedback Detection System into this product, so your sound system is completely feedback-free, allowing you to focus on your performance. Utilizing an ultra-fast feedback detection system, this ingenious circuitry helps you recognize and tame feedback frequencies immediately. When feedback is sensed in a specific frequency range, the LED on the associated EQ fader illuminates, showing you at a glance which fader to lower to overcome the feedback. That simple!

Getting Connected

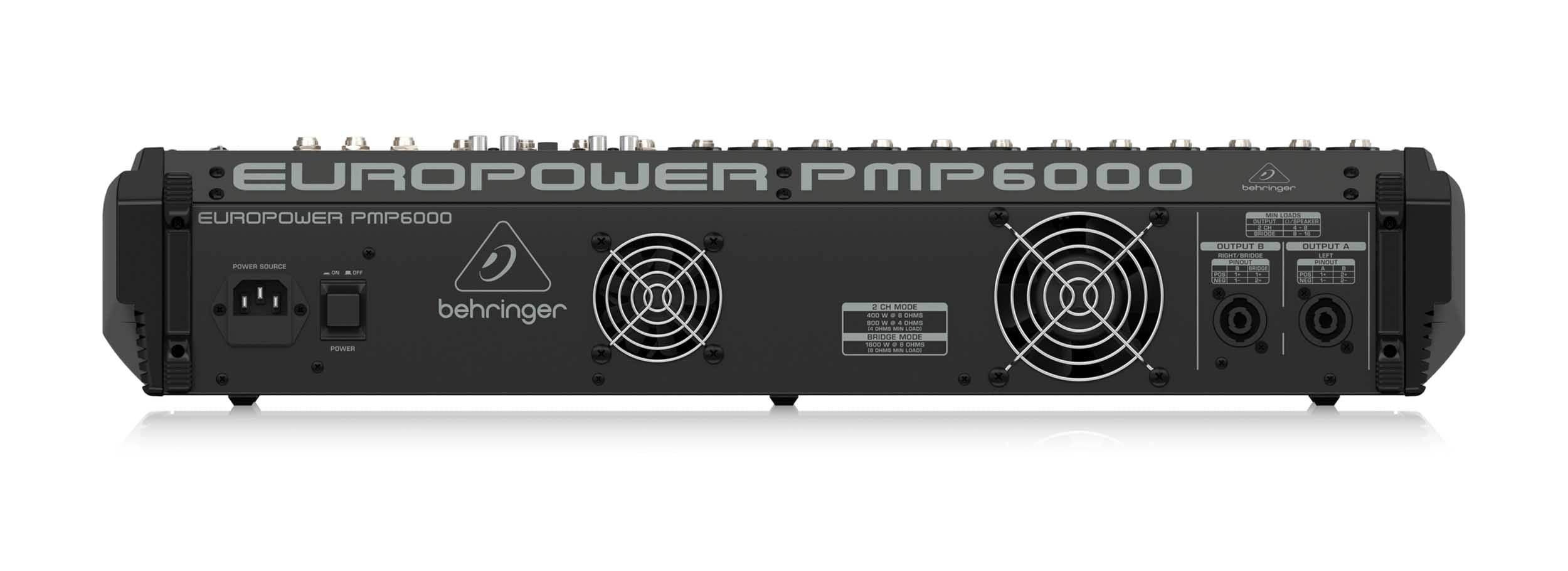

Use the CD/Tape RCA inputs to feed in external stereo signals; conversely, the CD/Tape RCA outputs send line-level signals from the mixer to a recording device. The left and right output ¼" connectors can be used for a variety of purposes, including connecting to additional power amps. Connect your monitor power amps or active monitor speakers to the Monitor Sound output. Powered outputs on these mixers are available in the professional, twist-lock Speakon-compatible variety. And when you’re ready to take a break, the convenient Standby switch mutes all of the mic channels – but let’s your background music keep the party going!

Small, Simple, Superb

Medium-sized events call for the lightweight PMP6000 (28.9 lbs/13.1 kg), easy-to-use 20-channel, 6000-Watt powered mixer. The PMP6000 is the most efficient and affordable powered mixer for the job, and can even be used as a pure analog mixer – or a pure power amplifier. With its highly acclaimed XENYX mic preamps, dual 24-bit Multi-FX processors, and stereo 7-band graphic EQ with our FBQ Feedback Detection System – the PMP6000 makes it easier than ever to lend exceptional sound quality to all kinds of public performances.

Product Specifications:

Type: Powered

Channels: 20

Power: 2 x 800W Peak @ 4 ohms

EQ Bands: 3-band

Effects: Yes

Inputs - Mic Preamps: 12 x XLR

Phantom Power: 12 x Channels

Inputs - Line: 20 x TRS

Inputs - Other: 2 x RCA

Outputs - Main: 2 x SpeakOn

Outputs - Other: 2 x RCA, 1 x 1/4" (Mono)

Send/Return I/O: 2 x TRS (Send), 4 x 1/4" (Return)

Aux Sends: 2 x Post (FX), 2 x Pre (Monitor)

Inserts: Yes

Headphones: 1 x 1/4"

Faders: 60mm Throw

Product Weight: 35.6 pounds

Product Dimensions: 23.46 x 19.53 x 4.8 inches
