Description

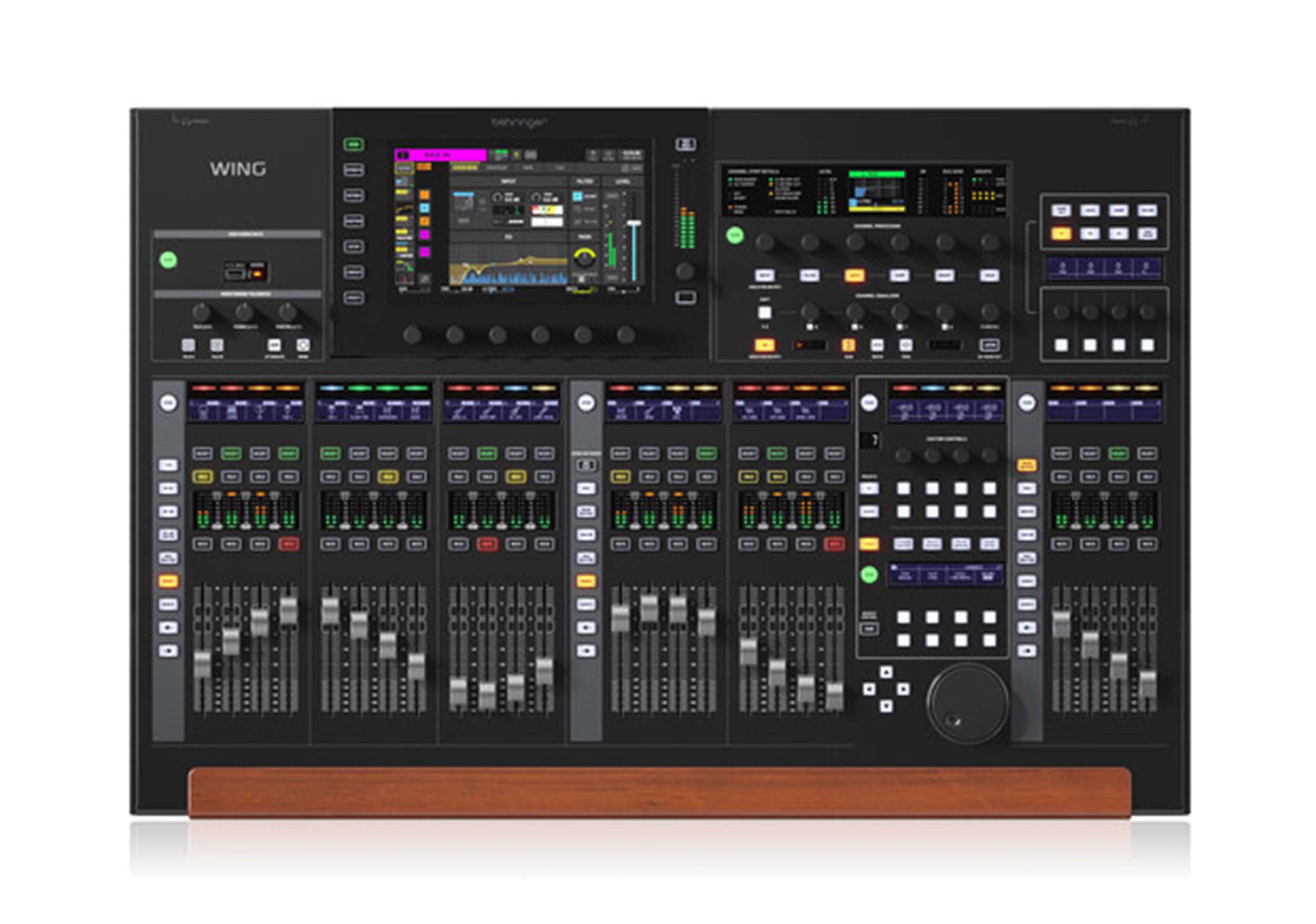

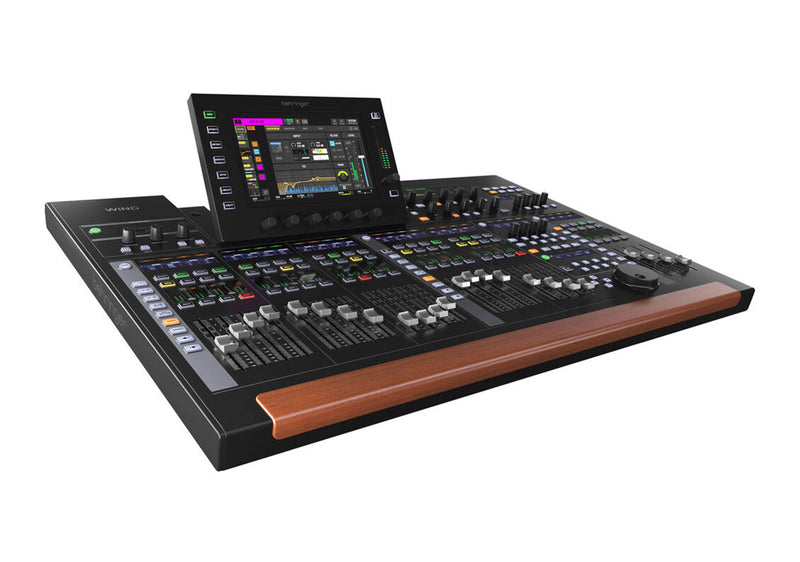

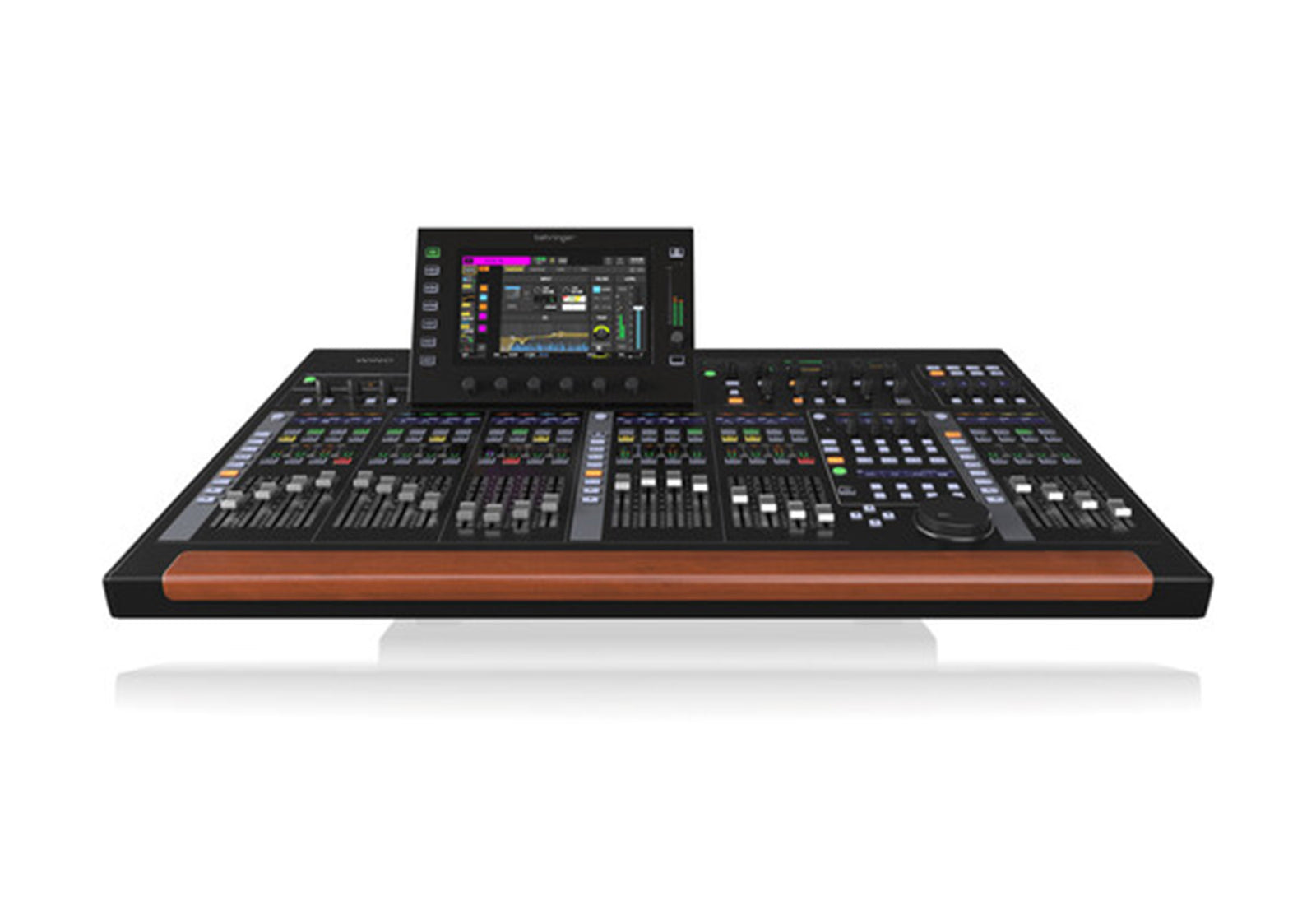

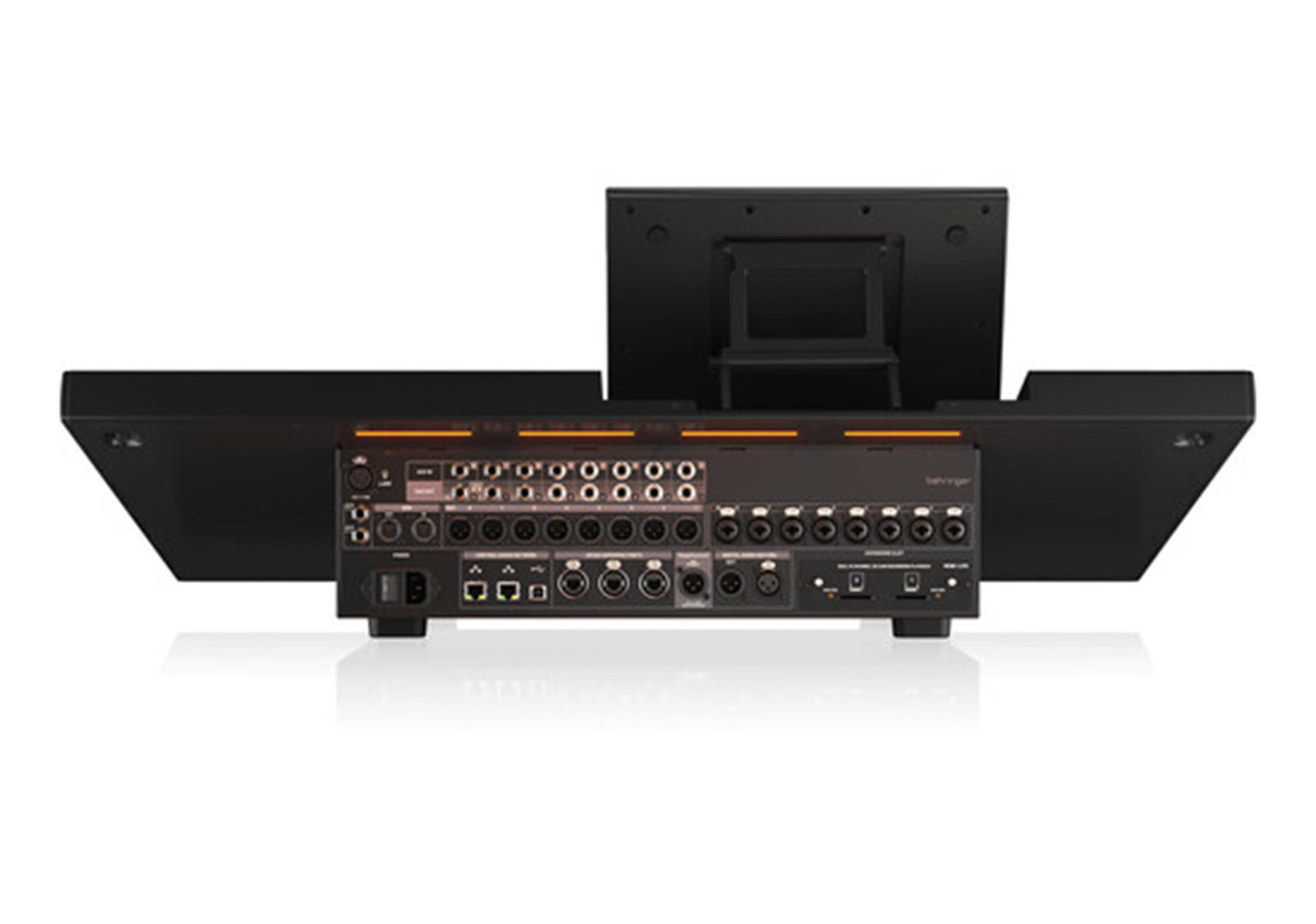

The Behringer WING is a 48-channel digital mixer designed for professional audio production, live sound, and studio applications. It features a flexible workflow, advanced routing capabilities, and a high-resolution touch interface for seamless control. With its 24 motorized faders, customizable channel strips, and a fully programmable user interface, the WING provides an intuitive mixing experience.
At the core of the WING is its powerful 40-bit floating-point processing engine, ensuring pristine audio quality and ultra-low latency. The mixer supports up to 374 input sources and offers extensive connectivity options, including AES50, USB, Dante, and MADI. It also features premium Midas preamps, offering studio-quality sound reproduction.
Designed for versatility, the Behringer WING includes an advanced effects engine with premium plug-ins, dynamic processing, and parametric EQs. The 10" capacitive touch screen and customizable control layout allow users to tailor their workflow to match their preferences. With built-in Wi-Fi and remote-control capabilities, the WING enables seamless integration with mobile devices and external control surfaces.
Product Specifications:
Frequency Response:10 Hz - 20 kHz (@ 48 kHz sample rate, 0 to -1 dB)
Dynamic Range (Analog in to Analog Out, Typical):111 dB (XLR) / 108 dB (Aux)
A/D Dynamic Range (Preamplifier & Converter, Typical):112 dB (XLR) / 110 dB (Aux)
D/A Dynamic Range (Converter & Output, Typical):118 dB (XLR) / 112 dB (Aux)
Crosstalk Rejection:100 dB @ 1 kHz (Adjacent Channels)
Output Level (XLR, Nominal/Maximum):+4 dBu / +21 dBu
Output Impedance (XLR, Unbalanced/Balanced):75 Ω / 75 Ω
Input Impedance (TRS, Unbalanced/Balanced):20 kΩ / 40 kΩ
Maximum Input Level (TRS, Non-Clip):+16 dBu
Aux Output Level (Nominal/Maximum):+4 dBu / +16 dBu
Aux Output Impedance (Unbalanced/Balanced):150 Ω / 300 Ω
Phones Output Impedance / Max Output Level:500 mW @ 75 Ω / +18 dBu
Residual Noise Level (XLR Out 1-16, Unity Gain):-97 dBu
Residual Noise Level (Aux & Monitor TRS Out):-95 dBu
Main Screen:10.1" TFT LCD, 1280 x 800 px, Capacitive Touch
Swivel Adjustment (Main Screen):15° - 60°
4-Channel Group LCD Screen:320 x 48 Monochrome with RGB Color Strip
Channel Editing Screen:2.4" TFT LCD, 320 x 240 px
Main Stereo Meter:18 Segment (-60 dB to Clip)
Motorized Faders (100 mm):12 + 8 + 4
Touch-Sensitive Rotary Controls:3 + 7 + 11 + 4 + 4
Custom Controls:8
Fully Assignable Rotary Controls:4
Fully Assignable Backlit Buttons:8 + 8
Variable Rotary Controls / Buttons:4 / 4
Power Supply:Auto-Ranging 100-240 VAC (50/60 Hz)
Power Consumption:130 W
Operating Temperature:5°C – 40°C (41°F – 104°F)
Dimensions (HxWxD):201 x 870 x 575 mm (7.9 x 34.3 x 22.6")
Weight:24 kg (52.8 lbs)
