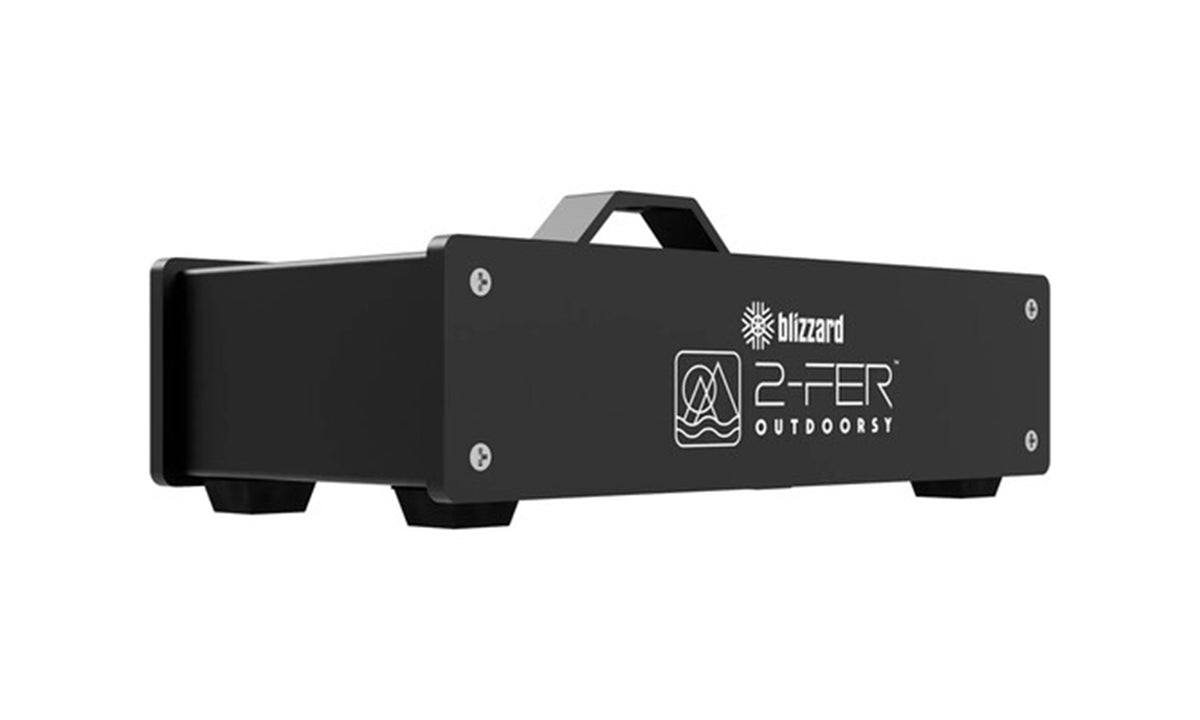

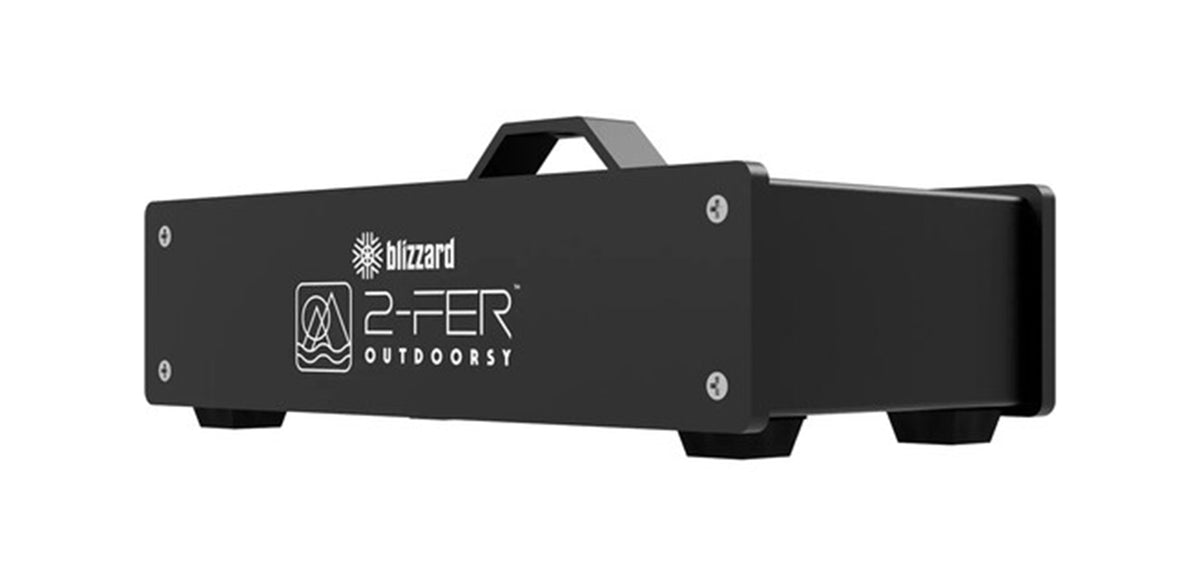

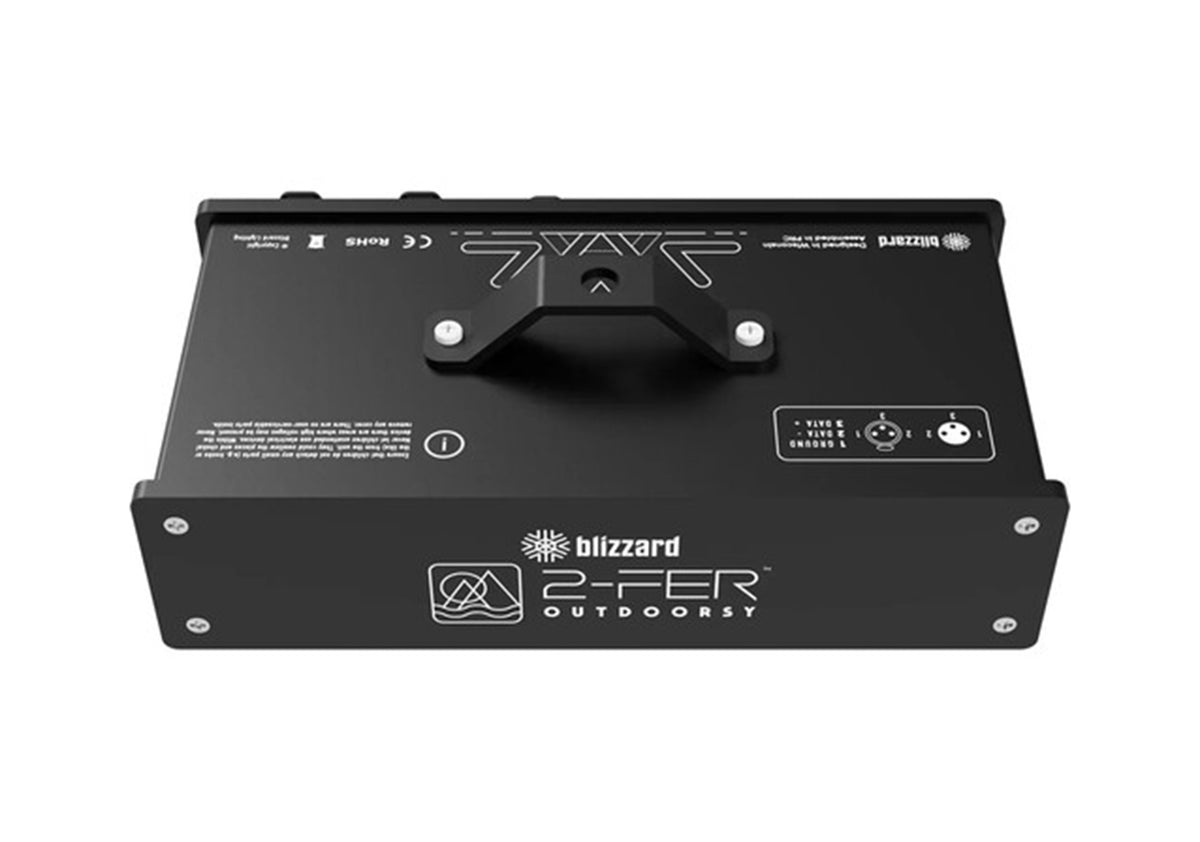

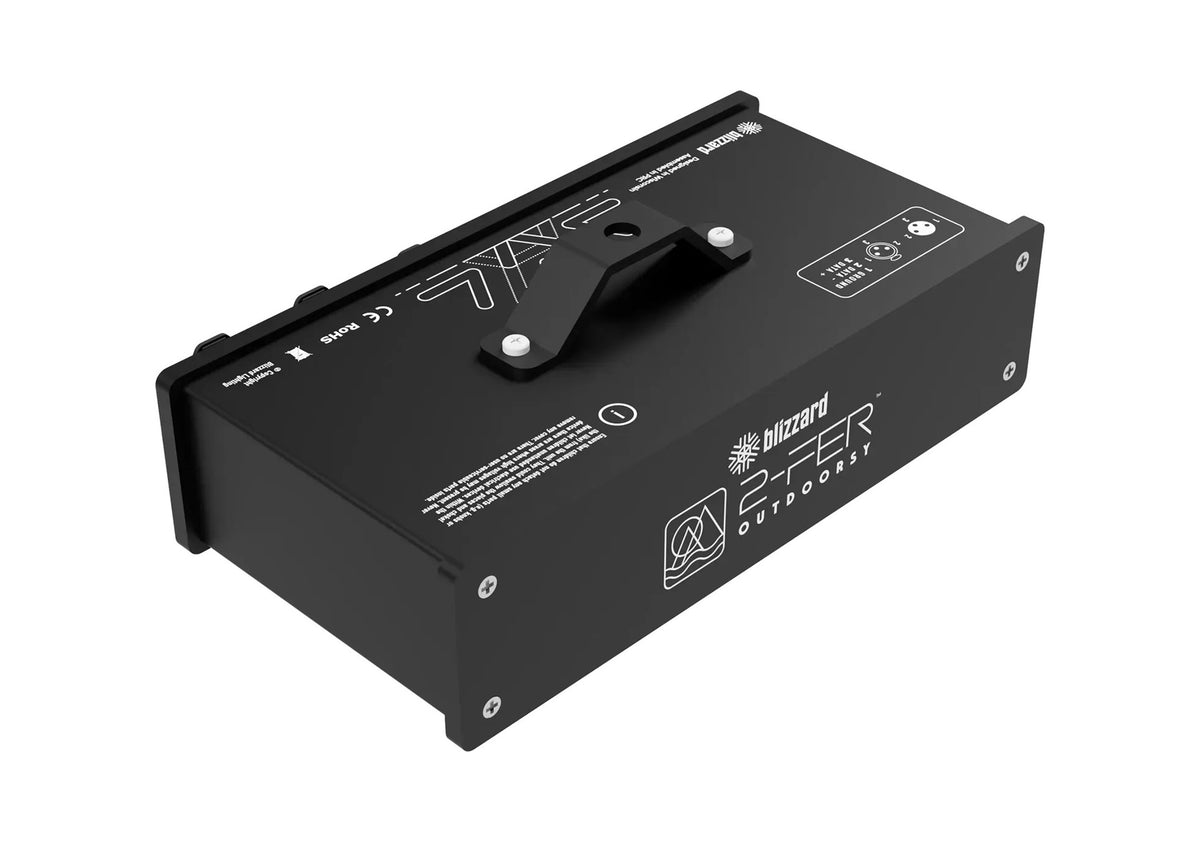

The Blizzard Lighting 2-Fer Outdoorsy 3-Pin combines DMX signal distribution and AC power splitting in one compact, weather-resistant unit designed for outdoor lighting applications. It provides one 3-pin DMX input split into two optically and electronically isolated 3-pin DMX outputs, along with one powerCON TRUE1-compatible power input feeding two power outputs. With IP65-rated protection, weather-resistant rubber-capped connectors, and a rugged steel housing, the 2-Fer Outdoorsy is built for dependable operation in demanding outdoor environments.

The unit features a secure mounting bracket with an M10 hole for clamp mounting and soft rubber feet for stable freestanding placement. Its 512-channel DMX512 architecture provides professional signal distribution while the isolated outputs help maintain reliable DMX communication between connected fixtures.

Measuring 9 × 5.2 × 3.3 inches and weighing 2.35 lbs, the 2-Fer Outdoorsy offers a compact solution for combining signal and power distribution where space and weather resistance are important.

Key Features

• 2-in-1 DMX and power splitter.
• IP65-rated outdoor-ready design.
• 3-pin DMX input and dual outputs.
• Optically and electronically isolated outputs.
• powerCON TRUE1-compatible power connections.
• Weather-resistant rubber-capped connectors.
• M10 mounting bracket for clamps.
• Soft rubber feet for freestanding use.

Ideal For

• Outdoor lighting systems.
• Stage and event production.
• Concert and festival setups.
• Architectural lighting.
• Touring and mobile productions.
• Professional DMX installations.

What’s in the Box

• Blizzard 2-Fer Outdoorsy 3-Pin DMX and power splitter.

Inputs & Outputs

• DMX Input 1 × IP65-rated 3-pin XLR DMX input
• DMX Outputs 2 × IP65-rated 3-pin XLR DMX outputs
• Power Input 1 × powerCON TRUE1-compatible input
• Power Outputs 2 × powerCON TRUE1-compatible outputs
• Mounting Point 1 × M10 mounting bracket hole

Frequently Asked Questions

What does the Blizzard 2-Fer Outdoorsy do?

It combines DMX signal splitting and AC power distribution in one compact unit.

How many DMX outputs does it have?

It provides one 3-pin DMX input and two optically and electronically isolated outputs.

Can it be mounted?

Yes. It includes an M10 mounting hole for clamp attachment and soft rubber feet for freestanding placement.

What are the dimensions and weight?

It measures 9 × 5.2 × 3.3 inches and weighs 2.35 lbs.

Full Technical Specifications

Power & DMX Signal Distribution

Product Type	DMX + Power Splitter
DMX Input	1x IP65-rated DMX input
DMX Outputs	2x IP65-rated DMX outputs
DMX Configuration	3-pin or 5-pin DMX
Output Isolation	Optical and electronic isolation
DMX Signal Splitting	1 Input to 2 Outputs
DMX Connectors	XLR
DMX Rating	IP65
Power Input	1x powerCON TRUE1-compatible
Power Outputs	2x powerCON TRUE1-compatible
Power Splitting	1 Input to 2 Outputs
Power Connector Type	powerCON TRUE1-compatible
Internal Wiring	12/14 AWG

Construction & Protection

Housing Material	Steel
Housing Type	Solid Metal Housing
Environmental Rating	IP65
Outdoor Use	Yes
Connector Protection	Weather-resistant rubber caps
Mounting Bracket	Included
Bracket Mounting Point	M10
Freestanding Support	Soft rubber feet

Design Installation & Compatibility

Design	Compact 2-in-1 Splitter
Mounting Method	Clamp mounting or freestanding
Clamp Compatibility	M10 mounting point
Rigging Support	Mounting bracket
Bottom Support	Soft rubber feet
DMX Compatibility	3-pin or 5-pin DMX
Power Compatibility	powerCON TRUE1-compatible
3-Pin Model	2-Fer Outdoorsy 3-pin
5-Pin Model	2-Fer Outdoorsy 5-pin

Physical Specifications

Product Weight	2.35 lbs
Product Dimensions (L x W x H)	9" x 5.2" x 3.3"
