Description

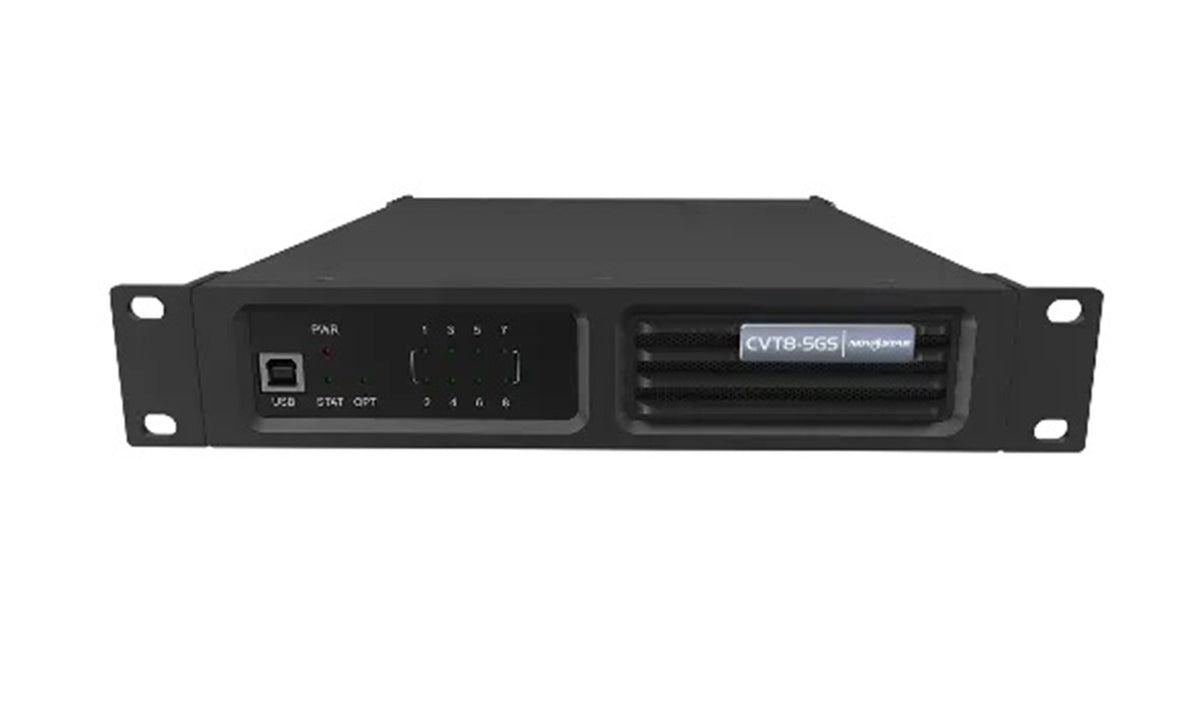

The Blizzard Lighting CVT8-5GS is a professional single-mode fiber converter designed for long-distance LED display data transmission. It converts a 40 Gbit/s optical link into eight independent 5G BaseT Ethernet connections, allowing compatible sending controllers and LED display systems to communicate over fiber while maintaining full-duplex transmission and strong resistance to electrical interference. With support for transmission distances up to 10 km, it is well suited for installations where conventional copper cable distances are insufficient.
The CVT8-5GS features one 40 Gbit/s optical port with a supplied hot-swappable 1310 nm optical module and eight 5G BaseT Ethernet ports, each supporting bandwidth up to 5 Gbit/s. Its single-mode twin-core fiber interface is designed for OS1 or OS2 fiber with LC connectors, providing a reliable high-bandwidth connection for professional LED display applications.
Its USB Type-B control port allows firmware upgrades through NovaLCT V5.4.0 or later, while front-panel indicators provide convenient monitoring of power, device status, optical connectivity, and Ethernet links.
Key Features
- 40 Gbit/s optical link to 8 × 5G BaseT Ethernet connections.
- Single-mode fiber transmission up to 10 km.
- 1 × 40G optical port with hot-swappable module.
- 8 × 5G BaseT Ethernet ports.
- 1310 nm optical wavelength with LC connectors.
- OS1/OS2 twin-core fiber support.
- Full-duplex transmission.
- Strong resistance to electrical interference.
- USB Type-B firmware upgrade port.
- Supports horizontal, suspended, and rack installation.
- Front-panel status and link indicators.
Ideal For
- Professional LED display systems.
- Long-distance LED data transmission.
- Fixed LED installations.
- Touring and rental systems.
- LED display control rooms.
- Large-format LED video walls.
- Environments with electrical interference.
- Installations requiring fiber-based transmission.
What’s in the Box
- NovaStar CVT8-5GS Fiber Converter.
- Power cord.
- USB cable.
- 2 × 40G optical modules, including 1 for the controller.
- Supporting brackets.
- Connecting piece.
- Mounting screws.
- Assembly diagram.
- Certificate of Approval.

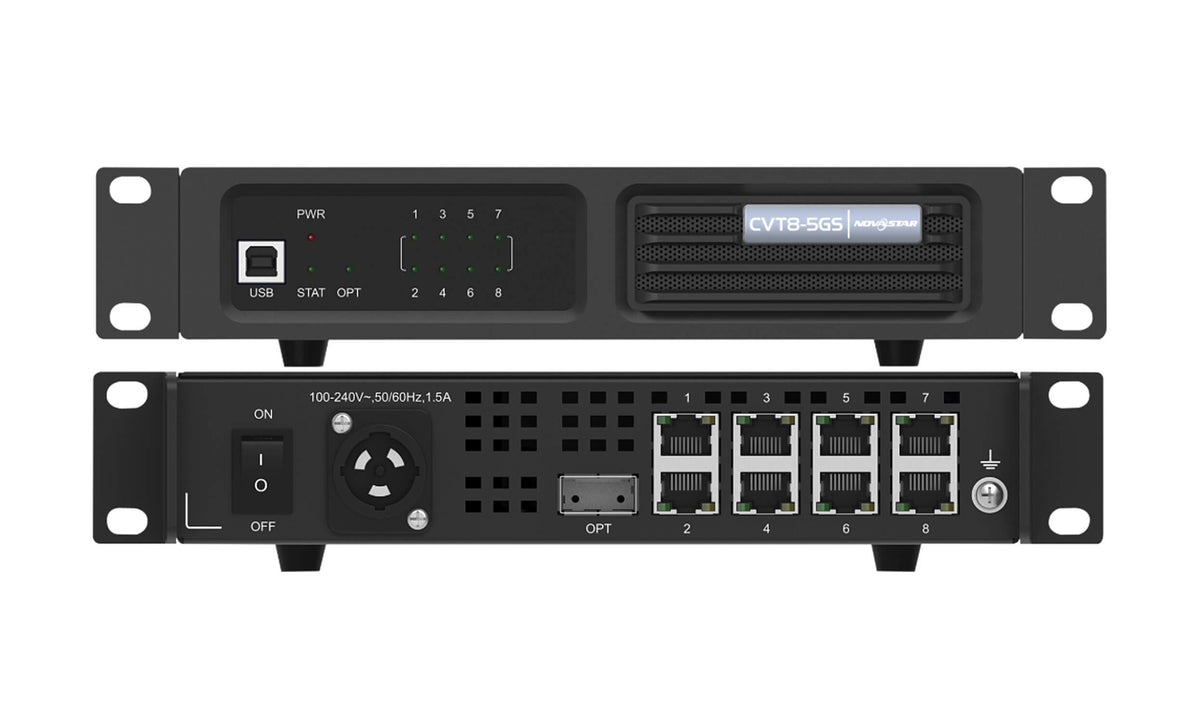

Inputs & Outputs
- 40G Optical 1 × 40 Gbit/s optical port
- 5G BaseT Ethernet 8 × Ethernet ports, up to 5 Gbit/s per port
- USB Type-B 1 × USB Type-B control port for firmware upgrades
- Power 100-240V~, 50/60Hz, 1.5A power input
Frequently Asked Questions
What does the NovaStar CVT8-5GS do?
It converts a 40 Gbit/s optical link into eight independent 5G BaseT Ethernet connections for LED display data transmission.
How far can the CVT8-5GS transmit data?
It supports single-mode fiber transmission distances of up to 10 km using compatible OS1 or OS2 twin-core fiber.
How many Ethernet outputs does it have?
The CVT8-5GS provides eight 5G BaseT Ethernet ports, with up to 5 Gbit/s bandwidth per port.
What type of optical connection does it use?
It uses a 40 Gbit/s, 1310 nm single-mode optical module with an LC connector. The supplied module is hot-swappable.
What is the USB Type-B port used for?
The USB Type-B port is used for firmware upgrades through NovaLCT V5.4.0 or later. It is not used for cascading.
Can the CVT8-5GS be rack mounted?
Yes. It supports horizontal, suspended, and 19-inch rack installation options.
Full Technical Specifications
Technical Specifications
|
Fiber Mode |
Single-mode, twin-core |
|
Optical Port |
1 x 40G optical port |
|
Optical Module |
Hot-swappable, 40 Gbit/s, 1310 nm |
|
Maximum Transmission Distance |
Up to 10 km |
|
Recommended Fiber |
OS1/OS2, 9/125 μm, LC connector |
|
Fiber Insertion Loss |
≤ 0.3 dB |
|
Fiber Return Loss |
≥ 45 dB |
|
Ethernet Outputs |
8 x 5G BaseT Ethernet |
|
Ethernet Bandwidth |
Up to 5 Gbit/s per port |
|
Control Port |
1 x USB Type-B |
|
Firmware Upgrade |
NovaLCT V5.4.0 or later |
Electrical & Environmental Specifications
|
Power Input |
100–240V~, 50/60Hz, 1.5A |
|
Rated Power Consumption |
33 W |
|
Operating Temperature |
-20°C to +45°C |
|
Operating Humidity |
10%–80% RH, non-condensing |
|
Storage Temperature |
-20°C to +70°C |
|
Storage Humidity |
10%–95% RH, non-condensing |
|
Installation Options |
Horizontal, suspended, or 19-inch rack |
Physical Specifications
|
Product Weight |
4.98 lbs. |
|
Product Dimensions (L x W x H) |
11.42" x 10.01" x 1.99" |
