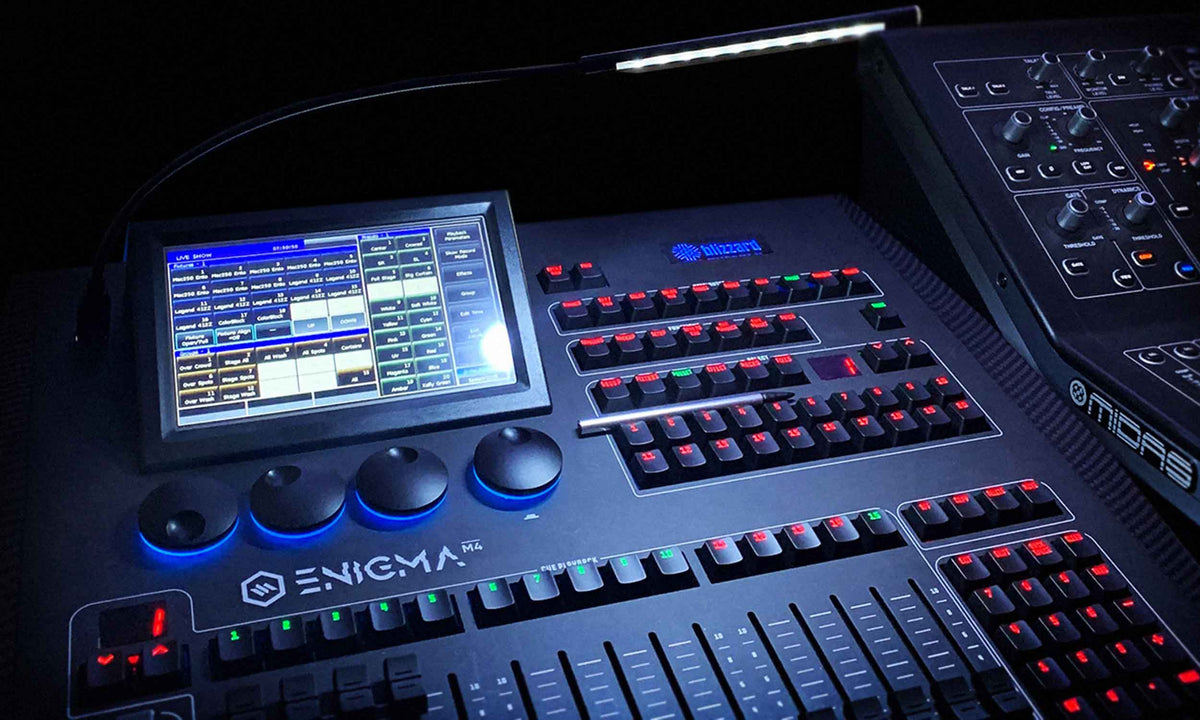

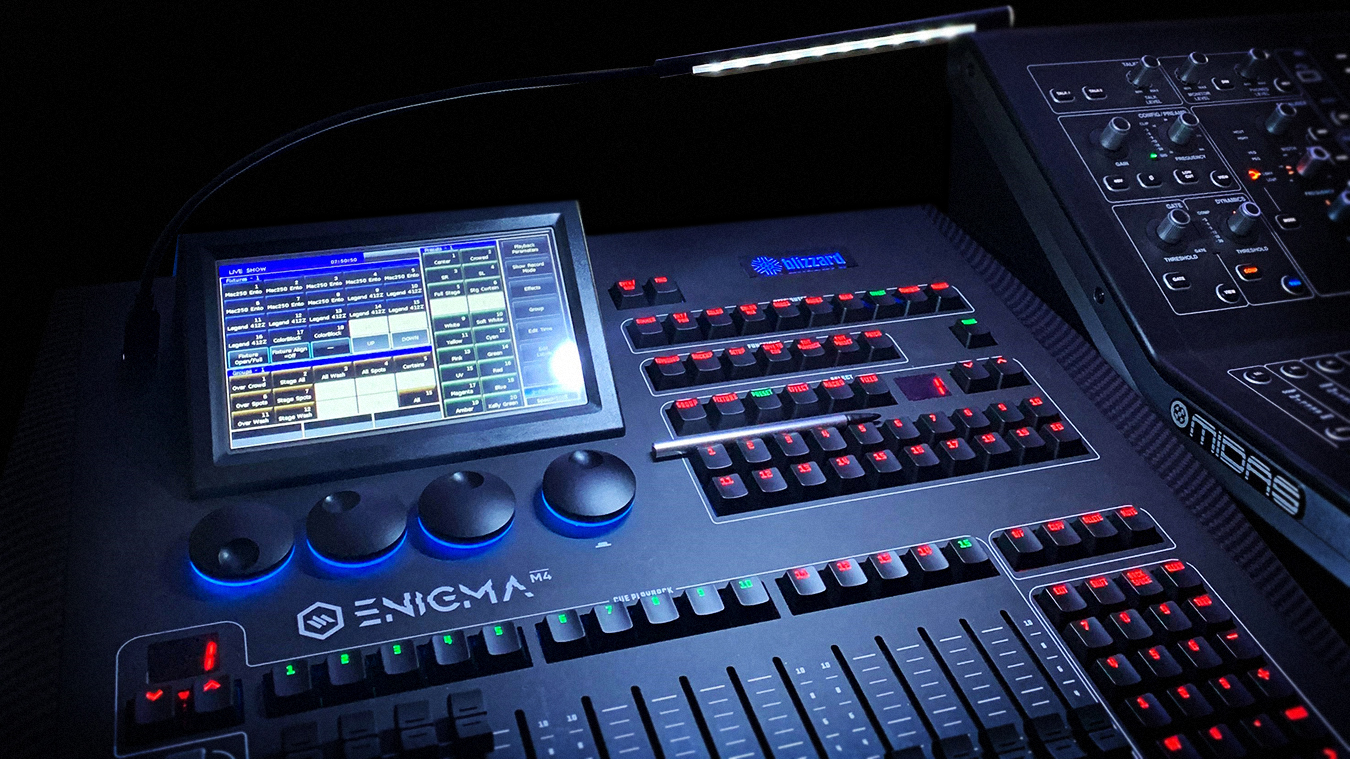

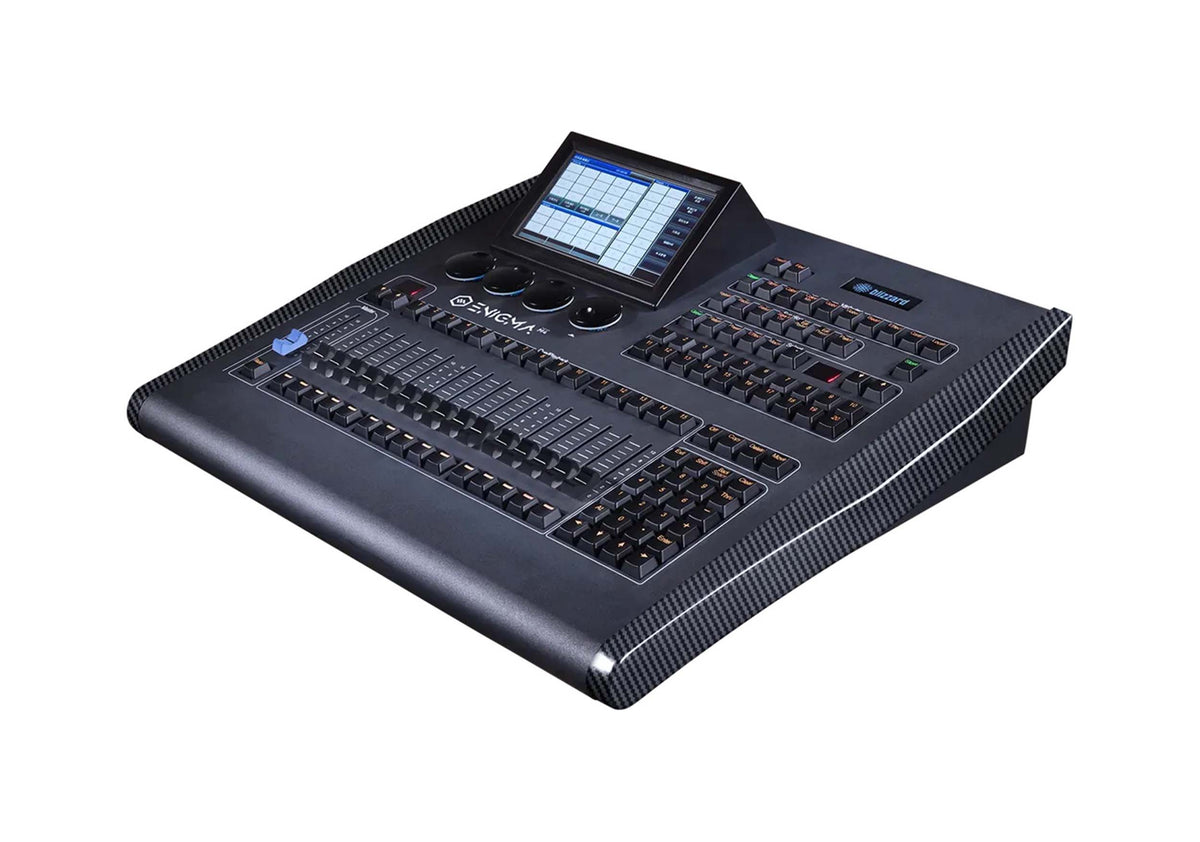

The Blizzard Enigma M4 is a professional lighting control system designed for real-time control of complex lighting environments. It supports up to 4 Art-Net universes, providing control of 2,048 channels, or up to 2 DMX universes with 1,024 channels through its optically isolated rear DMX outputs.

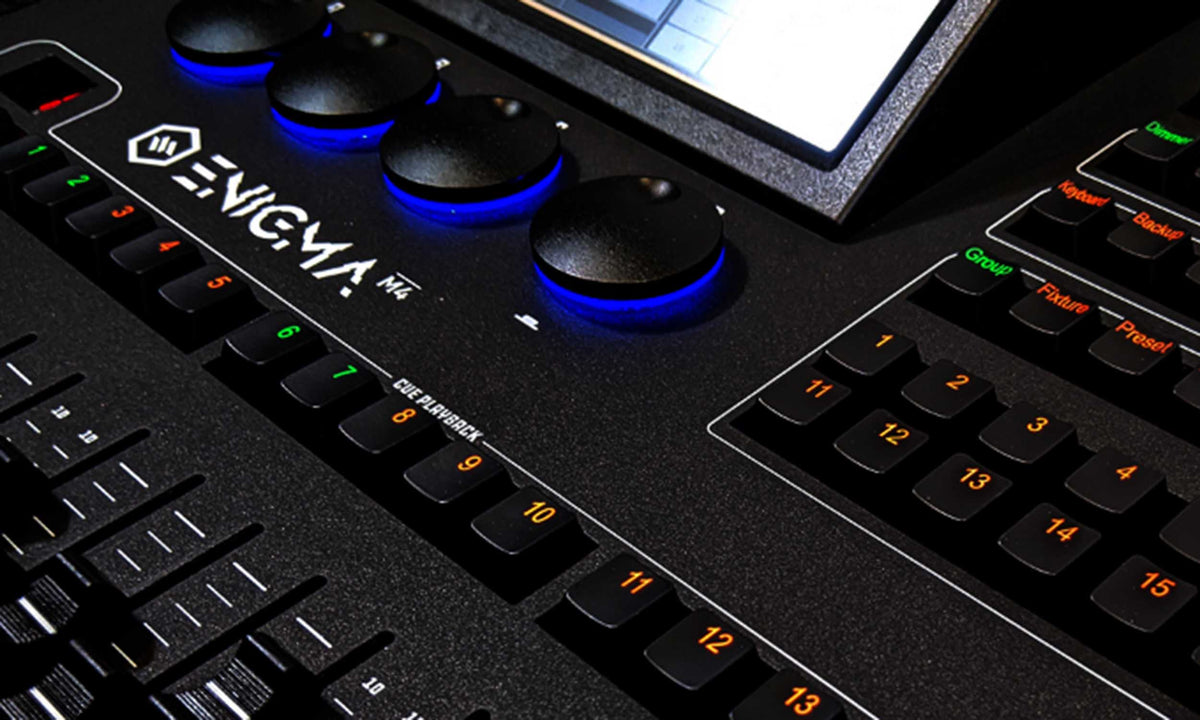

Built for intuitive hands-on programming, the Enigma M4 combines a 7-inch TFT-LCD touchscreen, dedicated keypad command section, 15 linear faders, 20 playback keys, and four backlit encoders. Adjustable three-color backlit buttons and blue encoders provide clear visual feedback.

The Enigma M4 also provides MIDI connectivity, audio triggering, internal show-data storage, and USB expansion. A custom flight case, USB-to-MIDI adapter cable, and USB gooseneck lamp are included.

Key Features

• Controls 4 Art-Net universes or 2 DMX universes.
• 2,048 Art-Net channels or 1,024 DMX channels.
• 7-inch TFT-LCD touchscreen display.
• Regularly updated 8,000+ fixture library.
• MIDI I/O and audio triggering capabilities.
• Internal HDD for show-data storage and backup.
• USB port for external storage.
• Includes custom flight case and USB accessories.

Ideal For

• Professional stage lighting control.
• Touring and mobile production.
• Concerts and live performances.
• Theaters and performance venues.
• Clubs and entertainment spaces.
• Corporate events and production companies.
• Complex multi-fixture lighting systems.

What's in the Box

• Blizzard Enigma M4 lighting control system.
• Custom flight case.
• USB-to-MIDI adapter cable.

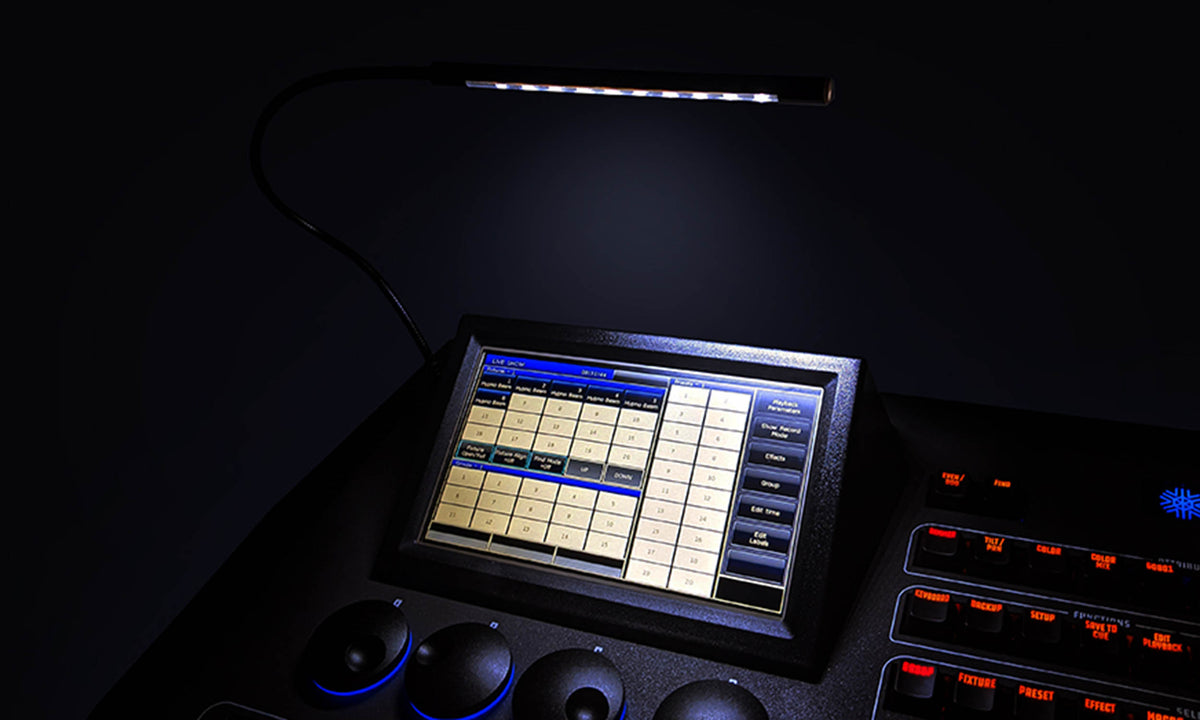

• USB gooseneck lamp.
• User Manual.

Inputs & Outputs

• Network: 1 × etherCON.
• DMX: 2 × 5-pin DMX outputs, A/B.
• MIDI: 5-pin MIDI In/Out.
• USB: 1 × USB port.
• Audio: 1 × 1/4-inch mono audio input.
• Power: IEC power input connector.
• Protocols: USITT DMX-512 and Art-Net.

Frequently Asked Questions

How many lighting universes does the Blizzard Enigma M4 support?

The Enigma M4 supports up to 4 Art-Net universes for 2,048 channels or 2 DMX universes for 1,024 channels through its optically isolated DMX outputs.

Does the Enigma M4 have a touchscreen?

Yes. The Enigma M4 features a 7-inch TFT-LCD touchscreen for accessing programming, fixture control, playback, effects, and other console functions.

How many playback keys does the Enigma M4 have?

The console provides 20 playback keys with 20 pages, supporting up to 1,000 playbacks for programming and live lighting control.

Does the Enigma M4 support MIDI?

Yes. It features 5-pin MIDI input and output for integrating with external MIDI equipment and triggering lighting effects.

How many fixtures are included in the Enigma M4 library?

The Enigma M4 includes a regularly updated fixture library containing more than 8,000 fixtures, providing compatibility with a wide range of professional lighting equipment.

Can I save and back up lighting shows on the Enigma M4?

Yes. The Enigma M4 includes an internal HDD for show-data storage and backup, while its USB port can be used with external storage.

Full Technical Specifications

Control & Protocol

Display	7"" TFT-LCD touchscreen
Playback Keys	20 keys x 20 pages
Linear Faders	15 faders x 40 pages
Backlit Buttons	3-color adjustable: red, green, or yellow
Encoders	4 backlit encoders, blue
Maximum Playbacks	Up to 1,000
Priority Levels	5 custom priority levels for playbacks

Programming & Effects

Groups	Up to 400
Presets	Up to 400
Macros	Up to 400
Shape Effects	Up to 400 user-defined shape effects
Color Control	Color picker and effects generator
Color Mixing	RGB & CMY color mixing palette
Shape Generator	Various built-in shape generator effects
Fixture Library	8,000+ fixtures, regularly updated

Storage & Backup

Internal Storage	Internal HDD for show data backup and storage
External Storage	USB port for connecting external drives
Backup Capability	Internal and external show-data storage

Included Accessories

Flight Case	Custom flight case included
MIDI Adapter	USB-to-MIDI adapter cable included
Gooseneck Lamp	USB gooseneck lamp included

Power & Physical Specifications

Power Supply	100-240VAC, 50-60Hz
Fuse	1A
Power Connector	IEC power input connector
Product Weight	22 lbs (10 kg)
Product Dimensions (L x W x H)	19"" x 17.5"" x 7""

"
