Description

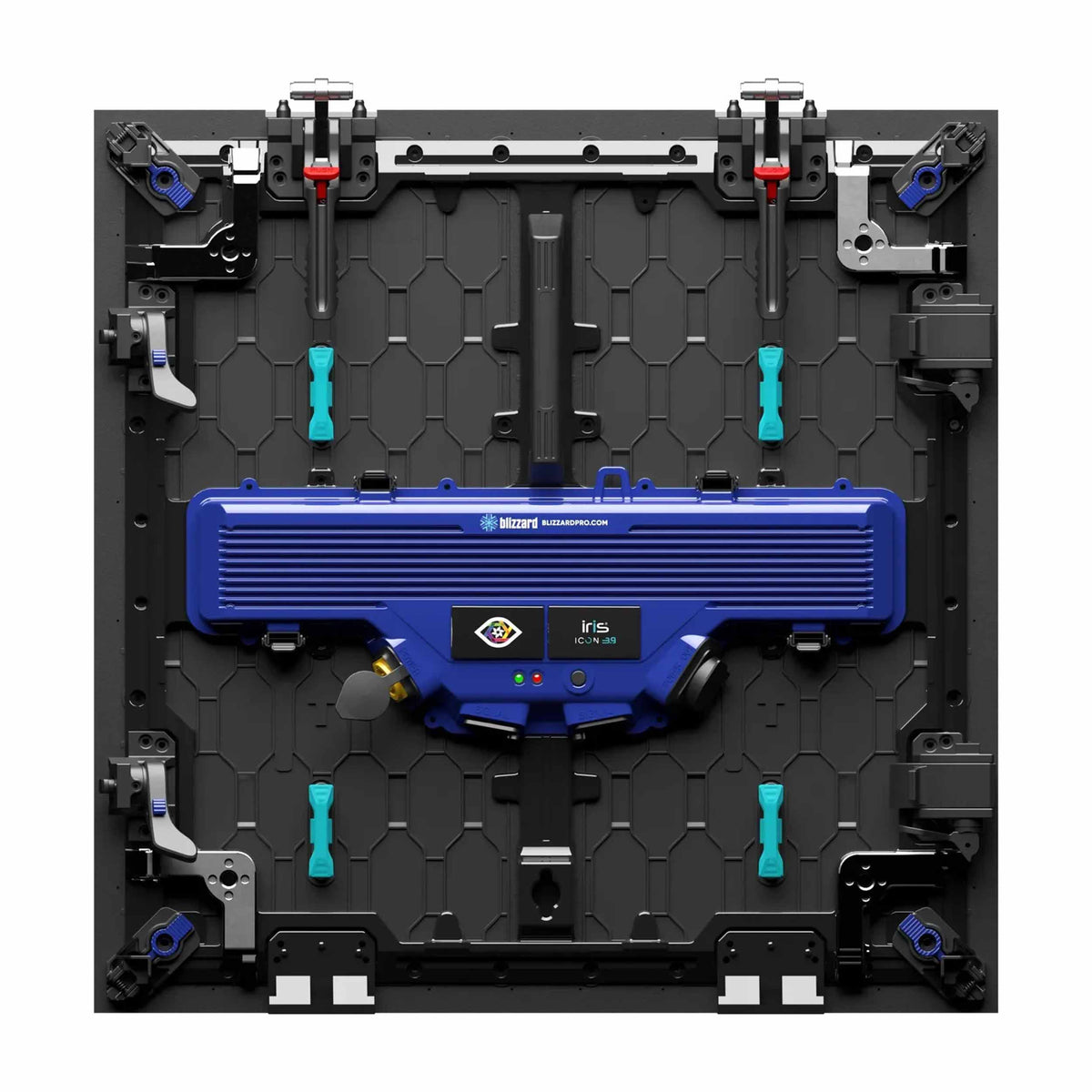

The Blizzard Lighting IRiS ICON 3.9 is a professional LED video wall panel designed for multipurpose indoor and outdoor display applications. Featuring a 3.9mm pixel pitch, 1000-nit brightness, 128 × 128 pixel resolution, and a refresh rate of at least 3,840Hz, it delivers detailed, smooth imagery for live events, installations, and large-format LED video walls.
Built around customizable NovaStar A8s-N receiving cards, the ICON 3.9 supports HDR10-Optima and HLG, automatic module calibration, and image rotation. Its advanced SMD RGB 2020 LED configuration provides 14-bit color depth and grayscale, while front or rear serviceability gives installation teams flexible maintenance access.
The lightweight panel features quick-thumb locking, blackout gaskets, retractable corner protectors, and ground support locks for efficient installation and secure panel alignment. With an IP40 front and IP21 rear rating, a 100,000-hour rated lifespan, and a 7-year warranty, the ICON 3.9 is designed for demanding multipurpose video wall environments.
Key Features
- 9mm pixel pitch for detailed LED imagery.
- 1000-nit brightness.
- 128 × 128 pixel panel resolution.
- ≥3,840Hz refresh rate.
- 14-bit color depth and grayscale.
- HDR10-Optima and HLG support.
- SMD RGB 2020 LED configuration.
- Customizable NovaStar A8s-N receiving card.
- Automatic module calibration and image rotation.
- Front or rear serviceability.
- Quick-thumb locking and blackout gaskets.
Ideal For
- Professional LED video walls.
- Live events and productions.
- Multipurpose display installations.
- Indoor video wall applications.
- Outdoor-capable installations.
- Stage and entertainment environments.
- Corporate and commercial displays.
- Touring and event production systems.
What’s in the Box
- IRiS ICON 3.9 LED Video Wall Panel.
Inputs & Outputs
- Receiving Card NovaStar A8s-N.
- Video Input LED controller/sending system.
- Data Output LED module data.
- Processing NovaStar / optional Brompton.
Frequently Asked Questions
What is the pixel pitch of the IRiS ICON 3.9?
The ICON 3.9 has a 3.9 mm pixel pitch with a panel resolution of 128 × 128 pixels.
How bright is the ICON 3.9?
It provides a brightness of 1000 nits for clear and detailed visual performance.
Does the ICON 3.9 support HDR?
Yes. It supports HDR10-Optima and HLG for enhanced contrast and color performance.
What is the IP rating of the ICON 3.9?
The panel is rated IP40 on the front and IP21 on the rear.
What are the panel dimensions and weight?
Each panel measures 500 × 500 × 72 mm and weighs 14.6 lbs.
What is the refresh rate of the ICON 3.9?
It has a refresh rate of at least 3,840 Hz for smooth motion and reduced visual artifacts.
Full Technical Specifications
Panel Specifications
|
Pixel Pitch |
3.9 mm |
|
Brightness |
1000 Nit |
|
Color Depth |
14 Bit |
|
Grayscale |
14 Bit |
|
HDR |
HDR10-Optima / HLG |
|
LED Configuration |
SMD RGB 2020 |
|
Pixel Density |
640,000 Dots/m² |
|
Panel Resolution |
128 x 128 |
|
Refresh Rate |
≥3,840 Hz |
|
Scan Mode |
1/21 |
|
Receiving Card |
NovaStar A8s-N, customizable with Brompton processing |
|
Curvature |
±6° |
|
IP Rating |
IP40 front / IP21 rear |
|
Module Quantity |
2 x 2 |
|
Lifespan |
100,000 Hours |
|
Serviceability |
Front or Back |
|
Primary Usage |
Multipurpose |
|
Special Features |
Corner Protectors, Quick-Thumb Locking, Blackout Gaskets, Ground Support Locks |
Power & Environmental Specifications
|
Input Power |
662.5 W/m² |
|
Maximum Power Usage |
150 W |
|
Working Temperature |
-10°C to +40°C |
|
Working Humidity |
10%–90% RH |
|
Certifications |
FCC, ETL, CE, RoHS |
Physical Specifications
|
Product Weight |
14.6 lbs. |
|
Product Dimensions (L x W x H) |
19.69" x 19.69" x 2.83" |
