Description

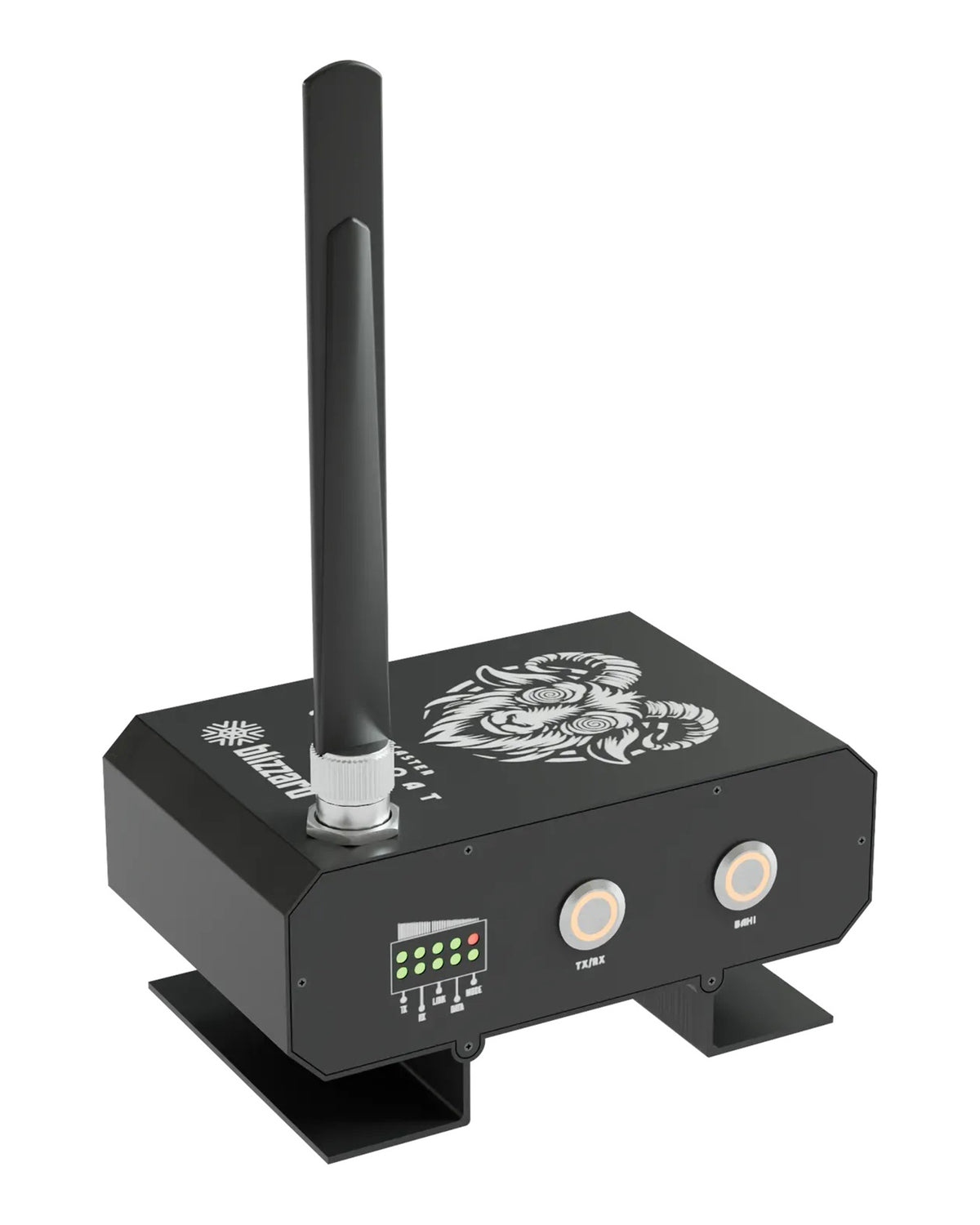

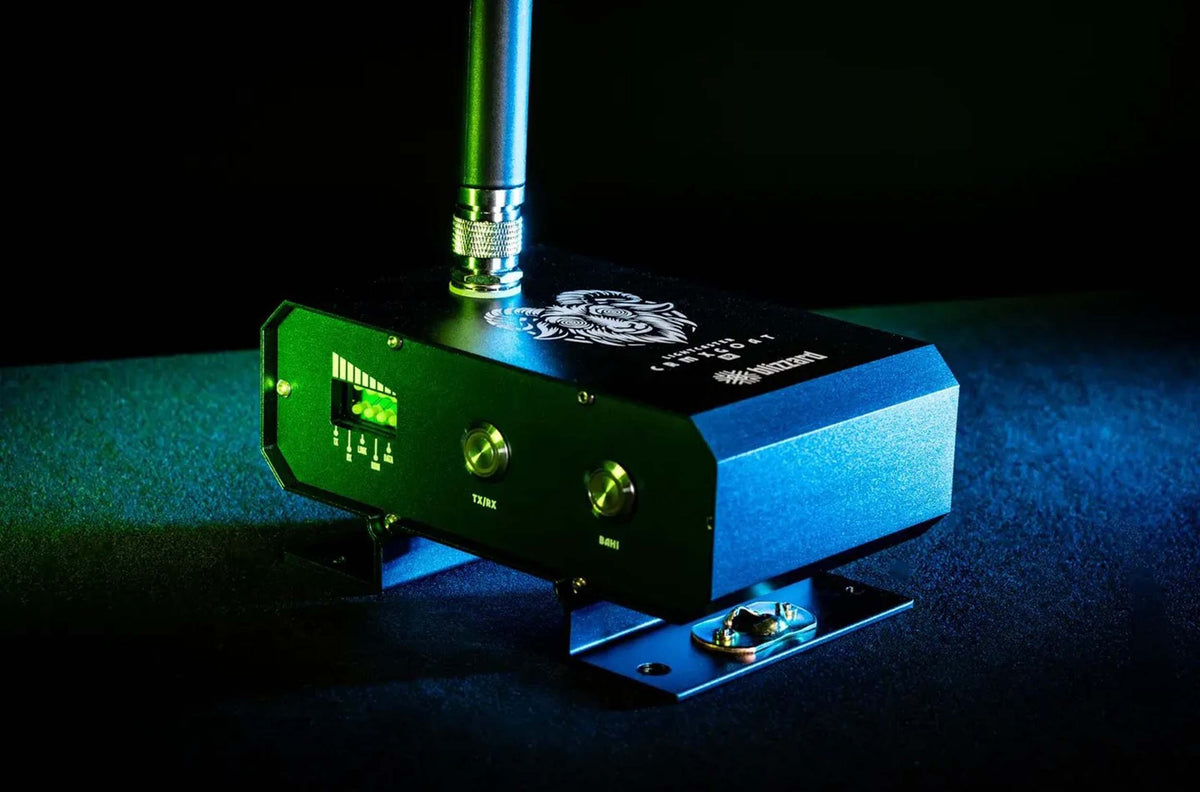

The Blizzard Lighting LightCaster CRMX GOAT IP is a professional IP65-rated wireless CRMX transceiver designed for reliable DMX and RDM control in demanding indoor and outdoor lighting environments. Operating on the 2.4GHz band, it supports both CRMX and W-DMX protocols while providing a line-of-sight wireless range of up to 1,000 meters. Its rugged weather-resistant design makes it suitable for touring, outdoor events, installations, and professional production systems.
The LightCaster CRMX GOAT IP can switch between transmitter and receiver modes at the press of a dedicated button, providing flexible signal distribution from a single compact unit. Its adaptive frequency hopping spread spectrum (AFHSS) technology helps maintain a stable wireless connection, while less than 5ms latency supports responsive real-time lighting control. Each transmitter can support one DMX universe, with scalable operation for up to 16 transmitters.
With 100mW transmitter power, 98 dBm receiver sensitivity, and a 5dBi antenna, the LightCaster is engineered for dependable wireless performance over long distances. A 5-pin DMX input and output provide professional wired connectivity.
Key Features
- IP65-rated 2.4GHz CRMX transceiver.
- CRMX and W-DMX compatible.
- Switchable transmitter and receiver modes.
- Up to 1,000m line-of-sight range.
- Less than 5ms wireless latency.
- 100mW transmitter power.
- 98 dBm receiver sensitivity.
- 5dBi high-performance antenna.
- Supports RDM in receiver mode.
- Adaptive frequency hopping technology.
Ideal For
- Touring and live production.
- Outdoor concerts and events.
- Stage and theatrical lighting.
- Permanent lighting installations.
- Professional DMX distribution.
- Architectural and entertainment lighting.
- Applications requiring long-range wireless control.
What’s in the Box
- Blizzard Lighting LightCaster CRMX GOAT IP transceiver.
Inputs & Outputs
- DMX Input 5-pin DMX input for wired lighting data.
- DMX Output 5-pin DMX output for signal distribution.
- Power Input powerCON TRUE1-compatible power connection.
- Wireless Link 2.4GHz CRMX/W-DMX wireless communication.
- Mode Control Dedicated button for switching between TX and RX modes.
Frequently Asked Questions
What is the Blizzard LightCaster CRMX GOAT IP?
The LightCaster CRMX GOAT IP is an IP65-rated 2.4GHz wireless CRMX transceiver designed for reliable wireless DMX and RDM control indoors or outdoors.
What is the maximum wireless range?
It provides a maximum line-of-sight range of up to 1,000 meters for wireless DMX transmission.
Can the LightCaster CRMX GOAT IP transmit and receive signals?
Yes. It features switchable transmit (TX) and receive (RX) modes, allowing it to function as either a transmitter or receiver.
How many DMX universes does it support?
It supports one DMX universe per transmitter, with up to 16 transmitters for scalable system configurations.
Does it support RDM?
Yes. RDM is supported when the unit is operating in receive mode.
What are the dimensions and weight?
The LightCaster CRMX GOAT IP measures 6.7 × 4.5 × 3.1 inches and weighs 2.9 lbs. The antenna measures 7.3 inches long.
Full Technical Specifications
Wireless & DMX Specifications
|
Device Type |
IP65 CRMX Wireless Transceiver |
|
Wireless Frequency |
2.4 GHz |
|
Wireless Protocols |
CRMX, W-DMX |
|
Operating Modes |
Transmit (TX) / Receive (RX) |
|
Maximum Range |
1,000 meters Line of Sight |
|
Transmitter Power |
100 mW |
|
Receiver Sensitivity |
98 dBm |
|
Antenna |
5 dBi |
|
Adaptive Frequency Hopping |
AFHSS |
|
Latency |
Less Than 5 ms |
|
DMX Universes |
1 Universe per Transmitter, Up to 16 |
|
RDM |
Supported in RX Mode |
|
DMX Connectors |
5-Pin DMX Input & Output |
|
Mode Switching |
Dedicated TX/RX Button |
|
Signal Connectivity |
One-Button Connectivity |
Power & Construction Specifications
|
Input Voltage |
110V, 60 Hz |
|
Power Consumption |
6W |
|
Power Connector |
powerCON TRUE1-Compatible Input |
|
Ingress Protection |
IP65 |
|
Construction |
Compact and Durable Design |
|
Intended Use |
Indoor and Outdoor Applications |
|
Antenna Dimensions |
0.9" x 0.9" x 7.3" |
Features & Performance
|
Wireless Control |
CRMX Wireless DMX with RDM Capability |
|
Frequency Management |
Adaptive Frequency Hopping |
|
Range Performance |
Up to 1,000 m Line of Sight |
|
Real-Time Control |
Less Than 5 ms Latency |
|
Scalability |
Up to 16 Universes/Transmitters |
|
Receiver RDM |
Supported |
|
Outdoor Suitability |
IP65-Rated |
|
Antenna Design |
5 dBi High-Gain Antenna |
Physical Specifications
|
Product Weight |
2.9 lbs. |
|
Product Dimensions (L x W x H) |
6.7" x 4.5" x 3.1" |
