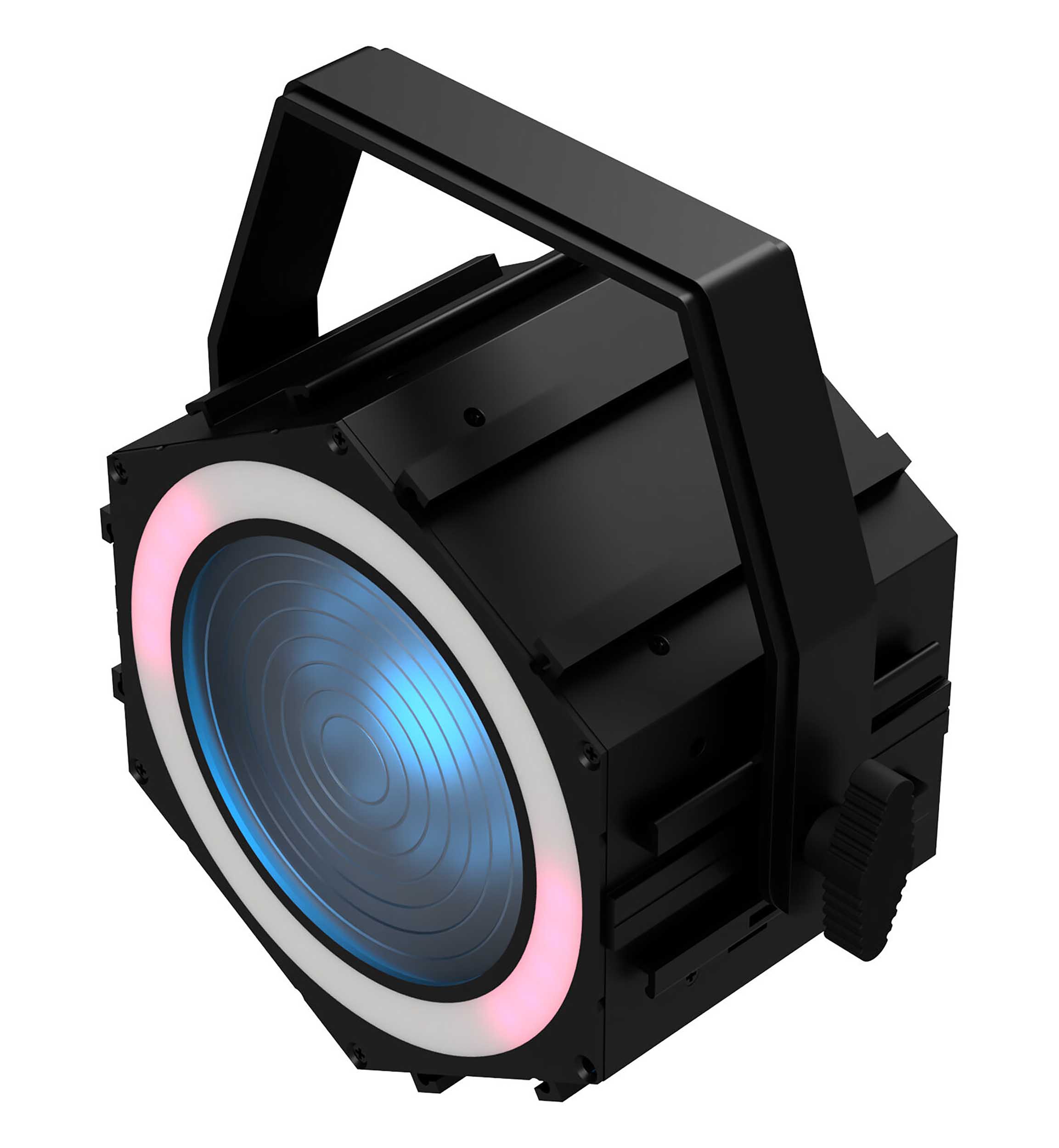

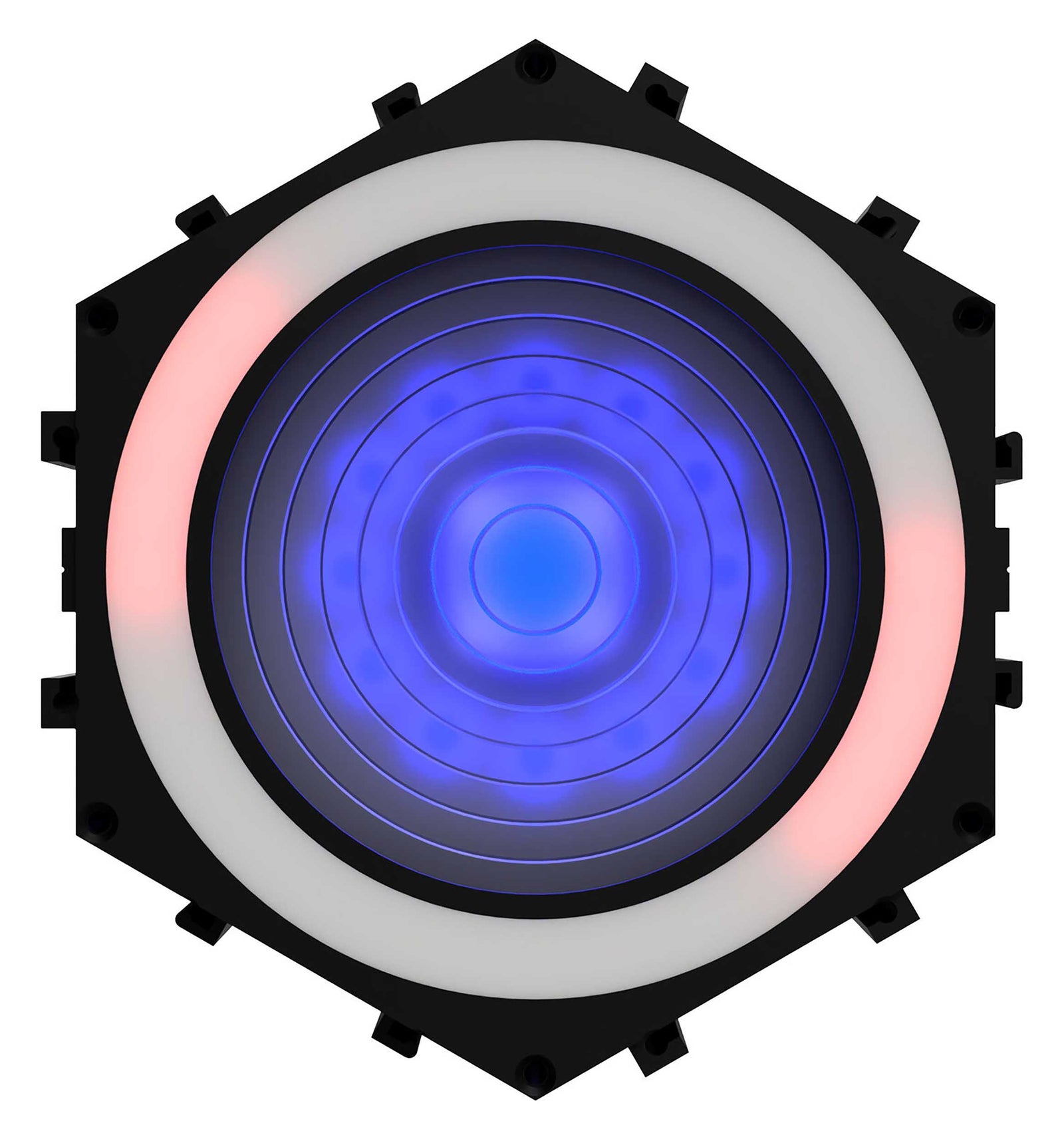

Blizzard Lighting Nexys RGBW with Fresnel Lens and RGB Backlight Effects

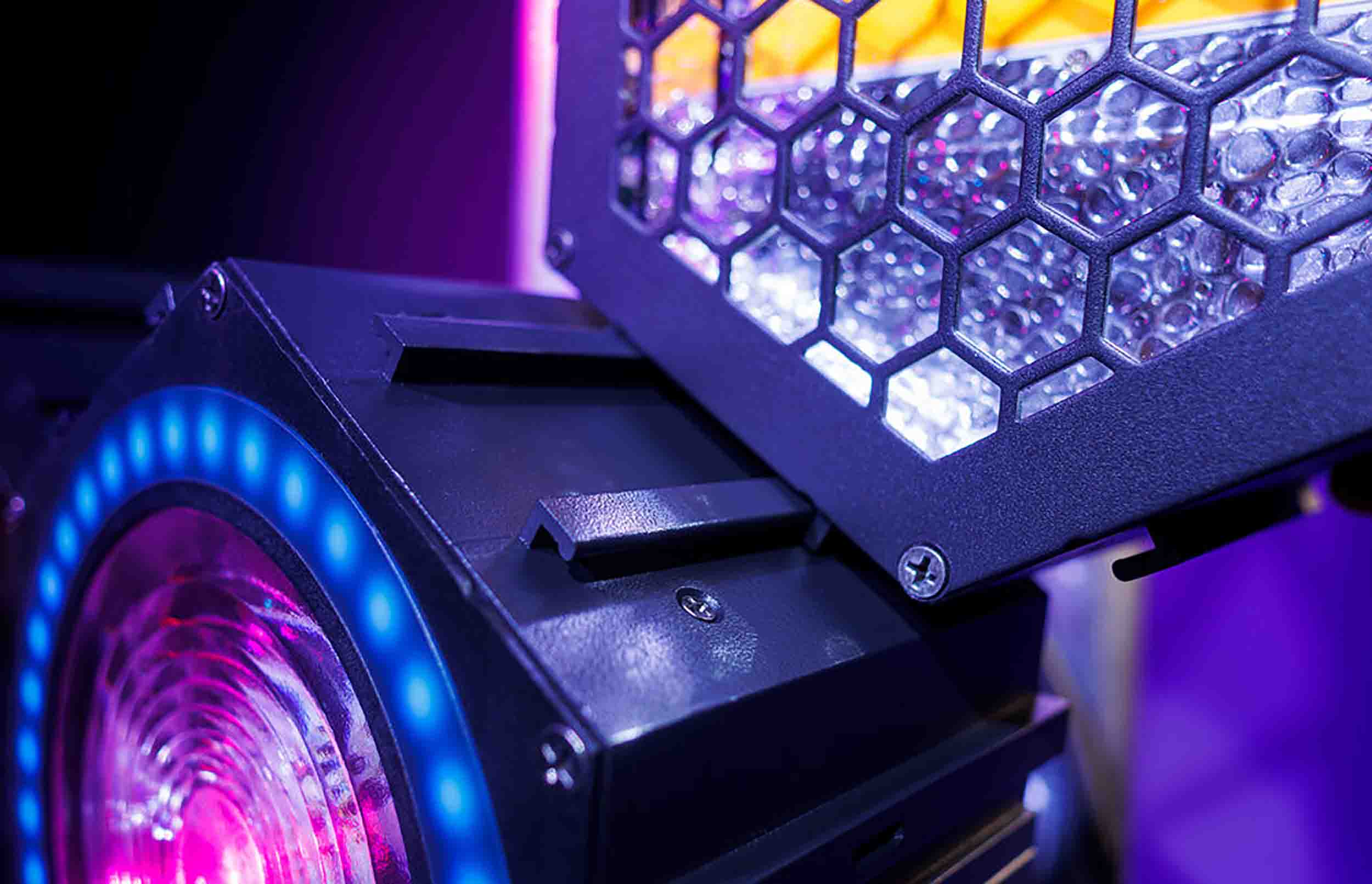

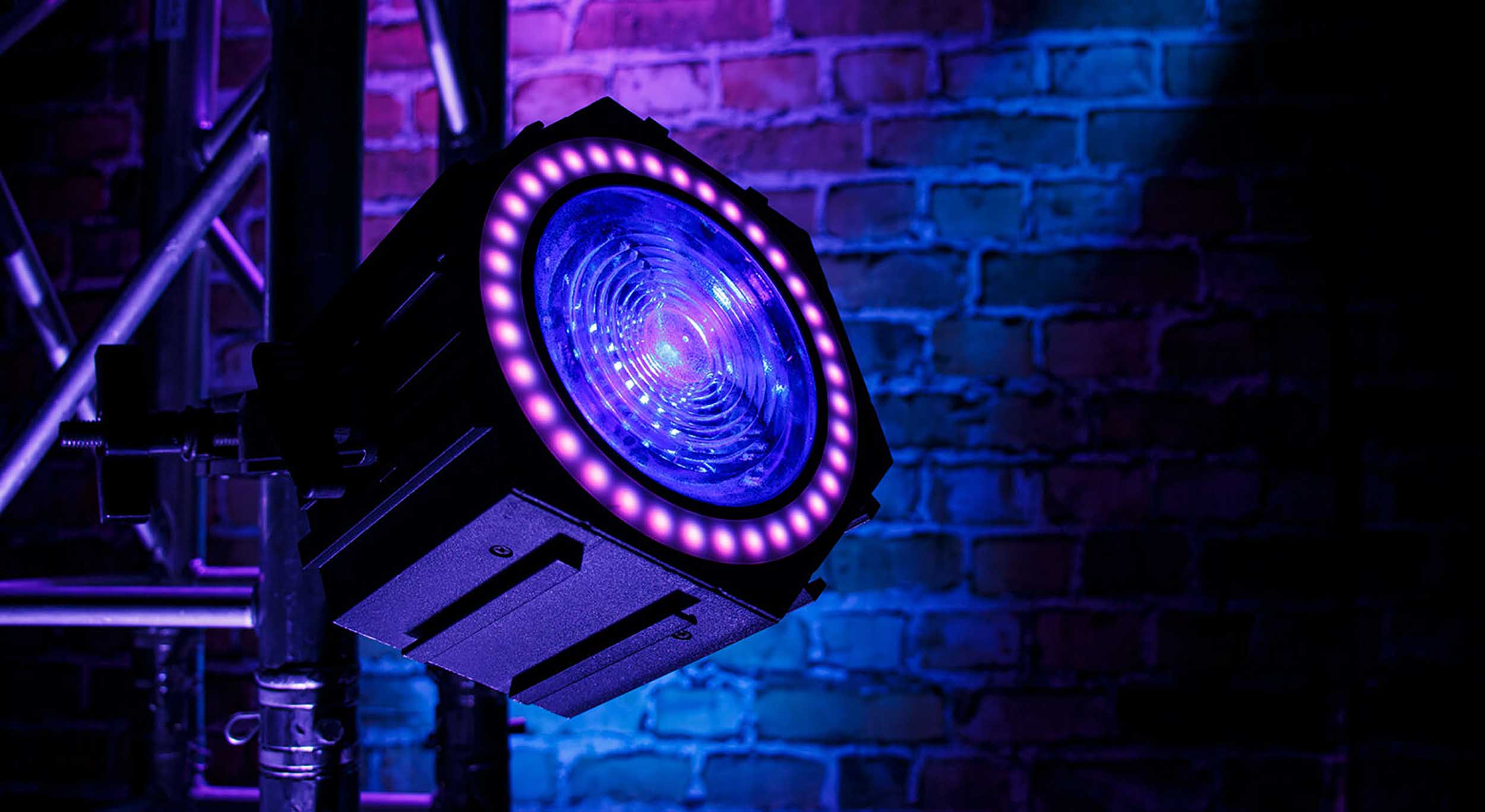

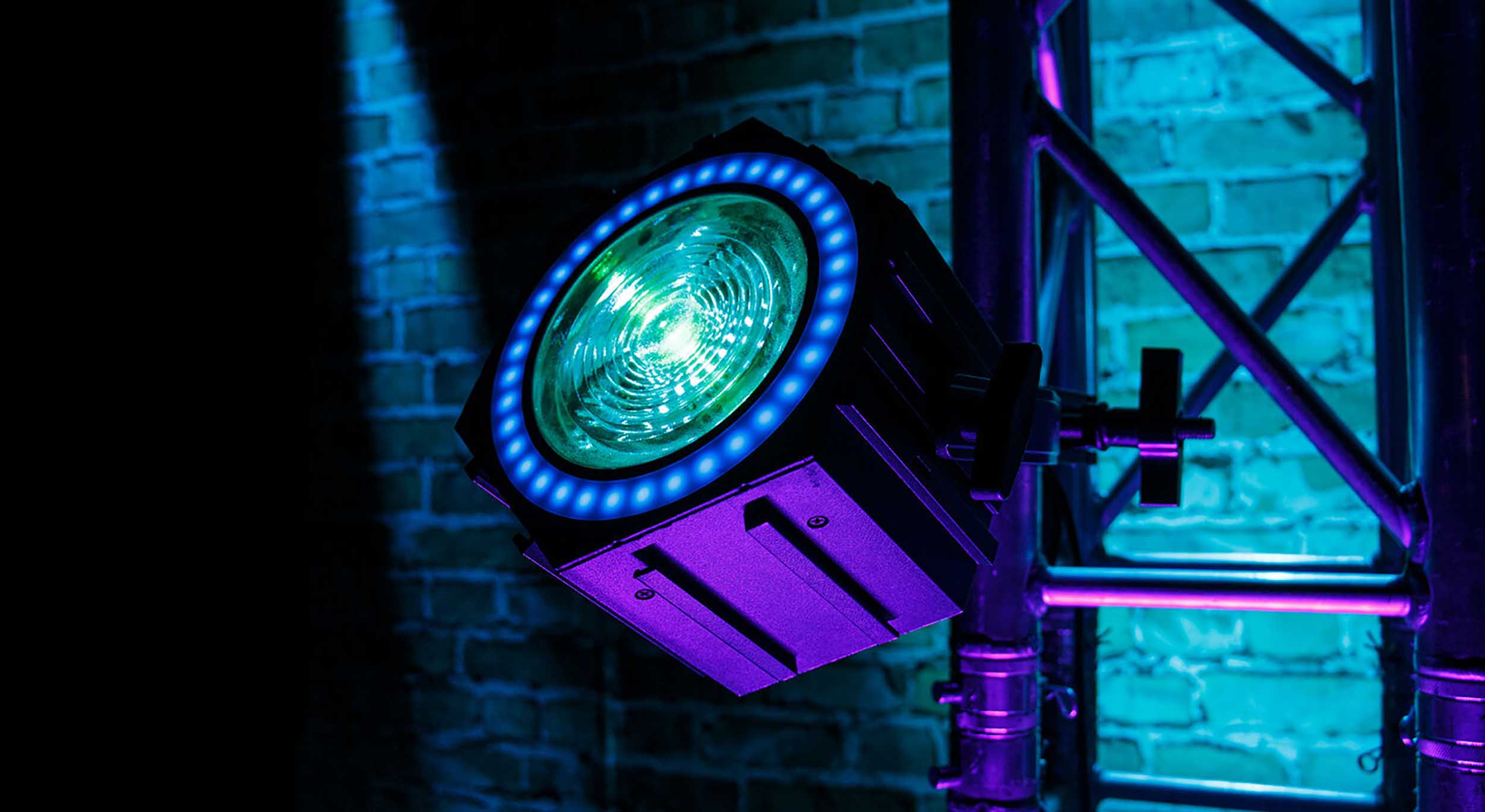

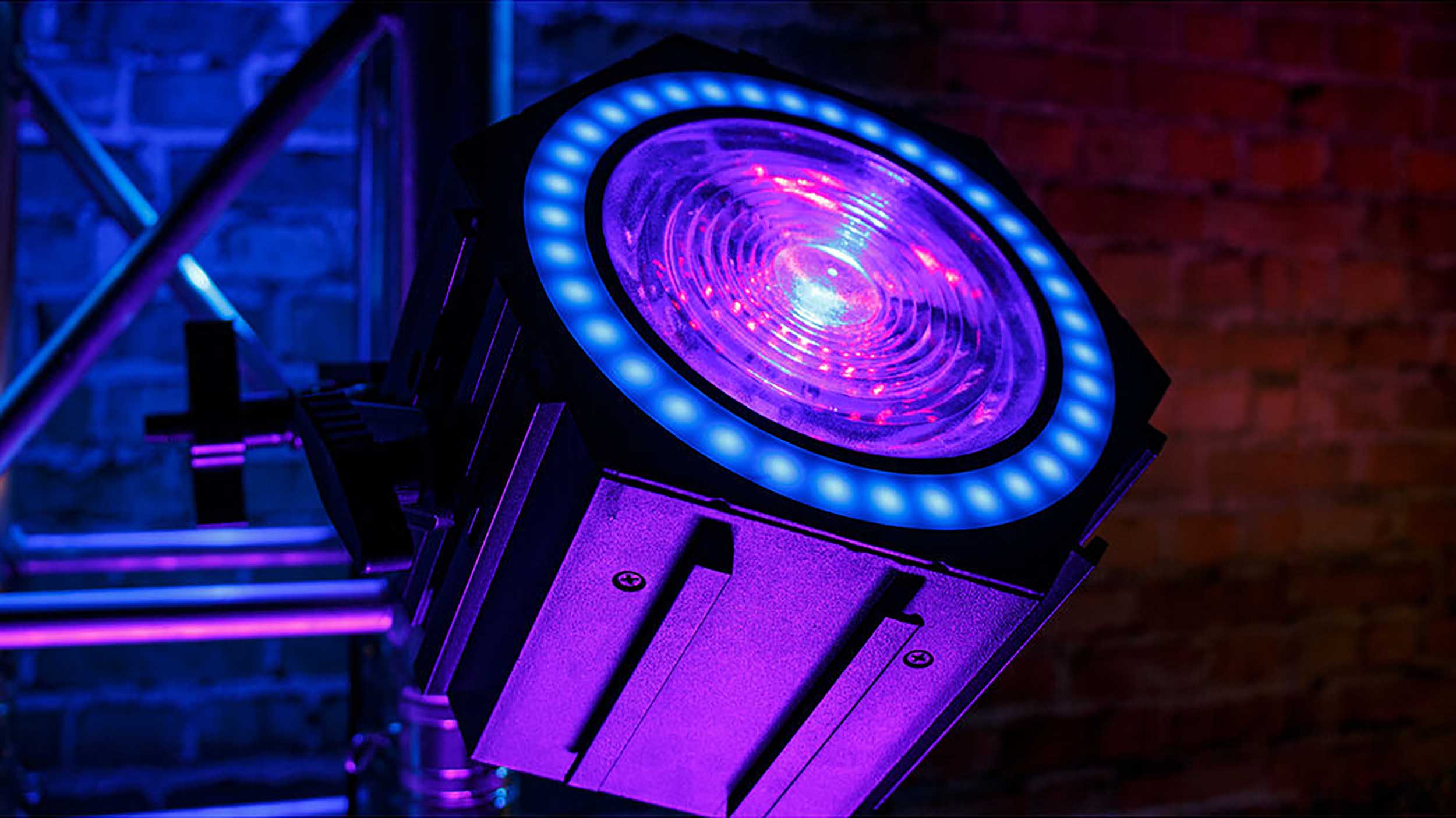

Create bold, eye-catching visual effects with the Blizzard Lighting Nexys RGBW, a spot/wash fixture with RGB LED backlight effects well suited for clubs, bars, installations, and special events. The fixture boasts a 40W, RGBW LED with a 10° Fresnel lens for sharp color beams, while an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight provides enhanced visual effects. The Nexys RGBW features smooth dimming, strobe, built-in programs, and individual control of the 6 inner, and 6 outer pixel ring groups.

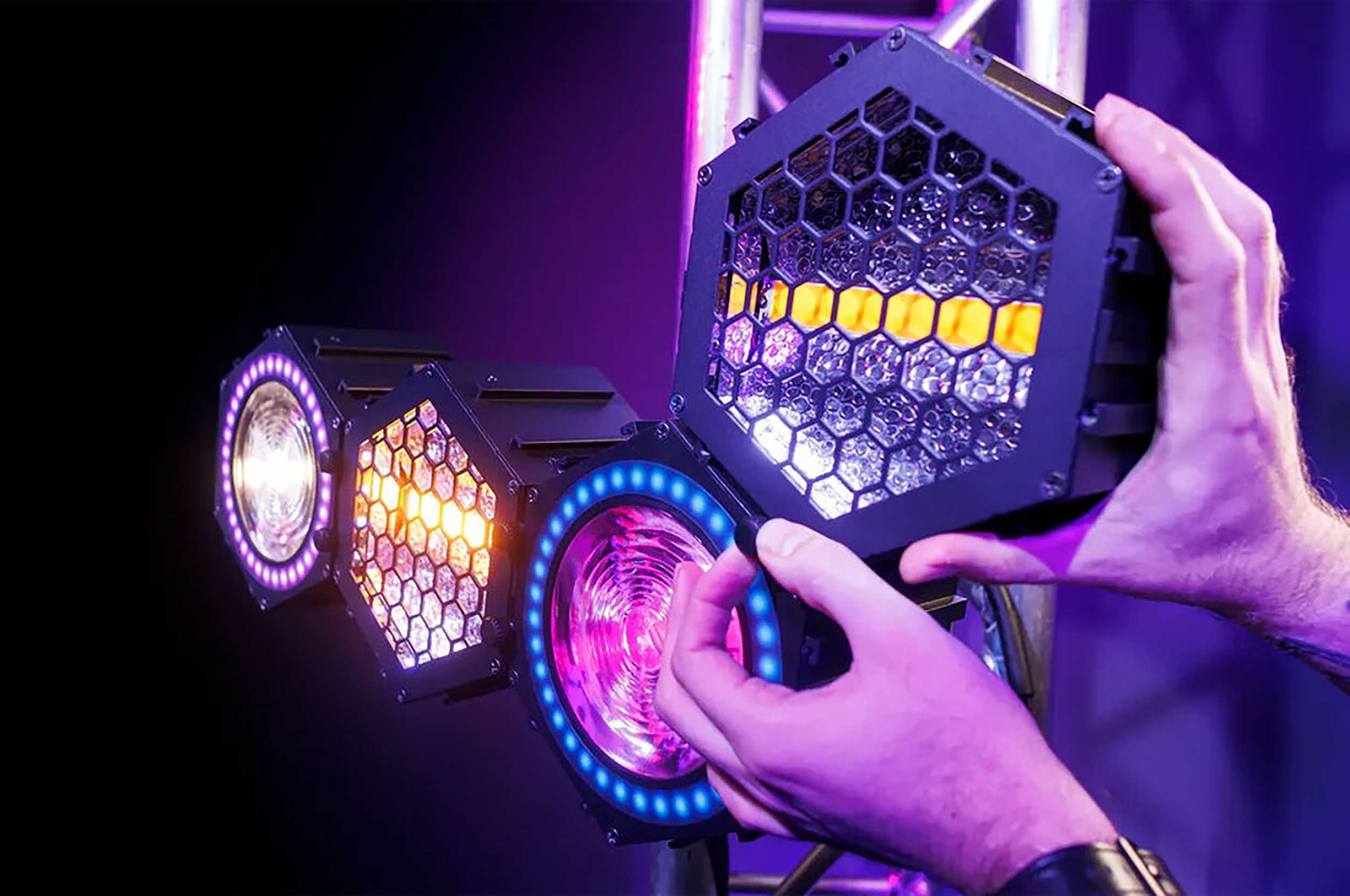

The Nexys RGBW is 1 of 3 modular LED fixtures in the Nexys Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. All Nexys Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON TRUE1 compatible in/out connections.

Product Specifications

Fixture Type: Special Design

Light Source:

1x Color LED - 40 W

36x Color LED (SMD5050) - 50 mW

18x Color LED (SMD5050) - 50 mW

Colors: Blue, Green, Red, White

Pixel Configuration: 6x Zone

Photometrics:

302 fc / 3253 Lux at 8.2' / 2.5 m

86 fc / 936 Lux at 16.4' / 5 m

Beam Angle: 10°

Shutter / Strobe: Electronic

Iris: No

Zoom Adjustment: No

Dimming: Electronic, 0 to 100%

Operating Modes: Automatic, DMX, Primary/Secondary

Macros / Programs: Auto-Program

Effects: Strobe

Gobos: No

Control Protocols: DMX512, RDM

DMX Channel Modes:

3 Mode(s):

18 / 45 / 57-Channel

Display / Controls: LCD / 4-Button

Remote Control: No

Mobile App Compatible: No

Inputs/Outputs:

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Wireless: No

AC Input Power: 100 to 250 VAC, 50/60 Hz

AC Power Connector:

Input: powerCON TRUE1

Output: powerCON TRUE1

Fuse: 2 A 250 V

Power / Current Consumption: 120 VAC: 65 W

Environmental Protection: No

Mounting: Omega Bracket

Included Accessories: 1x Power Cable

Duty Cycle: No

Exterior Color: Black

Dimensions: 7.9 x 6.8 x 4.9" / 20.1 x 17.3 x 12.4 cm

Weight: 5.3 lb / 2.4 kg
