Blizzard Lighting The Puck, Flat LED PAR Can with Remote

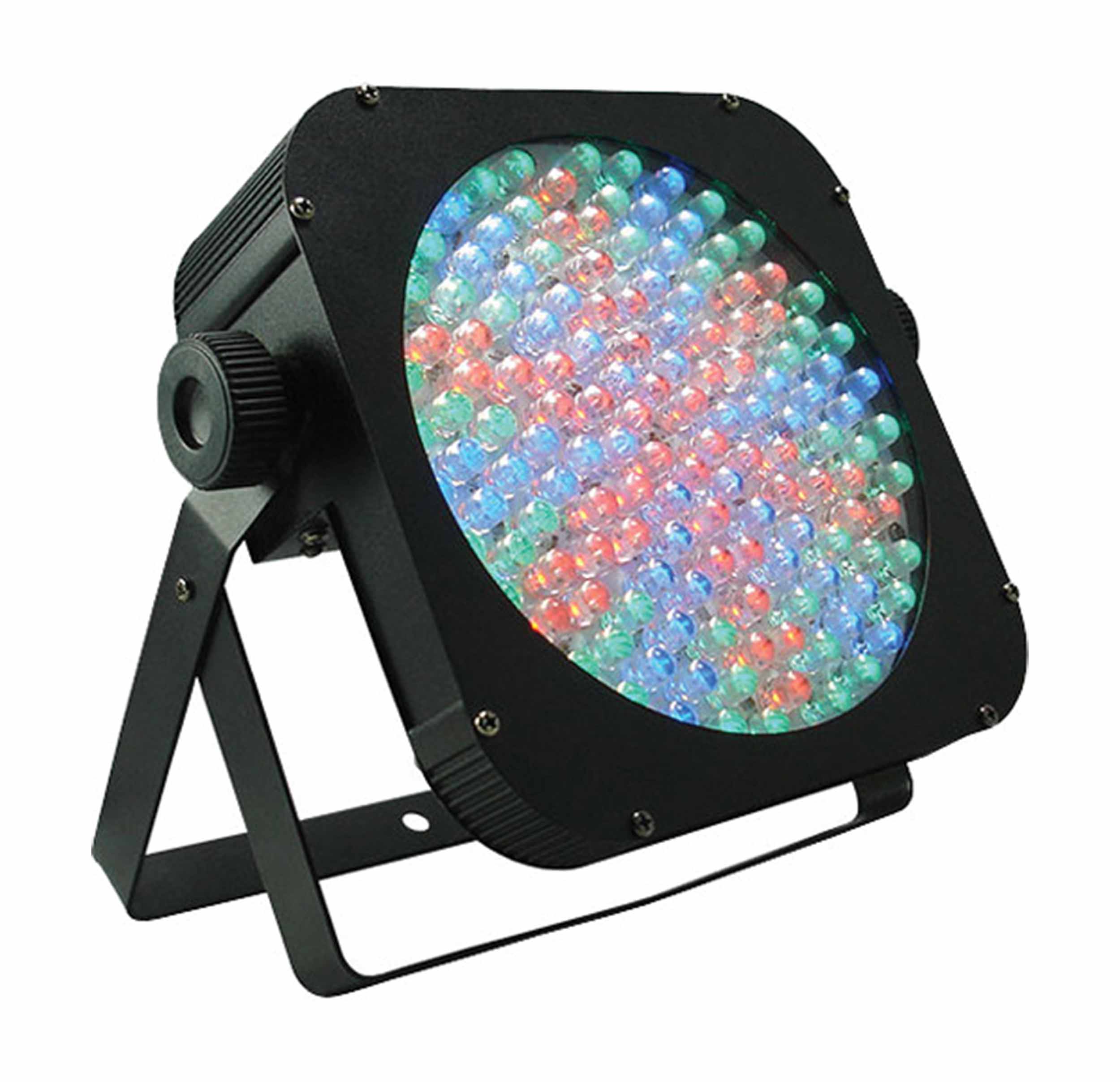

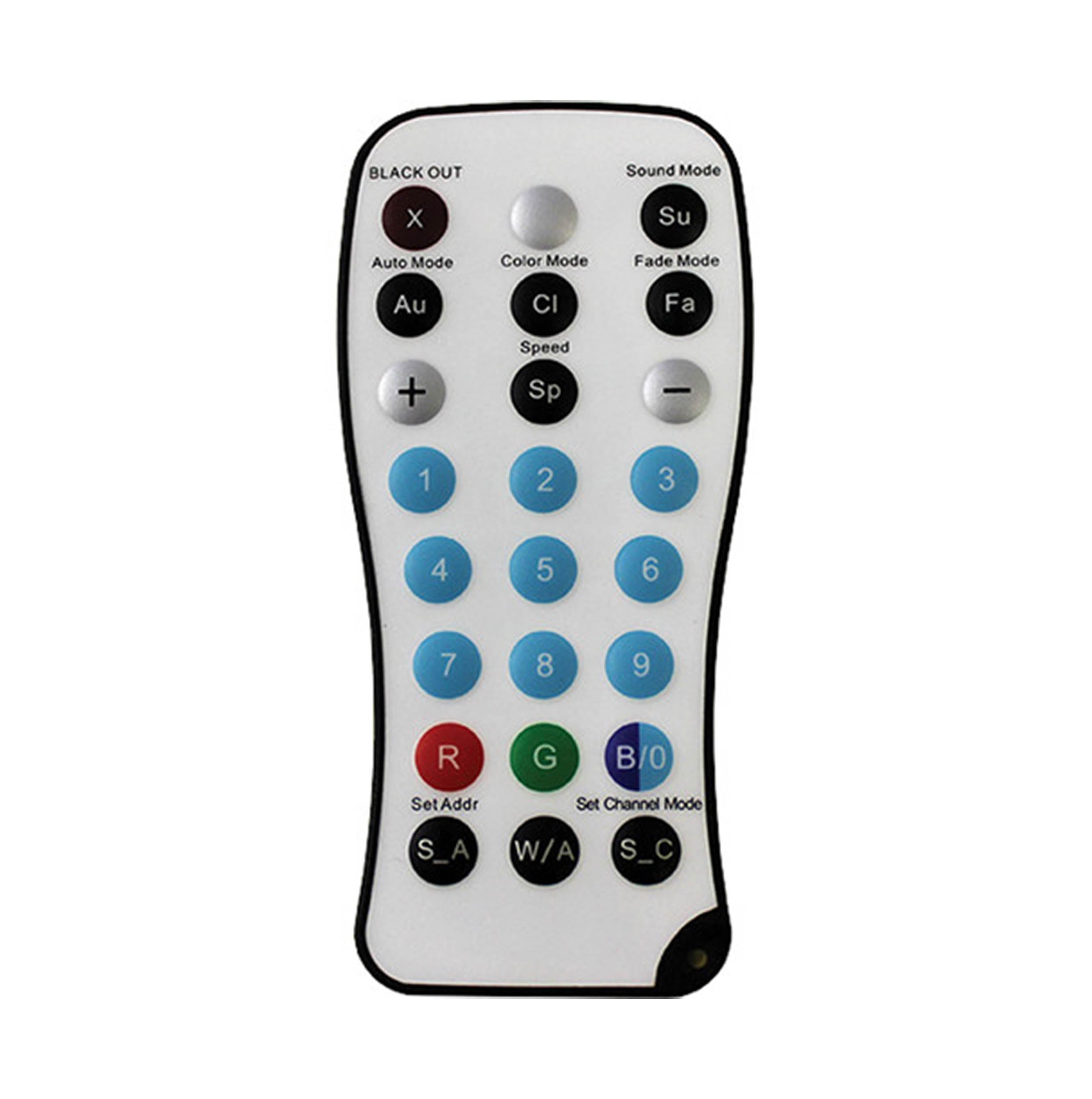

The Blizzard Lighting The Puck, Flat LED PAR Can with Remote is a flat LED PAR can feature a wireless IR remote control. The unit has a thickness of 2.5" at the yoke locking knobs and just 1" for the rest of the fixture. Its 144 bright 10mm LEDs output an impressive 3,920 lumens at 3.28', and is controllable via DMX or an LED control panel. The Puck can be installed on a truss section or floor-mounted using its 2-piece yoke.

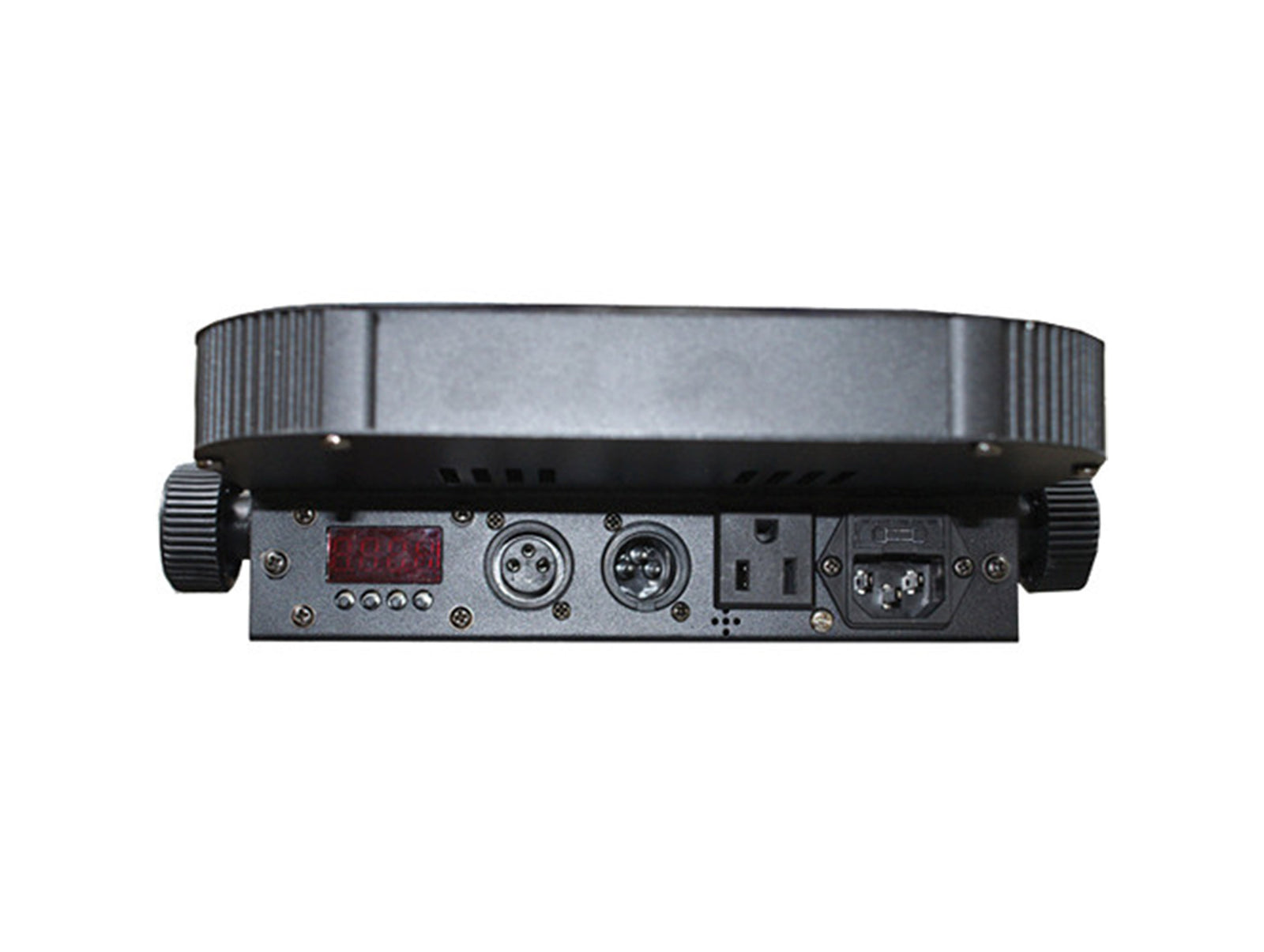

The Puck features 3 and 6 DMX channel control modes, which means it works well with virtually any type of controller. The built-in 4-character/4-button LED control panel allows total local control over the fixture, including sound active and standalone modes, display invert and service hour readout. IEC power in, daisy chain connections, 3-pin DMX connections, and LED control panel are all strategically placed on the back of the unit in a way that allows you to use the fixture in any position, including flat on the floor.

You can also take full advantage of Blizzard's wiCICLE wireless DMX system without the need for external power, thanks to wiCICLE-enabled DMX jacks. An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.

Product Specifications:

Light Source: 144x 10 mm LEDs

Beam and Field Angle: 21° / 32°

Light Intensity: 3,920 lux @ 3.28' (1.0 m)

Power:

Operating Voltage: 90 to 230 VAC, 50 to 60 Hz

Fuse: 3 A 250 V

Power Consumption: 20 W

Control:

Protocol: USITT DMX-512

3 and 6, user selectable

Input: 3-pin XLR male

Output: 3-pin XLR female

Operating Modes:

Standalone, master/slave, sound active

Color preset, standalone color mixing

Thermal: Maximum Operating Temperature: 104° F (40° C) ambient

Dimensions: 8.25 x 8.25 x 2.5" / 210 x 210 x 63.5 mm

Weight: 4.0 lb / 1.8 kg

Shipping Weight: 4.75 lbs

Shipping Dimensions (LxWxH): 10 x 8.7 x 4.3"
