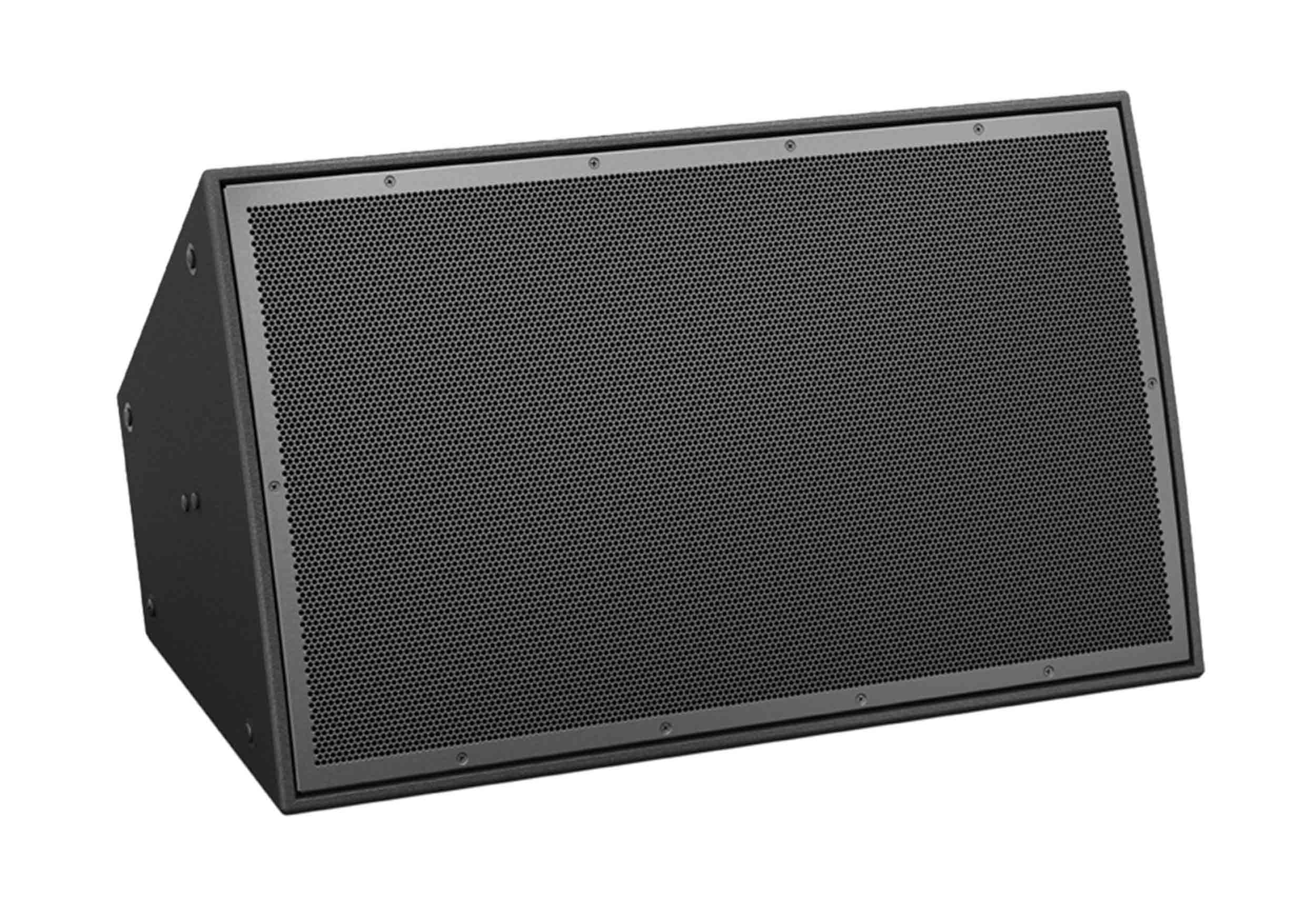

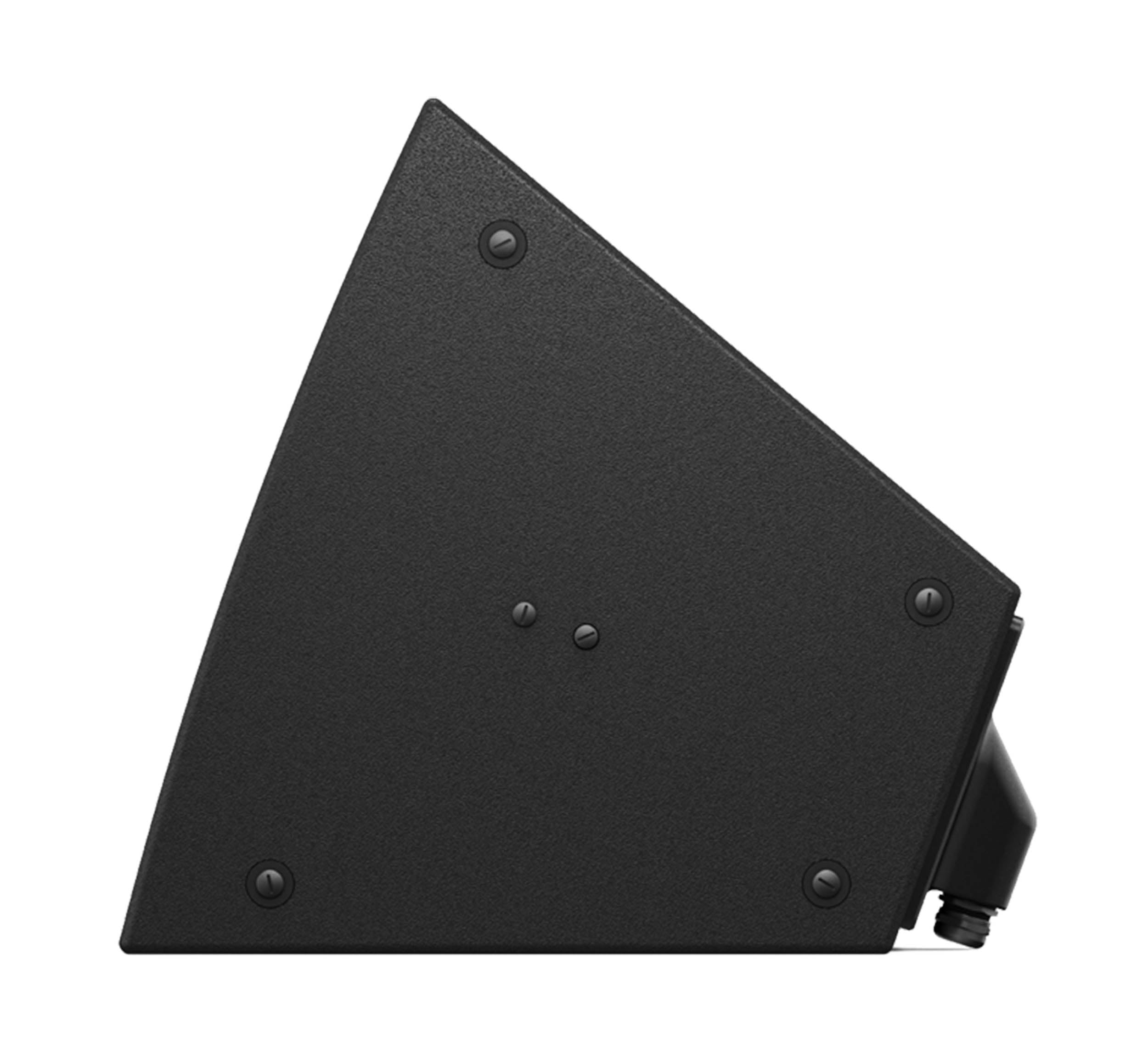

Bose AM40 60X40, ArenaMatch AM40/60 Outdoor Loudspeaker - Black

The Bose AM40 60X40, ArenaMatch AM40/60 Outdoor Loudspeaker - Black bring proven DeltaQ sound quality and flexibility to outdoor installations sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.

Improve Sound Quality, Consistency, And Vocal Clarity:

Allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area

Easily Customize Horizontal Coverage:

Allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays.

Deliver High-SPL, Long-Throw Music Reproduction and Vocal Intelligibility:

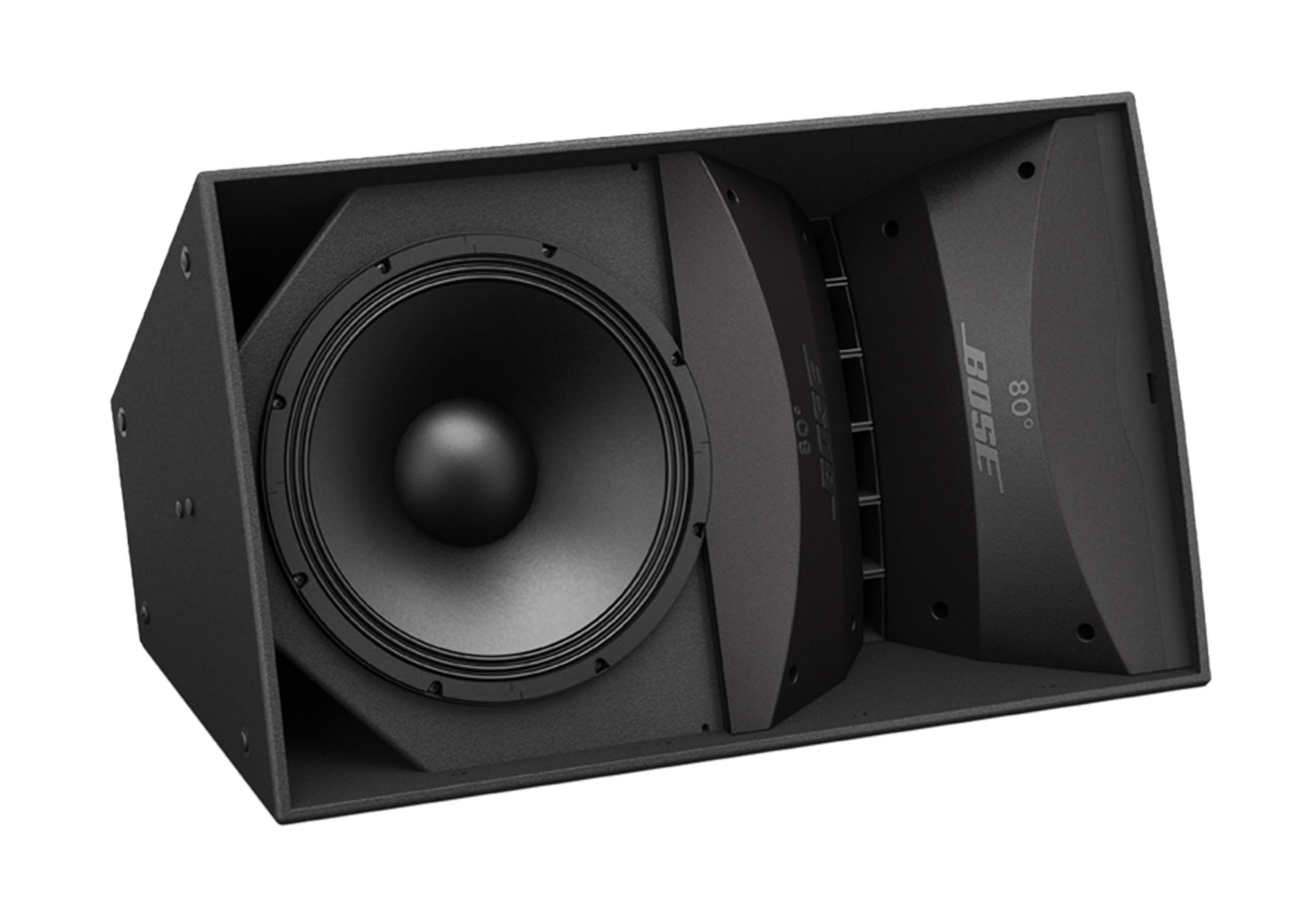

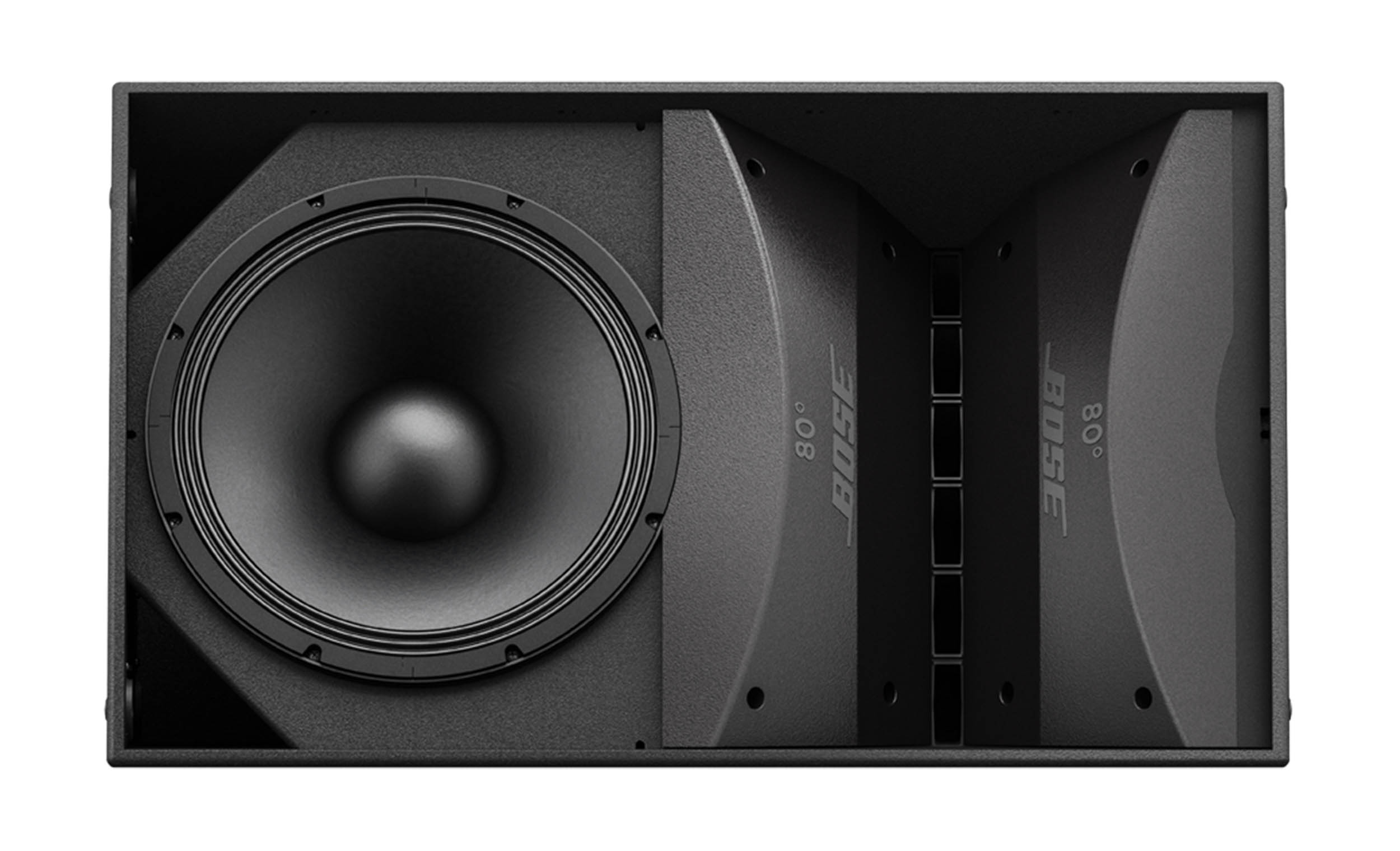

With a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers.

Rated for Direct-Exposure:

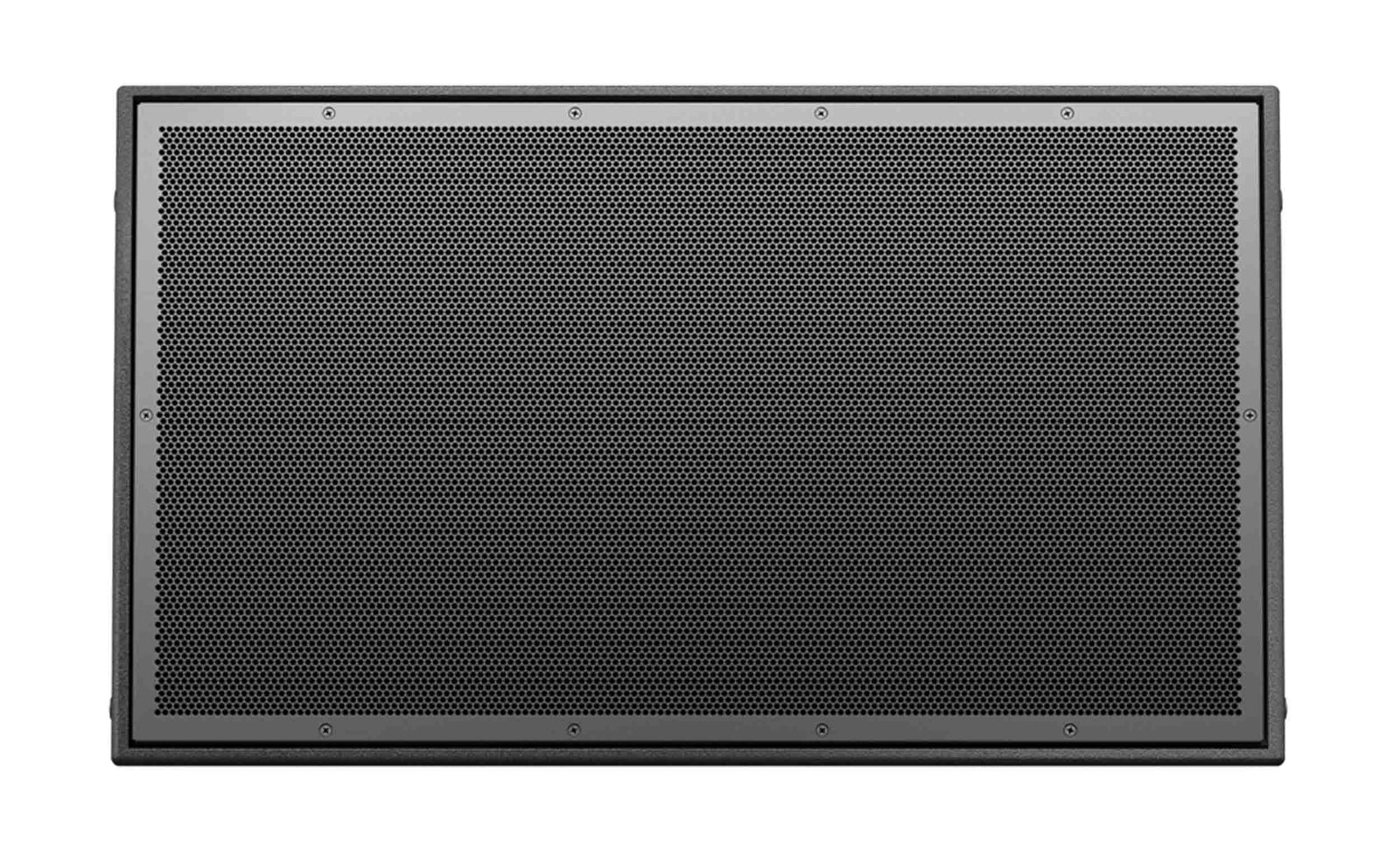

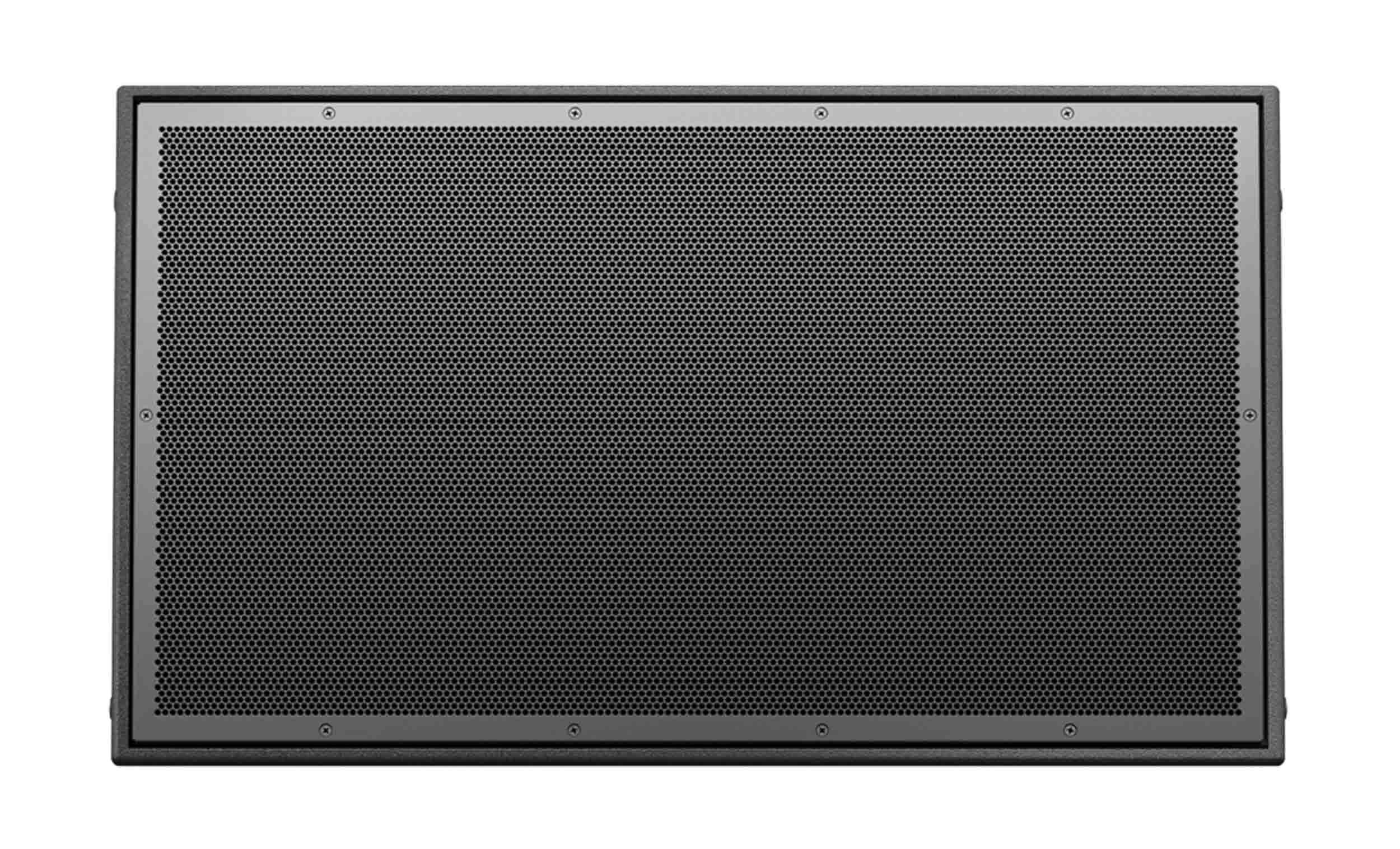

Outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover.

Provide Full Coverage with Fewer Modules:

10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays.

Reduce Commissioning Time:

By using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays all with the same transducers for consistent tonal balance.

Adapt to A Variety of Configurations:

All models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs.

Streamline the Design Process:

By combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, Power Match amplifiers, and Control Space DSP.

Save Time During Installation:

Using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames.

En54 Certified:

EN54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.

Product Specifications:

Frequency Response (+/-3 dB):65 Hz to 16 kHz

Nominal Coverage Pattern (H x V)

AM40/60: 60° H x 40° V

AM40/80: 80° H x 40° V

AM40/100: 100° H x 40° V

Sensitivity (SPL/ 1W @ 1m)

AM40/60: 94 dB (LF) / 103 dB (HF) / 98 dB (Passive)

AM40/80: 94 dB (LF) / 102 dB (HF) / 97 dB (Passive)

AM40/100: 94 dB (LF) / 101 dB (HF)/ 96 dB (Passive)

Nominal Impedance:Passive 8 Ω / Bi-amp: 8 Ω + 8 Ω

Frequency Range (-10 dB):55 Hz to 18 kHz

Long-term Power Handling

Low Frequency: 600 W (2400 W peak)

High Frequency: 150 W (600 W peak)

Passive 750 W (3000 W peak)

Maximum SPL @ 1m

AM40/60: 122 dB (LF) / 125 dB (HF) / 127 dB (Passive)

AM40/80: 122 dB (LF) / 124 dB (HF) / 126 dB (Passive)

AM40/100: 122 dB (LF) / 123 dB (HF) / 125dB (Passive)

Shipping Weight: 96 lbs

Shipping Dimension (L, W, H): 41, 26, 26
