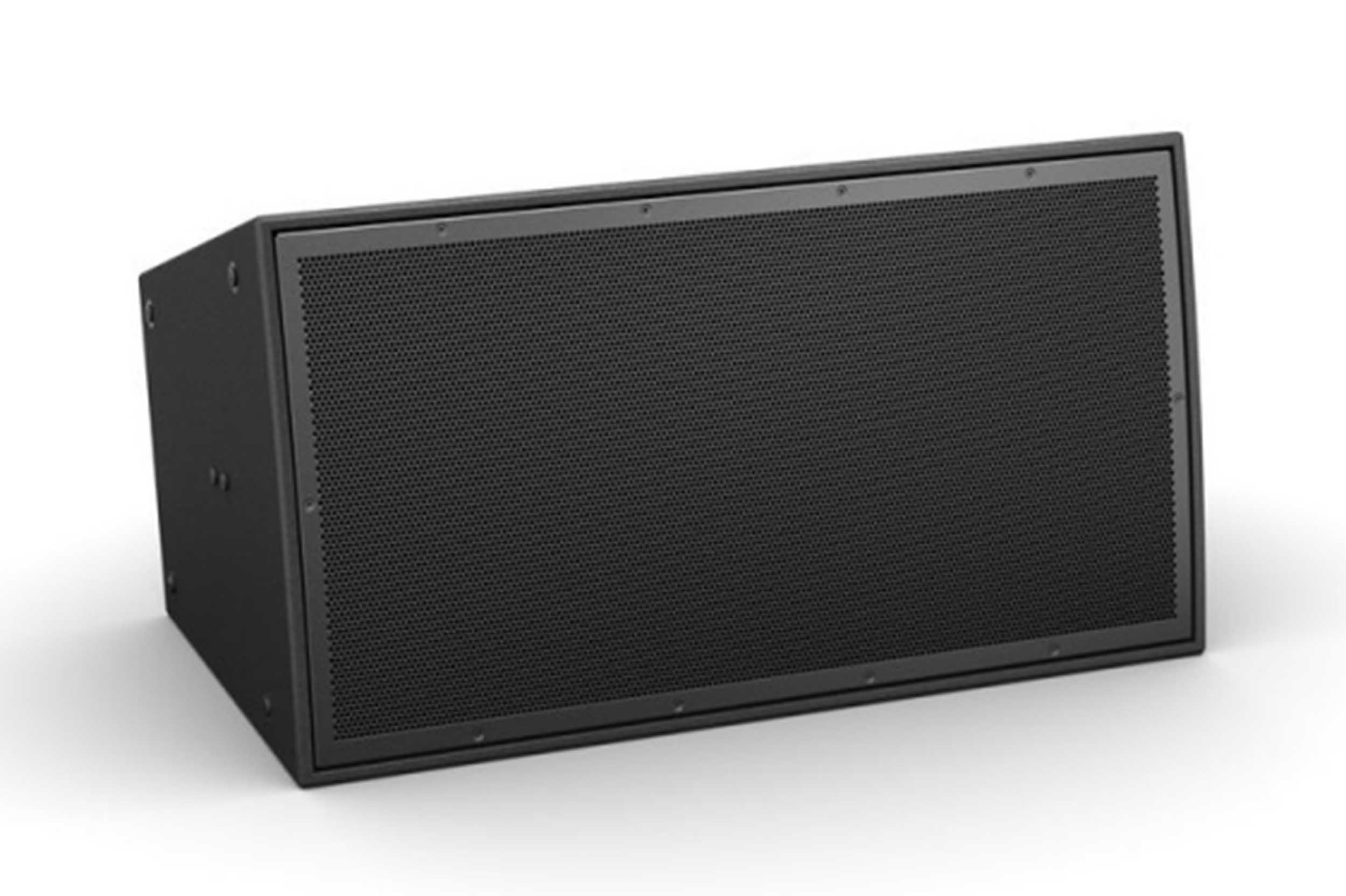

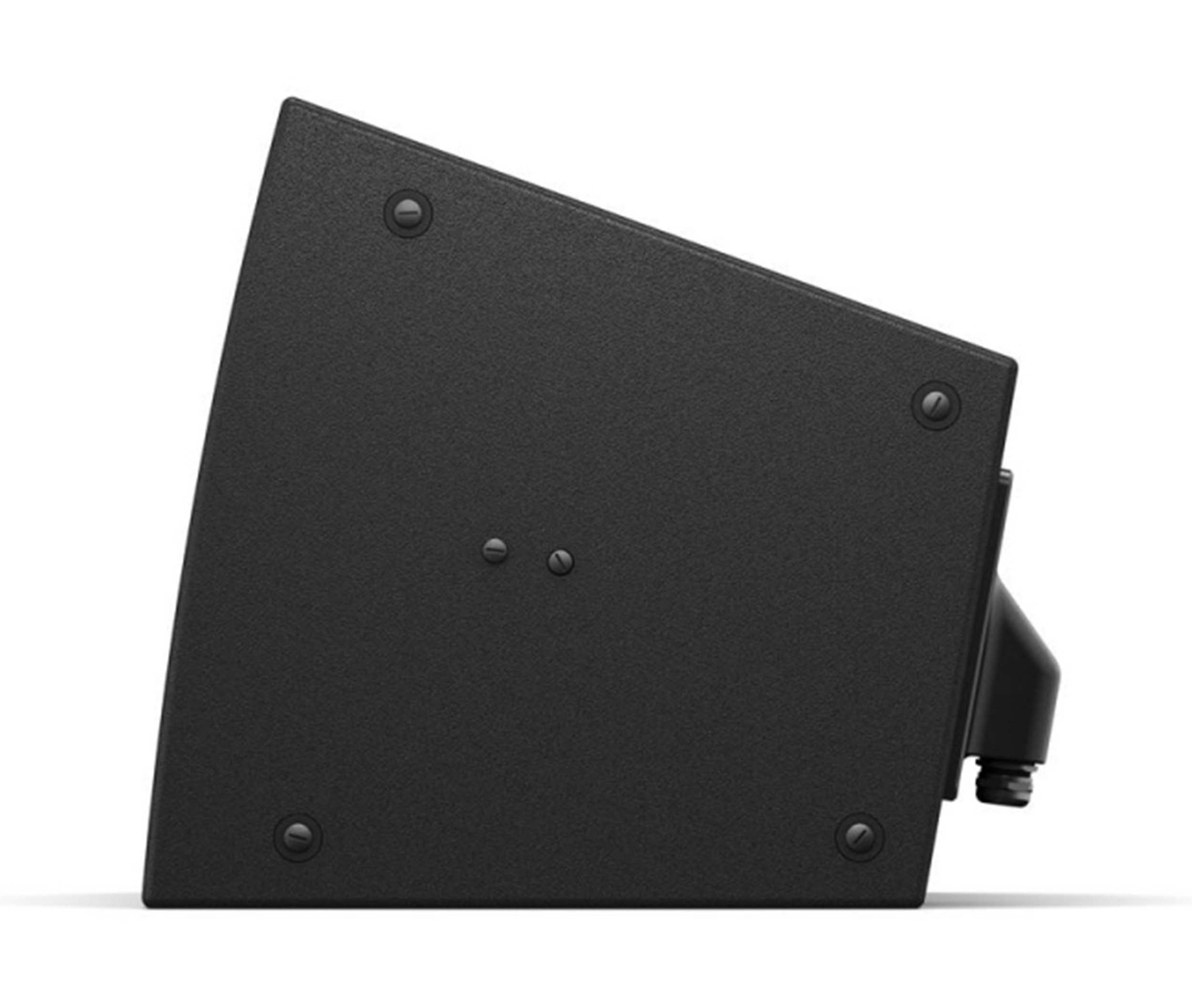

Bose ARENAMATCH AM20/100, Professional Outdoor Loudspeaker - Black

The Bose ARENAMATCH AM20/100, Professional Outdoor Loudspeaker - Black bring proven DeltaQ sound quality and flexibility to outdoor installations sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, Arena Match DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10 Deg, 20 Deg, or 40 Deg vertical coverage and easily swap between 60 Deg, 80 Deg, or 100 Deg horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.

Improve sound quality:

Consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area

Easily customize horizontal coverage

Allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays

Deliver high-SPL:

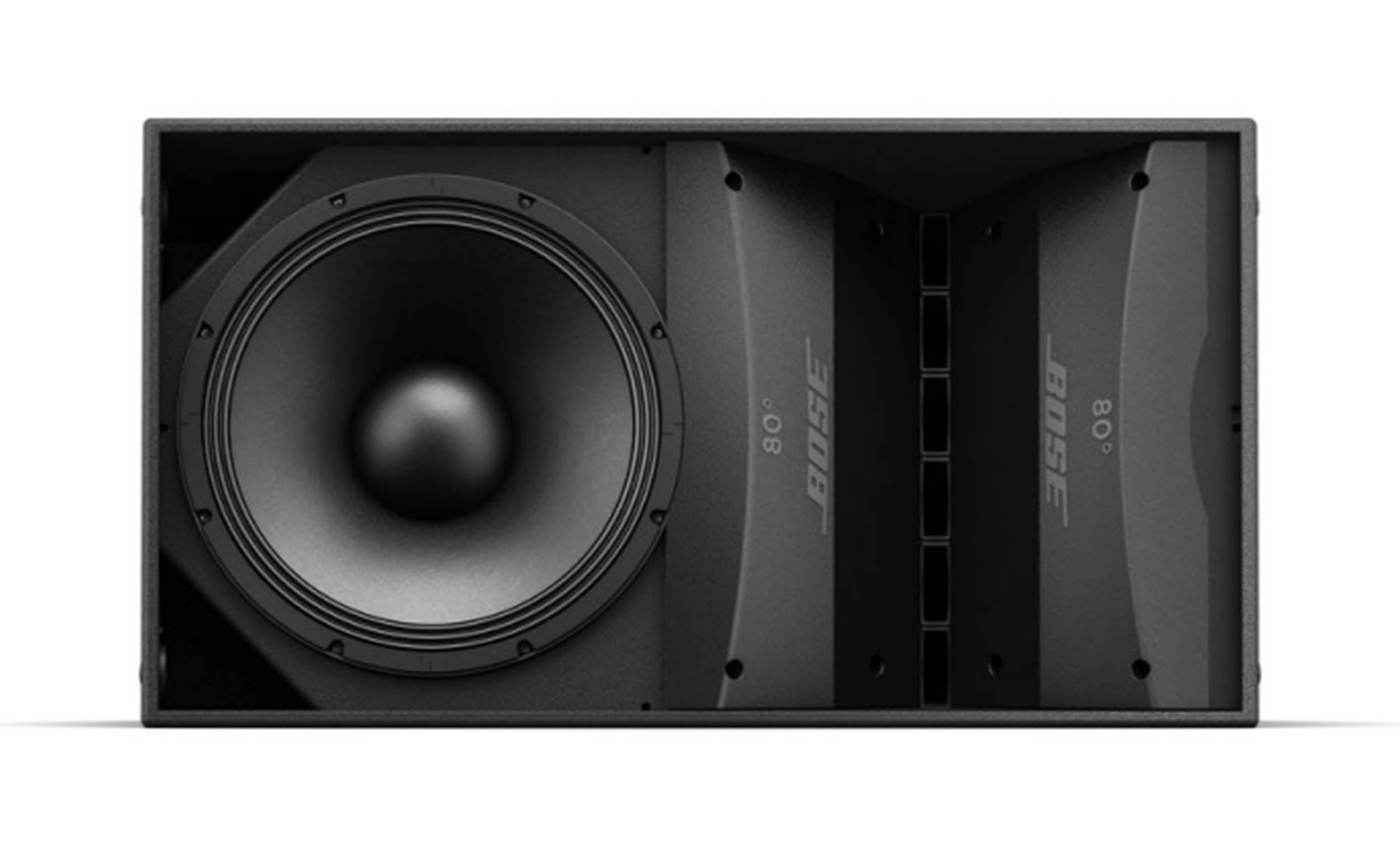

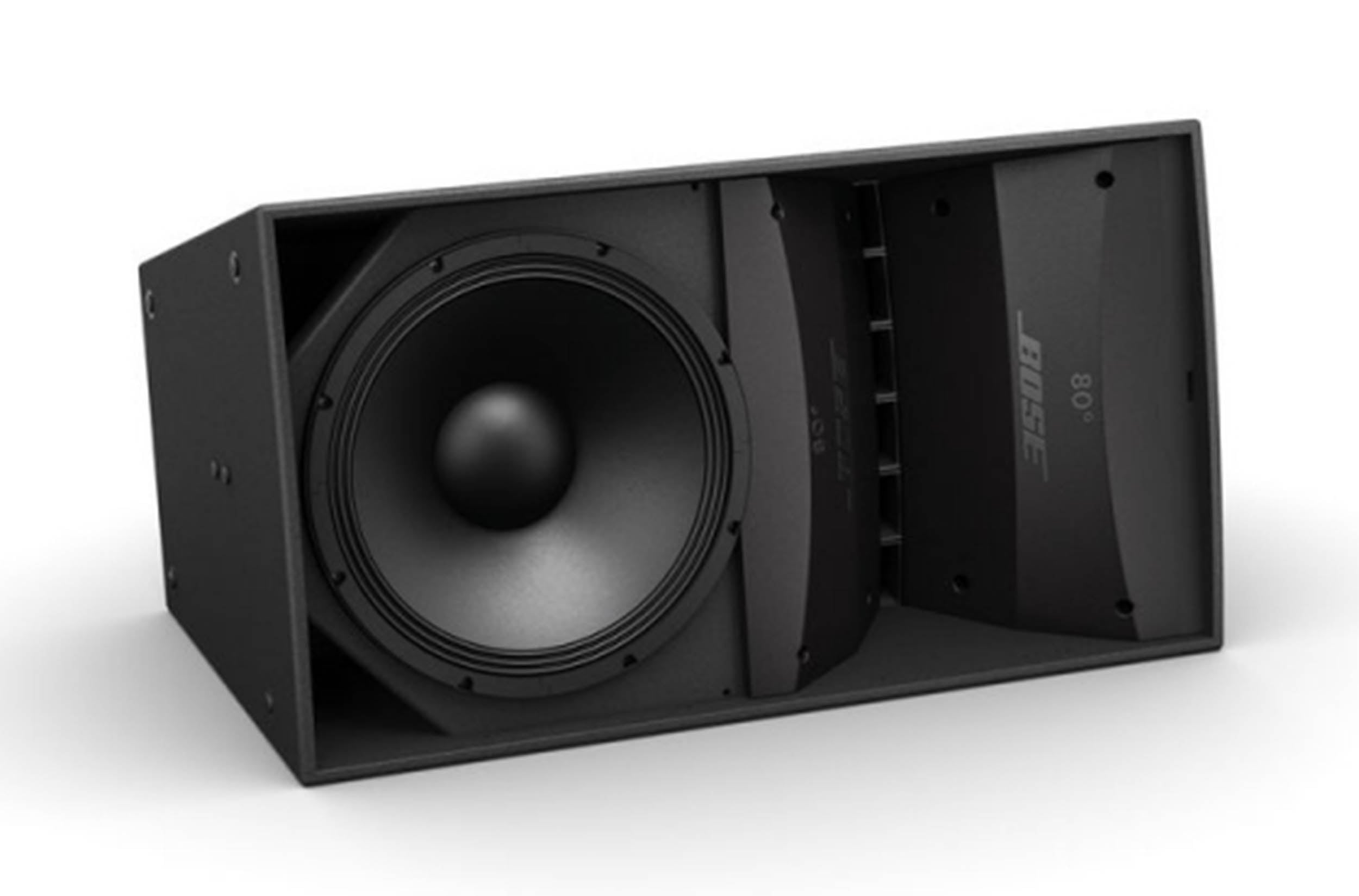

Long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers

Rated for direct-exposure:

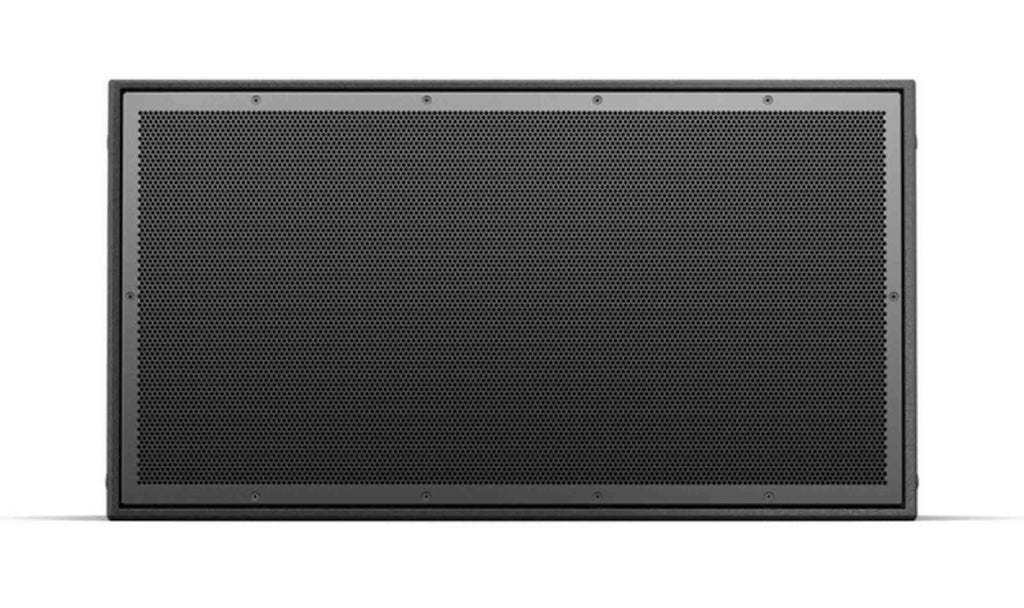

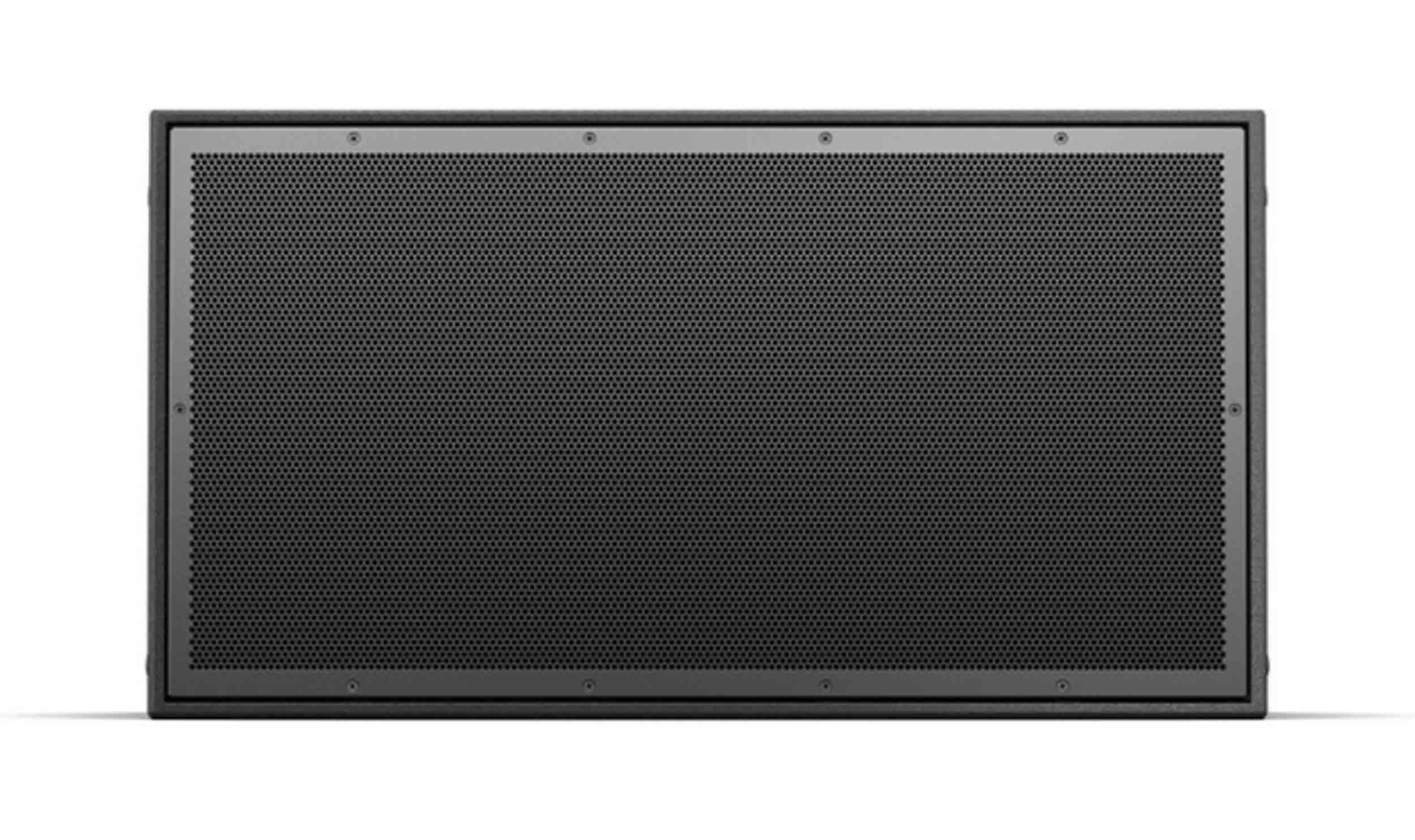

Outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover

Provide full coverage with fewer modules:

10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays

Reduce commissioning time:

By using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays all with the same transducers for consistent tonal balance

Adapt to a variety of configurations

All models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs

Streamline the design process

By combining with complementary Bose Professional products, such as Arena Match Utility zone-fill loudspeakers, Power Match amplifiers, and Control Space DSP

Save time during installation:

Using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames

EN54 Certified:

EN54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.

Product Specifications:

Frequency Response (+/-3 dB)

65 Hz to 16 kHz

Nominal Coverage Pattern (H x V)

AM20/60: 60° H x 20° V

AM20/80: 80° H x 20° V

AM20/100: 100° H x 20° V

Sensitivity (SPL/ 1W @ 1m)

AM20/60: 94 dB (LF) / 106 dB (HF) / 99 dB (Passive)

AM20/80: 94 dB (LF) / 105 dB (HF) / 98 dB (Passive)

AM20/100: 94 dB (LF) / 104 dB (HF)/ 97 dB (Passive)

Nominal Impedance

Passive 8 Ω / Bi-amp: 8 Ω + 8 Ω

Frequency Range (-10 dB)

55 Hz to 18 kHz

Long-term Power Handling

Low Frequency: 600 W (2400 W peak)

High Frequency: 150 W (600 W peak)

Passive 750 W (3000 W peak)

Maximum SPL @ 1m

AM20/60: 122 dB (LF) / 128 dB (HF) / 128 dB (Passive)

AM20/80: 122 dB (LF) / 127 dB (HF) / 127 dB (Passive)

AM20/100: 122 dB (LF) / 126 dB (HF) / 126 dB (Passive)

Shipping Weight: 99 lbs

Shipping Dimension (L, W, H): 42, 27, 26
