Description

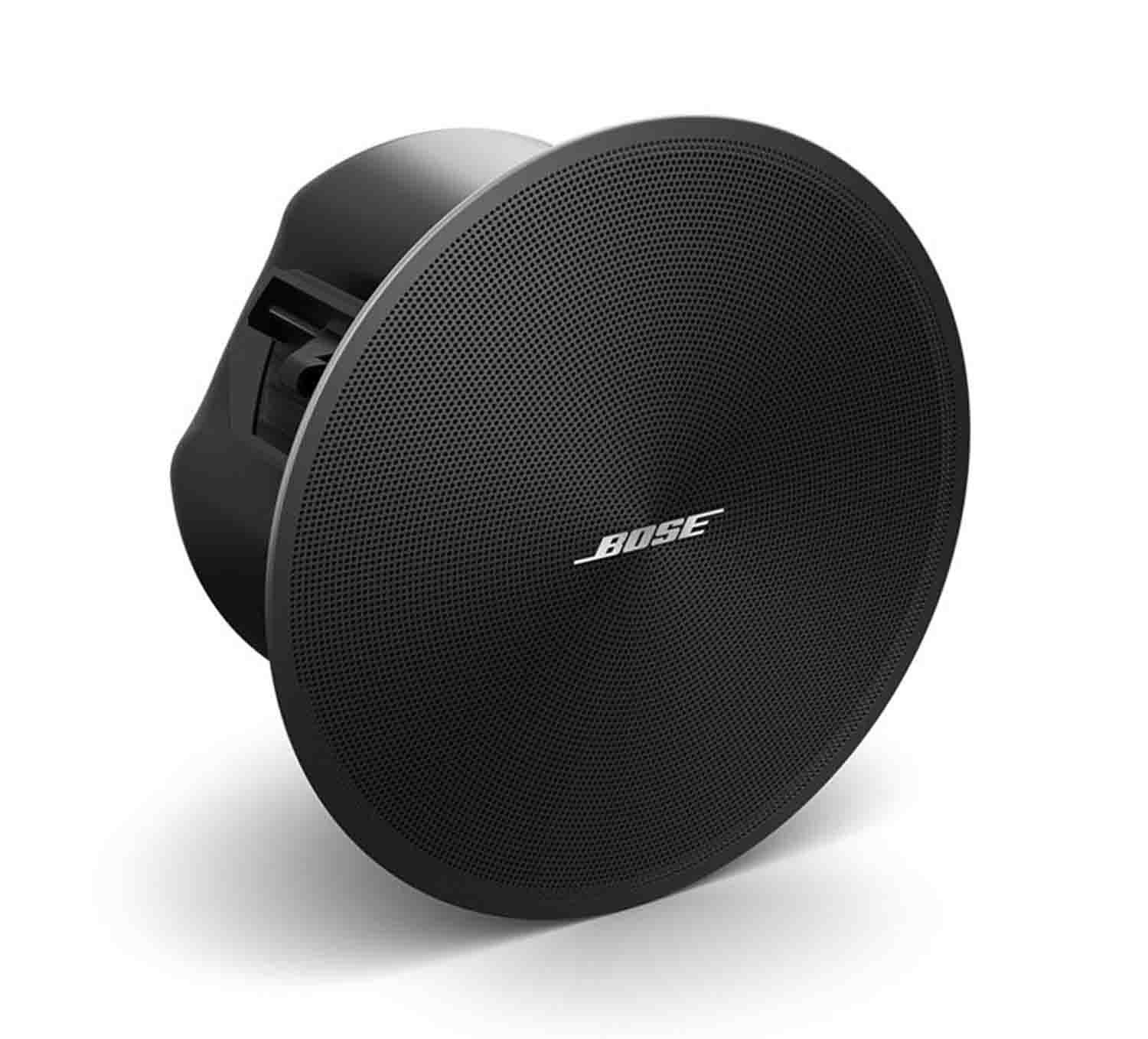

The Bose DESIGNMAX DM3C, DesignMax In-Ceiling Loudspeaker 30W. With coaxial two-way drivers, the 30-watt DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and .75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms. Combine DesignMax models to complete any design, big or small 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options.
Deliver clear highs and surprising low-end for their size with coaxial two-way drivers no DSP or EQ required. For even better sound, combine with select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level. Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter.

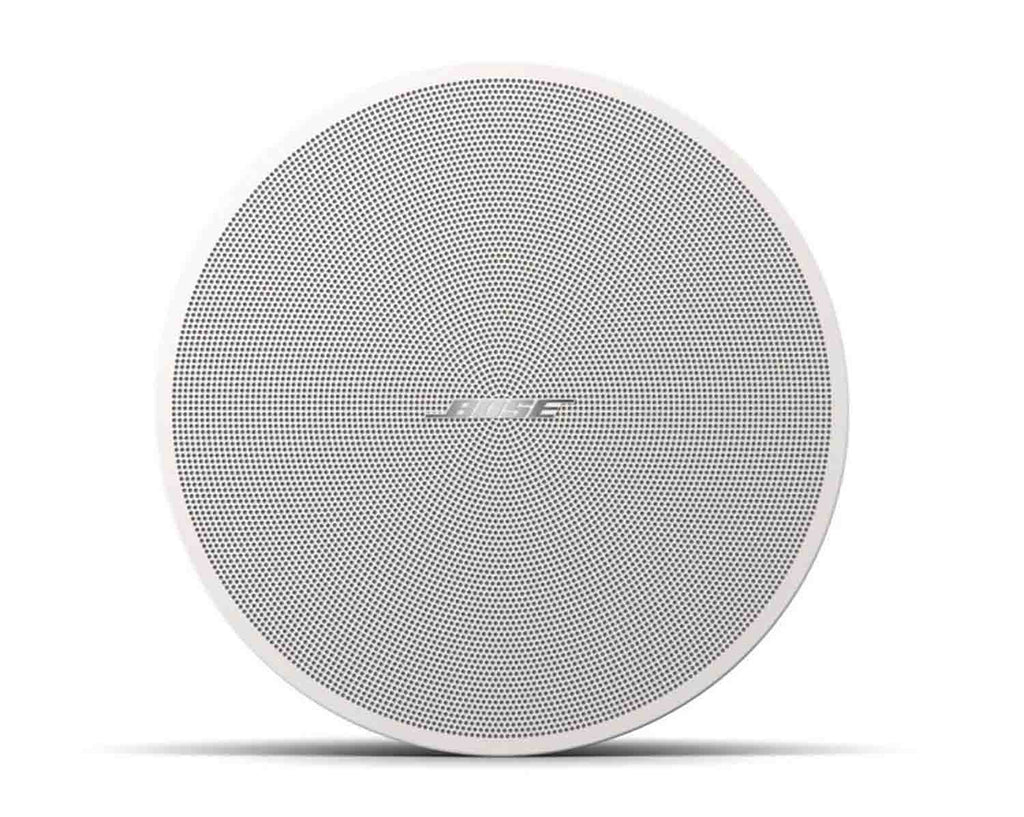

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos. Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage. Install easily with industry-standard accessories all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier.
Applications
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
Product Specifications:
Frequency Response (+/-3 dB): 85 - 19,000 Hz
Nominal Coverage (H x V): 135° conical
Power Handling, Peak: 120 W
Maximum SPL @ 1m: 98 dB
Frequency Range (-10 dB): 75 - 20,000 Hz
Power Handling, long-term continuous: 30W
Sensitivity (SPL/1W @ 1 m): 83 dB
Nominal Impedance: 8 Ω (transformer bypass)
