Bose DESIGNMAX DM5C BLACK DesignMax In-Ceiling Loudspeakers (60W, Black)

Save 17%
UPC: 017817803694
Color: Black
Sale price$569.95 Regular price$684.00
In stock (11 units), ready to be shipped

*Signature required for all deliveries/shipments for your security
Free 2 Day Shipping or heavily discounted fast shipping available on most items! Oversized items excluded

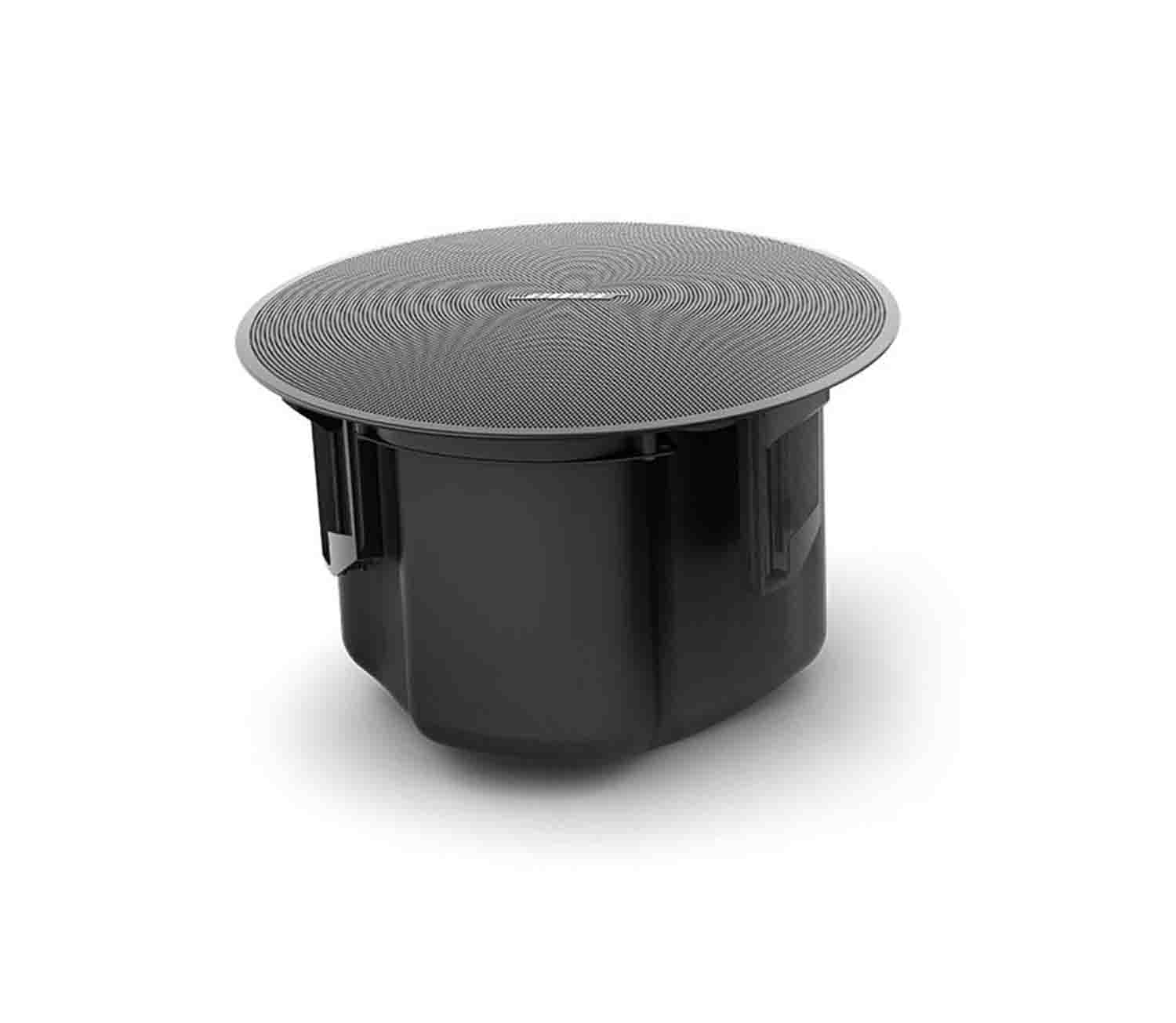

The Bose DESIGNMAX DM5C BLACK is a DesignMax In-Ceiling Loudspeakers 60W. With coaxial two-way drivers, the 60-watt DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs along with premium aesthetics that complement any commercial sound installation. The DM5C features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The in-ceiling DM5C is installed easily via QuickHold mounting arms.

Install Easily with Industry-Standard Accessories

All models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier.

Ensure a Consistent Listening Experience

Throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter.


Performing arts venues

Places of worship

Conference centers

Retail stores

Restaurants and bars

Hospitality venues

Product Specifications:

Frequency Response (+/-3 dB): 73 - 17,000 Hz

Nominal Coverage (H x V): 130° conical

Power Handling, Peak: 240 W

Maximum SPL @ 1m: 105 dB

Frequency Range (-10 dB): 65 - 20,000 Hz

Power Handling, long-term continuous: 60W

Sensitivity (SPL/1W @ 1 m): 87 dB

Nominal Impedance: 8 Ω (transformer bypass)
