Description

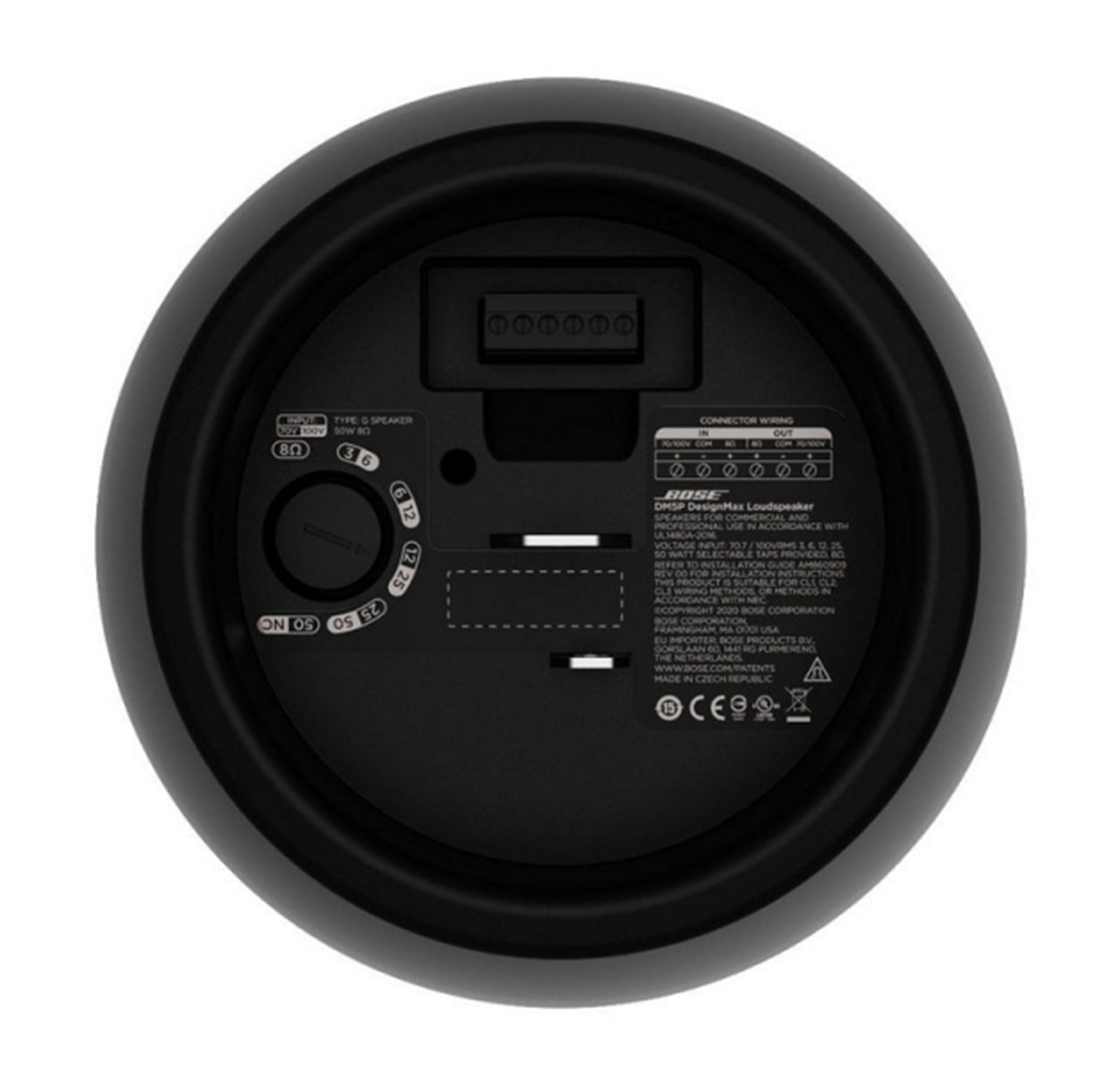

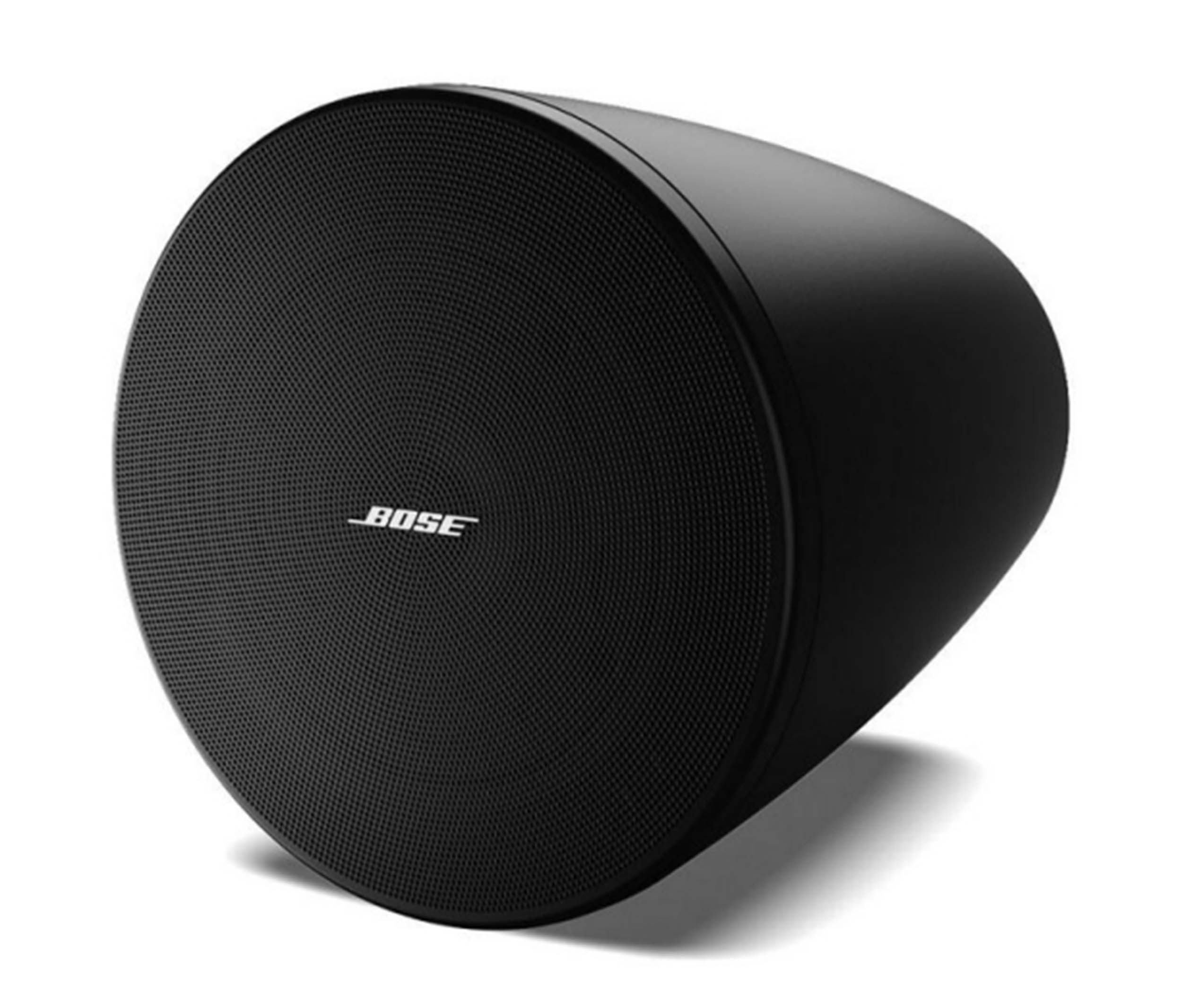

The Bose DESIGNMAX DM5P BLACK, DesignMax Coaxial Pendant Loudspeaker offers rich lows and clear, intelligible highs along with premium aesthetics that complement any commercial sound installation. The DM5P pendant loudspeaker features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P features a recessed single-point suspension system for a sleek, attractive appearance. All models are available in black or white.
Product Specifications:
Active or Passive:Passive
Number of Included Speakers:2
Speaker Configuration:2-Way
Power Handling:
240 W Peak
120 W Program
60 W RMS
Impedance:8 Ohms
Transformer Wattage:50 W
Enclosure Type:Bass-Reflex
HF Driver:1 x 1" / 25.4 mm Dome Tweeter
LF Driver:1 x 5.25" / 133.35 mm Woofer
Magnet: HF:Neodymium
Frequency Range:65 Hz to 20 kHz -10 dB
Frequency Response:80 Hz to 20 kHz ±3 dB
Maximum SPL:111 dB (Peak)
Sensitivity:87 dB
Coverage Angle:120° at 10 kHz (Conical)
Crossover:1.8 kHz (Passive)
Recommended High-Pass Filter:65 Hz, 24 dB/Octave
I/O:1 x Block 6-Pin Speaker Input/Thru
Maximum Wire Gauge:14 AWG / 2.5 mm
Environmental Protection:No
Color:Black
Mounting:1 x Suspension (Top)
Shipping Weight:29 lbs
Shipping Dimension (L, W, H):28, 19, 14
