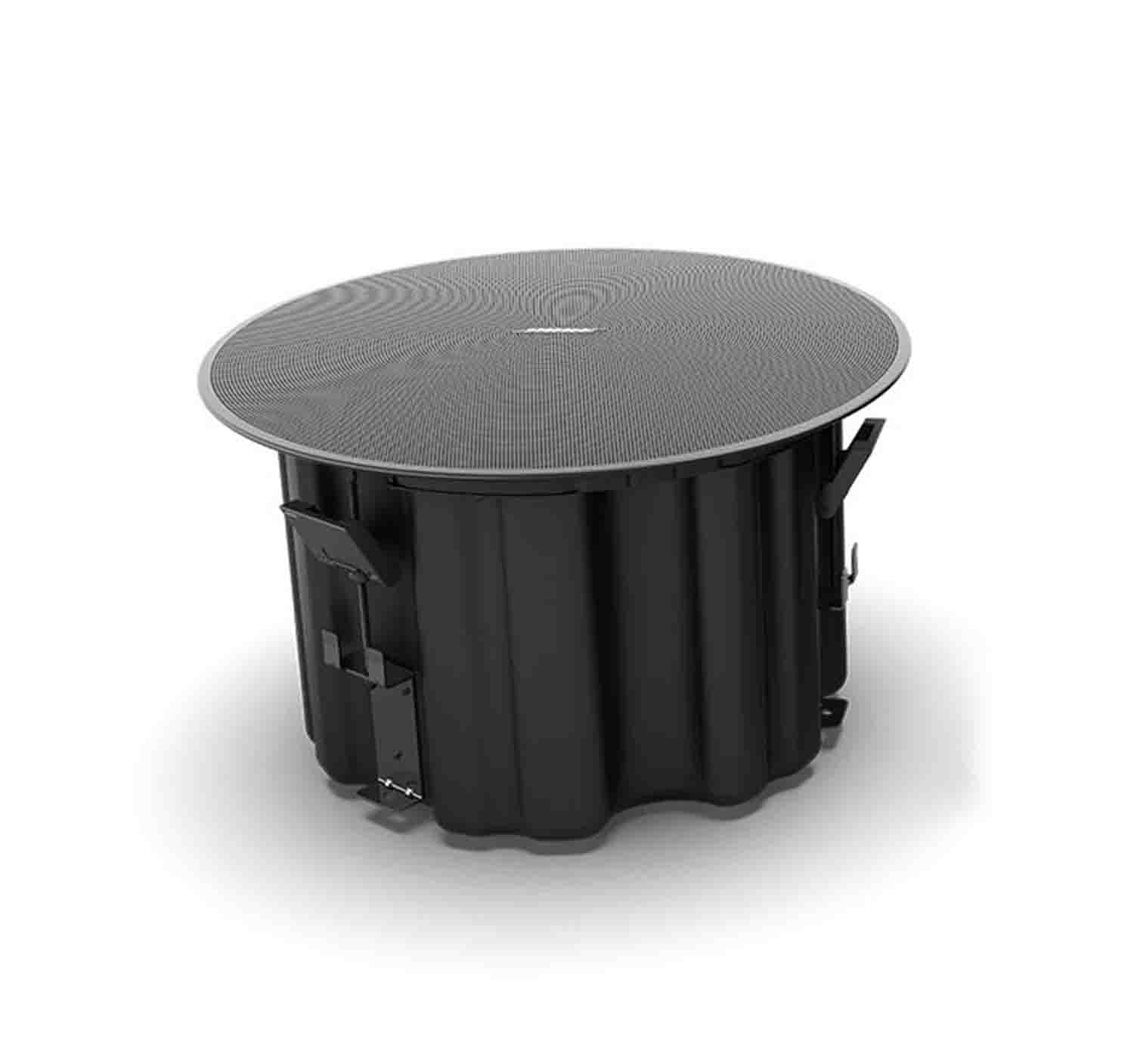

Bose DESIGNMAX DM8C BLACK, 150W In-Ceiling Loudspeaker - Black

The Bose DESIGNMAX DM8C BLACK is a 150W In-Ceiling Loudspeaker. With coaxial two-way drivers, the 150-watt DesignMax DM8C loudspeaker delivers powerful SPL suitable for foreground music along with premium aesthetics that complement any commercial sound installation. The DM8C features a two-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, delivering a 52 Hz - 20 kHz frequency range. The in-ceiling DM8C is installed easily via QuickHold mounting arms.

Install Easily with Industry-Standard Accessories

All models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier.

Deliver Rich Lows and Clear, Intelligible Highs with Coaxial Two-Way Drivers

No DSP or EQ is required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

Applications

Performing arts venues

Places of worship

Conference centers

Retail stores

Restaurants and bars

Hospitality venues

Product Specifications:

Frequency Response (+/-3 dB): 60 - 20,000 Hz

Nominal Coverage (H x V): 135° conical

Power Handling, Peak: 600 W

Maximum SPL @ 1m: 113 dB

Frequency Range (-10 dB): 52 - 20,000 Hz

Power Handling, long-term continuous: 150 W

Sensitivity (SPL/1W @ 1 m): 91 dB

Nominal Impedance: 8 Ω (transformer bypass)
