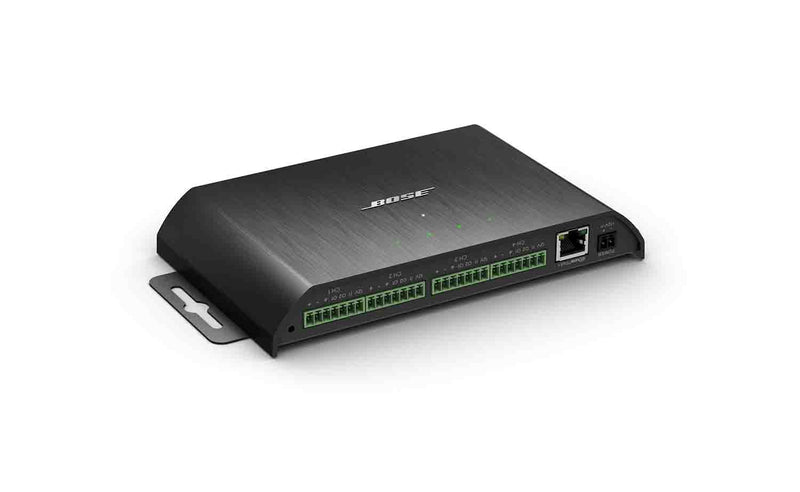

Bose EX-4ML, ControlSpace Dante Endpoint System

The Bose EX-4ML is a ControlSpace Dante Endpoint System. Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-4ML Dante endpoint, is a convenient, cost-effective solution for connecting up to 4 conferencing microphones over a single Cat-5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-4ML adds 4 high-quality microphone/line inputs, 4 GPI, and 8 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing, and simplified logic control in ControlSpace Designer make configuring the EX-4ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.

Applications

Designed for a wide range of applications,

including:

Boardrooms

Medium/large conference rooms

Courtrooms

Distance learning

Auditoriums

Multi-purpose spaces

Product Specifications:

Input Channels: Four (4) analog, balanced microphone/line level

Connectors: Four (4) 3.81 mm detachable Euroblock connectors, 7-pin

Phantom Power: +48VDC, software selectable per input

Control GPIO:

2 logic outputs (100mA low, 8V open, 10mA @ 2.5V high),

1 logic input (0 to 5V, threshold = 1.6V, 2K pull-up to 5V)

Gain Settings: 0 / +15 / +30 / +45 dB, software selectable

Input Impedance: > 1.8 kΩ at any gain setting

Equivalent Input Noise: –115 dBu (+45 dB gain)

Maximum Input Level: +20 dBu (using -12 dB gain setting)

System THD: < 0.01 % at any gain setting, input signal 3 dB below maximum

Frequency Response: 20 Hz — 20 kHz, ± 1 dB

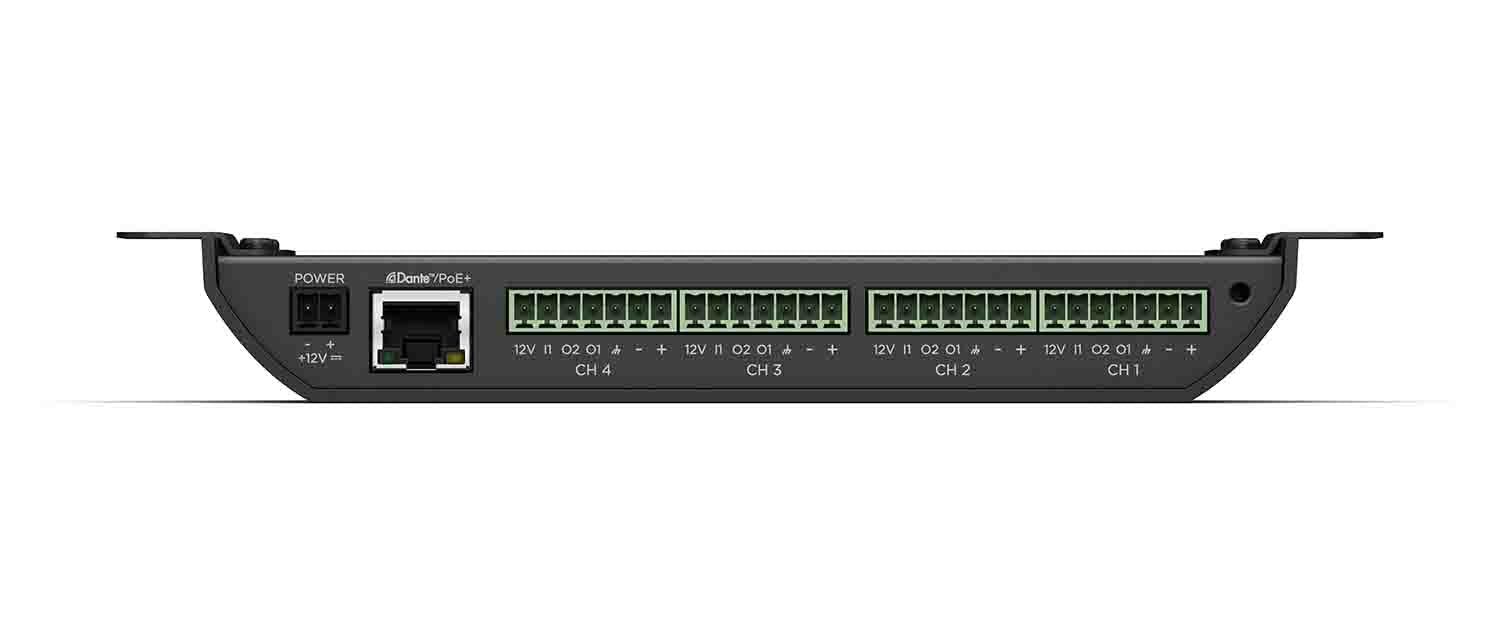

Connectors: Two (2) RJ-45, one front (supports PoE+), one rear

Audio Over IP: Dante Ultimo X4

Microphone LED Power: 12 VDC, 200 mA

PoE Class Class: 0 802.3at PoE+ PD compliant

Connectors: (2) 3.81 mm Euroblock connector, 2-pin

External Power Supply: 12 VDC, daisy-chainable

Power Consumption: 4.3 watts plus 1 watt for Phantom Power if used
