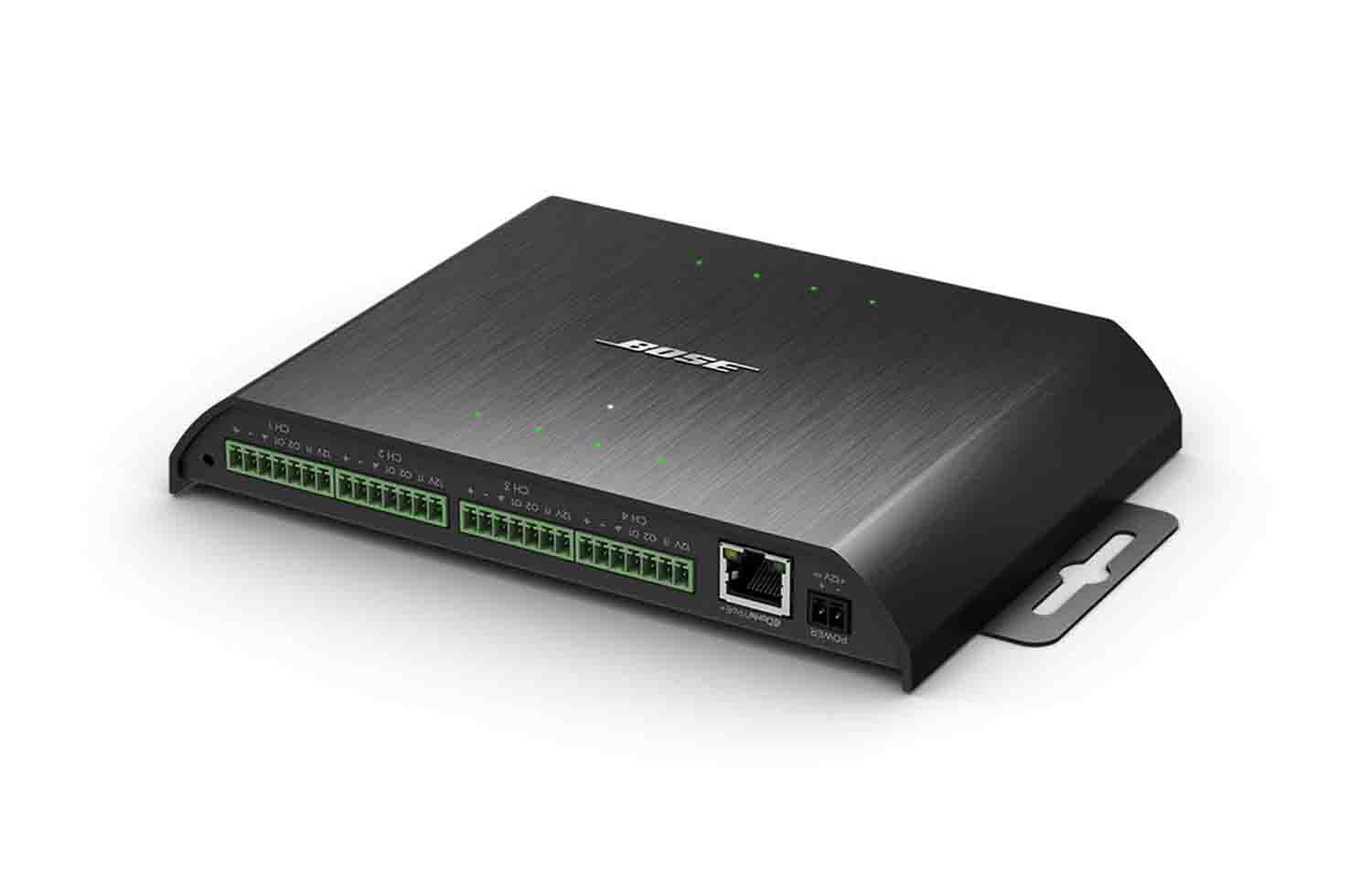

Bose EX-8ML, ControlSpace Dante Endpoint

The Bose EX-8ML is a ControlSpace Dante Endpoint. Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-8ML Dante endpoint, is a convenient, cost-effective solution for connecting up to 8 conferencing microphones over a single Cat-5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-8ML adds 8 high-quality microphone/line inputs, 8 GPI, and 16 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing routing, and simplified logic control in ControlSpace Designer make configuring the EX-8ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.

Applications

Boardrooms

Medium/large conference rooms

Courtrooms

Distance learning

Auditoriums

Multi-purpose spaces

Product Specifications:

Input Channels: Eight (8) analog, balanced microphone/line level

Connectors: Eight (8) 3.81 mm Euroblock connectors, 7-pin

Phantom Power: +48VDC, software selectable per input

Control GPIO:

2 logic outputs (100mA low, 8V open, 10mA @ 2.5V high),

1 logic input (0 to 5V, threshold = 1.6V, 2K pull-up to 5V)

Gain Settings: -0 / +15 / +30 / +45 dB, software selectable

Input Impedance: > 1.8 kΩ at any gain setting

Equivalent Input Noise: –115 dBu (+45 dB gain)

Maximum Input Level: +20 dBu (using -12 dB gain setting)

System THD: < 0.01 % at any gain setting, input signal 3 dB below maximum

Frequency Response: 20 Hz — 20 kHz, ± 1 dB

Connectors: Two (2) RJ-45, one front (supports PoE+), one rear

Audio Over IP: Dante, Brooklyn II X8
