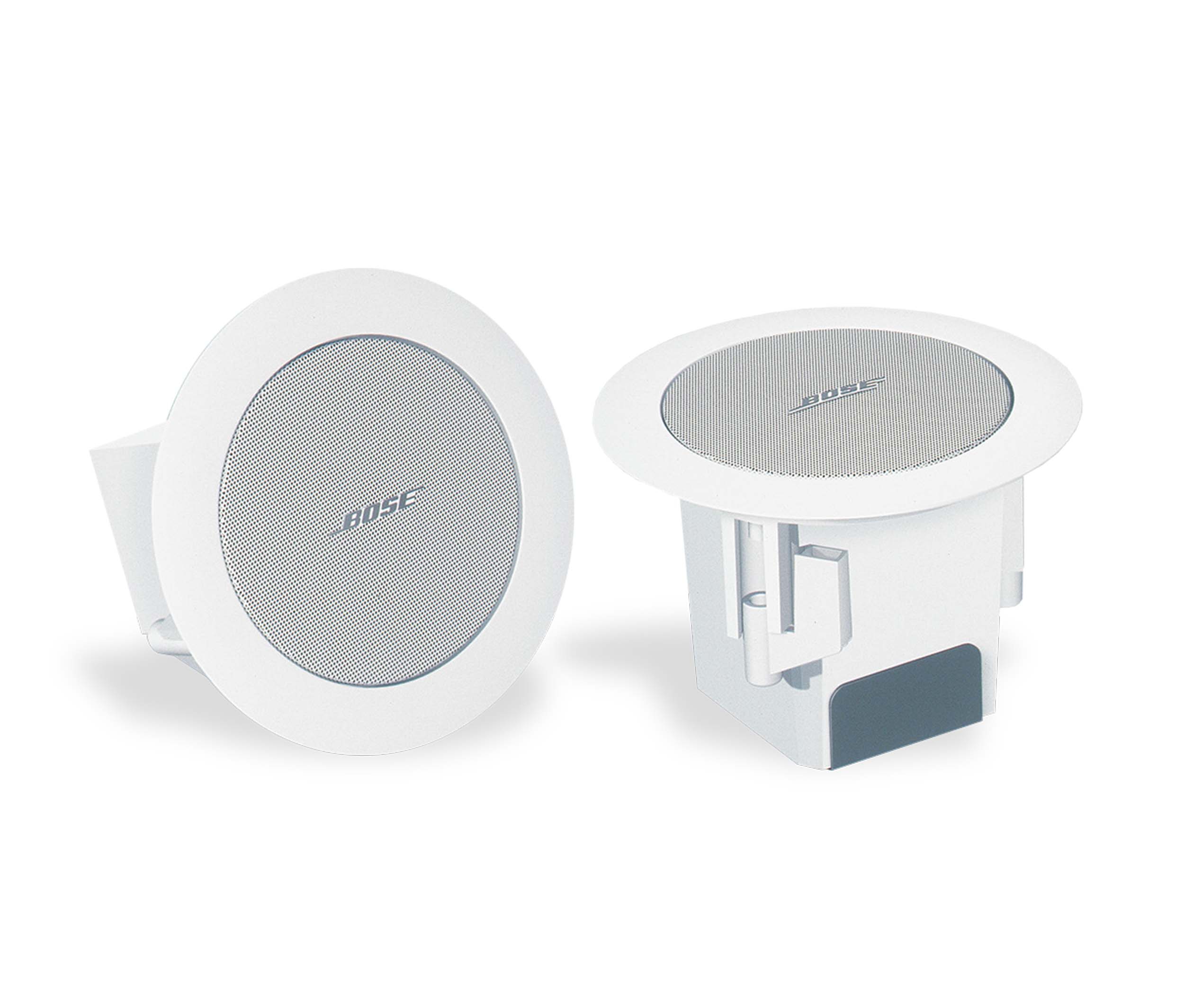

Bose FS3 FLUSH-MT BASS W Flush Mount Acoustimass Bass Module Loudspeaker

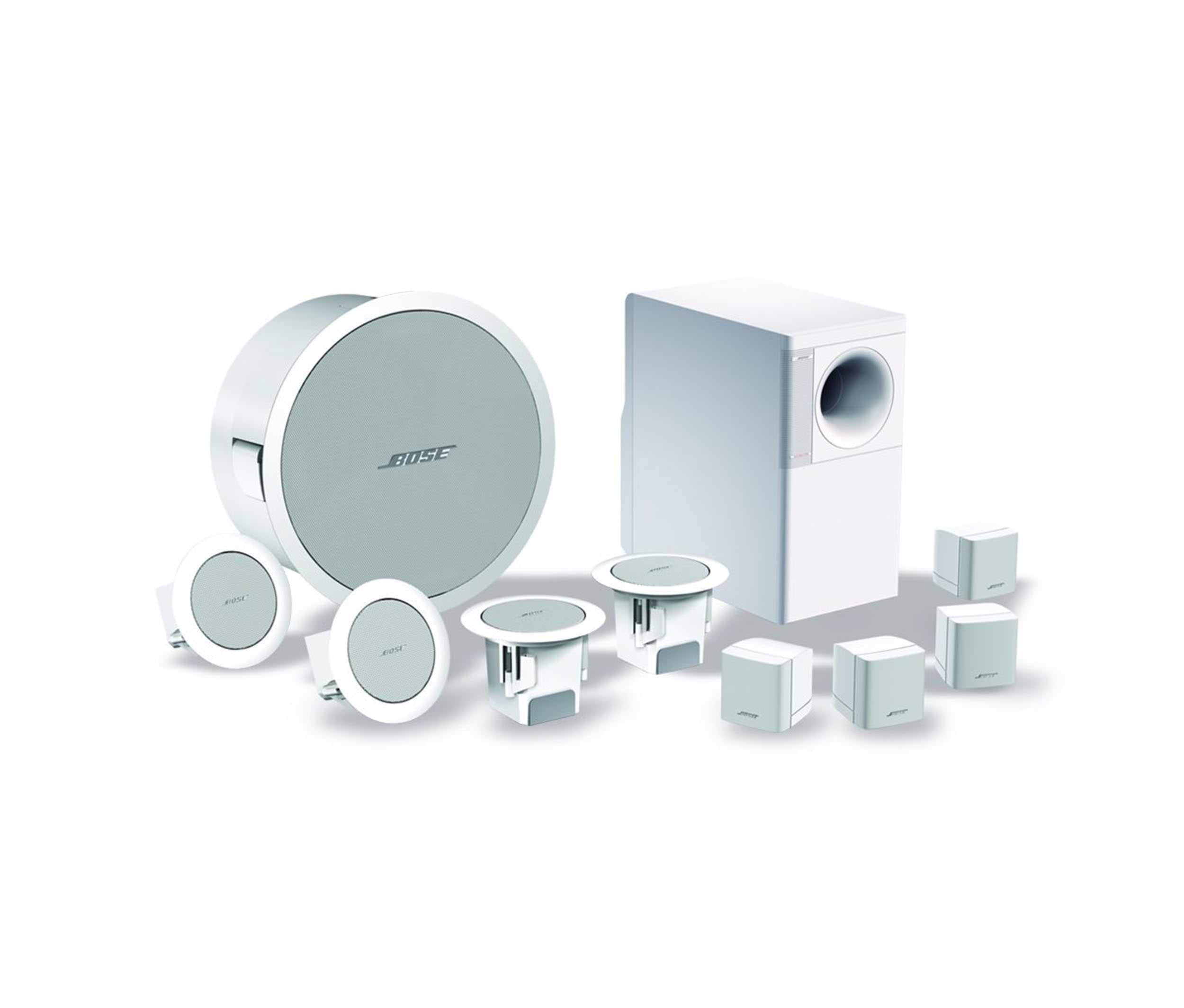

The Bose FreeSpace 3 subwoofer/satellite systems are high-performance, extended-range loudspeaker systems designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. Surface and flush components can be mixed and matched to provide greater flexibility to suit a wide range of applications. FreeSpace 3 systems feature a wide coverage pattern and frequency response down to 40 Hz.

Product Specifications:

Frequency Response (+/-3 dB):

50 Hz - 16 kHz (System)

210 Hz - 16 kHz (Satellites)

Frequency Range (-10 dB):

40 Hz - 20 kHz (System)

170 Hz - 20 kH z (Satellites)

Nominal Dispersion: 170 ° conical

Long-Term Power Handling :

System: 70/100 V: 200 W (800 W peak)

System Low impedance: 100 W (400 W peak)

Satellites: 12W (48W Peak)

Sensitivity (SPL / 1 W @ 1 m):

82 dB SPL (System)

84 dB SPL (Satellites)

Maximum SPL @ 1 m:

System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)

Satellites: 95 dB (101 dB SPL peak)

Nominal Impedance:

4-Cube System: 6 Ω per channel

2-Cube System: 5 Ω per channel (surface);

6 Ω per channel (flush)
