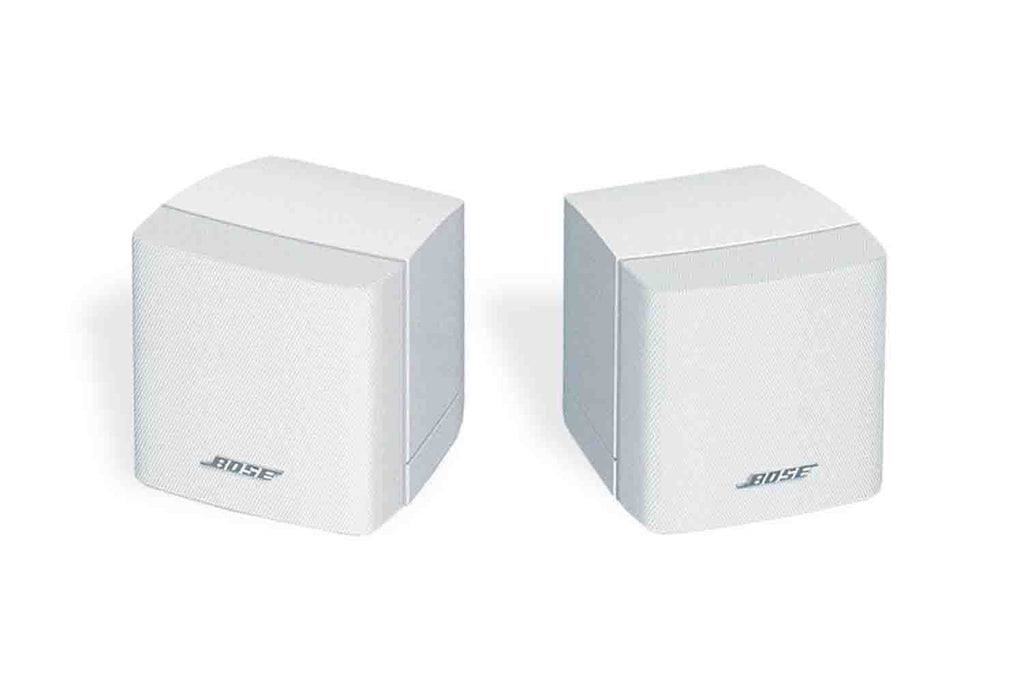

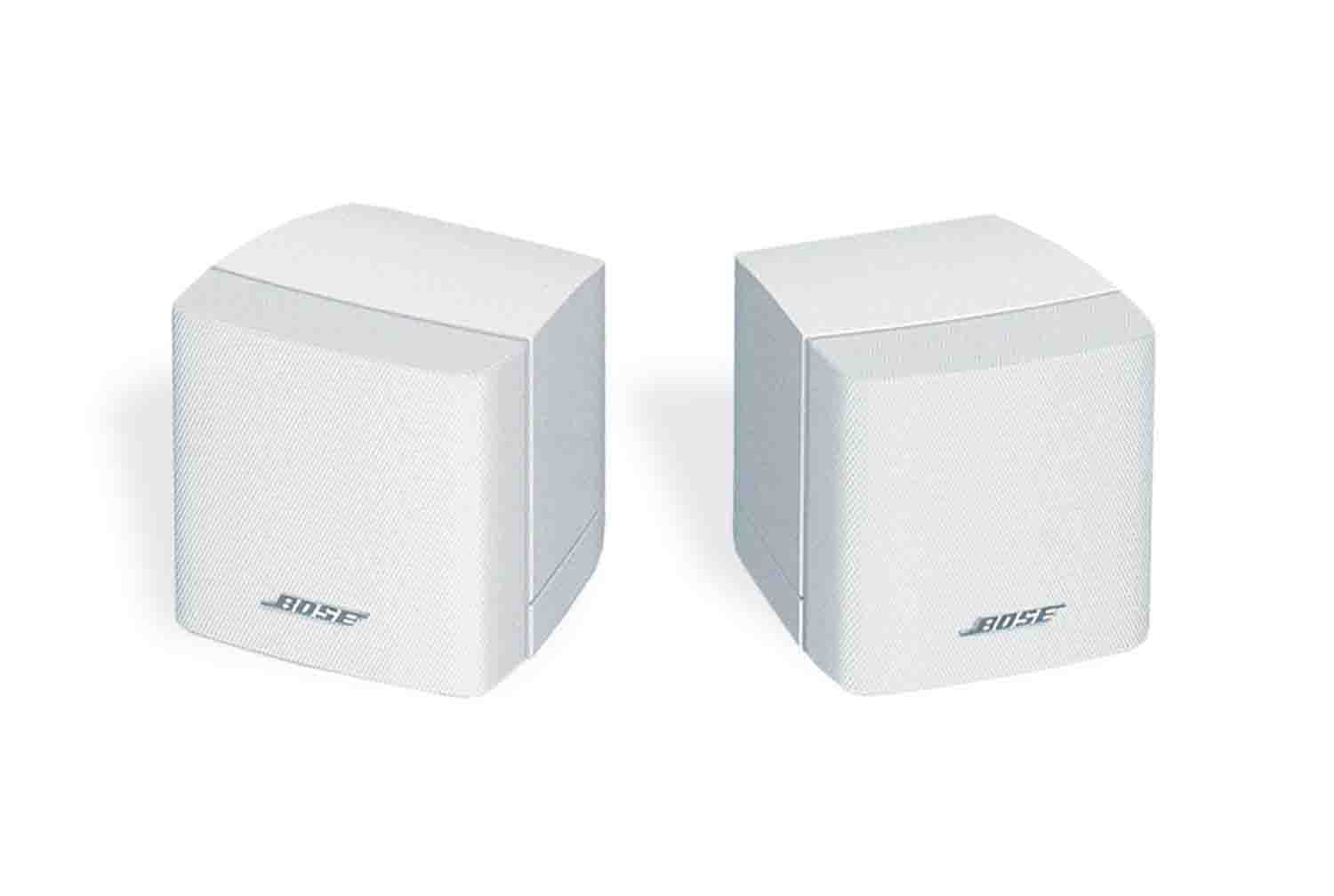

Bose FS3 SURFACE-MT SAT W & FreeSpace 3 Surface-Mount - White

The Bose FS3 SURFACE-MT SAT W is a FreeSpace 3 Surface-Mount Satellites Loudspeakers. The Bose FreeSpace 3 surface-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music.

Subwoofer/Satellite

Systems that deliver high fidelity and extended bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant, and hospitality operations.

Modular Design

Supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules.

Mix and Match

Surface-Mount and flush-mount components to work with different room decors and layouts for a variety of applications.

Flush-Mount

Components are plenum rated when used with the optional plenum cover.

Selectable 70/100V

The Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module.

Applications

Retail stores

Restaurants and bars

Lobbies and conference rooms

Product Specifications:

Frequency Response (+/-3 dB):

50 Hz - 16 kHz (System)

210 Hz - 16 kHz (Satellites)

Frequency Range (-10 dB):

40 Hz - 20 kHz (System)

170 Hz - 20 kH z (Satellites)

Nominal Dispersion: 170 ° conical

Long-Term Power Handling:

System: 70/100 V: 200 W (800 W peak)

System Low impedance: 100 W (400 W peak)

Satellites: 12W (48W Peak)

Sensitivity (SPL / 1 W @ 1 m):

82 dB SPL (System)

84 dB SPL (Satellites)

Maximum SPL @ 1 m:

System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)

Satellites: 95 dB (101 dB SPL peak)

Nominal Impedance:

4-Cube System: 6 Ω per channel

2-Cube System: 5 Ω per channel (surface);

6 Ω per channel (flush)
