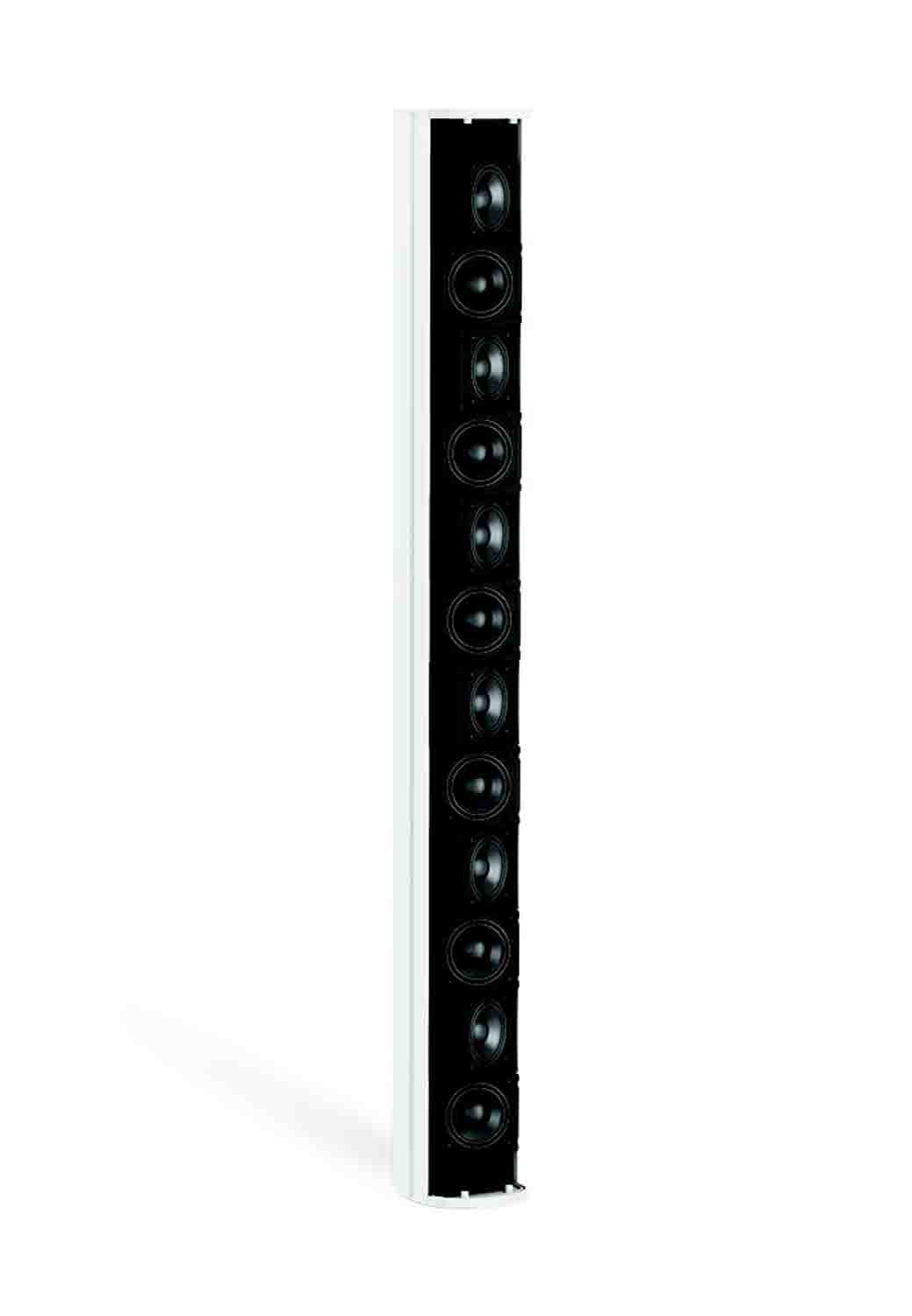

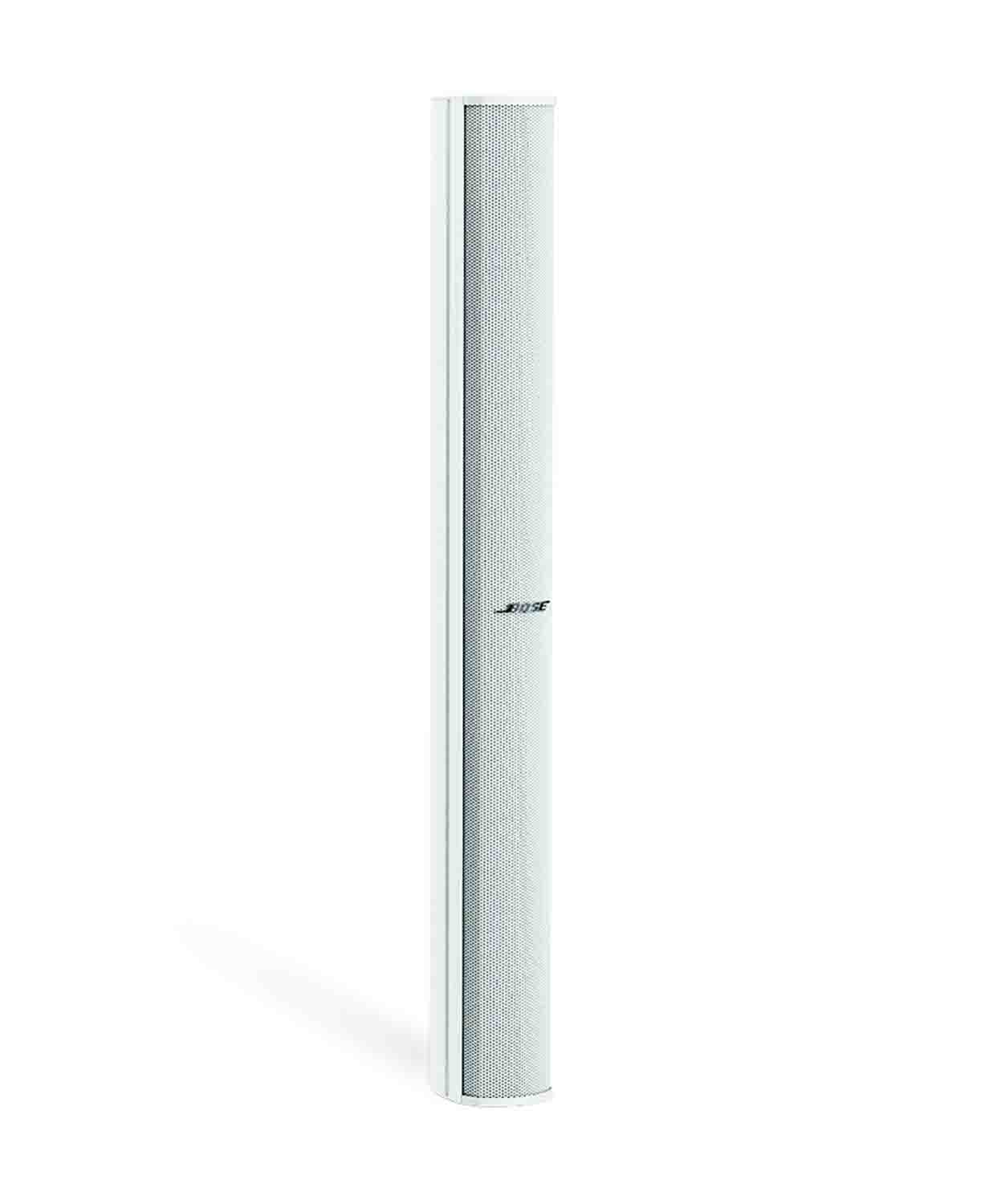

Bose MA12EX WH, Panaray Modular Columnar Array DJ Loudspeaker - White

The Bose MA12EX WH is a Panaray Modular Columnar Array DJ Loudspeaker. Articulated Array speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

Twelve 2.25" (64 mm)

Full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control.

Modular design

Allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections.

Articulated Array

The design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with the number of modules inline array configuration.

Frequency range down to 58 Hz

Allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers.

Optional brackets

Allow easy installation of single-, double- or triple-stack line array modules.

Applications

Houses of worship

Multi-purpose spaces

Recreation

Restaurants and bars

Auditoriums

Transportation facilities

Gymnasiums

Atriums and malls

Product Specifications:

Frequency Response (+/-3 dB): 75 Hz - 13 kHz

Frequency Range (-10 dB): 58 Hz - 16 kHz

Nominal Dispersion: 160° H x 20° V

Long-Term Power Handling: 150 W (600 W peak)

Sensitivity (SPL / 1 W @ 1 m): 87 dB SPL

Maximum SPL @ 1 m: 109 dB SPL (115 dB SPL peak)

Nominal Impedance: 8 Ω
