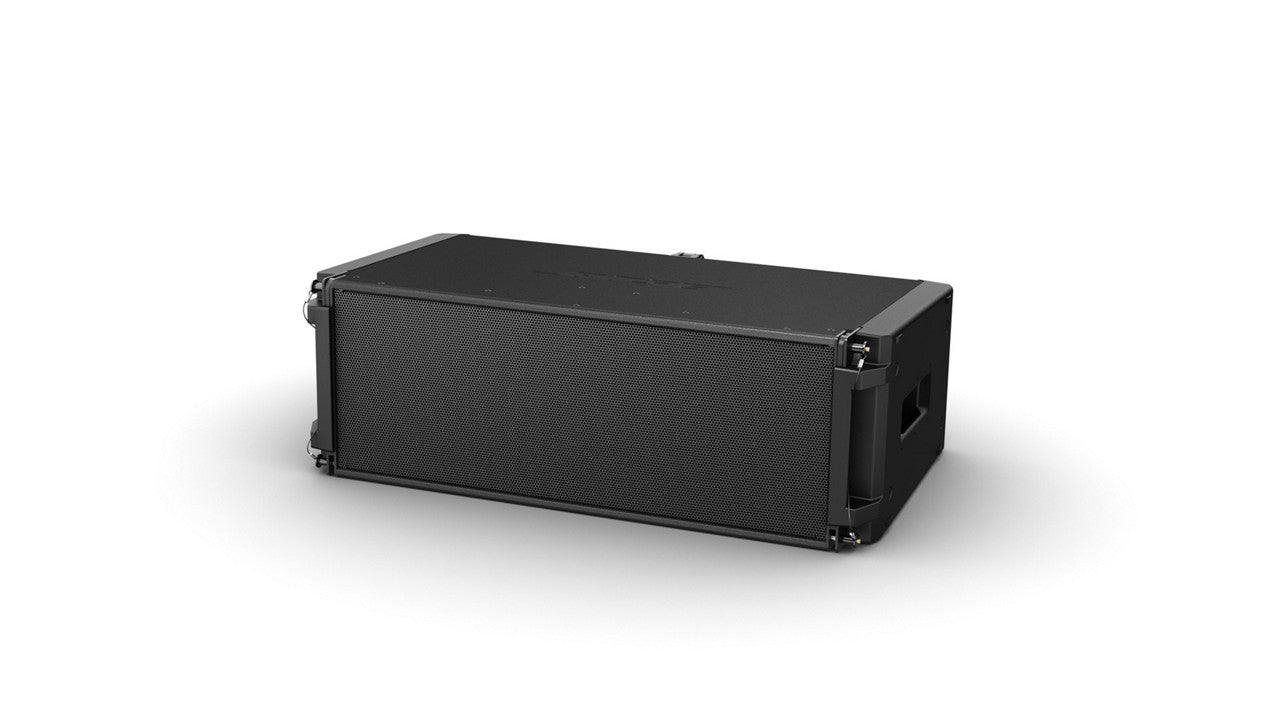

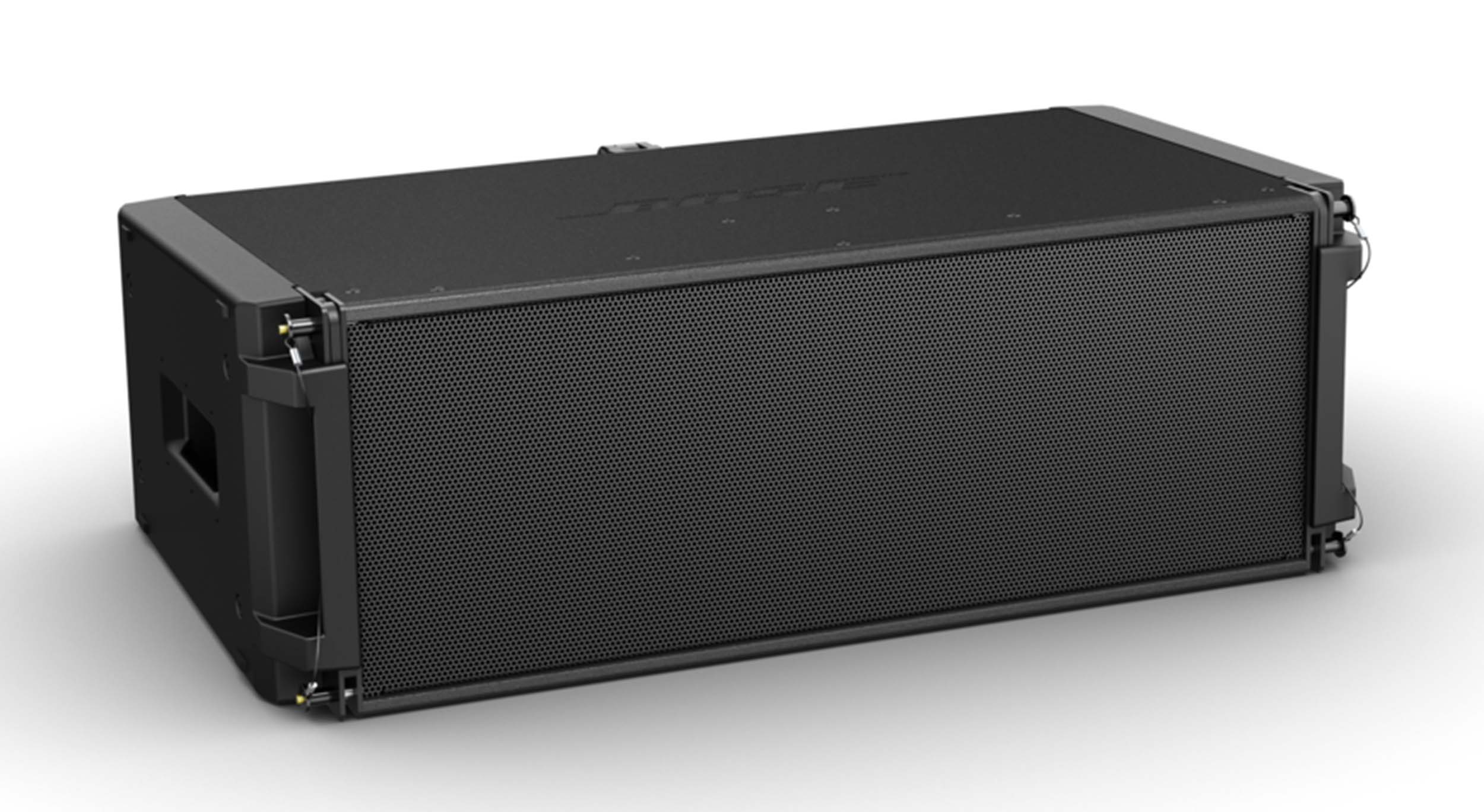

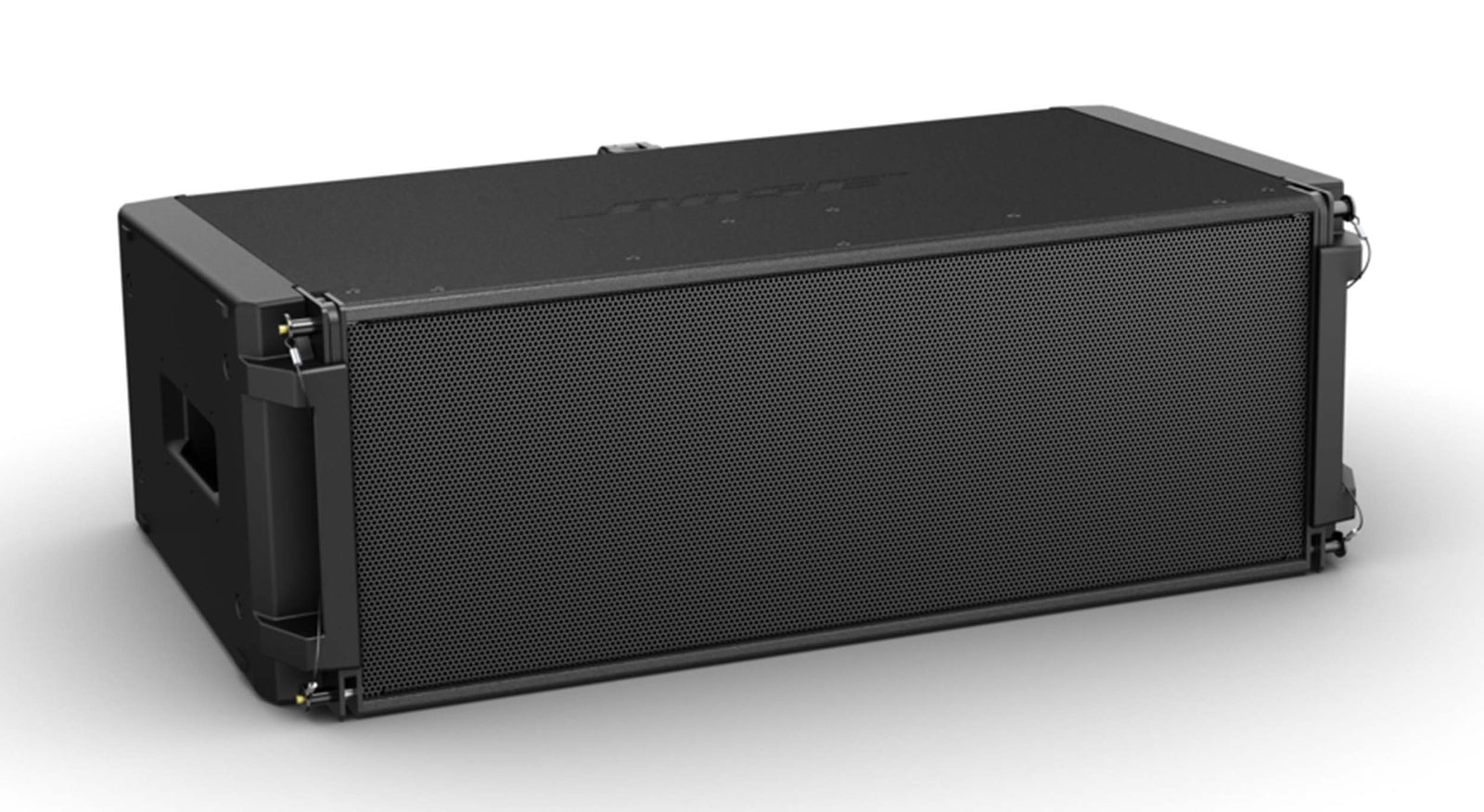

Bose SM5, Show Match DeltaQ Array Loudspeaker - Black

The Bose SM5, Show Match DeltaQ Array Loudspeaker - Black provide 5° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage with optional accessory 55° waveguides. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 - 18,000 Hz with peak array output of up to 145 dB.

DeltaQ Technology Is the Next-Generation Array Design:

Allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

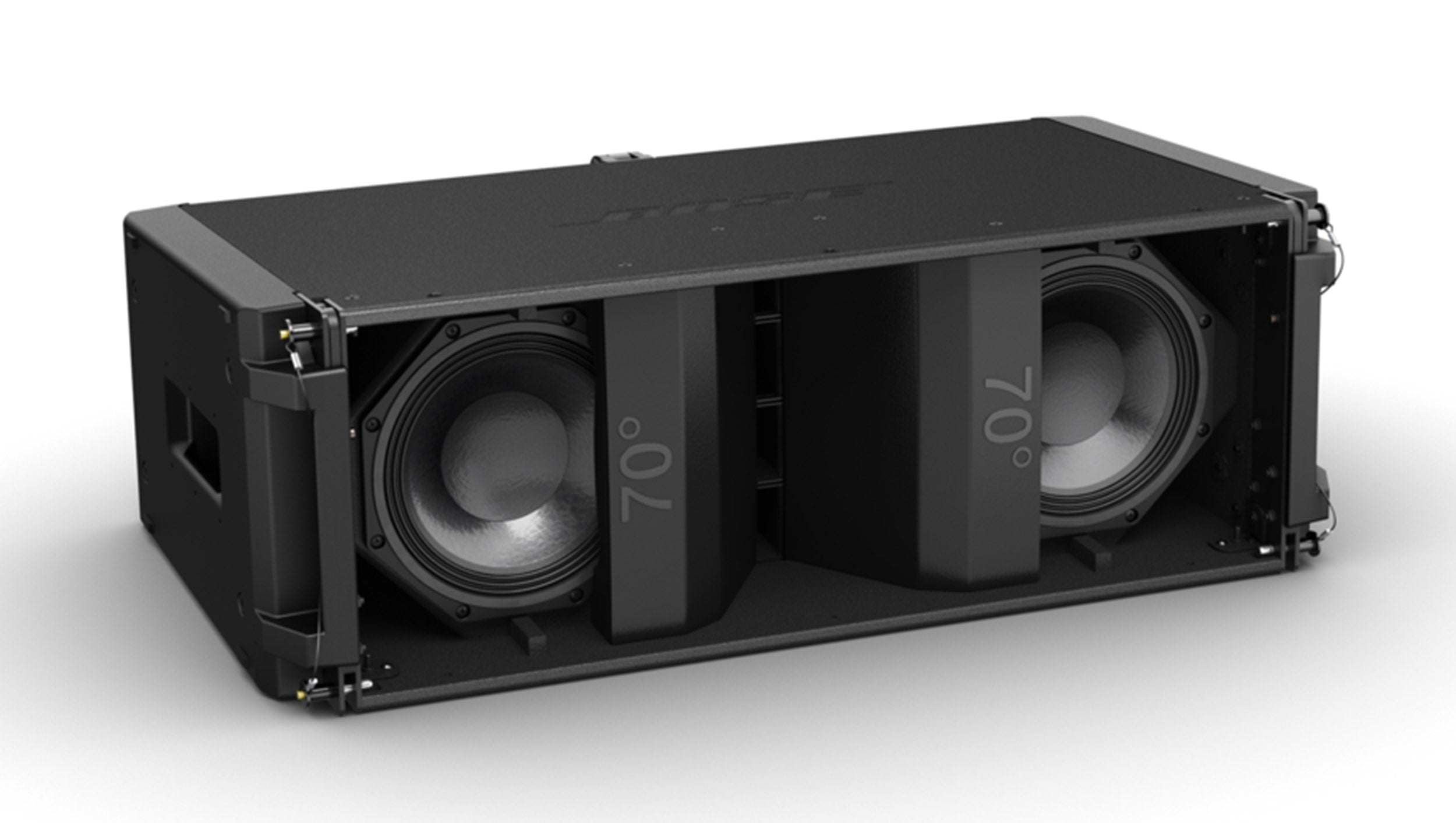

Changeable Waveguides:

Includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55°waveguides for SM5.

Compact, Portable Enclosure:

Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.

Tour-Sound Output Level:

4x Bose Professional EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.

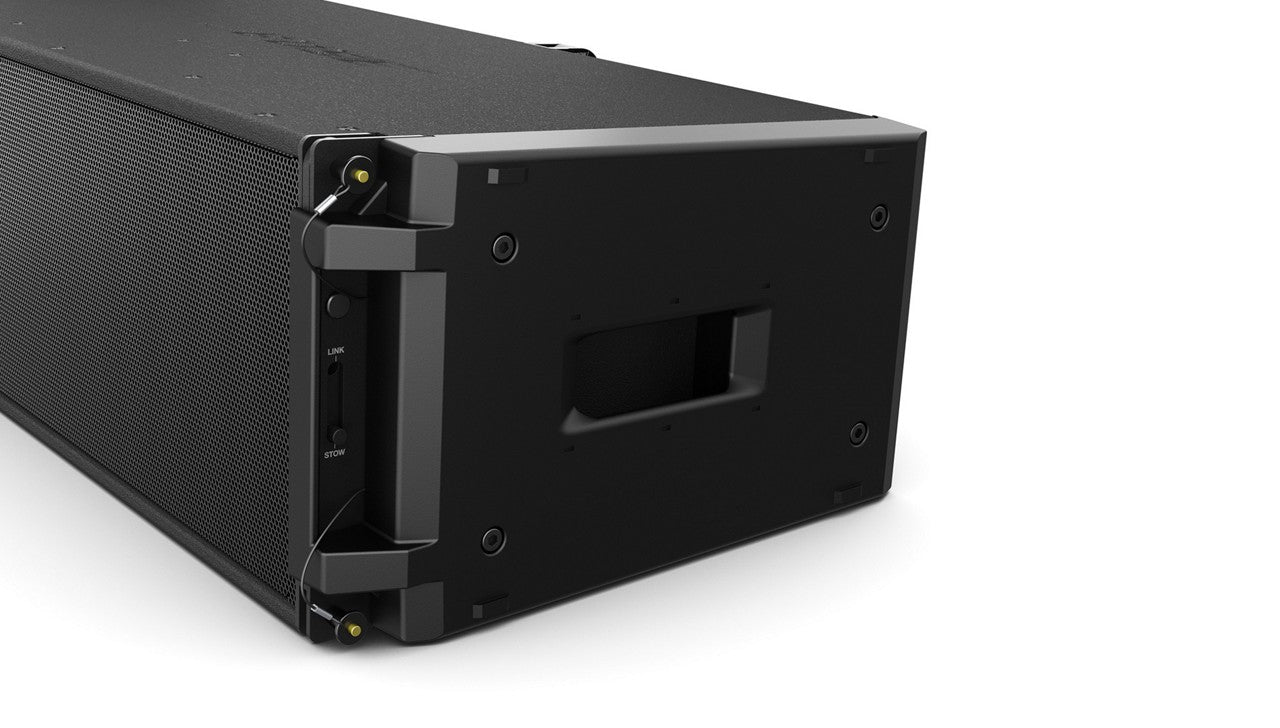

Removable Side Rigging-Guard/Handles:

Provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.

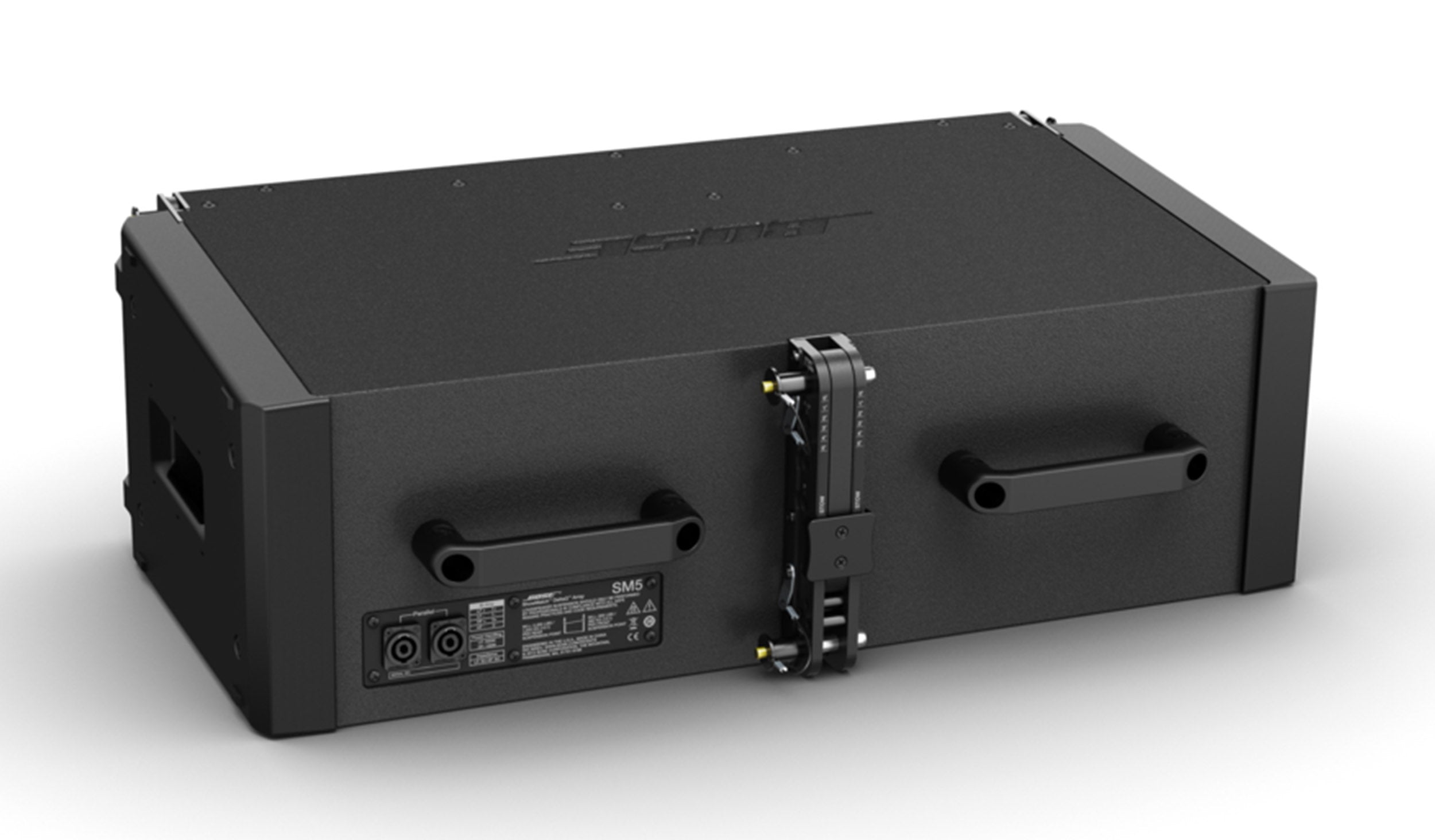

Rigging Overlap Angle Adjustment:

Only on SM5 modules, coverage overlap or “splay” can be adjusted from 0 to 5°, in 1°increments, to provide long throw distance and high SPL.

Product Specifications:

Frequency Response (-3 dB): 69 Hz - 16 kHz

Frequency Range (-10 dB): 59 Hz - 18 kHz

Nominal Coverage Pattern (H x V): 70° H x 5° V (includes waveguides for 100° H x 5° V)

Long-Term Power Handling

Low Frequency: 450 W (1800 W peak)

High Frequency: 100 W (400 W peak)

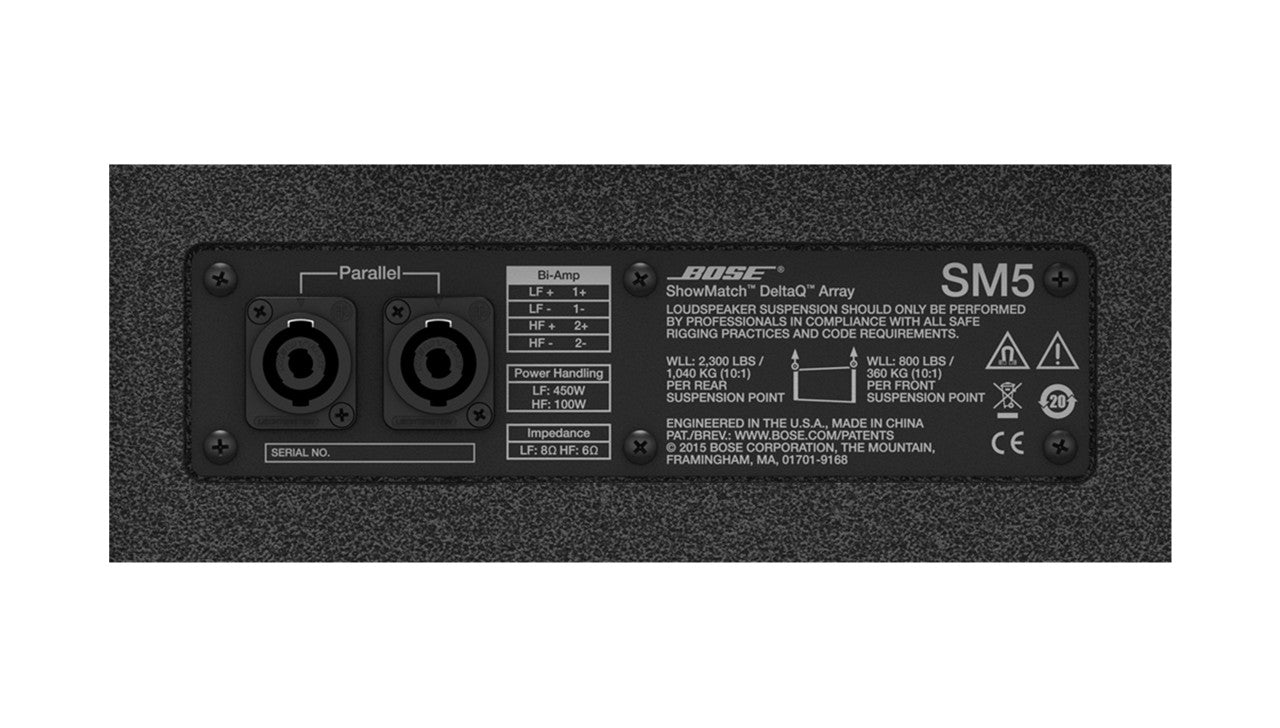

Nominal Impedance

Low Frequency: 8 Ω

High Frequency: 6 Ω

Sensitivity (SPL / 1 W @ 1 m)

Low Frequency: 94 dB

High Frequency: 107 dB

Maximum SPL @ 1 m

Low Frequency: 121 dB

High Frequency:127 dB

Calculated Maximum SPL @ 1 m, peak

Low Frequency: 127 dB

High Frequency:133 dB

Shipping Weight: 85 lbs

Shipping Dimensions (LxWxH): 32 x 26 x 21"
