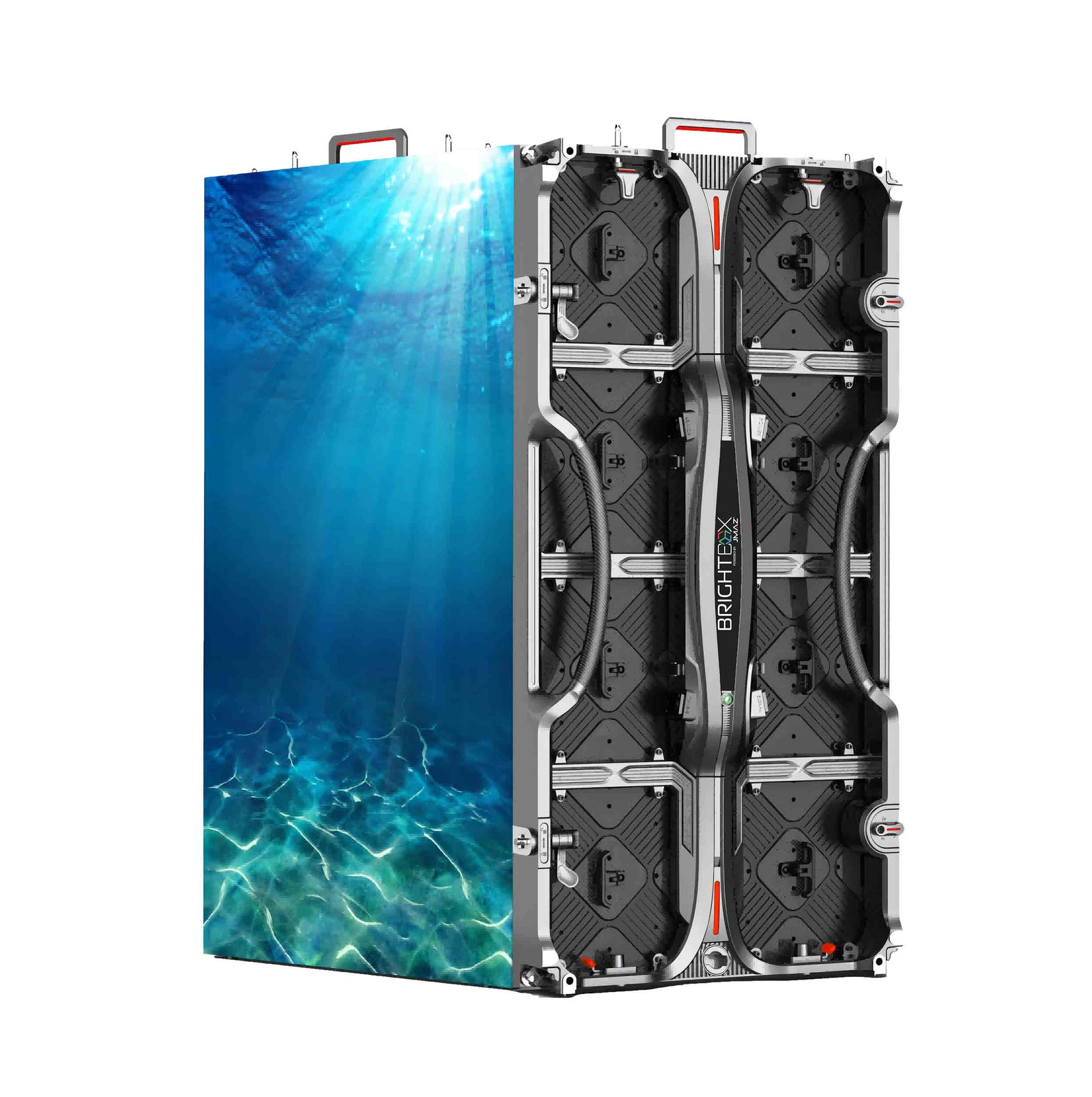

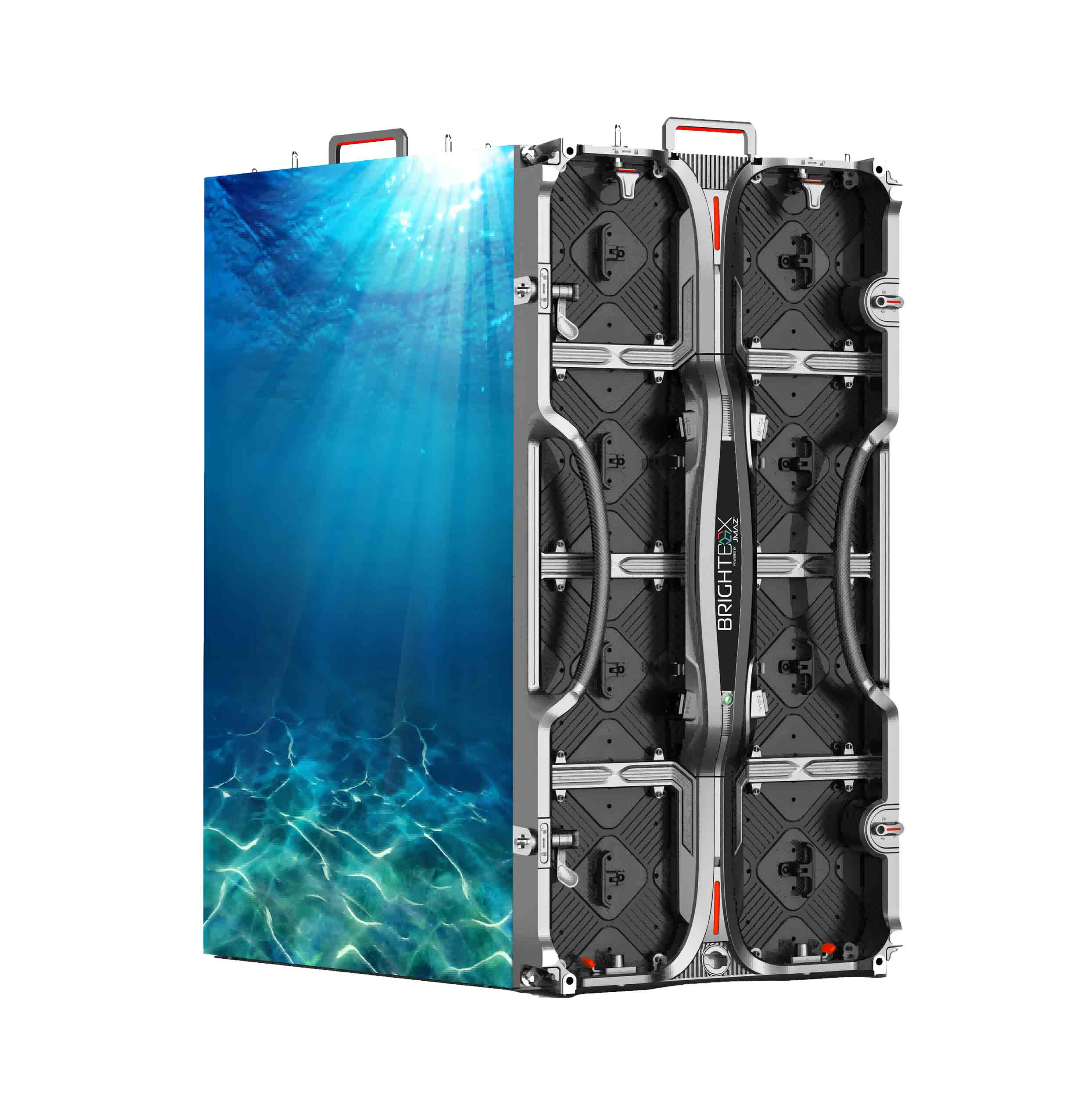

BrightBox Osiris Outdoor 3.9 LED Video Wall Panel - 500x1000

Brilliant Outdoor Visibility:

With a massive 4500 nits of brightness, this display cuts through sunlight, making it clearly visible even in brightly lit outdoor environments. This ensures your message or content is delivered effectively, regardless of the time of day.

Built to Withstand the Elements:

The LED video wall boasts an IP65 rating on the front and IP54 on the rear.  An IP rating indicates how well something resists dust and water ingress.  In this case, the IP65 rating on the front signifies exceptional protection against dust and water jets. While the IP54 rating on the rear provides protection from dust and splashing water.  This weatherproof design ensures the display operates reliably outdoors, rain or shine.

Sharp Resolution:

The display features a resolution of 128 x 256 pixels per panel.  While this might seem like a low resolution compared to your computer monitor, these panels are typically used in larger configurations to create a high-resolution image overall.  This resolution delivers clear and crisp visuals suitable for displaying text, images, and videos.

Flexible Design:

The Osiris Outdoor 3.9 offers a curvature of +/- 5 degrees. This allows for the video wall to be curved slightly inwards or outwards, creating a more immersive viewing experience conforming to uneven surfaces.

Advanced LED Technology:

The display utilizes SMD1921 LEDs.  SMD stands for surface-mounted device, a type of LED known for its compact size and high reliability.  Specific details about the SMD1921 LED are difficult to find without contacting the manufacturer, but generally these LEDs offer high brightness, good viewing angles, and long lifespans.

Smooth Performance:

With a refresh rate of 3840Hz or higher, the video wall delivers smooth, flicker-free playback of videos and animations. This high refresh rate ensures a pleasant viewing experience free of motion blur.

Easy Maintenance:

The Osiris Outdoor 3.9 provides front and back serviceability. This allows for easy access to the internal components for maintenance or repairs, minimizing downtime.

Product Specification:

Pixel Pitch: 3.9 mm

LED: SMD

Panel Dimensions: 500 x 1000 x 83 mm

Panel Weight: 30.8 lbs.

Pixel Resolution: 128 x 256

Module Quantity: 2 x 4

Curvature: +/- 5°

Brightness: 4500 Nit

Grayscale: 16 bits

Pixel Density: 1/16 65536 Dots/m2

Max Power Usage: 200W

Input Power: 600W

Lifespan: 100,000 Hours

IP Rating: IP65 (front) IP54 (rear)

Warranty: 3 Year

Serviceability: Front and Rear

Control System: Novastar

Certifications: CE, RoHS, FCC

Special Features:

Corner Protection

Swappable All-In-One Power Box

Case Pack: 6 Panels Per Flight Case
