Description

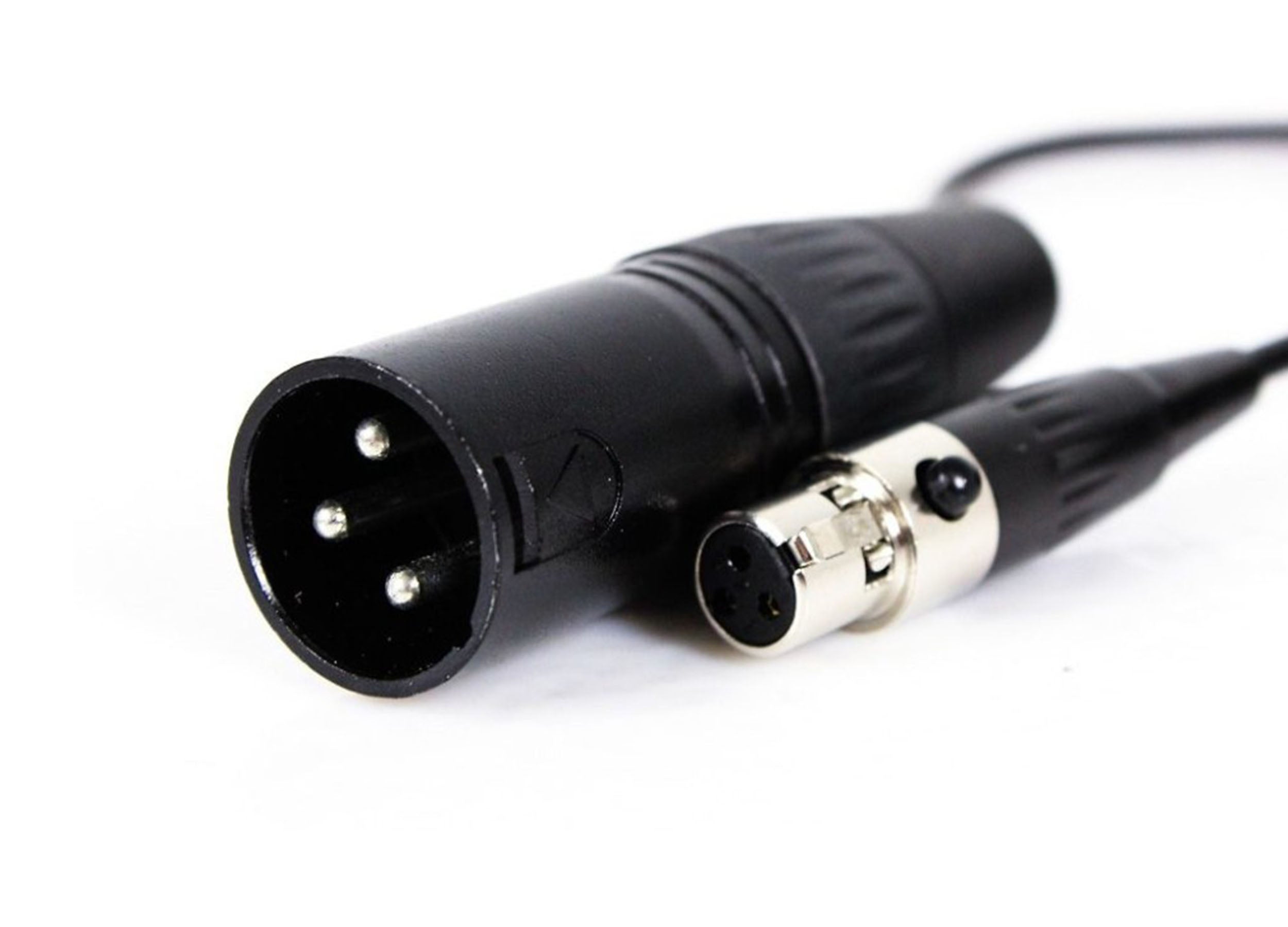

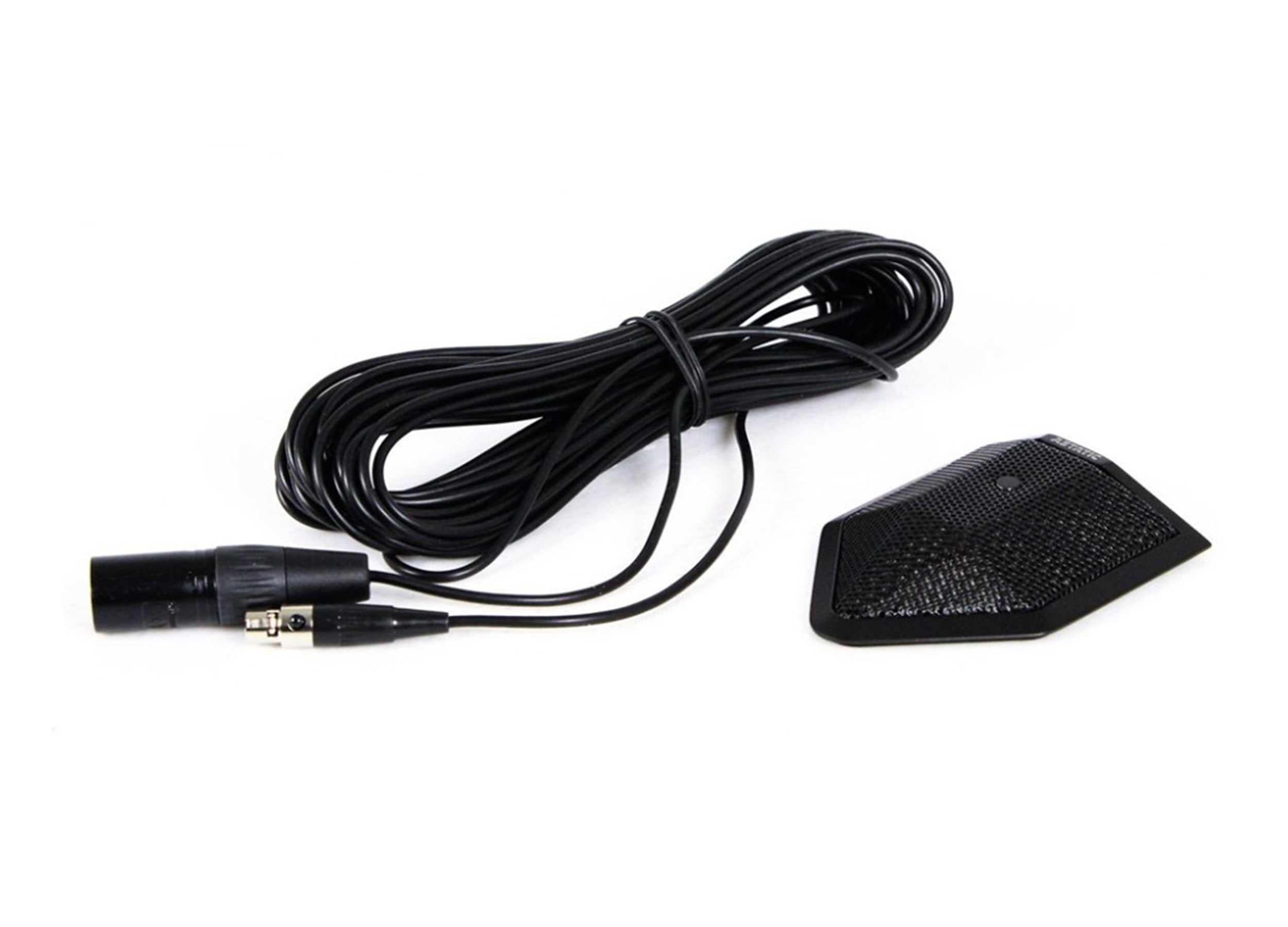

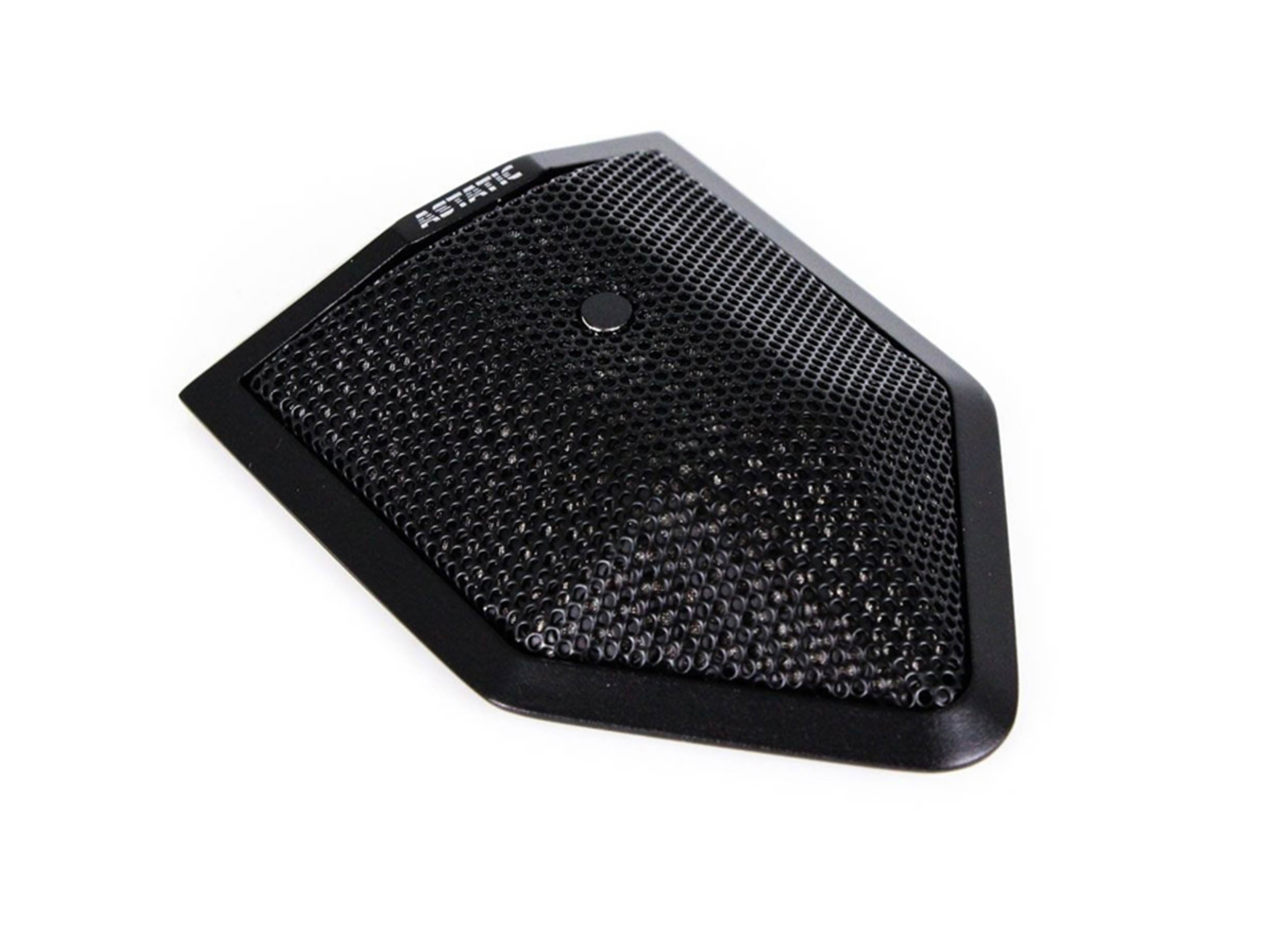

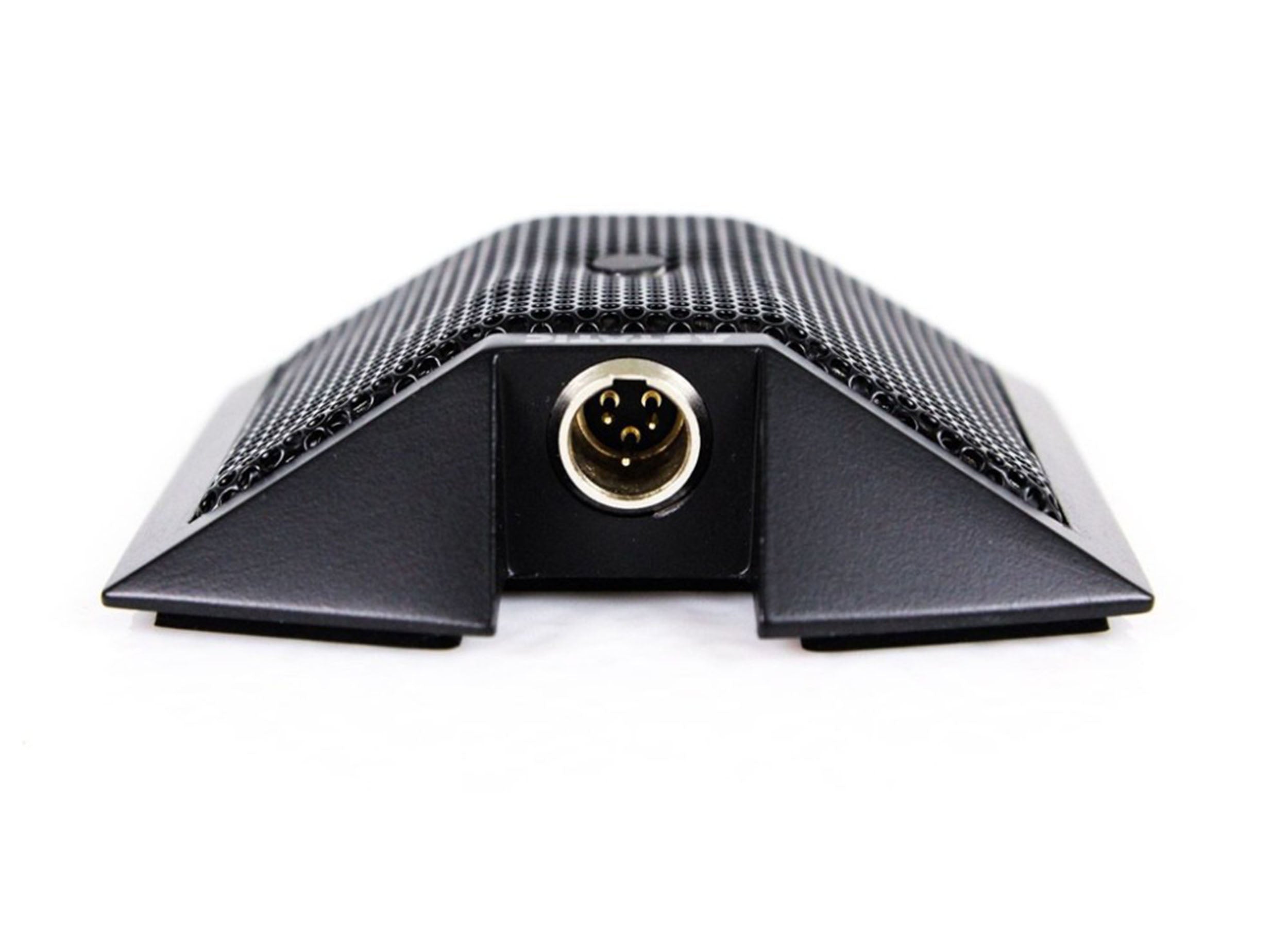

The CAD Audio 901VP is a continuously-variable polar pattern condenser boundary microphone designed for professional speech and vocal pickup. Engineered to resist interference from cell phones and two-way communication devices, it ensures clear and reliable performance. The integral 80Hz, 12dB/octave high-pass filter effectively reduces unwanted low-frequency noise for improved intelligibility. Its rugged all-metal body with a shock-absorbing rubber bottom allows stable placement on various surfaces, taking advantage of the boundary effect to deliver superior signal-to-noise ratio.The 901VP features a recessed TA3M connector and includes a 30’ detachable cable terminated with a standard 3-pin XLRM connector. With its continuously-variable polar pattern, the microphone offers unmatched flexibility—allowing installers to precisely adjust pickup patterns to suit different environments. The polar pattern can be changed remotely using CAD Audio’s VPC-1 Remote Variable Pattern Control Box or controlled electronically with compatible DSP software and the 40-360 DSP cable. Ideal for governmental, institutional, religious, and business applications, the 901VP delivers durability, clarity, and professional performance.
Product Specifications:
Polar Pattern: Cardioid / Figure-8 / Omnidirectional
Element Type: Condenser
Controls: Polar Pattern, Low Cut/HPF
Frequency Response: 100 Hz to 20 kHz
Maximum SPL: 120 dB
Analog Output: 1x TA3M/Mini-XLR 3-Pin Male
Polar Pattern: Cardioid / Figure-8 / Omnidirectional
Sound Field: Mono
Orientation: N/A to Boundary Mics
Controls: Polar Pattern, Low Cut/HPF
Filter & EQ: Low-Cut Filter: 80 Hz, 12 dB/Octave
Circuitry: Solid-State
Frequency Response: 100 Hz to 20 kHz
Maximum SPL: 120 dB
Sensitivity: -33 dBV
Equivalent Noise Level: 22 dB (A-Weighted)
Analog Output: 1x TA3M/Mini-XLR 3-Pin Male
Cable Length: 30' / 9.1 m
Operating Voltage: 12 to 48 V (Phantom Power)
Color: Black
Shipping Weight: 2 lbs.
Shipping Dimensions: 10 x 5 x 4"
