Description

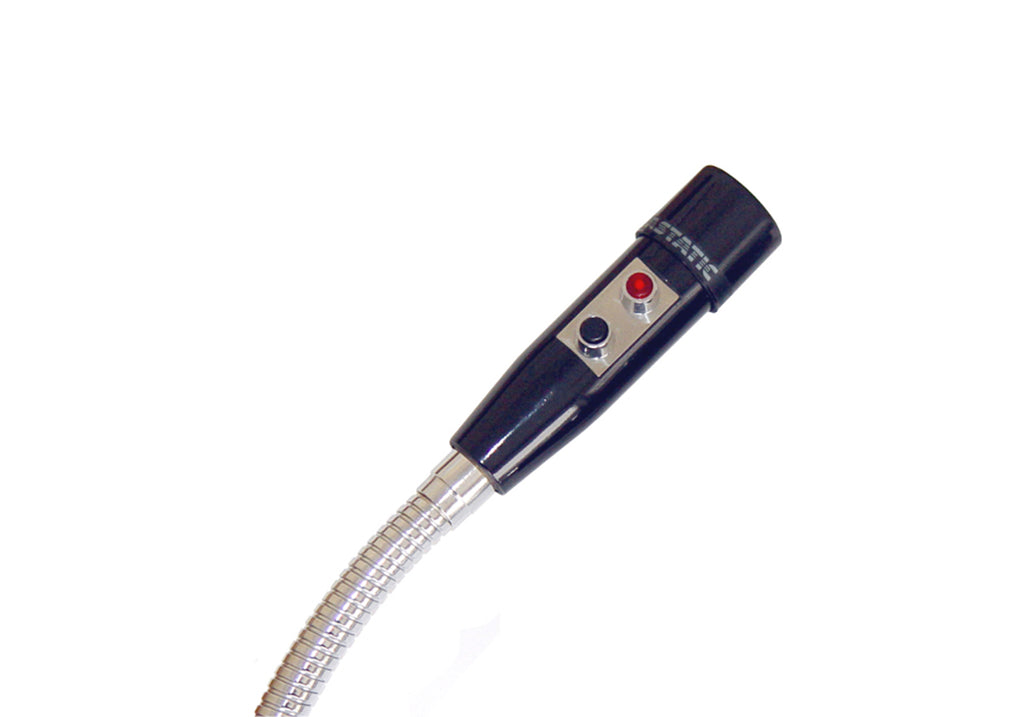

The CAD Audio AMC105-2-19 is a professional-grade dual zone omnidirectional microphone, ideal for quality sound installations requiring paging in multiple areas. It features two color-coded push-button switches for independent or combined zone paging, and an omnidirectional dynamic element for natural, highly intelligible audio. Designed for fixed or gooseneck mounting, the AMC105-2-19 offers a durable Cycolac construction, chrome-plated screen, and secure set-screw mounting. The included 7 ft cable provides both audio and control connections for flexible installation.
Product Specifications:
Microphone Type: Dynamic
Polar Pattern: Omnidirectional
Frequency Response: 50 Hz – 13 kHz
Output Level: -56 dBV (1.6 mV) @ 1 Pa
Sensitivity: 150 Hz – 10 kHz
Impedance: 400 Ohms nominal (low impedance)
Switches: Two DPDT professional sealed micro switches, color-coded for zone control
Cable: 2.1 m (7 ft) rugged jacketed, four-conductor, two-shielded, permanently attached
Finish: Black Cycolac cap and housing, chrome-plated grille
Phasing: Positive diaphragm movement produces positive voltage on red lead relative to black lead.
Cable Connections:
Red and Black to balanced line input.
White/Shield (red button) for Zone 1 relay.
Green/Shield (black button) for Zone 2 relay.
Dimensions: 1.38″ diameter × 4.56″ length
Weight: 0.44 lbs.
Shipping Weight: 1 lbs.
Shipping Dimensions (LxWxH): 16 x 8.6 x 4 Inch
