CAD GXLUBBK UHF Wireless Dual Bodypack Mic System - K Frequency Band

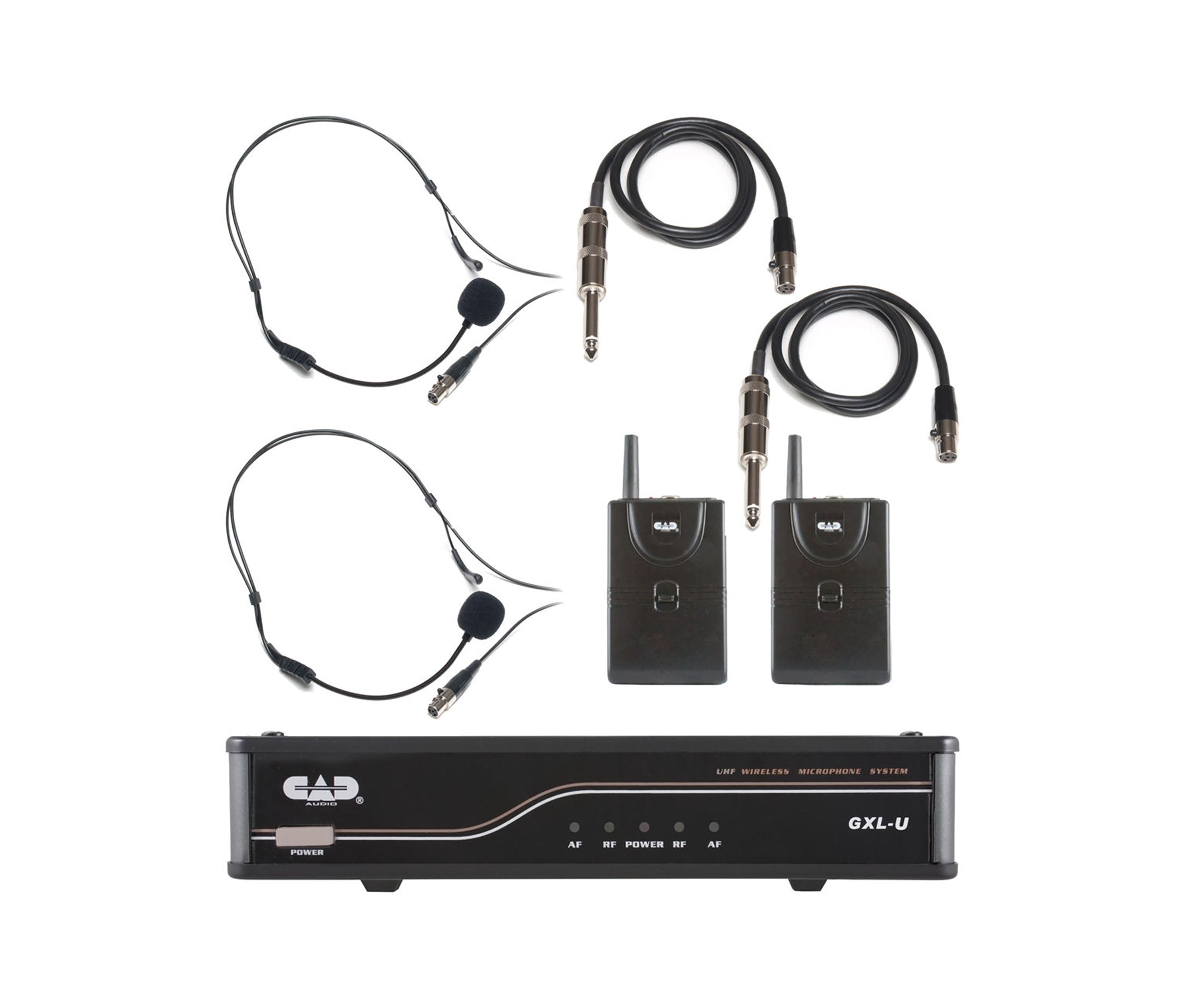

The CAD Audio GXLUBBK UHF Wireless Dual Bodypack Microphone System - K Frequency Band is intended for live sound reinforcement. The system consists of two wireless bodypack transmitters and a two-channel UHF receiver station. The bodypack transmitters feature on, off, and mute functions to conserve battery life. Both operate on two AA batteries and will last for more than 10 hours before requiring recharge or replacement. The bodypack system includes a WXGTR guitar cable and a WXHW headworn condenser microphone for a variety of wireless applications.

The dual-channel receiver features a power button and LED indicators for power, radio signal, and audio signal. The back of the device includes a DC power jack, volume controls for channels A and B, balanced XLR connectors for channels A and B, and an unbalanced 1/4" connector for channel B. The top of the device features a recessed compact dipole antenna for improved reception of the UHF spectrum.

Product Specification:

Receiver:

Maximum Output Level: 6 dBV

Output Impedance: 800 Ω

Frequency Response: 20 to 20,000 Hz

Frequency Band: UHF

Transmission Channels: K: 543.1 MHz / 554.5 MHz

RF Sensitivity: -105 dBm

Working Range: Up to 400' (122 m)

Output Connectors:

2 x balanced XLR-Male

1 x unbalanced 1/4""

Bodypack Transmitter:

Frequency Response: 40 to 20,000 Hz

Dynamic Range: >105 dBA

Maximum Input Level:

Microphone Input: -6 dBV

Instrument Input: +10 dBV

Transmitter:

RF Output: 10 mW

Modulation: FM

Power Requirements: 2 x AA alkaline or rechargeable batteries

Battery Life: >10 hours (alkaline)

Shipping Dimensions: 15.2 x 11 x 3"

Shipping Weight: 3 lbs.
