CAD GXLUHBK UHF Dual Channel Handheld & Bodypack Wireless Mic System

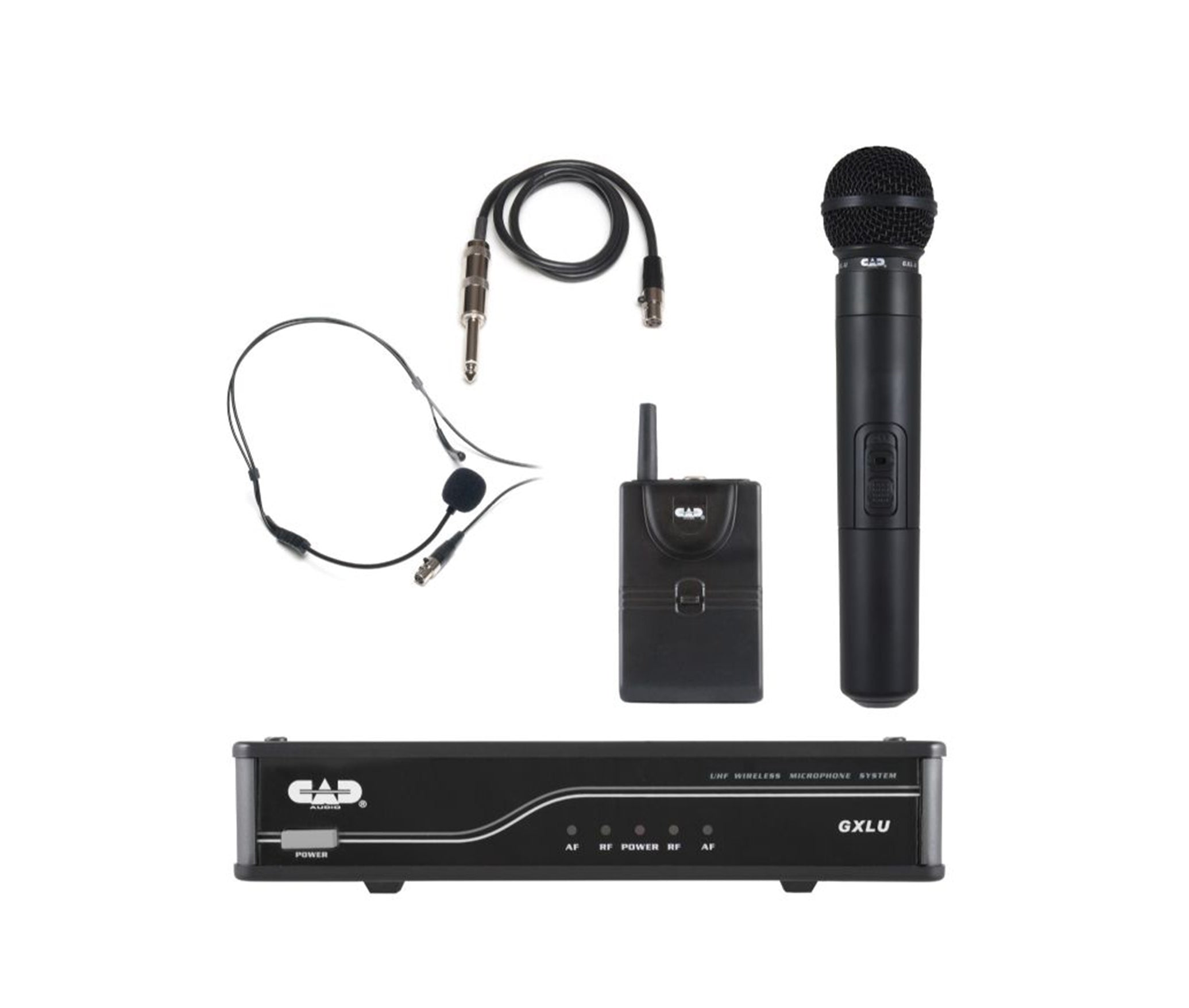

The CAD Audio GXLUHBK UHF Dual Channel Handheld and Bodypack Wireless Microphone System is intended for live sound reinforcement. The system consists of a handheld wireless dynamic microphone transmitter, a wireless bodypack transmitter, and a two-channel UHF receiver station. Both the handheld microphone and the bodypack transmitter feature on, off, and mute functions to conserve battery life. Both also operate on two AA batteries and will last for more than 10 hours before requiring recharge or replacement. The bodypack system includes a WXGTR guitar cable and a WXHW headworn condenser microphone for a variety of wireless applications.

The dual-channel receiver features a power button and LED indicators for power, radio signal, and audio signal. The back of the device includes a DC power jack, volume controls for channels A and B, balanced XLR connectors for channels A and B, and an unbalanced 1/4" connector for channel B. The top of the device features a recessed compact dipole antenna for improved reception of the UHF spectrum.

Product Specification:

Receiver:

Maximum Output Level: 6 dBV

Output Impedance: 800 Ω

Frequency Response: 20 to 20,000 Hz

Frequency Band: UHF

Transmission Channels:

K: 543.1 MHz / 554.5 MHz

L: 567.1 MHz / 593.5 MHz

RF Sensitivity: -105 dBm

Working Range: Up to 400' (122 m)

Output Connectors:

2 x balanced XLR-Male

1 x unbalanced 1/4""

Microphone: 1x Tabletop/Rack-Mountable

Operating Principle: Moving coil dynamic

Polar Pattern: Supercardioid

Frequency Response: 80 to 16,000 Hz

Sensitivity: -33 dBV (22 mV) at 1 Pa

Maximum SPL: 135 dB

Dynamic Range: >105 dBA

Transmitter Level: 10 mW

Modulation: FM

Power Requirements: 2 x AA alkaline or rechargeable battery

Bodypack Transmitter: Fixed External

Frequency Response: 40 to 20,000 Hz

Dynamic Range: >105 dBA

Maximum Input Level:

Microphone Input: -6 dBV

Instrument Input: +10 dBV

Transmitter:

RF Output: 10 mW

Modulation: FM

Power Requirements: 2 x AA alkaline or rechargeable batteries

Battery Life: > 10 hours (alkaline)

Shipping Dimensions: 15.2 x 11 x 3"

Shipping Weight: 3 lbs.
