CAD GXLVHBH VHF Wireless Combo System Handheld & Bodypack Mic - H

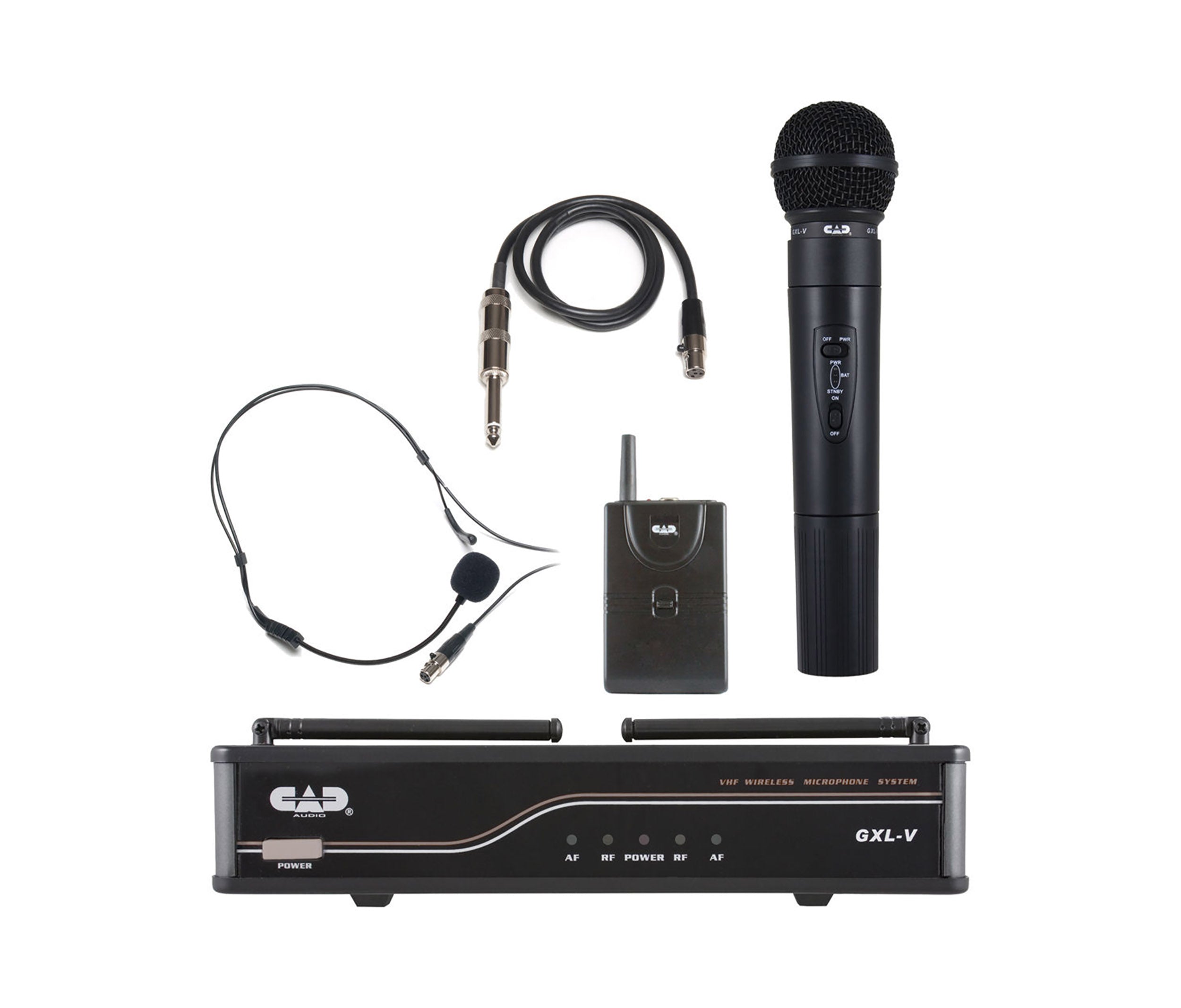

The CAD Audio GXLVHBH VHF Wireless Combo System Handheld and Bodypack Microphone - H Frequency Band is includes a RXGXLV 2-channel wireless receiver, a TXHGXLV handheld microphone transmitter, a TXBGXLV bodypack transmitter, a WXHM headworn condenser mic, and a WXGTR guitar cable adapter. It is set to CAD's H frequency band at 185.8 and 213.74 MHz.

The handheld and bodypack transmitters each have on/off and mute switches, and are powered by a single 9-volt battery for approximately 10 hours of operation. The included headworn mic and guitar cable adapter allows you to use the bodypack transmitter for vocals as well as instruments.

The receiver features 3 output options for flexibility - an XLR for channel A, a 1/4" out for channel B, and an XLR mix output of channels A and B.

Product Specifications:

Bodypack Transmitter:

Frequency Response: 50 Hz to 18 kHz

Dynamic Range: >100 dBA

Maximum Input Level:

Microphone: -6 dBV

Instrument: +10 dBV

RF Transmission:

Output: 10 mW

Modulation: FM

Power Requirements: 9 V alkaline or rechargeable battery

Battery Life: >10 hours (alkaline)

Handheld Transmitter:

Operating Principle: Moving coil dynamic

Polar Pattern: Cardioid

Frequency Response: 80 Hz to 13 kHz

Maximum SPL: 135 dB

Dynamic Range: >100 dBA

RF Transmission:

Output: 10 mW

Modulation: FM

Power Requirements: 9 V alkaline or rechargeable battery

Battery Life: >10 hours (alkaline)

Receiver:

Maximum Output Level: -6 dBV

Output Impedance: 600 Ω

Frequency Response: 50 Hz to 18 kHz

Frequency Band: VHF

RF Sensitivity: -105 dBm

Output Connectors:

2x XLRM

1x 1/4"" (6.3 mm)

Shipping Dimensions: 15.2 x 11 x 3"

Shipping Weight: 3 lbs.
