Description

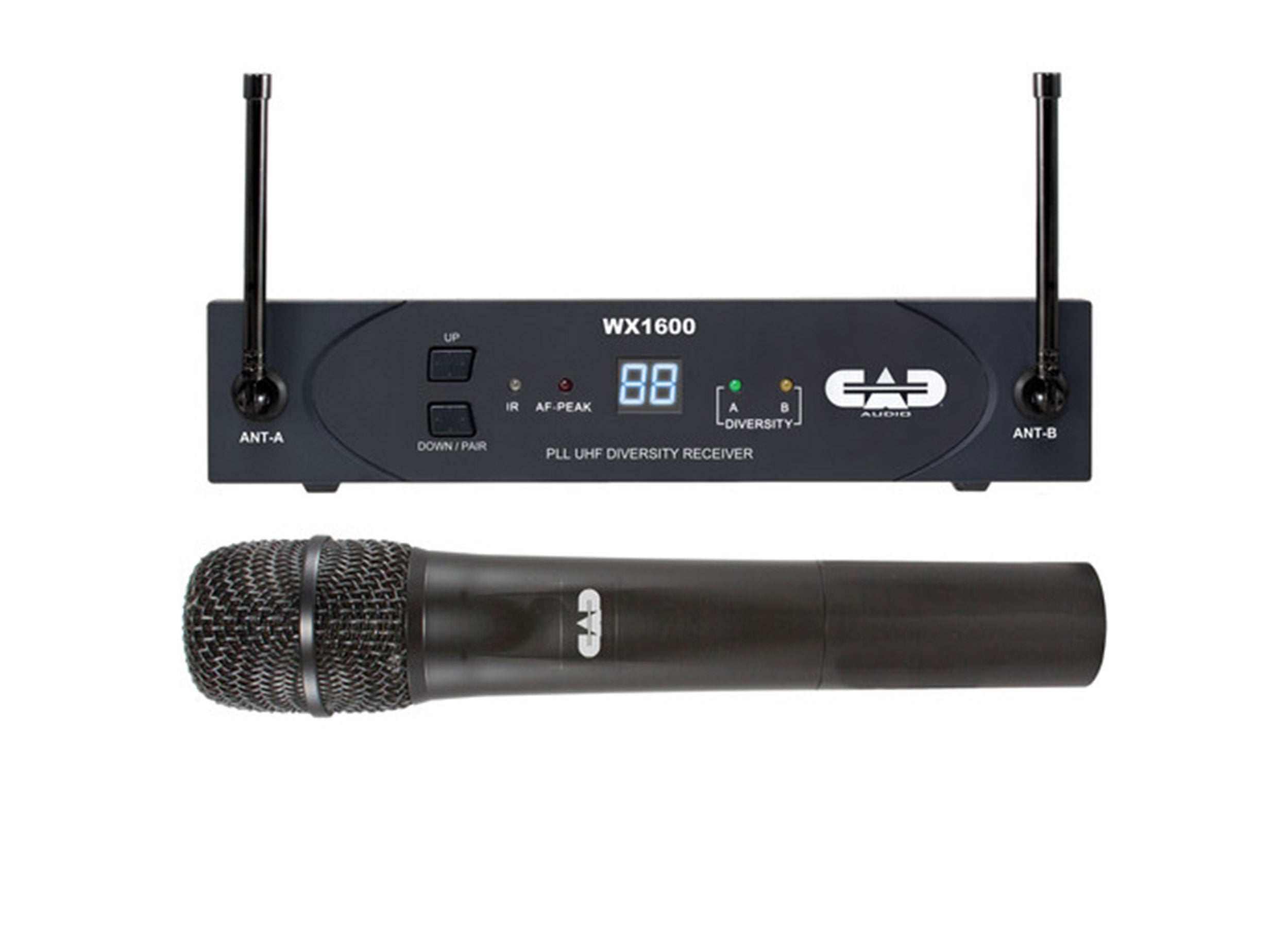

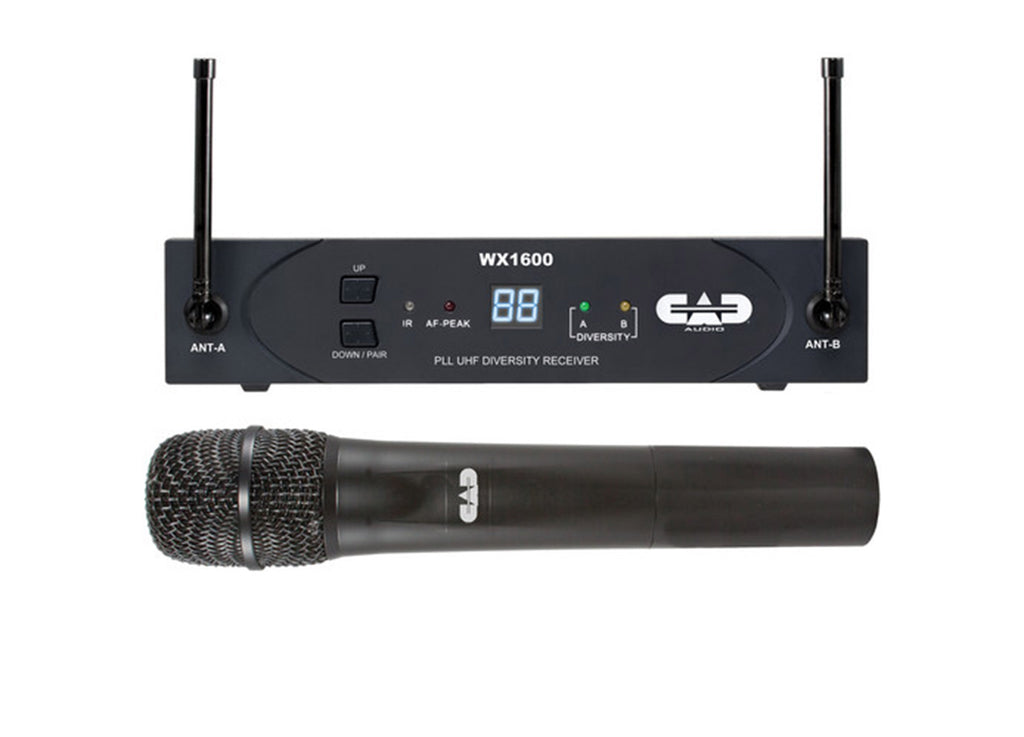

The CAD Audio WX1600G UHF 100-Channel Frequency Agile Handheld Wireless System from CAD Audio is for capturing audio. It is used in various venues for vocal and speech applications such as for singers, public speakers, stage and theater performances and more. It features a frequency response of 40Hz to 15kHz and a dynamic range of 109dB. This handheld system features 100-channel UHF frequency agile reception and offers connectivity with a minimal of multipath interference.
The WX1600 is built with Scan-Link technology to provide instantaneous and automatic channel configuration. There is an automatic code encoded squelch to help prevent and eliminate unauthorized interference. AA batteries supply over 15 hours of battery life. The transmitters have SoftTouch On and Mute switches with multicolor LED indicators to monitor mute status and battery life. The receiver is built with a metal chassis to provide a durable and shielded enclosure. This receiver features 1/4" and XLR outputs to connect to a mixer source. Rack ears and joining kit are included.
Scan-Link Technology
Features instantaneous scan of the RF environment and automatic link to the transmitter and receiver
CADLock
Provides automatic tone encoded squelch to eliminate unauthorized interference
Two Frequency Bands
Two frequency bands provide more flexibility (Band G is 542 to 564 MHz and Band F is 638 to 662 MHz)
SoftTouch Switches
Features switches with multicolor LED indicators of on/mute and low battery
Long Battery Life
AA batteries provide over 15 hours battery life
Metal Chassis
Metal chassis receiver provides a durable shielded enclosure with included rack ears for mounting
Product Specifications:
System:
Wireless Technology: Analog UHF
Diversity: Yes
RF Frequency Band: G: 542 to 564 MHz
Number of RF Channel Frequencies: 100
Max Operating Range: Not Specified by Manufacturer
Max Transmitters per Band: 1
Dynamic Range: 109 dBA
Encryption: No
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: No
Receiver:
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Fixed External (Front-Mount)
Number of Audio Channels: 1
Audio I/O:
1x XLR 3-Pin Balanced Output
1x 1/4" TS Unbalanced Output
Network I/O: No
Word Clock I/O: No
USB/Lightning Connectivity: No
Frequency Response: 40 Hz to 15 kHz
Display Backlit: LCD
Power Requirements: AC/DC Power Adapter
Transmitters:
Included Transmitters: 1x Handheld
RF Output Power: 10 mW
Antenna: Internal
Input Level: Microphone
Audio I/O: No
Bias/Plug-In & Phantom Power: N/A - Fixed-Capsule Handheld Transmitter
USB I/O: No
Muting: Mute Switch
Auto-Level/Gain: No
Frequency Response: 40 Hz to 15 kHz
Sync Method: IR
Display: Single-LED Indicators Only
Microphones:
Microphone Type: 1x Handheld
Polar Pattern: Cardioid
Color: Black
Power:
Transmitter Battery Type: 2x AA (Not Included)
Transmitter Battery Life: 15 Hours
AC/DC Power Adapter: Included
Environmental Resistance: No
