Description

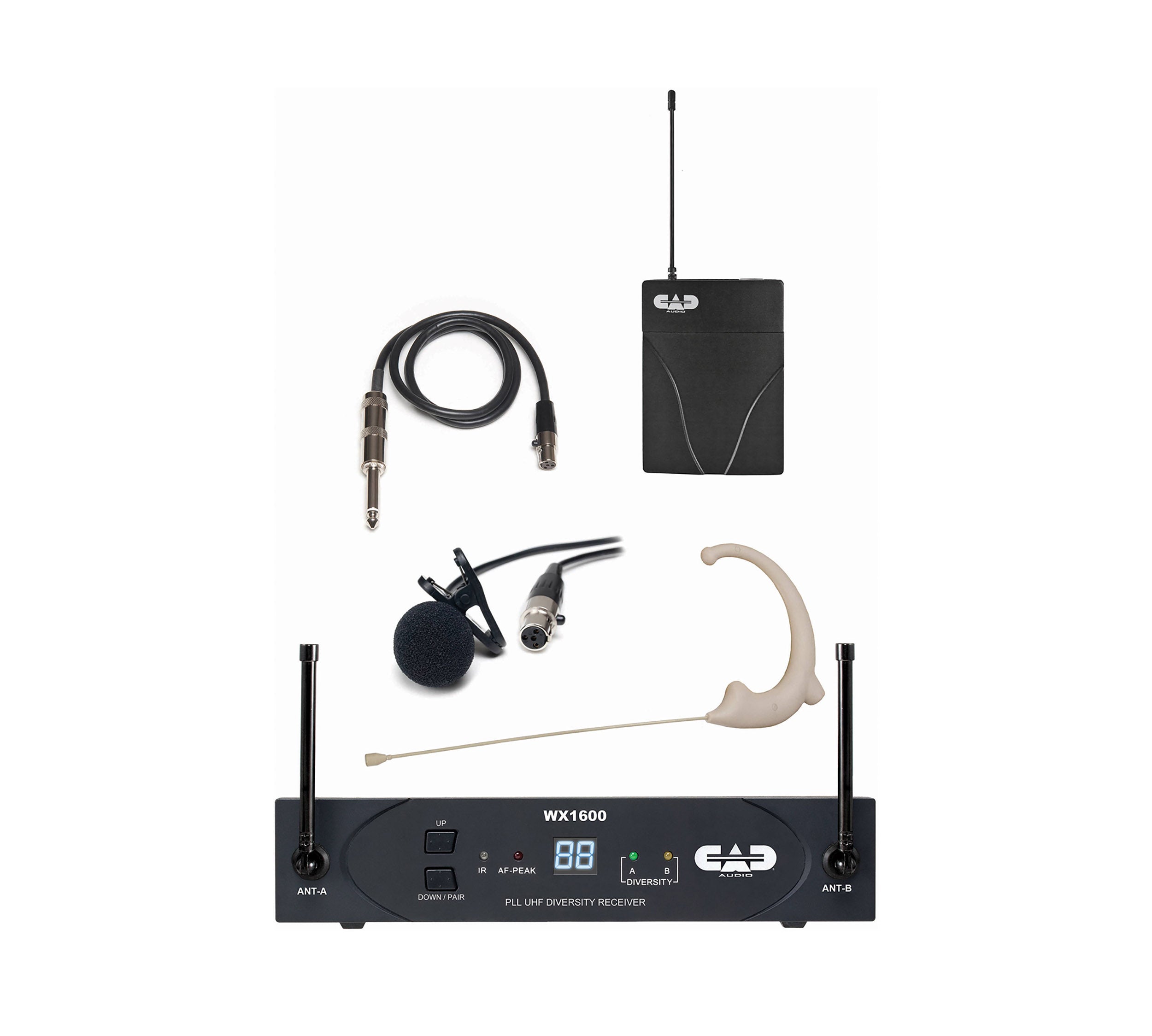

The CAD Audio StageSelect WX1610 is a versatile wireless UHF bodypack microphone system designed for vocal, speech, and instrumental use. It is used in various venues for vocal and speech applications such as for singers, public speakers, stage and theater performances, and more. It features a frequency response of 40 Hz to 15 kHz and a dynamic range of 109 dB. This wireless bodypack system features 100-channel UHF frequency-agile diversity reception and offers connectivity with a minimal of multipath interference.

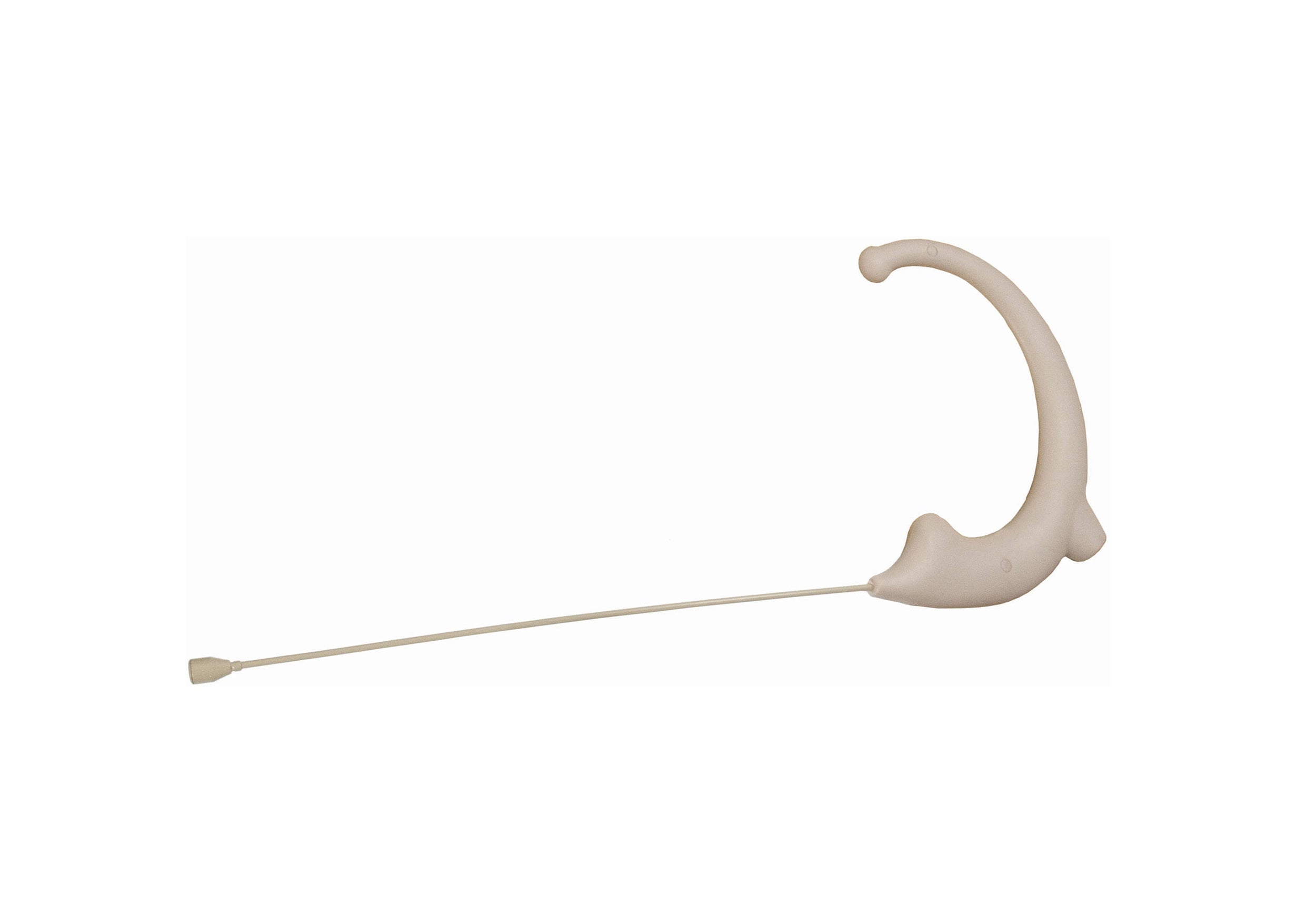

The Equitek E19 ergonomic and behind the ear microphone is designed with a replaceable cable and provides intelligibility in speech. It also provides natural and accurate reproduction in the most demanding environments such as in houses of worship, presenters or theater performers.

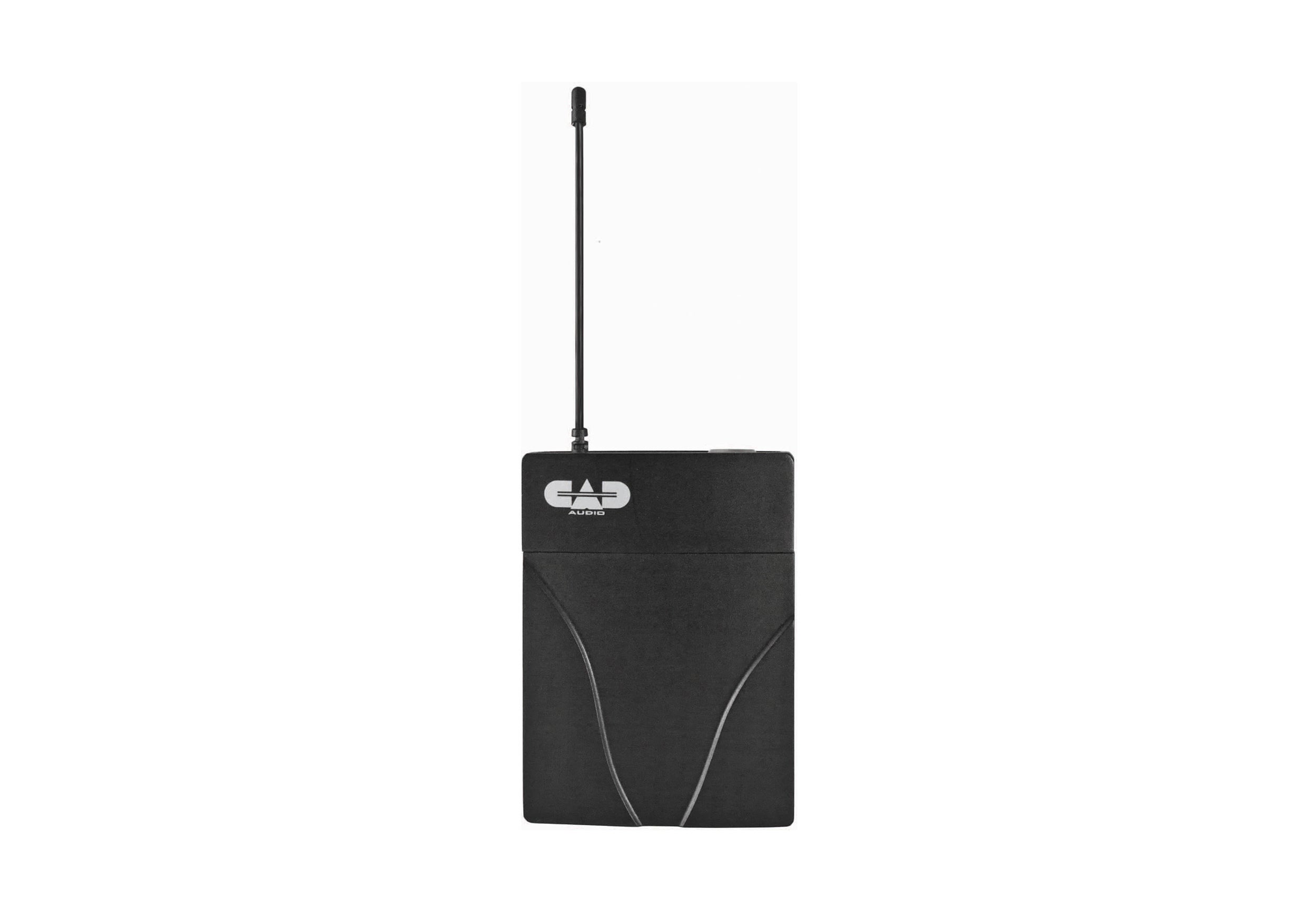

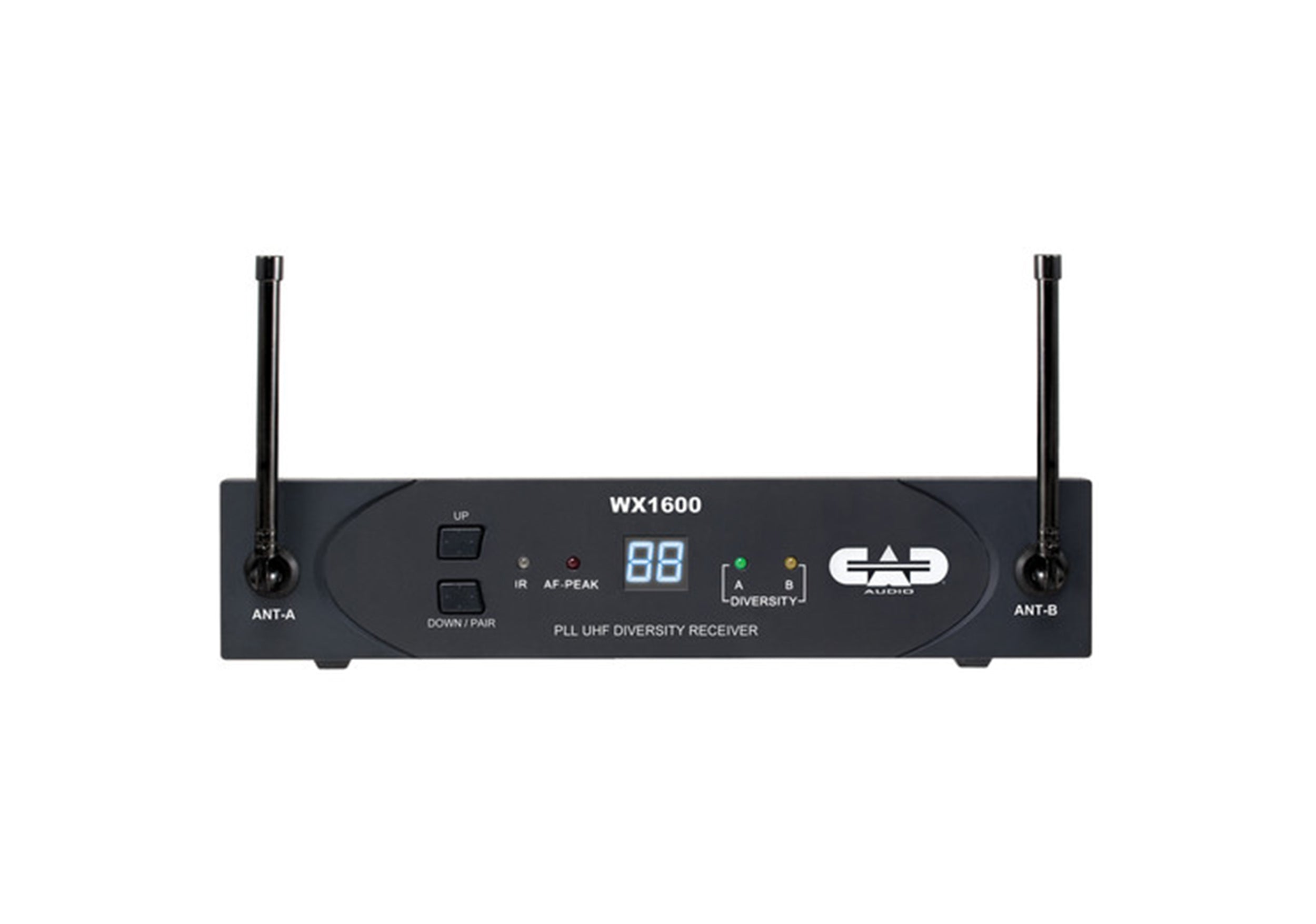

The WX1610 system is built with ScanLink technology to provide instantaneous and automatic channel configuration. There is an automatic code encoded squelch to help prevent and eliminate unauthorized interference. AA batteries supply over 15 hours of battery life. The bodypack transmitter has SoftTouch On and Mute switches with multi-color LED indicators to monitor mute status and battery life. The receiver is built with a metal chassis to provide a durable and shielded enclosure. It features 1/4" and XLR outputs to connect to a mixer source. A 1/4" to TA4 guitar cable for the bodypack, rack ears and joining kit are also included.
Diversity Operation
Receiver features 2 antennas to scan for the strongest signal to minimize multipath interference
ScanLink Technology
Features instantaneous scan of the RF environment and automatic link to the transmitter and receiver
CADLock
Provides automatic tone encoded squelch to eliminate unauthorized interference
Two Frequency Bands
The two frequency bands provide more flexibility - Band G is 542 to 564 MHz and Band F is 638 to 662 MHz
SoftTouch Switches
Features switches with multicolor LED indicators of on/Mute and Low Battery
Long Battery Life
AA batteries provide over 15 hours battery life
Metal Chassis
Metal chassis receiver provides a durable shielded enclosure with included rack ears for mounting.
Product Specification:
Wireless Technology: Analog UHF
Diversity: Yes
RF Frequency Band: G: 542 to 564 MHz
Number of RF Channel Frequencies: 100
Max Transmitters per Band: 1
Encryption: No
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: No
Receiver:
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Fixed External (Front-Mount)
Number of Audio Channels: 1
Network I/O: No
Word Clock I/O: No
USB/Lightning Connectivity: No
Frequency Response: 40 Hz to 15 kHz
Display: Backlit LCD
Power Requirements: AC/DC Power Adapter
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power: 10 mW
Antenna: Fixed External
Input Level: Microphone / Instrument
Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
USB I/O: No
Muting: Mute Switch
Auto-Level/Gain: No
Frequency Response: 40 Hz to 15 kHz
Sync Method: IR
Display: Single-LED Indicators Only
Microphones:
Microphone Type:
1x Lavalier
1x Earset
Output Connector: 1x TA4F/Mini-XLR 4-Pin Female
Color: Black
Power:
Transmitter Battery Type: 2x AA (Not Included)
Transmitter Battery Life: 15 Hours
AC/DC Power Adapter: Included
Physical:
Environmental Resistance: No
Shipping Dimensions: 14.7 x 12.4 x 3.1"
Shipping Weight: 4.15 lbs.
